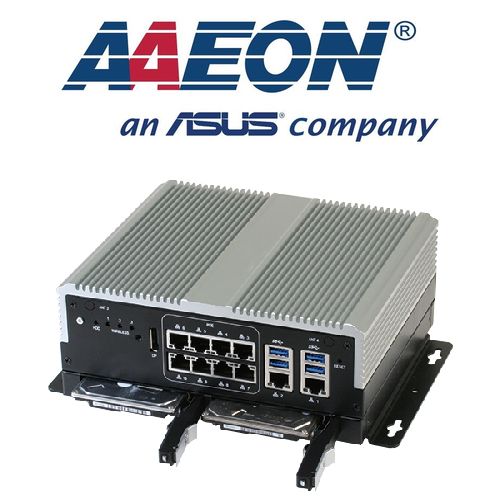

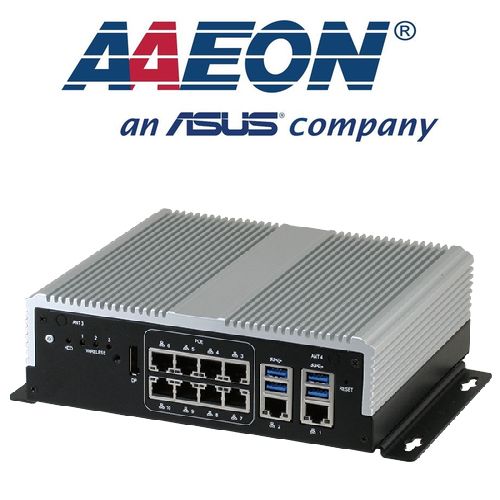

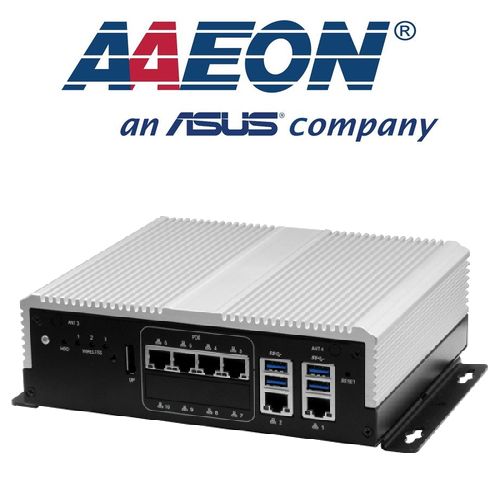

In-Vehicle NVR AAEON VPC-5600S
Overview
- Fanless In-Vehicle Network Video Recorder with 7th Generation Intel® Processor
- The VPC-5600S recently picked up coveted COMPUTEX d&i and Taiwan Excellence Awards, and AAEON network security division product manager Josh Chen has labelled it “the perfect surveillance system.” AAEON is currently the only company to offer NVRs featuring eight PoE ports with individual LAN chips. With this hardware specification and the device’s 7th Generation Intel® Core™ processor, users will receive the highest quality images from multiple sources without any danger of data loss. With an additional four USB 3.2 Gen 1 ports and two LAN ports, the VPC-5600S can support up to 14 high-grade surveillance cameras.
- The VPC-5600S’s smart PoE functionality also gives users an edge when it comes to saving time and money on maintenance. If any camera or sensor connected to the system isn’t working as it should, it can be remotely checked and rebooted. Even if peripheral devices stop working altogether, the rest of the network will continue running smoothly. Additionally, since voltage and current information from each connected sensor can be sent to the cloud for analysis, the system also serves as an effective IoT gateway device.
- This rugged, fanless device has a guaranteed operational temperature range of -40oC to 85oC and a DC input range of 10V to 36V. It features comprehensive storage options including two 2.5” HDD/SSD Bays and an mSATA slot, and easy-to-fit extension modules allow users to quickly and cheaply add additional display or COM ports. Onboard GPS and GLONASS along with CAN bus support and a vibration-resistant design also make this system ideal for in-vehicle applications.
Features
- In-Vehicle Network Video Recorder Platform
- Fanless System
- 260-pin DDR4 2133 MHz SODIMM x 2, up to 32 GB
- Intel® Integrated Graphics Engine Supports Two Display by HDMI x 1, DP x 1
- Realtek® Ethernet Connection x 6 Ports (including 4 x PoE Ports). 8 x PoE Ports support is project based
- Mini-PCIe Socket x 3 (Full-size x 2 & Half-size x 1), mSATA Slot x 1 (Optional)
- Built-in CAN 2.0B. Optional OBDII Function (SAE J1939/J1708) (UART Interface)
- E-Mark Certified
Specifications [VPC-5600S]
| SYSTEM | |
| Form Factor | In-Vehicle NVR |
| processor | Intel® 7th Gen. Core™ i3/i5/i7 Processor (Default: i3-7100U; Project base: i5-7300U, i7-7600U) |
| Chipset | — |
| Main Memory | Up to 32GB, DDR4 260-pin SODIMM |
| Display | HDMI x 1, DP x 1 |
| Ethernet | LAN x 2 + 4 PoE Ports (Up to 8 PoE ports), RTL8111E 10/100/1000 Base |
| PoE Ethernet Port | 4 ports (Max. 8 ports), sharing 60W of power budget for every four PoE ports. |
| RAID Support | 0/1 |
| Expansion Slot | Mini-Card slot x 3 (USB2.0 x 2 + PCIe & USB 2.0 x 1) Built-in CAN 2.0B x 1 |
| GPS | On board (GPS/GLONASS), G Sensor |

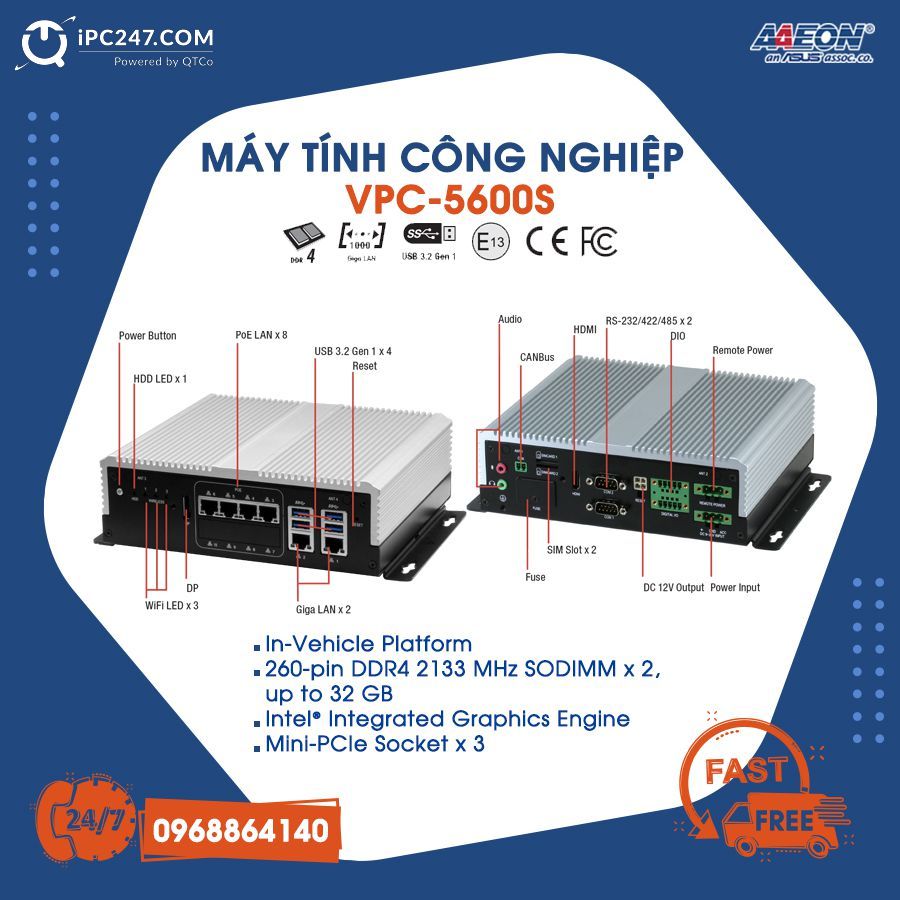

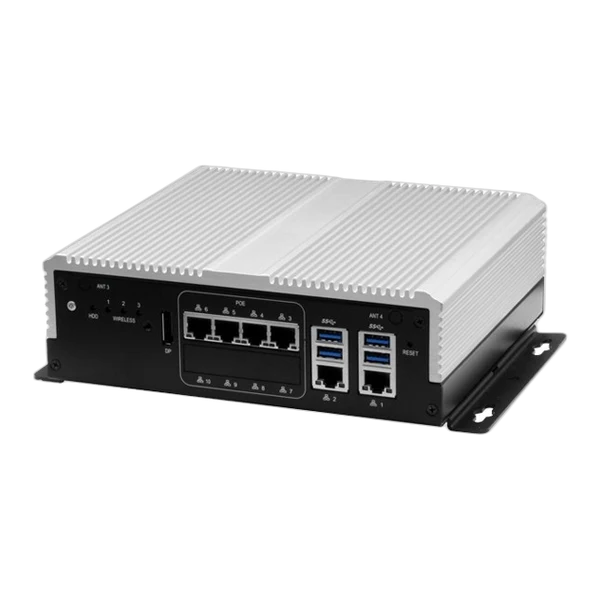

| Front I/O Panel | Power Button x 1 3G/4G/WIFI LED x 3 USB 3.2 Gen 1 x 4 GbE port (RJ-45) x 2 PoE LAN x 4 (IEEE 802.3 at/af), Max. 8 ports DP x 1 Reset Button x 1 |

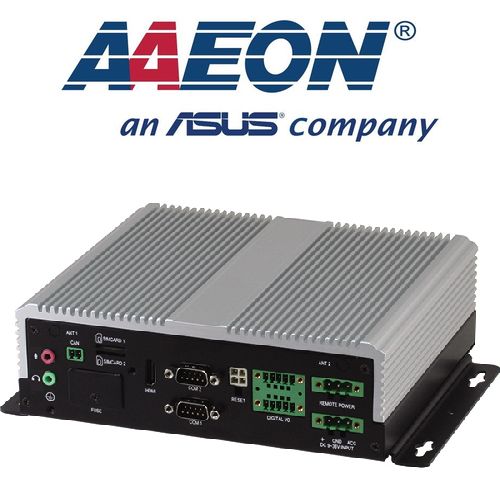

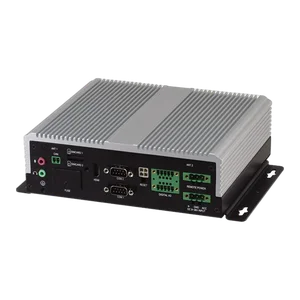

| Rear I/O Panel | DC-In power x 1 Remote Power x 1 8-bit DIO x 1, 4-ch digital input (Wet/dry contact with Isolation Protection 3,000 VDC) , 4-ch digital output (Compatible 5 V/TTL, 31 mA max. per channel) DC 12V/1A Output x 1 RS-232/422/485 x 2 HDMI x 1 CanBus connector x 1, Audio Line-out x 1, Mic-In x 1 SIM slot x 2 |
| STORAGE | |
| HDD | 2.5” SSD x 2 |
| CF/CFast/mSATA | mSATA Slot x 1 (If mSATA x 1 used, then only one SATA available) |
| ENVIRONMENTAL | |
| Operating Temperature | -4°F ~ 158°F (-20°C ~ 70°C); Project base, -40°C ~ 85°C |
| Storage Temperature | -40°F ~ 185°F (-40°C ~ 85°C) |
| Storage Humidity | 10%~80% @40°C, non-condensing |
| Vibration/Shock | MIL-STD-810G |
| Certification | CE & FCC Class A, EMARK |
| POWER REQUIREMENT | |
| Power Supply | DC 10-36V, with ignition pin |
| MECHANICAL | |
| Removable HDD Tray | Hot swappable 2.5’’ SSD x 2 (Project base) via extension module |
| Internal System HDD Bay | 2.5″ HDD x 2 |
| Dimension | 6.85’’ x 7.87” x 2.52” (174mm x 200mm x 64mm) |
| Gross Weight | 5.7 lb (2.6 kg) |
Ordering Information [VPC-5600S]
| Part Number | VPC-5600S-I43-A10-W1 |
|---|---|
| CHIPSET | Intel® i3-7100U |
| RAM | 260-pin SODIMM |
| COOLER | Fanless |
| STORAGE | Supporting 2.5” SSD x 2 (Optional SKU for supporting 2.5’’ SSD x 1, mSATA x 1) |
| RAID SUPPORT | |
| DISPLAY | DP x 1, HDMI x 1 |
| LAN | GbE x 2 |
| POE | 4 Ports |
| USB | USB 3.2 Gen 1 x 4 |
| RS-232 | — |
| RS-232/422/485 | 2 |
| EXPANSION SLOT | Mini-Card x 3 Built-in CAN2.0B x 1 |
| FORM FACTOR | Desktop |
| POWER | DC 10-36V |
Packing List
- Wall mount bracket
- SATA cable x 2
- Power cable x 2 (for SATA)
- VPC-5600S
Optional Accessories
| 1255901204 | 120W Adapter, AC Input, 19V DC for VPC Series |
| 9741909A00 | WiFi Module Kit, 802.11 a/b/g/n + BT 4.0, (Bointec DPE-909AA), with Cable & Antenna |
| 17599RFA0B | WiFi Antenna |
| 1700010252 | WiFi Coaxial Cable |
| 978966660G | GPS Antenna |
| 9741UC20G1 | 3G Module Kit, USB Interface, Quectel UC20-G w/ Cable & Antenna |
| 17599RFA09 | 3G Antenna |
| 1700010255 | 3G Coaxial Cable |
| 9741EC25E0 | PCIe Mini Card,4G LTE Module kit for Europe & Asia w/ Cable & Antenna, Quectel EC25-E |
| 1702031803 | POWER CORD.3P-250V 10A 180D.1.8M.VDE.FAN-JET.YP-22/YC-12 (Euro) |
| 1702031802 | POWER CORD.3P-125V 10A 180D.1.8M.USA.FANJET.YP12/YC-12 (USA) |
| 170203180E | Power cord. 3P. 125V/7A. 1. 8M. PSE YP12/YC12 Certificat (JPN) |
