Máy tính công nghiệp AAEON AMC-262
Overview
- 6-Slot Wallmount Chassis, Full-Size/ Half-Size Cards Support
- The 6-slot AMC-262 wallmount chassis sports one 5.25″ and one 3.5″ external drive bays, two internal drive bays, and support for the standard PS2 power supply.
Applications
- Industrial Automation
- Factory Automation
- Control Box
- Banking machine
- ITS/ Transportation
- HMI
- Workstation
Features
- 6-Slot Wallmount Chassis

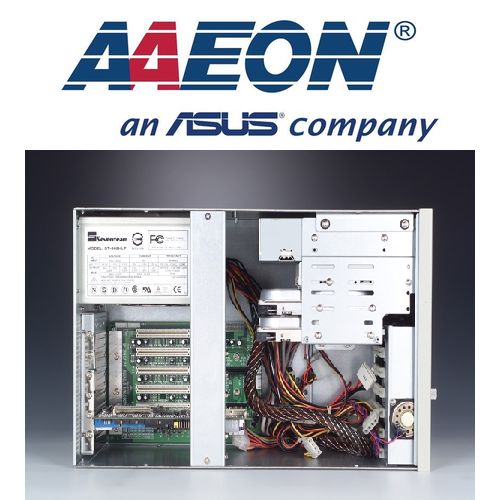

- 6-Slot ISA/ PICMG Bus Passive Backplanes
- Standard PS2 Power Supply
- External 3.5” Drive Bay x 1
- External 5.25” Drive Bay x 1
- Internal 3.5” Drive Bay x 2
- USB2.0 x 2 On Front Panel
Specifications [AMC-262]
| SYSTEM | |
| Construction | Heavy-duty steel |

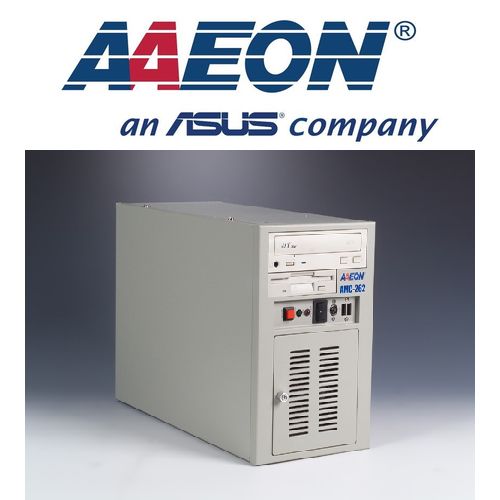

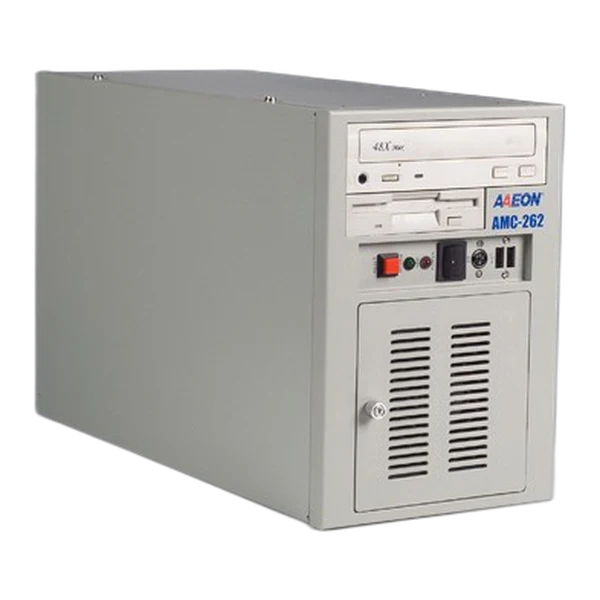

| Front Panel | Power ON/OFF Switch x 1 Reset Button x 1 Power LED x 1 HDD Active LED x 1 PS/2 Keyboard Connector x 1 USB Port x 2 |

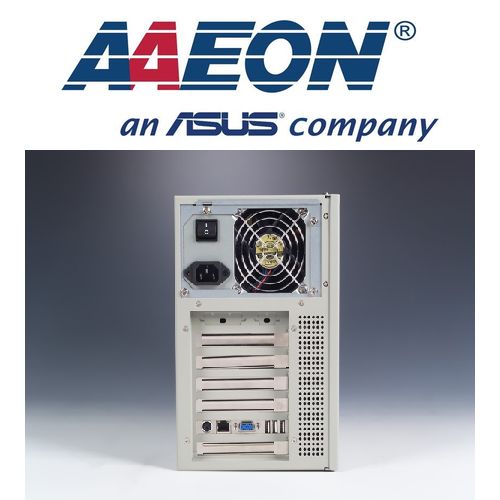

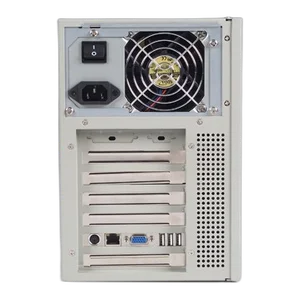

| Rear Panel | Reserved Cut-out for DB-25 Connector x 1 Reserved Cut-out for DB-9 Connector x 1 6 slots (including system slot), supports max. 339 mm (length) for expansion card |
| Color | White |
| Dimension (W x D x H) | 6.9″ (W) x 16.1″ (D) x 10″ (H) (175mm x 405mm x 254mm) |
| Carton Dimension | 12.4″ (W) x 14.37″ (D) x 20.47″ (H) (315mm x 365mm x 520mm) |
| Net Weight | 12.1 lb (5.5 kg) |
| Gross Weight | 13.9 lb (6.3 kg) |
| Storage | External: 3.5” Drive Bay x 1 5.25” Drive Bay x 1 Internal: 3.5” Drive Bay x 2 |
| System Fan | 12cm Ball Bearing Fan with Removable Filter x 1 |
| ENVIRONMENTAL | |
| Operating Temperature | 32°F ~ 122°F (0°C ~ 50°C) |
| Storage Temperature | -4°F ~ 176°F (-20°C ~ 80°C) |
| Storage Humidity | 10 ~ 80% @ 40°C, non-condensing |
| Vibration | 0.5 Grms/ 5 ~ 500Hz/ operation 1.5 Grms/ 5 ~ 500Hz/ non operation |
| Shock | 15 G peak acceleration (11 m sec. duration), operation 30 G peak acceleration (11 m sec. duration), non operation |
| EMC | CE/FCC Class A |
Ordering Information [AMC-262]
| Part Number | TF-AMC-280B-W-00 |
|---|---|
| Description | 8-Slot, Wallmount Bare Chassis for PS2 Power, PS_SW (ATX), Color: 413-01 |
Ordering Information [AMC-262]
| Part Number | TF-AMC-262-W-00 |
|---|---|
| Description | Wallmount, 6-Slot Bare Chassis, for PS2 Power, PS_SW (ATX), Color: White |
Optional Accessories
Power Supply Options
| P/N | TYPE | PFC Support | Input Voltage | Watt | Size |
| 1255304003 | ATX | Active PFC | Auto 90 ~ 264V | 400W | PS2 |
Passive Backplane Options
| P/N | Description | Master Interface | Slots | Power Connector, ATX Extend Function |
| BP-206SP-P4 | Wallmount, PCI, 6-Slot Backplane, 4 PCI, Single Segment, ATX | PCI | 4/0/2 (PCI/ ISA/ PICMG_PCI) | ATX, 3-pin ATX extend |
| BP-206SS-P4 | Wallmount, PCISA, 6-Slot Backplane, 4 PCI, 3 PCISA, Single Segment, ATX | PCISA | 4/1/0 (PCI/ ISA/ APCI) | ATX |
| BP-206SG-P2 | Wallmount, PICMG, 6-Slot Backplane, 2 PCI, 3 ISA, Single Segment, ATX | PICMG 1.0 | 2/3/1 (PCI/ ISA/ PICMG) | ATX, 3-pin ATX extend |
| BP-206SG-P4 | Wallmount, PICMG, 6-Slot Backplane, 4 PCI, 2 ISA, Single Segment, ATX | PICMG 1.0 | 4/2/2 (PCI/ ISA/ PICMG) | AT, ATX, 3-pin ATX extend |
| BP-206SH-P3 | Wallmount, Backplane, PICMG 1.3, 6-Slot, 3 PCI, 2 PCI-E, Single segment, ATX | PICMG 1.3 | 3/2/1 (PCI/PCI-E/PICMG 1.3) | ATX |
| BP-206SI | Wallmount, ISA 6-Slot Backplane, 6 ISA, Single segment, AT/ATX | ISA | (0/6/0) | AT/ATX |
CPU Cards Options
| Model/Name | Description | Master Interface |
| FSB-G41H | Socket LGA 775, Intel® Core™ 2 Duo/ Core™ 2 Quad (800/1066/1333) | PICMG 1.3 |
| FSB-B75G | Socket LGA 1155, Intel® 3rd Generation i3/i5/i7 | PICMG 1.0 |
| HSB-800I | Onboard AMD LX 800 Processor | ISA |
CPU Cooler Options
| Model/Name | Description |
| 1759218000 | LGA1155/1150 CPU Cooler (1.5U) |
| 175920000G | LGA775 CPU Cooler (1U) |
| 1759200335 | LGA775 CPU Cooler (1U) |
Chính sách bán hàng
- Bảo hành 24 tháng
- Miễn phí vận chuyển toàn quốc
- Miễn phí dịch vụ lắp đặt, tư vấn sử dụng tại Tp. Hồ Chí Minh
- Miễn phí dịch vụ bảo trì on-site trong vòng 1 năm tại Tp. Hồ Chí Minh (không bao gồm các huyện ngoại thành). Phản hồi trong vòng 24 tiếng kể từ khi nhận được thông báo.
- Dịch vụ lắp đặt, bảo trì on-site tại các tỉnh thành khác vui lòng liên hệ để được báo giá.
