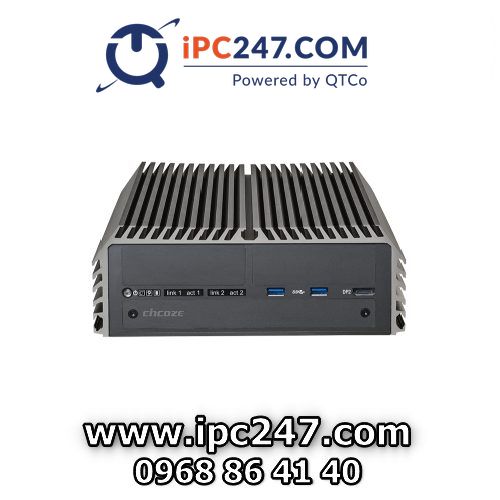

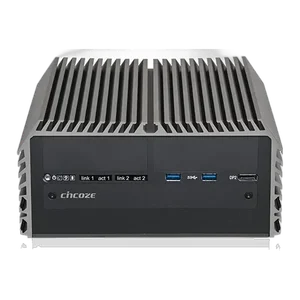

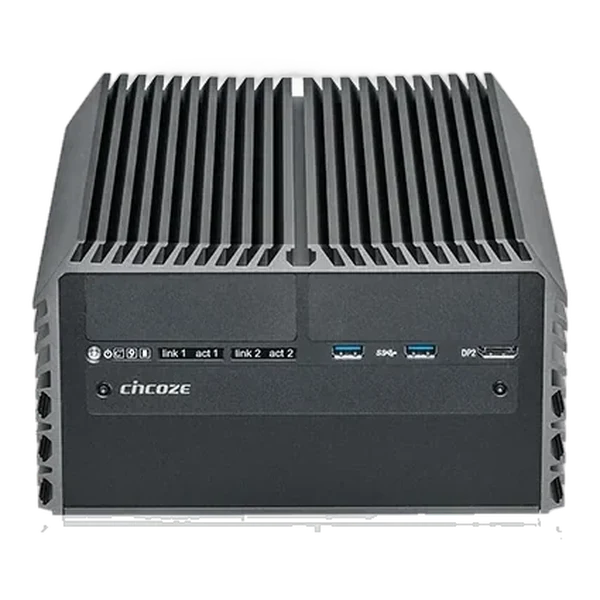

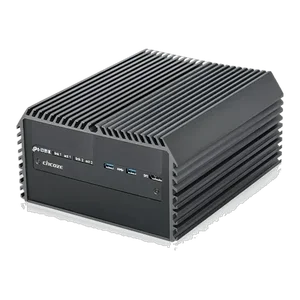

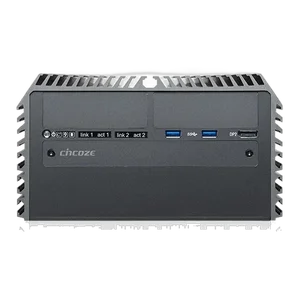

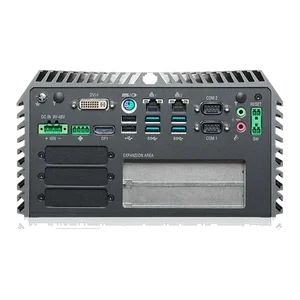

Máy tính công nghiệp không quạt DS-1200
Overview
8th Generation Intel® Core™ Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer
Features
- Supports 8th Gen Intel® Core™ / Pentium® / Celeron® Hexa Cores 35W/65W LGA 1151 Processors
- 2x DDR4 SO-DIMM Socket, Supports Up to 2666MHz, 32GB
- Triple Independent Displays: 1x DVI-I and 2x DP (4K Resolution)
- 1x M.2 2280 M Key Socket, Auto-detection for PCIex4 NVMe SSD or SATA Gen3 SSD
- 2x Front Accessible SIM Card Slots for Signal Redundancy
- 4x CMI Slots for Modular I/O Expansions
- 1x CFM Slot for Power Ignition Sensing Function
- Wide Operating Temperature (-40°C to 70°C )
- EN50155 (EN50121-3-2) Certified/ EN60950-1
Specifications [DS-1200]
| Model Name | DS-1200 | |
| System | Processor | • Core™ i: Intel® Core™ i7-8700 Hexa Core 12M Cache, up to 4.6 GHz, TDP 65W Intel® Core™ i5-8500 Hexa Core 9M Cache, up to 4.1 GHz, TDP 65W Intel® Core™ i3-8100 Quad Core 6M Cache, 3.60 GHz, TDP 65W Intel® Core™ i7-8700T Hexa Core 12M Cache, up to 4.0 GHz, TDP 35W Intel® Core™ i5-8500T Hexa Core 9M Cache, up to 3.5 GHz, TDP 35W Intel® Core™ i3-8100T Quad Core 6M Cache, 3.10 GHz, TDP 35W • Pentium®: Intel® Pentium® G5400 Dual Core 4M Cache, 3.70 GHz, TDP 58W Intel® Pentium® G5400T Dual Core 4M Cache, 3.10 GHz, TDP 35W • Celeron®: Intel® Celeron® G4900 Dual Core 2M Cache, 3.10 GHz, TDP 54W Intel® Celeron® G4900T Dual Core 2M Cache, 2.90 GHz, TDP 35W |
| Chipset | Intel Q370 | |
| Memory | 2x DDR4-2400/2666 MHz SO-DIMM Sockets, Supports up to 32 GB (Un-buffered and Non-ECC Type) | |
| Graphics | • Integrated Intel® UHD Graphics 630: Core™ i7/i5/i3 • Integrated Intel® UHD Graphics 610: Pentium® /Celeron® • Supports Triple Independent Display (1x DVI-I, 2x DisplayPort) |
|
| Audio | Realtek® ALC888, High Definition Audio | |
| BIOS | AMI 32MB SPI BIOS | |

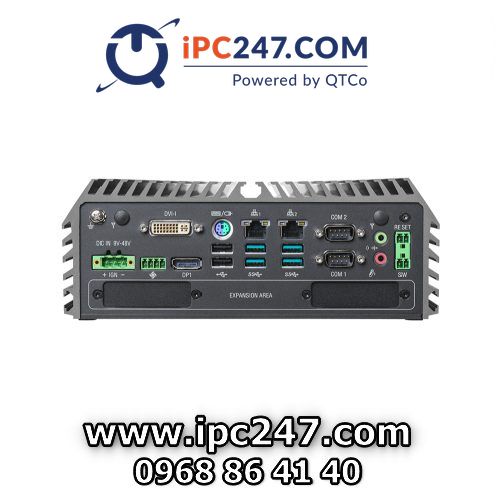

| I/O Interface | DVI | 1x DVI-I (DVI-D: 1920 x 1200 @60Hz / VGA: 1920 x 1080 @60Hz) |
| DP | 2x DisplayPort (DisplayPort: 4096 x 2304 @60Hz) | |

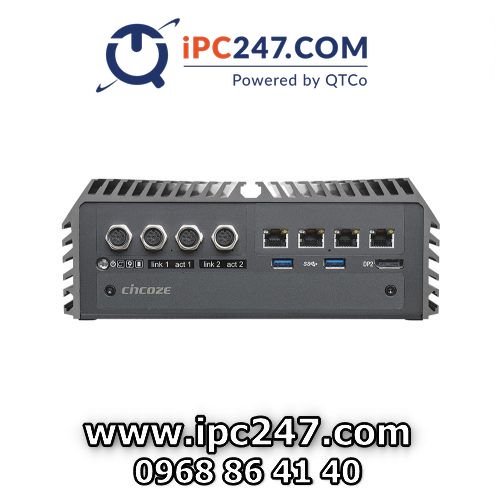

| LAN | 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 – GbE1: Intel® I219 – GbE2: Intel® I210 Optional CMI Module – 4x RJ45 GbE LAN Module (Intel® I210AT) – 4x M12 GbE LAN Module (Intel® I210AT) |
|
| PoE+ | Optional CMI & CFM Module – 4x PoE+, Individual port 25.5W, RJ45 Port – 4x PoE+, Individual port 25.5W, M12 Port |
|

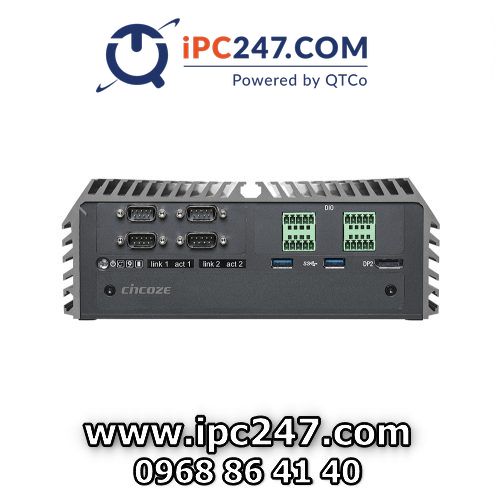

| Serial Port | 2x RS-232/422/485, DB9 Optional CMI Module – 4x Isolated COM Module – 4x COM Module * Supports RS-232/422/485 with Auto Flow Control, 5V/12V, DB9 |
|
| USB | 2x USB 3.1 Gen2 (Type A) 4x USB 3.0 (Type A) 2x USB 2.0 (Type A) |
|
| PS/2 Port | 1x PS/2, 6-pin mini-DIN Female Connector | |
| Isolated DIO | Optional CMI Module – 16x Optical Isolated DIO Module (8 in/8 out) |
|
| Line-Out | 1x Line-Out, Phone Jack 3.5mm | |
| Mic-In | 1x Mic-In, Phone Jack 3.5mm | |
| Power Button | 1x ATX Power On/Off Button | |
| AT/ATX Switch | 1x AT/ATX Mode Switch | |
| Clear CMOS Switch | 1x Clear CMOS Switch | |
| Remote Power On/Off Connector | 1x Remote Power On/Off Connector, 2-pin Terminal Block | |
| Remote Reset Connector | 1x Remote Reset Connector, 2-pin Terminal Block | |
| External FAN Connector | 1x External FAN Connector, 4-pin Terminal Block | |
| Storage | SSD/HDD | • 2x 2.5″ SATA HDD/SSD bay (Gen3), 1x Internal, 1x Front Accessable • Supports RAID 0/1 |
| M.2 | 1x M.2 Key M 2280 Socket, Supports PCIe x4 NVMe SSD or SATA SSD (Gen3) | |
| mSATA | 3x mSATA (shared by Mini-PCIe socket) (Gen3), BIOS Selectable | |
| Expansion | CFM (Control Function Module) Interface | 1x CFM (Control Function Module) Interface |
| CMI (Combined Multiple I/O) Interface | 2x CMI (Combined Multiple I/O) High Speed Interface 2x CMI (Combined Multiple I/O) Low Speed Interface |
|
| Mini PCI Express | ||
| 3x Full-size Mini-PCIe Socket | ||
| Universal I/O Bracket | 4x Universal I/O Bracket | |
| SIM Socket | 2x SIM Socket | |
| Antenna Holes | 2x Antenna Holes | |
| Other | Instant Reboot | Support 0.2sec |
| Super Cap | SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset | |
| Power Requirement | Power Type | AT/ATX |
| Power Input Voltage | 9~48VDC | |
| Connector | 3-pin Terminal Block | |
| Power Adapter | Optional AC/DC Adapter – AC/DC 24V/5A, 120W – AC/DC 24V/9.2A, 220W |
|
| Physical | Dimension (WxDxH) | 227 x 261 x 88 mm |
| Weight Information | 4.92 kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | Wall | |
| Unibody Design | Yes | |
| Fanless Design | Yes | |
| Jumper-less Design | Yes | |
| Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | 58V | |
| Over Current Protection | 15A | |
| ESD Protection | +/-15kV(Air), +/-8kV(Contact) | |
| Surge | 3.84 kV (impedance 12 ohm 1.2/50us waveform) | |
| Operating System | Windows | Windows® 10 |
| Linux | Supports by project | |
| Environment | Operating Temperature | • 35W TDP Processor: -40°C to 70°C • 51~65W TDP Processor: -40°C to 45°C * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | -40°C to 85°C | |
| Relative Humidity | 95%RH @ 70°C (non-Condensing) | |
| Shock | Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | |
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | |
| MTBF | 396,565 Hours | |
| Certification | EMC | CE, FCC Class A |
| Safety | LVD (EN60950-1) | |
| Railway | EN50155, EN50121-3-2 | |
