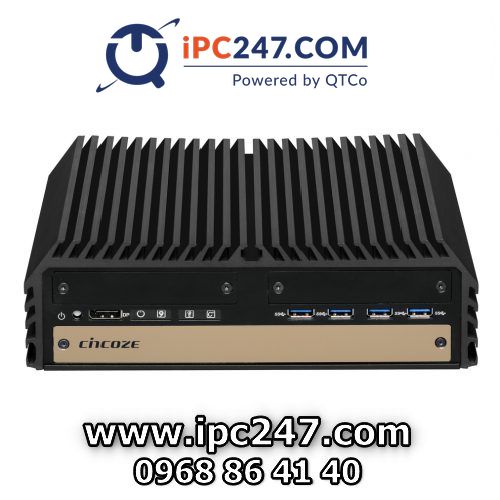

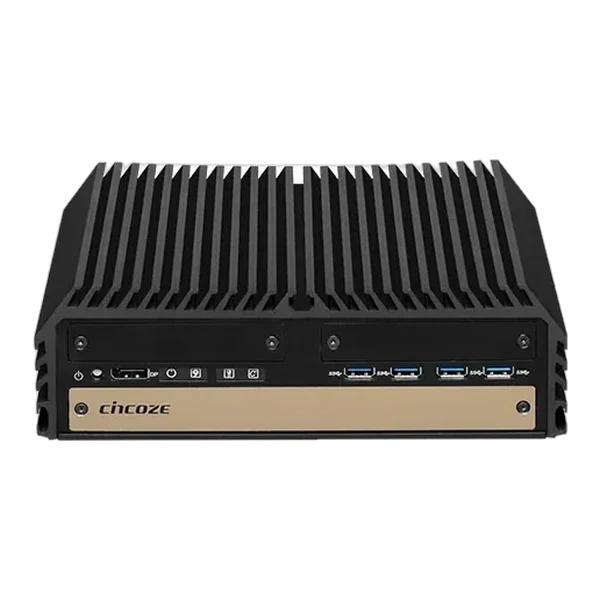

Máy tính công nghiệp không quạt DX-1000
Overview
7/6th Generation Intel® Xeon® and Core™ Processors, Extreme Performance, Compact and Modular Rugged Workstation
Features
- Supports 7/6th Generation Intel® Xeon® / Core™ LGA1151 Socket Type Processors with Intel® C236 Chipset
- 2x DDR4-2133/2400 SO-DIMM Sockets, up to 32GB Memory
- Triple Independent Display (1x DVI-I, 2x DisplayPort)
- 2x 2.5″ Hot Swap SATA III HDD/SSD bays, Supports RAID 0/1
- 3x CMI Interfaces for RJ45/M12 GbE LAN, COM & DIO Expansions
- 2x CFM Interfaces for Power Ignition Sensing and PoE Functions
- 4x Full-size Mini-PCIe Slots for Wireless & I/O Expansions
- EN50155 / EN50121-3-2 Certified for Railway Application
- E-Mark (E13, No.10R-0514546) Certification for In-vehicle Application
Specifications [DX-1000]
| Model Name | DX-1000 | |
| System | Processor | 7th Generation Intel® CPU (Kaby Lake-S) – Intel® Core i3-7100T: 3M Cache, 3.4 GHz, TDP 35W – Intel® Core i5-7500T: 6M Cache, up to 3.3 GHz, TDP 35W – Intel® Core i7-7700T: 8M Cache, up to 3.8 GHz, TDP 35W – Intel® Core i3-7300: 4M Cache, 4.0 GHz, TDP 51W – Intel® Core i5-7500: 6M Cache, up to 3.8 GHz, TDP 65W – Intel® Core i7-7700: 8M Cache, up to 4.2 GHz, TDP 65W – Intel® Xeon E3-1275 v6: 8M Cache, up to 4.2 GHz, TDP 73W 6th Generation Intel® CPU (Skylake-S) – Intel® Core i3-6100TE: 4M Cache, 2.7 GHz, TDP 35W – Intel® Core i5-6500TE: 6M Cache, up to 3.3 GHz, TDP 35W – Intel® Core i7-6700TE: 8M Cache, up to 3.4 GHz, TDP 35W – Intel® Xeon E3-1268L v5: 8M Cache, up to 3.4 GHz, TDP 35W – Intel® Core i3-6100: 3M Cache, 3.7 GHz, TDP 51W – Intel® Core i5-6500: 6M Cache, up to 3.6 GHz, TDP 65W – Intel® Core i7-6700: 8M Cache, up to 4.0 GHz, TDP 65W – Intel® Xeon E3-1225 v5: 8M Cache, up to 3.7 GHz, TDP 80W – Intel® Xeon E3-1275 v5: 8M Cache, up to 4.0 GHz, TDP 80W |
| Chipset | Intel® C236 | |
| Memory | 2x DDR4-2133/2400MHz SO-DIMM Sockets, Support up to 32 GB (Un-buffered and Non-ECC type) | |
| Graphics | ．Integrated Intel® HD Graphics ．Three Independent Display (1x DVI-I, 2x DisplayPort) |
|
| Audio | • Realtek® ALC888 • High Definition Audio |
|
| BIOS | AMI 16MB BIOS | |

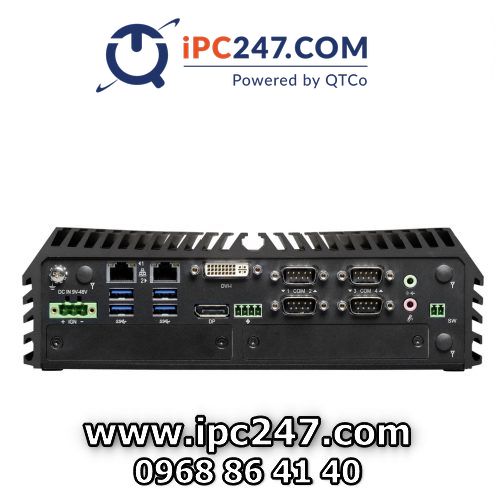

| I/O Interface | DVI | 1x DVI-I connector, Up to 1920×1080@60Hz |
| DP | 2x DP connector, Up to 3840 x 2160@30Hz | |
| LAN | 2x 10/100/1000 Mbps, RJ45 GbE1: Intel I219LM GbE2: Intel I210AT Support WoL, Teaming, Jumbo frame, IEEE 1588v2, RJ45 Optional Module ．4x 10/100/1000 Mbps, RJ45 Port ．4x 10/100/1000 Mbps, M12 Port |
|
| PoE+ | Optional Module ．4x PoE+, Individual port 25.5W (with CMI-LAN01, RJ45 Port) ．4x PoE+, Individual port 25.5W, (with CMI-M12LAN01, M12 Port) |
|
| Serial Port | 4x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9 Optional Module ．2x RS-232/422/485, DB9 Connector ．4x RS-232/422/485, DB9 Connector |
|
| USB | 8x USB 3.0 (Type-A) | |

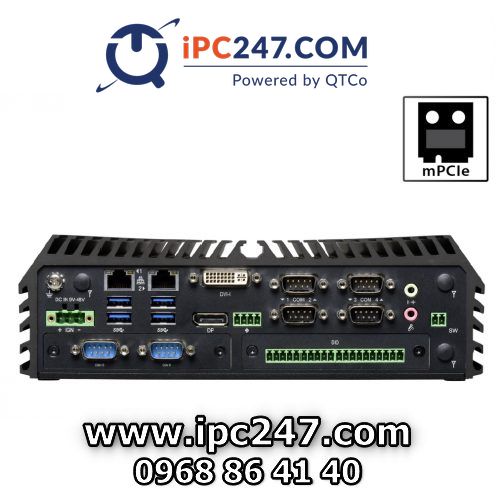

| Optical Isolated DIO | Optional Module ．16x Optical Isolated DIO(8DI, 8DO), 20 pin Terminal Block |
|
| Line-Out | 1x Line-Out, Phone Jack 3.5mm | |
| Mic-In | 1x Mic-In, Phone Jack 3.5mm | |
| Power Button | 1x ATX Power On/Off Button | |
| AT/ATX Switch | 1x AT/ATX Mode Switch | |
| Rest Button | 1x Rest Button | |
| Clear CMOS Switch | 1x Clear CMOS Switch | |
| Remote Power On/Off Connector | 1x Remote Power On/Off Connector, 2-pin Terminal Block | |
| External FAN Connector | 1x External FAN Connector, 4-pin Terminal Block (support smart fan by BIOS) | |
| Storage | SSD/HDD | 2x SATA III (6Gbps) for 2.5” HDD/SSD |
| mSATA | 4x mSATA (Shared by Mini-PCIe Socket) (Gen2) | |
| RAID | Support S/W RAID 0, 1, 5 & 10 | |
| Expansion | PCI/ PCIe | – |
| CFM (Control Function Module) Interface | 1x CFM Interface for CFM Modules | |
| CMI (Combine Multiple I/O) Interface | 3x CMI Interface for CMI Modules | |
| Mini PCI Express | 4x Full-size Mini-PCIe Sockets | |
| SIM Socket | 1x SIM Socket | |
| Antenna Holes | 3x Antenna Holes | |
| Other | Instant Reboot | Support 0.2sec |
| Power Ignition Sensing | Optional Module ．CFM with Delay Time Management and Selectable 12V/24V, Dip Switch |
|
| Super Cap | SuperCap Integrated for CMOS Battery-free Operation | |
| Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset | |
| Power Requirement | Power Type | AT/ATX |
| Power Input Voltage | 9~48VDC | |
| Connector | 3-pin Terminal Block | |
| Power Adapter | Optional AC/DC Adapter ．AC/DC 24V/5A, 120W ．AC/DC 24V/9.2A, 220W |
|
| Physical | Dimension (WxDxH) | 242 x 174 x 77 mm |
| Weight Information | 3.6 kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | Wall / VESA / DIN Rail / Side | |
| Unibody Design | Yes | |
| Fanless Design | Yes | |
| Jumper-less Design | Yes | |
| Cable-less Design | Yes | |
| Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | 58V | |
| Over Current Protection | 15A | |
| ESD Protection | +/-15kV(Air), +/-8kV(Contact) | |
| Surge Protection | 3.84 kV (impedance 12 ohm 1.2/50us waveform) | |
| Operating System | Windows | – 7th Generation Intel® CPU (Kaby Lake-S): Windows® 10 – 6th Generation Intel® CPU (Skylake-S): Windows® 10/ 8.1/ 7 |
| Linux | Support by project | |
| Environment | Operating Temperature | 7th Generation Intel® CPU (Kaby Lake-S) – 35W TDP CPU: -40°C to 50°C – 51W~65W TDP CPU: -40°C to 45°C – 73W TDP CPU: -40°C to 40°C 6th Generation Intel® CPU (Skylake-S) – 35W TDP CPU: -40°C to 70°C – 51W~65W TDP CPU: -40°C to 55°C – 80W TDP CPU: -40°C to 40°C (With Extended Temperature Peripherals; Ambient with Air Flow; According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) |
| Storage Temperature | -40°C to 85°C | |
| Relative Humidity | 40°C @ 95% RH (non-Condensing) | |
| Shock | Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) |
|
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) |
|
| EMC | CE, FCC Class A | |
| Safety | LVD (EN60950-1) | |
| Fire Protection | EN45545-2 | |
| Railway | EN50155, EN50121-3-2 | |
| In-Vehicle | E-Mark (E13, No.10R-0514546) | |
| MTBF | – Time:457,941 Hours – Database: Telcordia SR-332 Issue3, Method 1, Case 3 |
|
