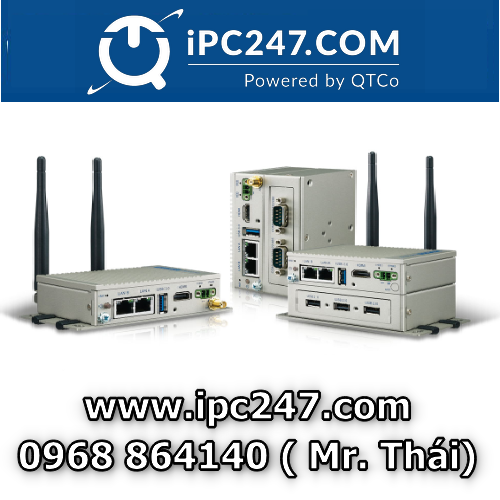

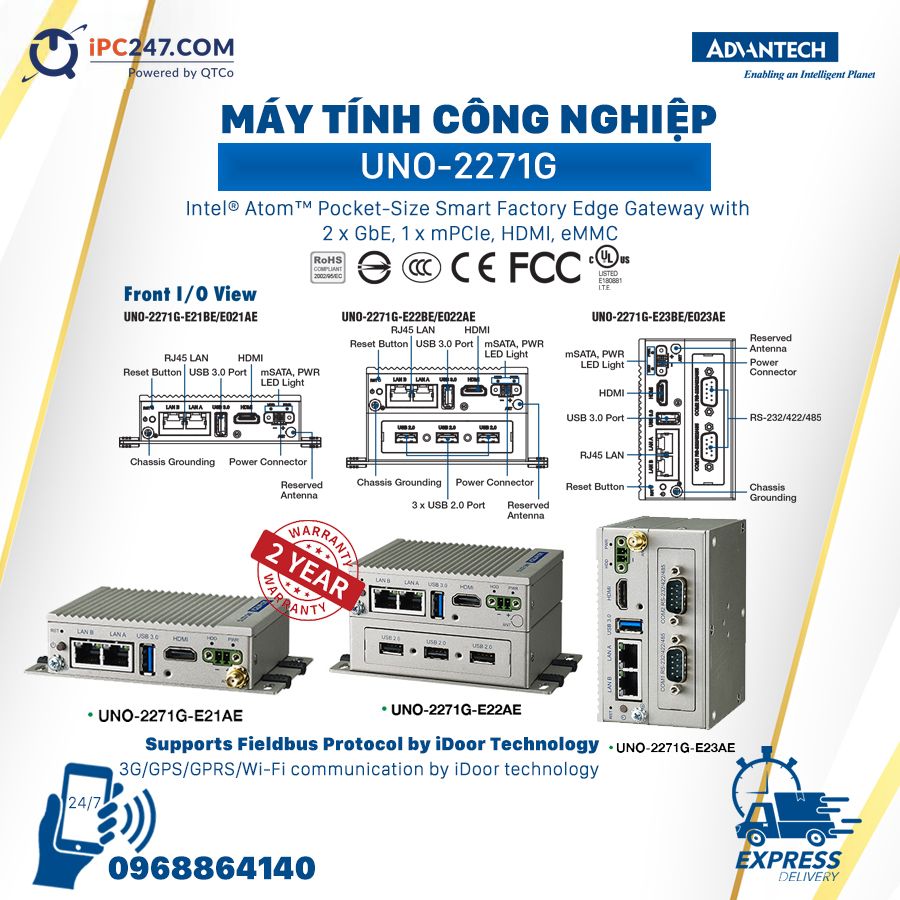

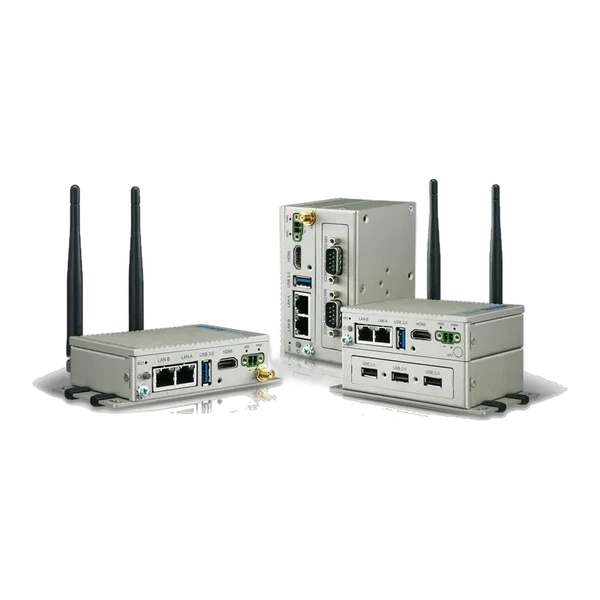

Máy tính công nghiệp không quạt UNO-2271G
Overview
- Intel® Atom™ Pocket-Size Smart Factory Edge Gateway with 2 x GbE, 1 x mPCIe, HDMI, eMMC
Features
- Intel® Atom™ E3815 Processor with 4GB DDR3L onboard Memory
- 2 x GbE, 1 x USB 3.0, 1 x HDMI, Option 2 x RS-232/422/485 or 3 x USB2.0
- Compact Fanless Design
- Rubber Stopper Design with internal reserved screws for 2nd layer assembly
- Diverse system I/O and Isolated Digital I/O by iDoor Technology
- Supports Fieldbus Protocol by iDoor Technology
- 3G/GPS/GPRS/Wi-Fi Communication by iDoor Technology
- Supports 30+ iDOOR combination with four main categories of smart factory application
- Built-in 32GB eMMC storage onboard
Specifications [UNO-2271G]

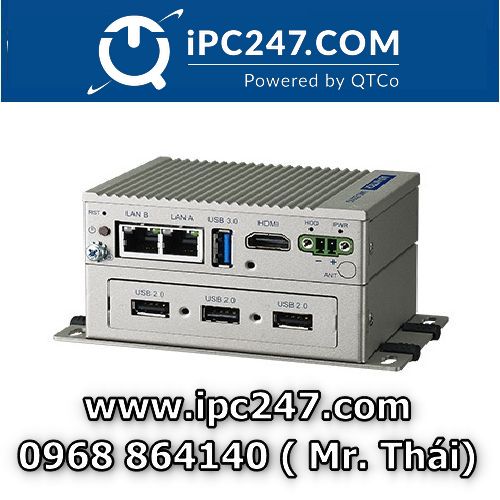

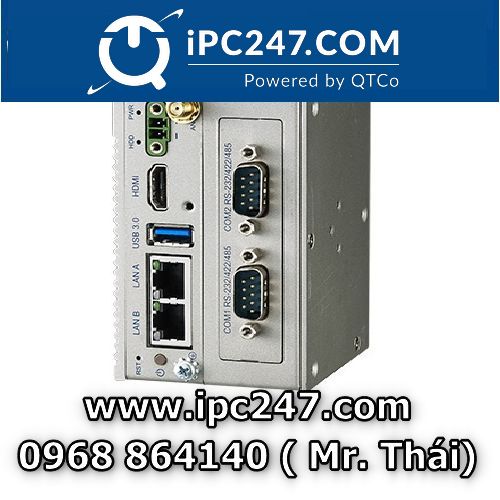

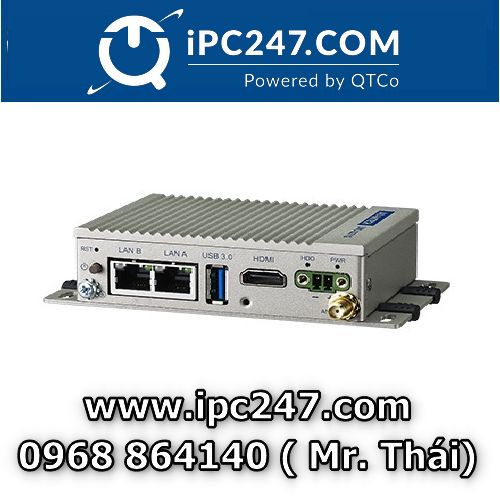

| Part Number | UNO-2271G-E21AE | UNO-2271G-E22AE | UNO-2271G-E23AE | |
| Environment | ||||
| Ingress Protection |
IP30
|
IP30 | IP30 | |
| Vibration Protection |
Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA)
|
Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA) | Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA) | |
| Relative Humidity | 10 ~ 95% RH @ 40°C, non-condensing | 10 ~ 95% RH @ 40°C, non-condensing | 10 ~ 95% RH @ 40°C, non-condensing | |
| Shock Protection |
Operating, IEC 60068-2-27, 50G, half sine, 11ms
|
Operating, IEC 60068-2-27, 50G, half sine, 11ms | Operating, IEC 60068-2-27, 50G, half sine, 11ms | |
| Storage Temperature |
– 20 ~ 70°C ( -4 ~ 158°F)
|
– 20 ~ 70°C ( -4 ~ 158°F)
|
– 20 ~ 70°C ( -4 ~ 158°F)
|
|
| Operating Temperature |
0 ~ 50°C (32 ~ 122°F) @ 5 ~ 85% RH with 0.7 m/s airflow
|
0 ~ 50°C (32 ~ 122°F) @ 5 ~ 85% RH with 0.7 m/s airflow
|
0 ~ 50°C (32 ~ 122°F) @ 5 ~ 85% RH with 0.7 m/s airflow
|
|
|
I/O Interface
|
||||
|
Displays
|
1 x HDMI, supports 1920 x 1080 @ 60Hz
|
1 x HDMI, supports 1920 x 1080 @ 60Hz
|
1 x HDMI, supports 1920 x 1080 @ 60Hz
|
|
| Power Connector |
1x 2 Pins, Terminal Block
|
1x 2 Pins, Terminal Block
|
1x 2 Pins, Terminal Block
|
|
| USB Port |
1 x USB 3.0
|
3 x USB 2.0 and 1 x USB 3.0 | 1 x USB 3.0 | |
| LAN Ports |
2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet
|
2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet
|
2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet
|
|
| Serial Ports |
N/A
|
N/A
|
2 x RS 232/422/485 | |
|
System Hardware
|
||||
|
Expansion
|
2 Full-size mPCIe
|
2 Full-size mPCIe
|
2 Full-size mPCIe
|
|
| LED Indicators |
LEDs for Power, HDD, LAN (Active,Status)
|
LEDs for Power, HDD, LAN (Active,Status)
|
LEDs for Power, HDD, LAN (Active,Status)
|
|
| Storage |
Onboard 32GB eMMC (Option mSATA shared with mPCIe slot)
|
Onboard 32GB eMMC (Option mSATA shared with mPCIe slot)
|
Onboard 32GB eMMC (Option mSATA shared with mPCIe slot)
|
|
| Ethernet |
Realtek RTL8111E GbE, 802.10av
|
Realtek RTL8111E GbE, 802.10av
|
Realtek RTL8111E GbE, 802.10av
|
|
| Graphics Engine |
Intel® HD Graphics
|
Intel® HD Graphics
|
Intel® HD Graphics
|
|
| Memory |
Onboard 4GB DDR3L 1066 MHz
|
Onboard 4GB DDR3L 1066 MHz
|
Onboard 4GB DDR3L 1066 MHz
|
|
| Processor |
Intel Atom E3815 1.46GHz (E3825 support by project)
|
Intel Atom E3815 1.46GHz (E3825 support by project)
|
Intel Atom E3815 1.46GHz (E3825 support by project)
|
|
| System Chip |
Integrated Intel SoC Chipset
|
Integrated Intel SoC Chipset
|
Integrated Intel SoC Chipset
|
|
| Watchdog Timer |
Programmable 256 levels timer interval, from 1 to 255 sec
|
Programmable 256 levels timer interval, from 1 to 255 sec
|
Programmable 256 levels timer interval, from 1 to 255 sec
|
|
| BIOS |
AMI EFI64 Mbit
|
AMI EFI64 Mbit
|
AMI EFI64 Mbit
|
|
|
General
|
||||
|
OS Support
|
For mSATA storage: Windows7, Windows10 LTSB, Advantech Linux. For eMMC storage: Advantech embedded customized Windows7 64bits, Windows 10 LTSB, Advantech Linux
|
For mSATA storage: Windows7, Windows10 LTSB, Advantech Linux. For eMMC storage: Advantech embedded customized Windows7 64bits, Windows 10 LTSB, Advantech Linux | For mSATA storage: Windows7, Windows10 LTSB, Advantech Linux. For eMMC storage: Advantech embedded customized Windows7 64bits, Windows 10 LTSB, Advantech Linux | |
| Power Requirement |
10 ~ 30 VDC
|
10 ~ 30 VDC
|
10 ~ 30 VDC
|
|
| Power Consumption |
12W (Typical), 24W (Max)
|
12W (Typical), 24W (Max)
|
12W (Typical), 24W (Max)
|
|
| Weight |
0.5 kg
|
0.6 kg | 0.6 kg | |
| Enclosure |
Aluminum Housing
|
Aluminum Housing
|
Aluminum Housing
|
|
| Form factor |
Pocket Size
|
Micro Size | Micro Size | |
| Mounting |
Stand, Wall, VESA (Optional), DIN-rail (Optional), Pole (Optional)
|
Stand, Wall, VESA (Optional), DIN-rail (Optional), Pole (Optional) | Stand, Wall, VESA (Optional), DIN-rail (Optional), Pole (Optional) | |
| Dimensions |
100 x 70 x 30 mm
|
100 x 70 x 65 mm | 100 x 70 x 65 mm | |
| Certifications |
CE, FCC, UL, CCC, BSMI
|
CE, FCC, UL, CCC, BSMI
|
CE, FCC, UL, CCC, BSMI
|
