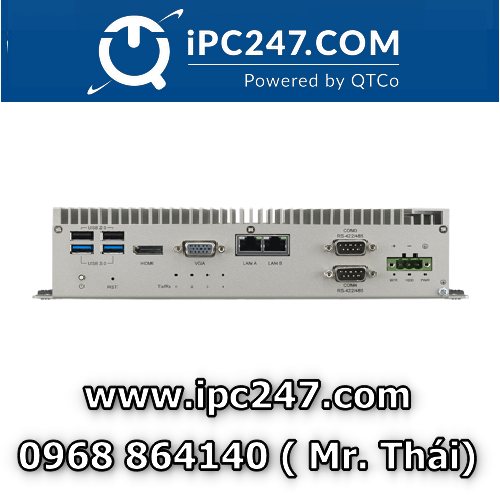

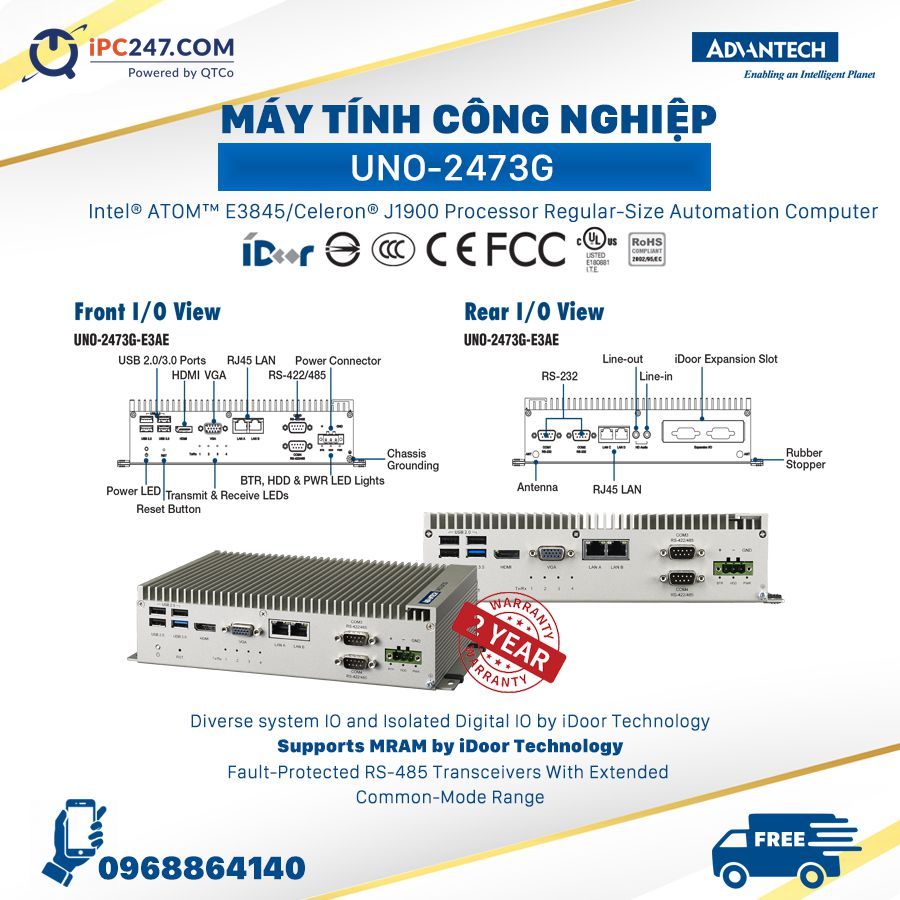

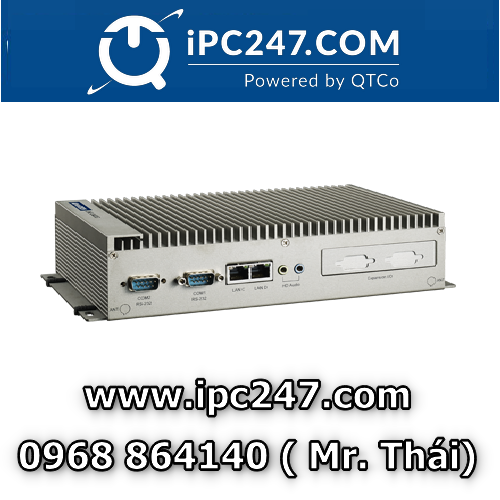

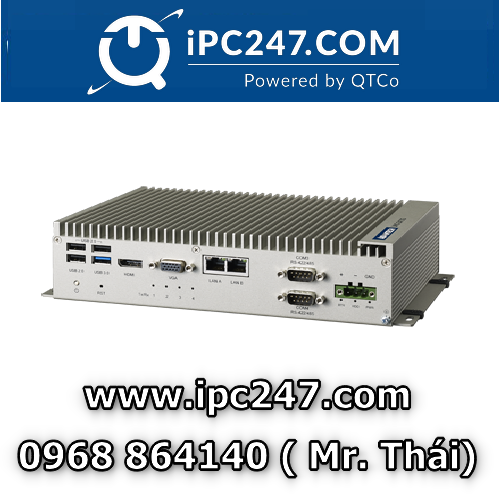

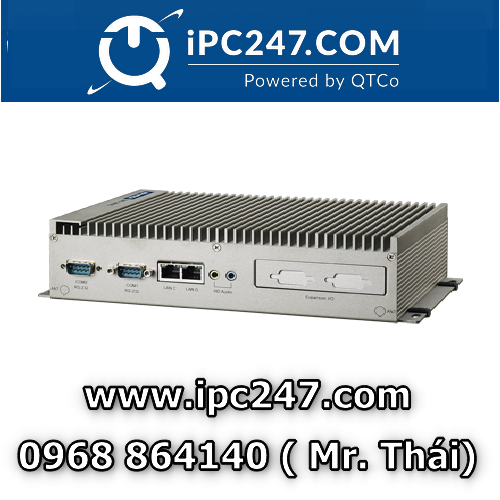

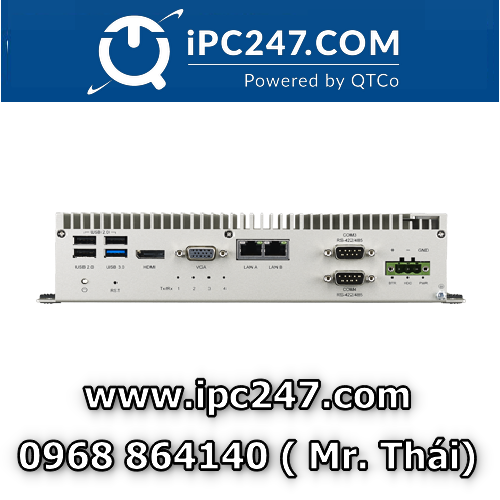

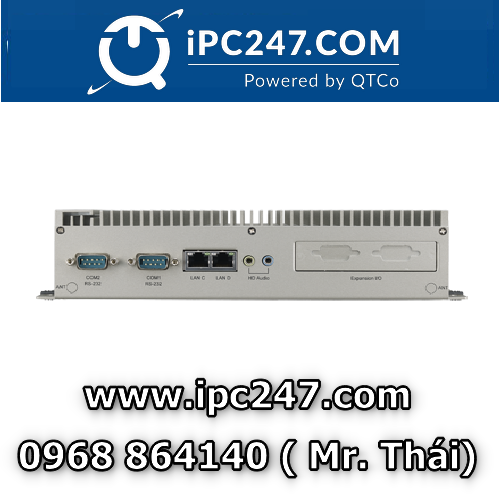

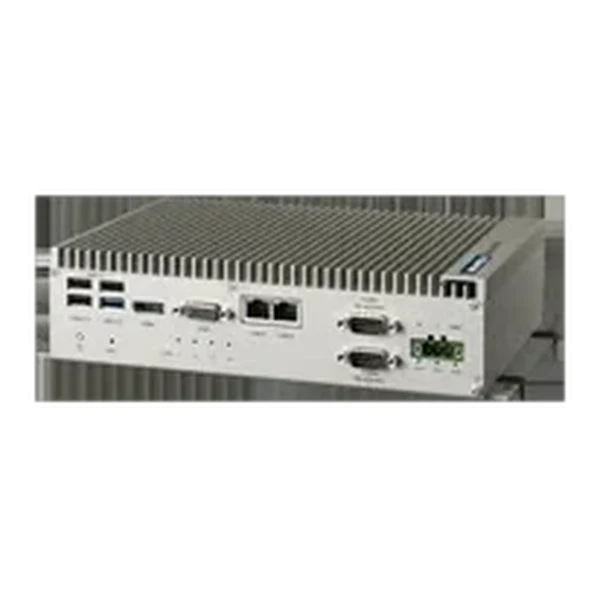

Máy tính công nghiệp không quạt UNO-2473G
Overview
- Intel® ATOM™ E3845/Celeron® J1900 Processor Regular-Size Automation Computer
Features
- 4th Generation Intel® Atom/Celeron J1900 Processor up to 1.91/2.0 GHz with 4GB DDR3L Memory
- 4/2 x GbE, 3 x USB 2.0 and 1 x USB 3.0/4 x USB 2.0 and 1 x USB 3.0, 2 x RS-232, 2 x RS-422/485 (E3AE), 2 x RS-232/422/485 (J3AE), 1 x VGA, 1 x HDMI, Audio
- Compact with Fanless Design
- Rubber Stopper Design with Captive Screw
- Diverse system IO and Isolated Digital IO by iDoor Technology
- 3G/GPS/GPRS/Wi-Fi Communication by iDoor Technology
- Supports MRAM by iDoor Technology
- Chassis Grounding Protection
- LAN Redundancy (Teaming)
- Fault-Protected RS-485 Transceivers With Extended Common-Mode Range
Specifications [UNO-2473G]
| Part Number | UNO-2473G-E3AE | UNO-2473G-J3AE |
| General | ||
| Certifications |
CCC, CE, FCC, UL, BSMI
|
CCC, CE, FCC, UL, BSMI |
| Power Consumption |
28W (Typical), 48W(Max)
|
– |
| Enclosure |
Aluminum Housing
|
Aluminum Housing
|
| Mounting |
Stand, Wall, VESA (Optional), Din-rail (Optional)
|
Stand, Wall, VESA (Optional), Din-rail (Optional)
|
| OS Support |
Microsoft Windows 7, Windows 8
|
Microsoft® Windows 7, Windows 10, Advantech Linux |
| Power Requirement |
24VDC ± 20%
|
12/24VDC± 20% |
| Form factor |
Regular Size
|
Regular Size |
| Dimensions ( W x D x H ) |
252 x 149 x 62 mm (9.9″ x 5.9″ x 2.4″)
|
252 x 149 x 62 mm (9.9″ x 5.9″ x 2.4″) |
|
System Hardware
|
||
|
System Chip
|
Intel Atom SoC integrated
|
Integrated Intel SoC Chipset |
| Memory |
On-board 4GB DDR3L 1600 MHz
|
On-board 4GB DDR3L 1333 MHz |
| Storage |
One mSATA, one drive bay for SATA 2.5″ HDD (Compatible with 9.5mm height HDD), CFast drive by iDoor Technology (Optional)
|
One mSATA, one drive bay for SATA 2.5″ HDD (Compatible with 9.5mm height HDD), CFast drive by iDoor Technology (Optional) |
| Watchdog Timer |
Programmable 256 levels timer interval, from 1 to 255 sec
|
Programmable 255 levels timer interval, from 1 to 255 sec |
| Expansion |
3 x Full-size mPCIe slot, mPCIe 2.0
|
1 x Full-size mPCIe slot, mPCIe 2.0 |
| BIOS |
AMI UEFI 128Mbit Flash BIOS
|
AMI UEFI 128Mbit Flash BIOS |
| Graphics Engine |
Intel® HD Graphics: Gen7 with 4EU
|
Intel® HD Graphics: Gen7 with 4EU |
| Ethernet |
LEDs for Power, battery, LAN (Active, Status), Tx/Rx
|
Intel® i210-IT GbE, 802.1Qav, IEEE1588/802.1AS, 802.3az |
| Processor |
Intel® Atom™ Processor E3845 1.91 GHz Quad Core, 2MB L2
|
Intel Atom E3845 1.91GHz, 2MB L2 Cache |
| LED Indicators |
LEDs for Power, battery, LAN (Active, Status), Tx/Rx and HDD
|
LEDs for Power, battery, LAN (Active, Status), Tx/Rx and HDD |
|
I/O Interface
|
||
|
Serial Ports
|
2 x RS-232, DB9, 50~115.2kbps , 2 x RS-422/485, DB9, auto flow control, 50~115.2kbps
|
2 x RS-232, DB9, 50~115.2kbps, 2 x 232/422/485, DB9, auto flow control, 50~115.2kbps |
| LAN |
4 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet
|
2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet |
| Audio |
Line-In
|
Line-In
|
| USB Port |
4 x USB Ports (3 x USB 2.0, 1 x USB 3.0 compliant)
|
5 x USB Ports (4 x USB 2.0, 1 x USB 3.0 compliant) |
| Displays |
1x VGA (2560×1600), 1x HDMI (1920×1200)
|
1x VGA (2560×1600), 1x HDMI (1920×1200) |
| Power Connector |
1 x 3 Pins, Terminal Block
|
1 x 3 Pins, Terminal Block |
| Grounding Protection |
Chassis Grounding
|
Chassis Grounding
|
|
Environment
|
||
|
Relative Humidity
|
10 ~ 95% RH @ 40°C, non-condensing
|
10 ~ 95% RH @ 40°C, non-condensing |
| Ingress Protection | IP40 |
IP40
|
| Vibration Protection |
Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA). Operating, IEC 60068-2-64, 0.7Grms, random, 5 ~ 500Hz, 1hr/axis (HDD)
|
Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA). Operating, IEC 60068-2-64, 0.7Grms, random, 5 ~ 500Hz, 1hr/axis (HDD) |
| Shock Protection |
Operating, IEC 60068-2-27, 50G, half sine, 11ms
|
Operating, IEC 60068-2-27, 50G, half sine, 11ms |
| Operating Temperature |
– 20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow
|
– 10 ~ 60°C (14 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow |
| Storage Temperature |
-40 ~ 85°C ( -40 ~ 185°F)
|
-40 ~ 85°C ( -40 ~ 185°F) |
