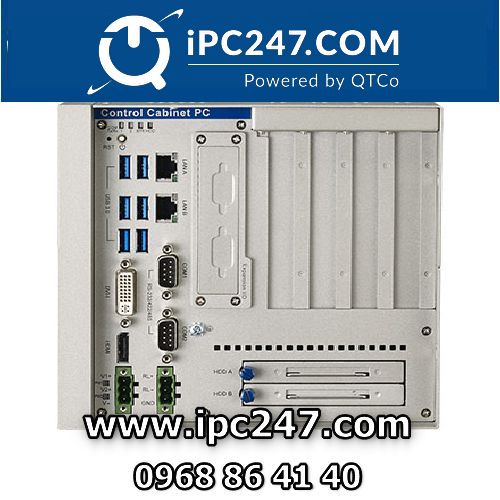

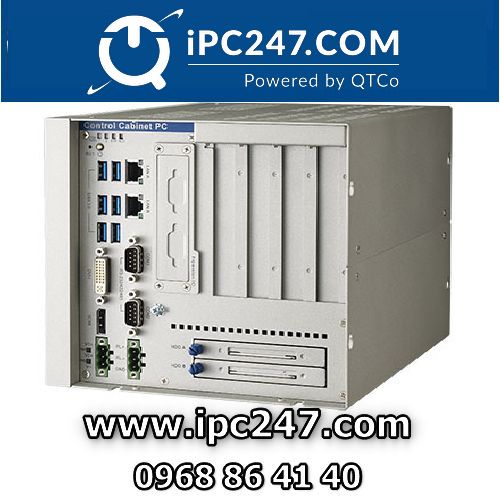

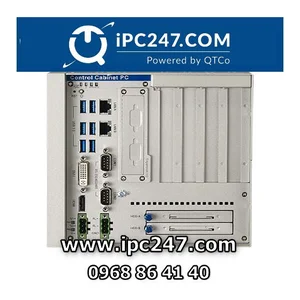

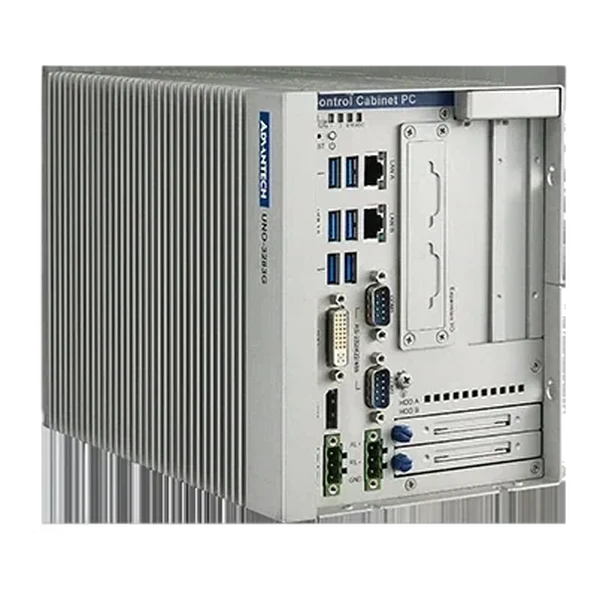

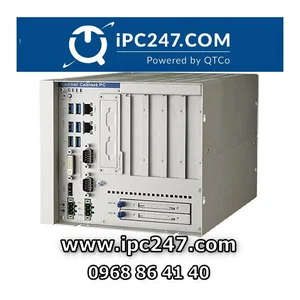

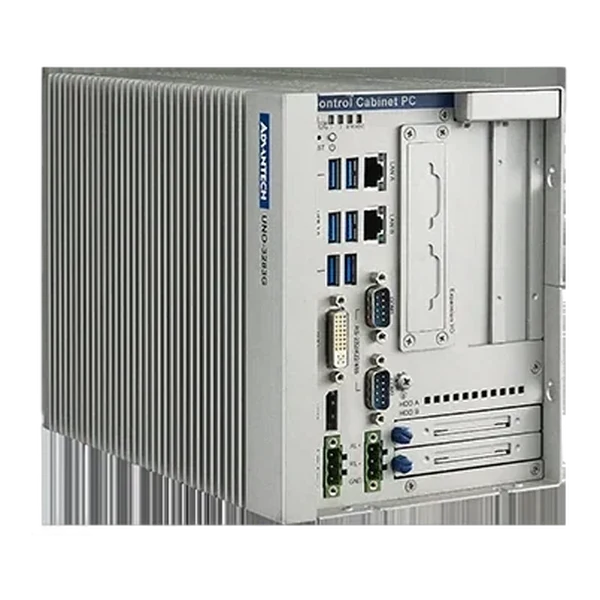

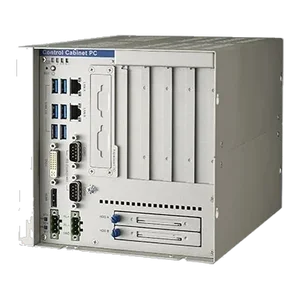

Máy tính công nghiệp không quạt UNO-3285G
Overview

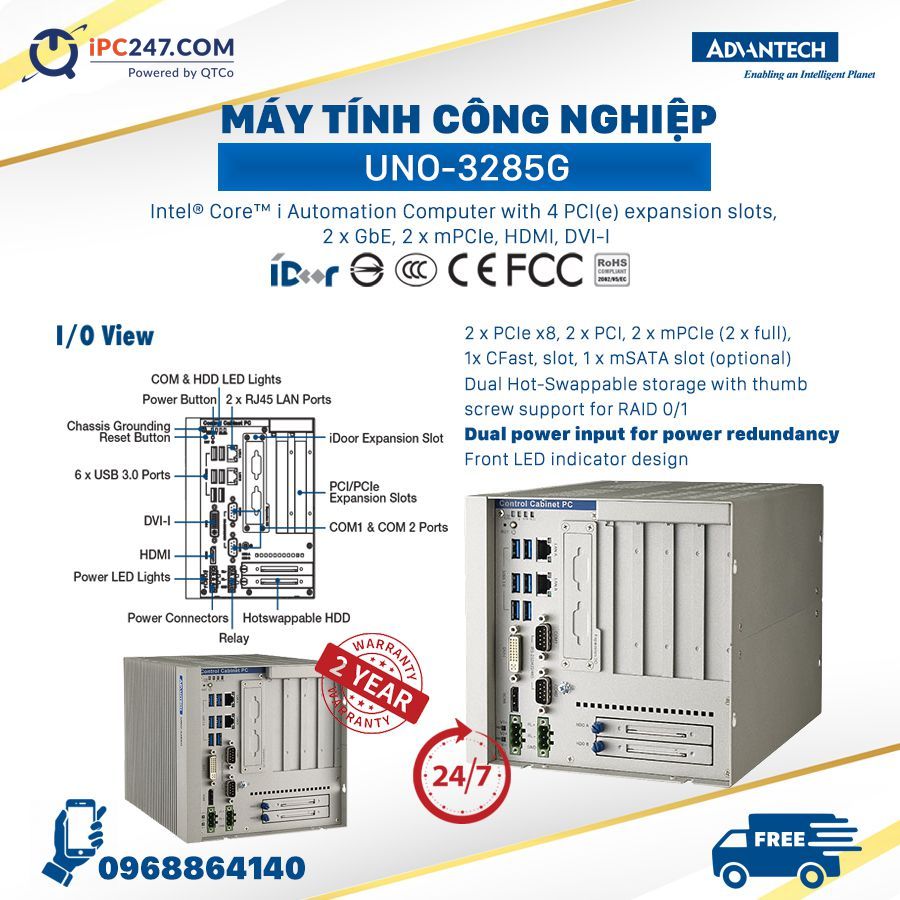

Intel® Core™ i Automation Computer with 4 PCI(e) expansion slots, 2 x GbE, 2 x mPCIe, HDMI, DVI-I
Features
- Intel® 6th Gen Core™ i7-6822EQ Quad Core Processors with 8GB DDR4 Memory
- 2 x GbE, 6 x USB 3.0, 2 x RS-232/422/485, 2 x RS-232 (pin header), 1 x DVI-I, 1 x HDMI
- 2 x PCIe x8, 2 x PCI, 2 x mPCIe (2 x full), 1x CFast, slot, 1 x mSATA slot (optional)
- Dual Hot-Swappable storage with thumb screw support for RAID 0/1
- Supports Fieldbus Protocol by iDoor Technology
- Dual power input for power redundancy
- Optional ECC RAM with selected RAM module
- Dual power input for power redundancy
- Optional ECC RAM with selected RAM module
- Front LED indicator design for monitoring system status

Specifications [UNO-3285G]
| Part Number |
UNO-3285G-634AE
|
UNO-3285G-654AE
|
UNO-3285G-674AE
|
|
General
|
|||
|
Certifications
|
CE, UL, CCC, FCC, BSMI
|
CE, UL, CCC, FCC, BSMI
|
CE, UL, CCC, FCC, BSMI
|
| Dimensions ( W x D x H ) |
182 x 238 x 177 mm (7.2″ x 9.4″ x 7″)
|
182 x 238 x 177 mm (7.2″ x 9.4″ x 7″)
|
182 x 238 x 177 mm (7.2″ x 9.4″ x 7″)
|
| Form factor |
Regular Size
|
Regular Size | Regular Size |
| Mounting |
Wall mount, Stand mount, Enclosure mount
|
Wall mount, Stand mount, Enclosure mount
|
Wall mount, Stand mount, Enclosure mount
|
| Power Consumption |
30W (Typical @ 24W); 90W (Max. @ 24W)
|
30W (Typical @ 24W); 90W (Max. @ 24W)
|
30W (Typical @ 24W); 90W (Max. @ 24W)
|
| Power Requirement |
10~36 VDC
|
10~36 VDC
|
10~36 VDC
|
| Weight (Net) |
4.5 kg (9.9 lbs)
|
4.5 kg (9.9 lbs)
|
4.5 kg (9.9 lbs)
|
| OS Support |
WIN7/8/10, WES7, Win10 Ent. LTSB, AdvLinuxTu
|
WIN7/8/10, WES7, Win10 Ent. LTSB, AdvLinuxTu
|
WIN7/8/10, WES7, Win10 Ent. LTSB, AdvLinuxTu
|
|
System Hardware
|
|||
|
Expansion
|
2 x Full-size mPCIe, 2 x PCIex8, 2 x PCI (Optional by project: 4 x PCI)
|
2 x Full-size mPCIe, 2 x PCIex8, 2 x PCI (Optional by project: 4 x PCI) | 2 x Full-size mPCIe, 2 x PCIex8, 2 x PCI (Optional by project: 4 x PCI) |
| LED Indicators |
LEDs for Power, LAN , Tx/Rx , battery and HDD
|
LEDs for Power, LAN , Tx/Rx , battery and HDD | LEDs for Power, LAN , Tx/Rx , battery and HDD |
| Storage |
One mSATA slot; One CFast slot (sh) Two built-in 2.5″ SATA HDD brackets with support for RAID 0/1. (Compatible with 9.5mm height HDD)
|
One mSATA slot; One CFast slot (sh) Two built-in 2.5″ SATA HDD brackets with support for RAID 0/1. (Compatible with 9.5mm height HDD) | One mSATA slot; One CFast slot (sh) Two built-in 2.5″ SATA HDD brackets with support for RAID 0/1. (Compatible with 9.5mm height HDD) |
| Ethernet |
LAN A: Intel® i210-IT GbE, IIEEE802.1AS, 802.3az, LAN B: Intel® i219-LM GbE, Intel® AMT, IEEE802.1AS, 802.3az
|
LAN A: Intel® i210-IT GbE, IIEEE802.1AS, 802.3az, LAN B: Intel® i219-LM GbE, Intel® AMT, IEEE802.1AS, 802.3az | LAN A: Intel® i210-IT GbE, IIEEE802.1AS, 802.3az, LAN B: Intel® i219-LM GbE, Intel® AMT, IEEE802.1AS, 802.3az |
| Graphics Engine |
Intel® HD Graphics
|
Intel® HD Graphics
|
Intel® HD Graphics
|
| Processor |
Intel Core™ i3-6102E 1.9GHz,
|
Intel Core™ i5-6442EQ 1.9GHz | Intel R Core™ i7-6822EQ 2.0GHz SkyLake-H Quad Core L2 |
| System Chip |
Intel QM170
|
Intel QM170 | Intel QM170 |
| Memory |
Built-in 8GB DDR4 2133 MHz, two socket support up to 32GB (Optional ECC RAM with selected RAM module)
|
Built-in 8GB DDR4 2133 MHz, two socket support up to 32GB (Optional ECC RAM with selected RAM module) | Built-in 8GB DDR4 2133 MHz, two socket support up to 32GB (Optional ECC RAM with selected RAM module) |
| Watchdog Timer |
Programmable 255 levels timer interval, from 1 to 255 sec
|
Programmable 255 levels timer interval, from 1 to 255 sec | Programmable 255 levels timer interval, from 1 to 255 sec |
| BIOS |
AMI UEFI 128Mbit Flash BIOS
|
AMI UEFI 128Mbit Flash BIOS | AMI UEFI 128Mbit Flash BIOS |
|
I/O Interface
|
|||
|
Power Connector
|
2 x 3 Pin, terminal Block to support dual power input and relay output
|
2 x 3 Pin, terminal Block to support dual power input and relay output | 2 x 3 Pin, terminal Block to support dual power input and relay output |
| Audio |
Mic-in, Line-In, Line-Out (Pin Header)
|
Mic-in, Line-In, Line-Out (Pin Header)
|
Mic-in, Line-In, Line-Out (Pin Header)
|
| Displays |
1 x VGA, supports 1920 x 1080 @ 60Hz 24bpp, 1 x HDMI 1.4a, supports 1920 x 1080 @ 60Hz 24bpp
|
1 x VGA, supports 1920 x 1080 @ 60Hz 24bpp, 1 x HDMI 1.4a, supports 1920 x 1080 @ 60Hz 24bpp | 1 x VGA, supports 1920 x 1080 @ 60Hz 24bpp, 1 x HDMI 1.4a, supports 1920 x 1080 @ 60Hz 24bpp |
| USB Port |
6 x USB 3.0 Ports
|
6 x USB 3.0 Ports | 6 x USB 3.0 Ports |
| LAN Ports |
1 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet
|
1 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet | 1 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet |
| Serial Ports |
2 x RS-232/422/485 with DB9 connectors RS-485 auto flow control, 50~115.2kbps, 2 x RS-232 (optional pin header)
|
2 x RS-232/422/485 with DB9 connectors RS-485 auto flow control, 50~115.2kbps, 2 x RS-232 (optional pin header) | 2 x RS-232/422/485 with DB9 connectors RS-485 auto flow control, 50~115.2kbps, 2 x RS-232 (optional pin header) |
|
Environment
|
|||
|
Shock Protection
|
Operating, IEC 60068-2-27, 50G, half sine, 11ms
|
Operating, IEC 60068-2-27, 50G, half sine, 11ms | Operating, IEC 60068-2-27, 50G, half sine, 11ms |
| Vibration Protection |
Operating, IEC 60068-2-64, 4Grms, random, 5 ~ 500Hz, 1hr/axis (SSD); 1.5Grms, random, 5 ~ 500Hz, 1hr/axis (HDD)
|
Operating, IEC 60068-2-64, 4Grms, random, 5 ~ 500Hz, 1hr/axis (SSD); 1.5Grms, random, 5 ~ 500Hz, 1hr/axis (HDD) | Operating, IEC 60068-2-64, 4Grms, random, 5 ~ 500Hz, 1hr/axis (SSD); 1.5Grms, random, 5 ~ 500Hz, 1hr/axis (HDD) |
| Operating Temperature |
-20 ~ 60°C (-4 ~ 140°F) with 0.7m/s airflow environment 0~50°C (32 ~ 122°F) for UNO-3283G-6541AE
|
-20 ~ 60°C (-4 ~ 140°F) with 0.7m/s airflow environment 0~50°C (32 ~ 122°F) for UNO-3283G-6541AE | -20 ~ 60°C (-4 ~ 140°F) with 0.7m/s airflow environment 0~50°C (32 ~ 122°F) for UNO-3283G-6541AE |
| Storage Temperature |
-40 ~ 85°C ( -40 ~ 185°F)
|
-40 ~ 85°C ( -40 ~ 185°F)
|
-40 ~ 85°C ( -40 ~ 185°F)
|
| Relative Humidity |
10 ~ 95% @ 40°C non-condensing
|
10 ~ 95% @ 40°C non-condensing
|
10 ~ 95% @ 40°C non-condensing
|
