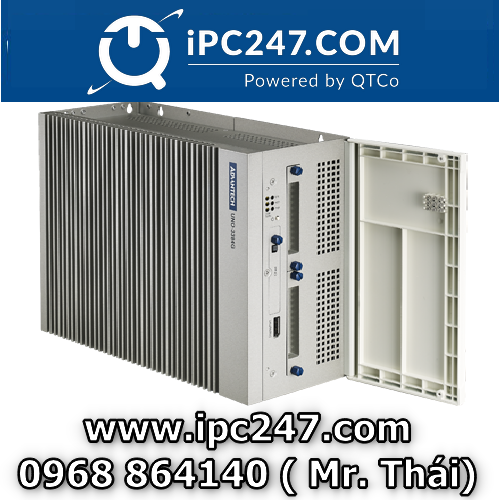

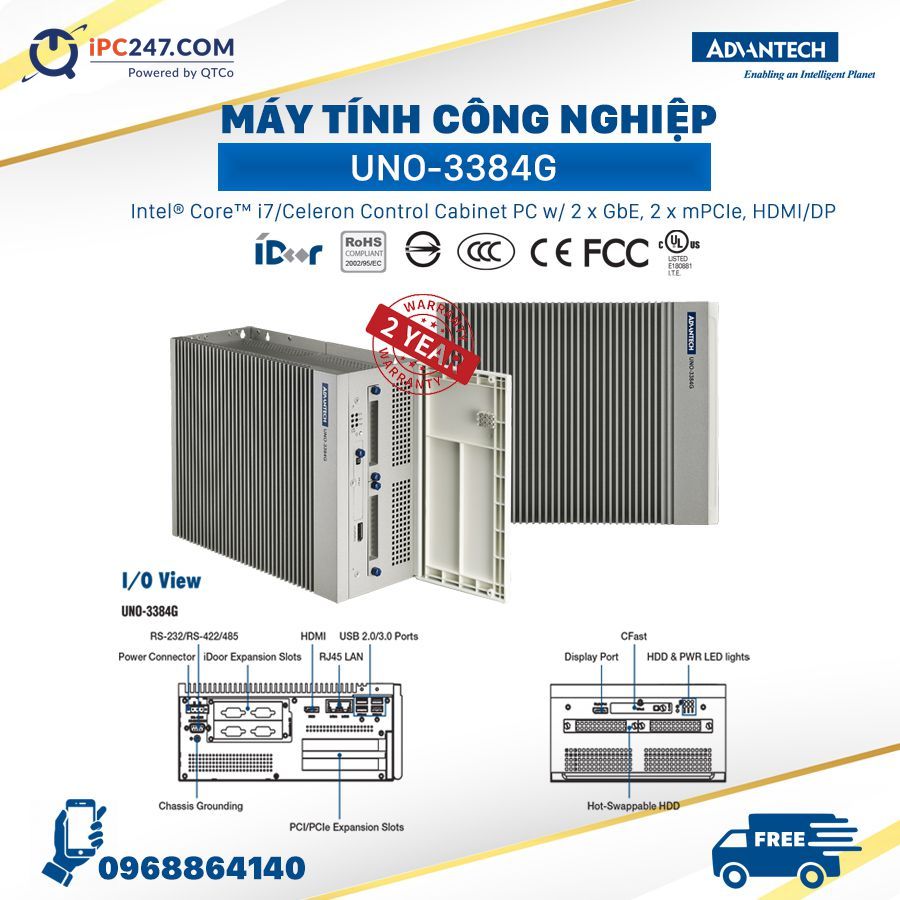

Máy tính công nghiệp không quạt UNO-3384G
Overview
Intel® Core™ i7/Celeron Control Cabinet PC w/ 2 x GbE, 2 x mPCIe, HDMI/DP
Features
- 4th Generation Intel® Core™ i7/Celeron Processors with 8GB/4GB DDR3L Memory
- 2 x GbE, 2 x USB 2.0, 2 x USB 3.0, 1 x RS-232/RS-422/485, 1 x HDMI, 1 x DP, 1 x Cfast, 2 x PCI/PCIe, 2 x mPCIe (2 x full)
- Hot-Swappable HDD/SSD support for RAID 0/1
- Protection Technology of optional UPS is compatible with UNO-3300 series which enhances the quality of input power and secure the data safety
- Supports Fieldbus Protocol by iDoor Technology 3G/GPS/GPRS/Wi-Fi Communication by iDoor Technology
- Supports MRAM by iDoor Technology
- LAN Redundancy (Teaming)
Specifications [UNO-3384G]
| Part Number | UNO-3382G-474AE | UNO-3382G-4C3AE | UNO-3384G-474AE |
| Environment | |||
|
Shock Protection
|
Operating, IEC 60068-2-27, 20G, half sine, 11ms
|
Operating, IEC 60068-2-27, 20G, half sine, 11ms | Operating, IEC 60068-2-27, 20G, half sine, 11ms |
| Vibration Protection |
Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA)
|
Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA) | Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA) |
| Operating Temperature |
0 ~ 55°C (32 ~ 131°F)
|
0 ~ 55°C (32 ~ 131°F) | 0 ~ 55°C (32 ~ 131°F) |
| Relative Humidity |
10 ~ 95% RH @ 40°C, non-condensing
|
10 ~ 95% RH @ 40°C, non-condensing
|
10 ~ 95% RH @ 40°C, non-condensing
|
| Storage Temperature |
-40 ~ 85°C (-40~185°F)
|
-40 ~ 85°C (-40~185°F)
|
-40 ~ 85°C (-40~185°F)
|
|

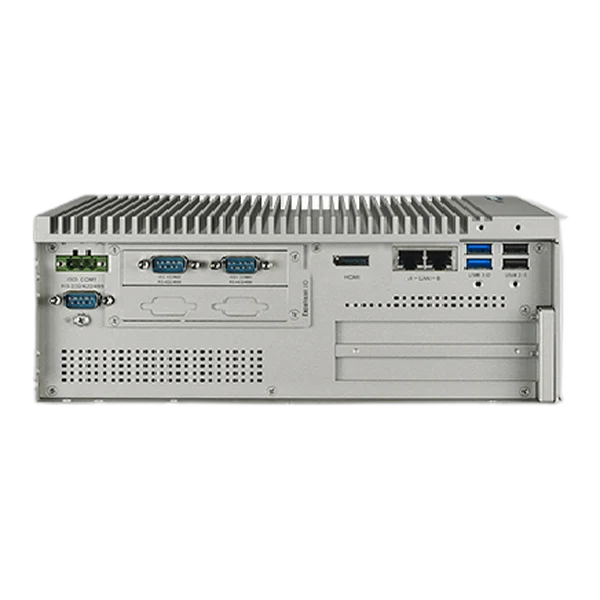

I/O Interface
|
|||
|
Power Connector
|
1 x 3 Pins, Terminal Block
|
1 x 3 Pins, Terminal Block
|
1 x 3 Pins, Terminal Block
|
| Displays |
1 x HDMI, supports 1920 x 1200 @ 60Hz 24bpp, 1 x DP, supports 3200 x 2000 @ 60Hz 24bpp
|
1 x HDMI, supports 1920 x 1200 @ 60Hz 24bpp, 1 x DP, supports 3200 x 2000 @ 60Hz 24bpp
|
1 x HDMI, supports 1920 x 1200 @ 60Hz 24bpp, 1 x DP, supports 3200 x 2000 @ 60Hz 24bpp
|
| LAN Ports |
2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet
|
2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet
|
2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet
|
| Serial Ports |
1 x RS-232/422/485, DB9, auto flow control, 50~115.2kbps
|
1 x RS-232/422/485, DB9, auto flow control, 50~115.2kbps
|
1 x RS-232/422/485, DB9, auto flow control, 50~115.2kbps
|
| USB Port |
4 x USB Ports (2 x USB2.0, 2 x USB3.0 compliant)
|
4 x USB Ports (2 x USB2.0, 2 x USB3.0 compliant)
|
4 x USB Ports (2 x USB2.0, 2 x USB3.0 compliant)
|
|
System Hardware
|
|||
|
Expansion
|
2 Full-size mPCIe
|
2 Full-size mPCIe
|
2 Full-size mPCIe, 1x PCIex4, 1x PCI |
| Storage |
1 x CFast slot, 2x built-in 2.5″ SATA HDD brackets with support for RAID 0/1. (Compatible with 9.5mm height HDD)
|
1 x CFast slot, 2x built-in 2.5″ SATA HDD brackets with support for RAID 0/1. (Compatible with 9.5mm height HDD)
|
1 x CFast slot, 2x built-in 2.5″ SATA HDD brackets with support for RAID 0/1. (Compatible with 9.5mm height HDD)
|
| Graphics Engine |
Intel® HD Graphics
|
Intel® HD Graphics
|
Intel® HD Graphics
|
| LED Indicators |
LEDs for Power, Battery, COM (Tx/Rx) HDD and reserved x 2
|
LEDs for Power, Battery, COM (Tx/Rx) HDD and reserved x 2
|
LEDs for Power, Battery, COM (Tx/Rx) HDD and reserved x 2
|
| Memory |
Built-in 8GB DDR3L 1333 MHz
|
Built-in 4GB DDR3L 1333 MHz | Built-in 8GB DDR3L 1333 MHz |
| Processor |
Intel® Core™ i7-4650U 1.7GHz Haswell, 4MB L2
|
Intel® Celeron 2980U 1.6GHz, 2MB L2 | Intel® Core™ i7-4650U 1.7GHz Haswell, 4MB L2 |
| System Chip |
Integrated Intel 8 Series Chipset
|
Integrated Intel 8 Series Chipset | Integrated Intel 8 Series Chipset |
| Watchdog Timer |
Programmable 255 levels timer interval, from 1 to 255 sec
|
Programmable 255 levels timer interval, from 1 to 255 sec
|
Programmable 255 levels timer interval, from 1 to 255 sec
|
| BIOS |
AMI UEFI 128Mbit Flash BIOS
|
AMI UEFI 128Mbit Flash BIOS
|
AMI UEFI 128Mbit Flash BIOS
|
|
General
|
|||
|
OS Support
|
WIN7/8, WES7, WES10, Advantech Linux
|
WIN7/8, WES7, WES10, Advantech Linux
|
WIN7/8, WES7, WES10, Advantech Linux
|
| Power Requirement |
24VDC ± 20%
|
24VDC ± 20%
|
24VDC ± 20%
|
| Power Consumption |
45W (Typical), 65W (Max)
|
45W (Typical), 65W (Max)
|
45W (Typical), 75W (Max) |
| Weight |
3.1 kg
|
3.1 kg
|
3.1 kg
|
| Mounting |
Book mount
|
Book mount
|
Book mount
|
| Enclosure |
Aluminum Housing
|
Aluminum Housing
|
Aluminum Housing
|
| Form factor |
Regular Size
|
Regular Size
|
Regular Size
|
| Dimension(W x D x H) |
65.2 x 254 x 207 mm
|
65.2 x 254 x 207 mm
|
103.2 x 254 x 207 mm (4.06″ x 10″ x 8.15″) |
| Certifications |
CE, FCC, UL
|
CE, FCC, UL
|
CE, FCC, UL
|
