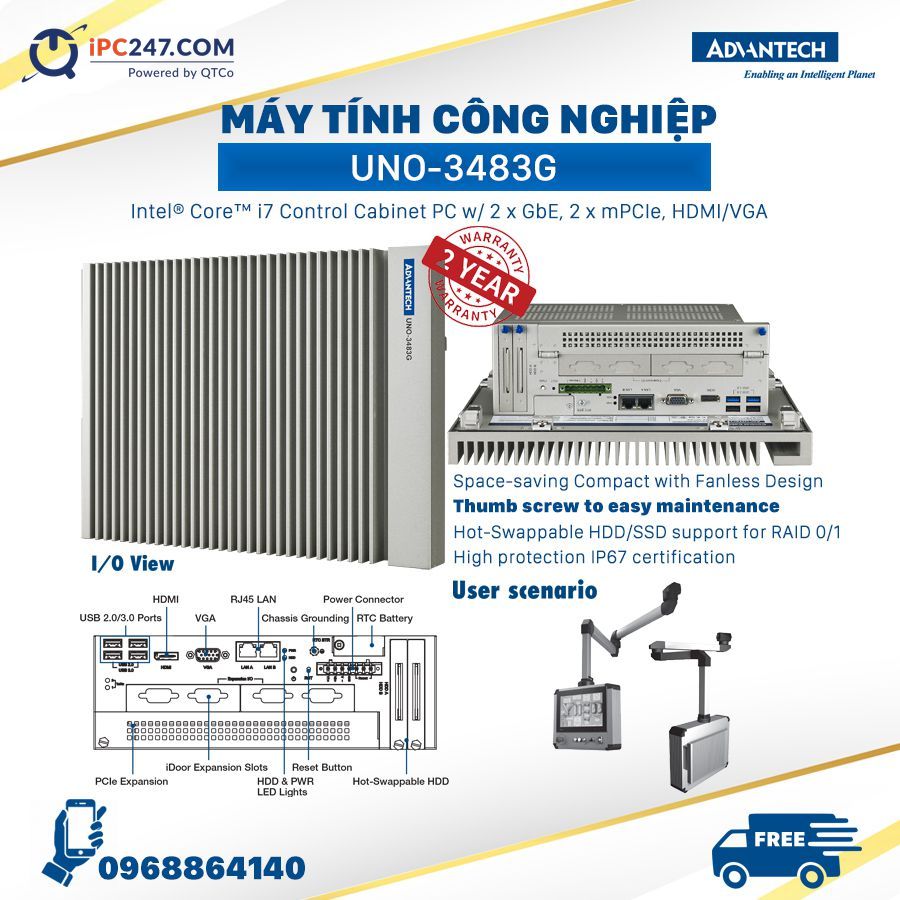

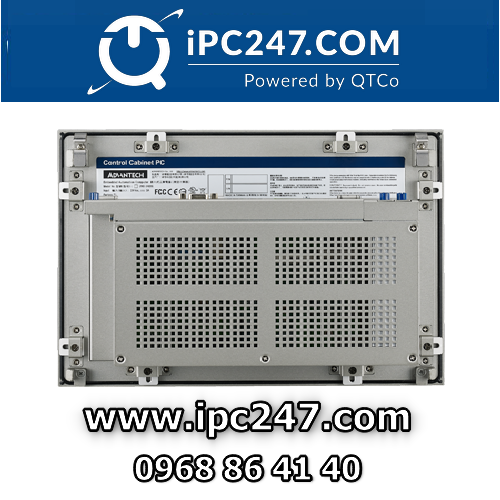

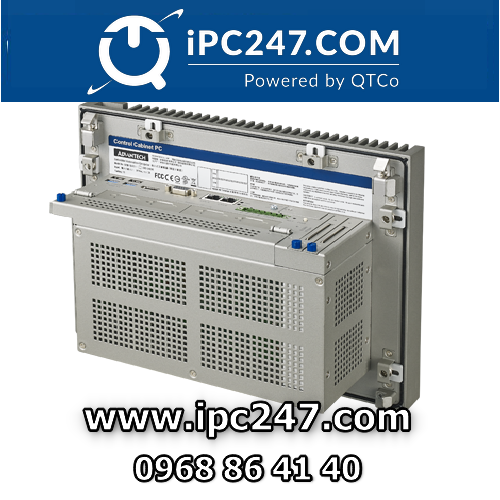

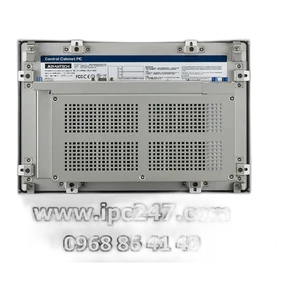

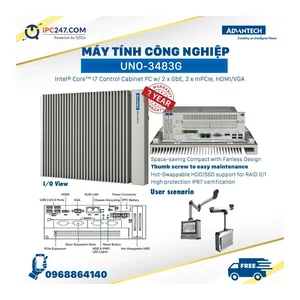

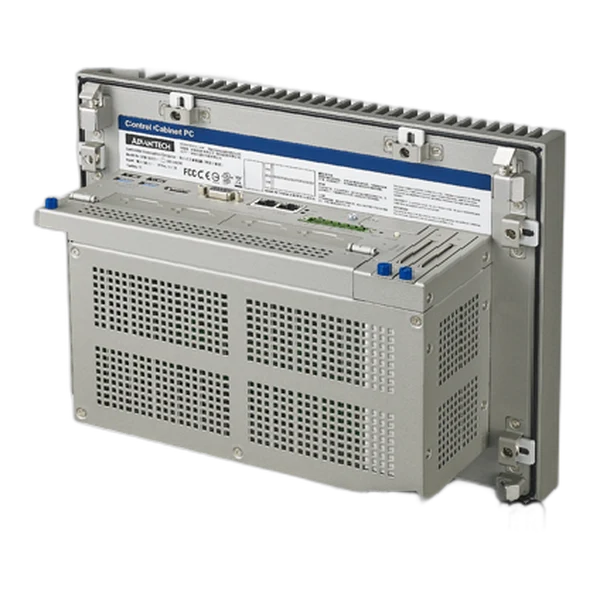

Máy tính công nghiệp không quạt UNO-3483G
Overview
Intel® Core™ i7 Control Cabinet PC w/ 2 x GbE, 2 x mPCIe, HDMI/VGA
Features
- 3rd Generation Intel® Quad Core Processors with 8GB DDR3L Memory
- 2 x GbE, 2 x USB 2.0, 2 x USB 3.0, 1 x RS-232, 1 x RS-422/485 (pin header), 1 x VGA, 1 x HDMI
- 1 x PCIex4, 3 x mPCIe (2 x full, 1 x half), 1 x mSATA slot

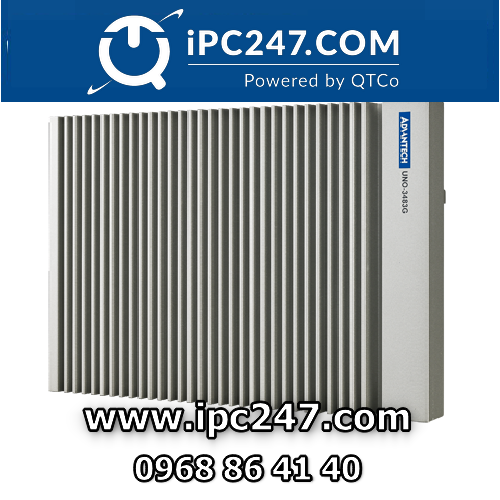

- Space-saving Compact with Fanless Design
- Thumb screw to easy maintenance
- Hot-Swappable HDD/SSD support for RAID 0/1
- High protection IP67 certification
- Convenient “Place & Click”
- Easily exchangeable RTC battery
- Supports Fieldbus Protocol by iDoor Technology
- 3G/GPS/GPRS/Wi-Fi Communication by iDoor Technology
- Supports MRAM by iDoor Technology
- LAN Redundancy (Teaming)

Specifications [UNO-3483G]
| Part Number |
UNO-3483G-374AE
|
|
General
|
|
|
Mounting
|
Enclosure mounting
|
| Power Consumption |
50W (Typical), 100W (Max)
|
| Certifications |
CE, FCC, UL, BSMI
|
| Enclosure |
Aluminum Housing
|
| OS Support |
WIN7/8, WES7, WES-2009, Linux
|
| Weight (Net) |
4.9kg (10.8lbs)
|
| Power Requirement |
12V/24VDC ± 20%
|
| Dimensions ( W x D x H ) |
305 x 82 x 225 mm (12” x 3.2” x 8.9”)
|
|
System Hardware
|
|
|
Memory
|
Built-in 8GB DDR3L 1333 MHz
|
| Storage |
One mSATA slot, Two built-in 2.5″ SATA HDD brackets with support for RAID 0/1.(Compatible with 9.5mm height HDD)
|
| Watchdog Timer |
Programmable 255 levels timer interval, from 1 to 255 sec
|
| BIOS |
AMI UEFI 128Mbit Flash BIOS
|
| Expansion |
1 x PCIex4, 2 x Full-size mPCIe, 1 x half-size mPCIe
|
| Processor |
Intel® Core™ i7-3612QE QC 2.1GHz Ivy Bridge Quad Core, 6MB L2
|
| System Chip |
Integrated Intel 8 Series Chipset
|
| Graphics Engine |
Intel® HD Graphics
|
| Ethernet |
LAN A: Intel® 82579LM GbE, Intel® AMT, IEEE802.1AS, 802.3az, LAN B: Intel® 82583V GbE, IEEE802.1AS, 802.3az
|
| LED Indicators |
LEDs for Power, battery, LAN (Active, Status), COM (Tx/Rx) and HDD
|
|
I/O Interface
|
|
|
Serial Ports
|
1 x RS-232, DB9, 50~115.2kbps (pin header), 1 x RS-422/485, DB9, auto flow control, 50~115.2kbps (pin header)
|
| Audio |
Mic-in, Line-In, Line-Out (Pin Header)
|
| USB Port |
4 x USB Ports (2 x USB2.0, 2 x USB3.0 compliant)
|
| Displays |
1 x VGA, supports 1920 x 1080 @ 60Hz 24bpp, 1 x HDMI 1.4a, supports 1920 x 1080 @ 60Hz 24bpp
|
| Power Connector |
1x 7 Pins, Terminal Block to support dual power input and remote power control
|
| LAN Ports |
2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet
|
|
Environment
|
|
|
Relative Humidity
|
10 ~ 95% @ 40°C non-condensing
|
| Ingress Protection |
Integrated seals maintain with IP67 design
|
| Vibration Protection |
Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA)
|
| Shock Protection |
Operating, IEC 60068-2-27, 50G, half sine, 11ms
|
| Operating Temperature |
– 20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow (Industry SSD)
|
| Storage Temperature |
-40 ~ 85°C (-40~185°F)
|
