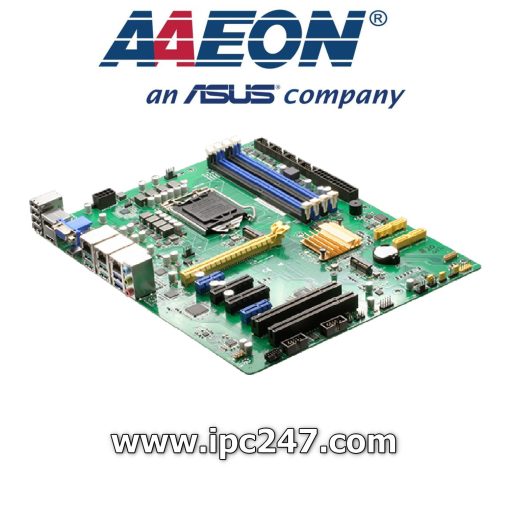

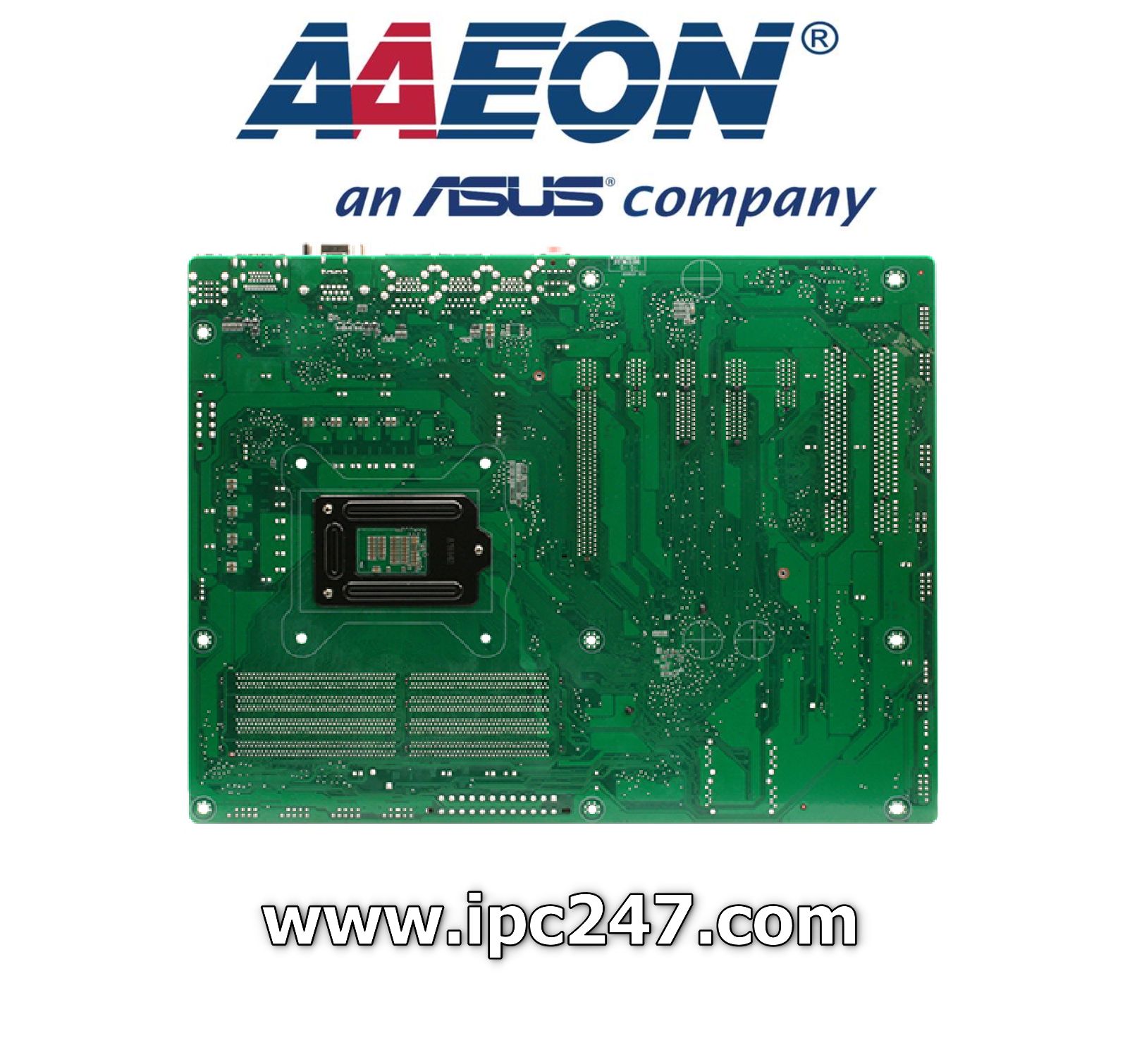

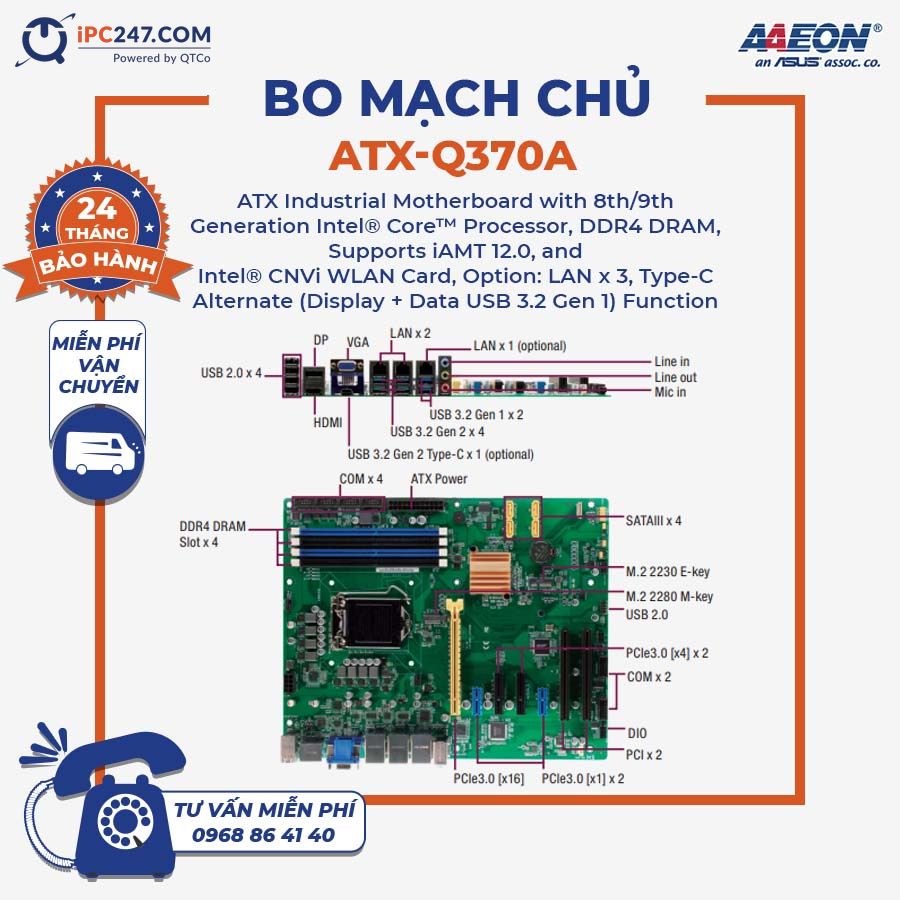

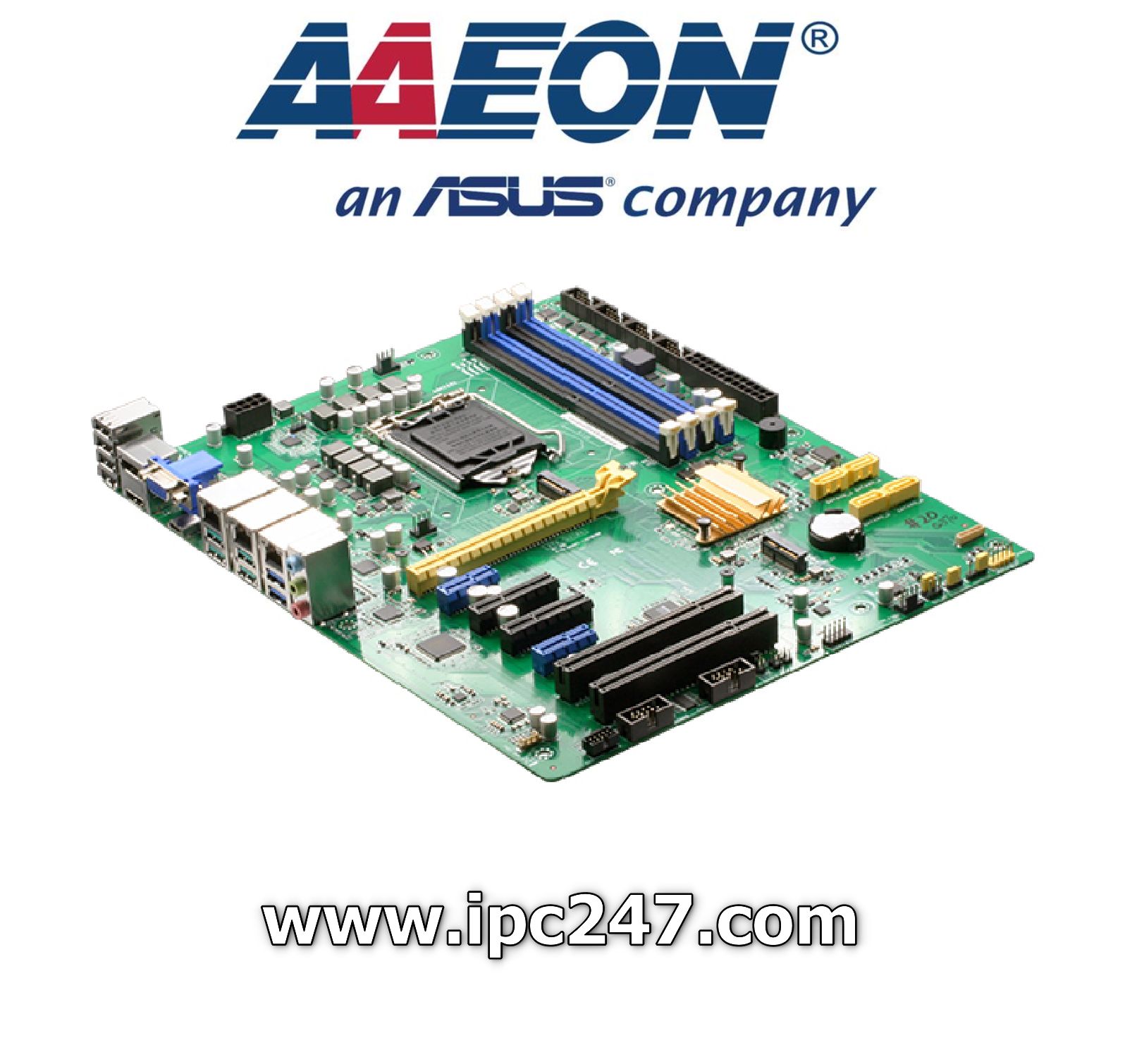

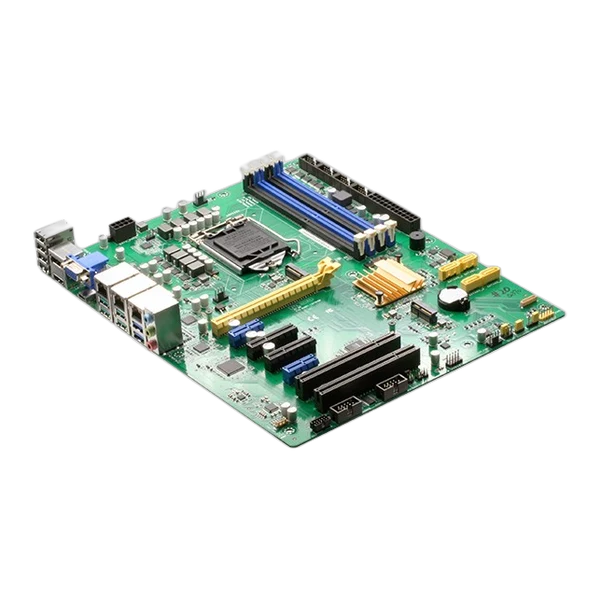

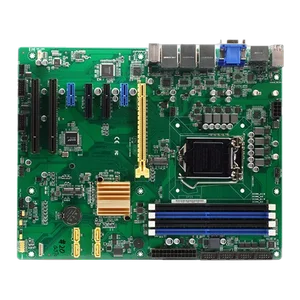

Bo mạch chủ ATX-Q370A
ATX Industrial Motherboard with 8th/9th Generation Intel® Core™ Processor, DDR4 DRAM, Supports iAMT 12.0, and Intel® CNVi WLAN Card, Option: LAN x 3, Type-C Alternate (Display + Data USB 3.2 Gen 2) Function
Overview
The ATX-Q370A from AAEON combines our expertise in industrial motherboards with the 8th and 9th Generation Intel® Core™ processors (formerly Coffee Lake, Coffee Lake Refresh). Supporting CPUs up to 95W TDP, the ATX-Q370A combines high-end performance and expandability with PCIe 3.0, M.2 2280 and M.2 2230 with CNVi support. ATX-Q370A is designed to power applications including Smart Security and Access Control, and can connect to a wide number of devices with ten USB ports and up to three Gigabit LAN ports.
Features
- 8th/9th Generation Intel® Core™ LGA1151 Processor
- Supports Power 95W max.
- DDR4 2666/2400/2133 MHz, max. 64GB
- Three Independent Displays: HDMI x 1, VGA x 1, DP x 1, USB Type-C x 1 (optional)
- Dual Intel® Gigabit Ethernet, i211AT x 1 (option: i211AT x 2), i219LM x 1
- USB 3.2 Gen 2 ports x 4, USB 3.2 Gen 2 Gen1 ports x 2, USB 2.0 ports x 4
- M.2 E-key (PCIex1/USB2.0/CNVi) x 1, M.2 M-key (PCIex4/SATA3) x 1
- TPM Onboard (optional)
Specifications [ATX-Q370A]
| SYSTEM | |
| PROCESSOR | Intel® 8th/9th Generation (Coffee Lake-S/Coffee Lake-S Refresh) Core™ i9/ i7/ i5 /i3, Pentium 14nm LGA 1151 socket Processor, Max. 95W |
| CHIPSET | Intel® Q370 Express Chipset |
| MEMORY | DIMM x 4, DDR4 (2666/2400/2133 MHz, max. 64GB) Non-ECC, un-buffered memory Dual channel memory architecture |
| I/O CHIPSET | NCT6793D + F81216HD |
| ETHERNET | Intel® PHY i219LM Giga LAN x 1 (supports Intel® AMT 12.0) Intel® i211AT Giga LAN x 1 (BOM option: i211AT x 2) RJ45 x 2 (BOM option: RJ45 x 3) |
| AUDIO | Realtek® ALC887 6-Channel High Definition Audio CODEC |
| TPM | Nuvoton NPCT750ABBYX TPM2.0 onboard (optional) |
| EXPANSION SLOT | PCIe 3.0[x16] Slot x 1, PCIe 3.0[x4] Slot (open edge) x 2, PCIe 3.0[x1] Slot (open edge) x 2, PCI x 2, M.2 2230 E-key (PCIex1/USB2.0/CNVi) x 1, M.2 2280 M-key(PCIex4/SATA3) x 1 |
| BIOS | 256Mbit Flash ROM x 1, AMI BIOS |
| H/W MONITOR | Temperature Monitor on CPU/Chassis, Voltage Monitor on Vcore/5V/3.3V/12V, Fan Monitor on CPU/Chassis |
| WATCHDOG TIMER | 1~255 steps by software program |
| SMART FAN CONTROL | CPU Fan/ Chassis Fan x 2 |
| WAKE ON LAN/ PXE | Yes (WOL / PXE) |
| POWER STATE | S3, S4, S5 |
| GRAPHICS | |
| GRAPHICS CHIPSET | Intel® Graphics Media Accelerator |
| GRAPHICS MULTI DISPLAY | HDMI+VGA+DP (BOM option: USB 3.2 Gen 2 Gen2-10Gbps Type-C connector (Alternate Mode: USB+DP) x 1) |
| VGA | Up to 1920 x 1200 @60Hz (via IT6516B) |
| DVI | — |
| HDMI | Up to 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz, with Digital Audio |
| DISPLAYPORT | Up to 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz, with Digital Audio |
| LVDS | — |
| BACKLIGHT CONTROL | — |
| ENVIRONMENTAL & POWER & ME | |
| BATTERY | Lithium battery |
| POWER REQUIREMENT | 24-pin ATX connector x 1, 8-pin (2×4) ATX 12V Power connector x 1 |
| OPERATING TEMPERATURE | 32°F ~140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~185°F (-40°C ~85°C) |
| OPERATING HUMIDITY | 0%~90%RH, non-condensing |
| CERTIFICATION | CE & FCC Class A |
| FORM FACTOR | ATX Form Factor, 12″x9.6″ (305mm x 244mm) |
| WEIGHT | 1.76 lb (0.8 Kg) |
| MTBF (HOURS) | 281,410 |

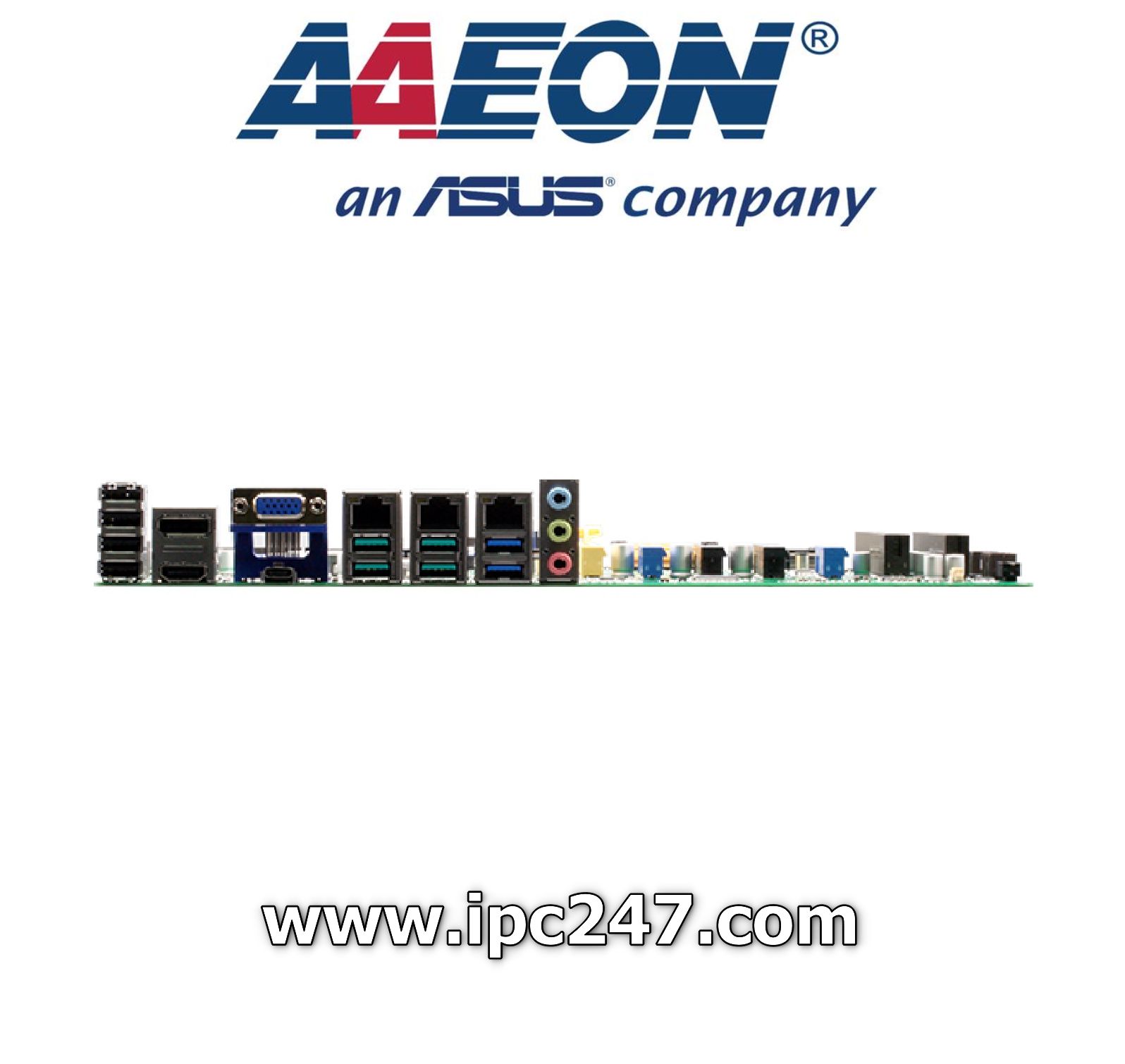

| REAR PANEL I/O PORTS | |
| USB | USB 3.2 Gen 2 ports (10 Gbps) x 4, USB 3.2 Gen 1 ports (5 Gbps) x 2, USB 2.0 ports x 4 |
| DISPLAY I/O | HDMI x 1, VGA x 1, DP x 1, USB Type-C x 1 (optional) |
| AUDIO I/O | Audio Jack x 3: Line-in, Mic-in, Line-out |
| LAN I/O | LAN (RJ45) ports x 2 (BOM option: RJ45 x 3) |
| SERIAL PORT | — |
| PS/2 PORT | — |
| INTERNAL I/O CONNECTORS | |
| STORAGE | SATA III (6.0Gb/s) ports x 4, support RAID 0/1/5/10 M.2 2280 M-key (PCIex4/SATA3) x 1 |
| USB | USB 2.0 headers x 1 support additional 2 USB ports (2x5PIN, p=2.54mm) |
| DISPLAY I/O | — |
| SERIAL PORT | 5 x RS-232 headers 1 x RS-232/422/485 (COM1, supports 5V/12V/RI optional) |
| PARALLEL PORT | — |
| DIO | 8-bit Digital I/O interface (In/Out programmable) x 1 |
| FAN | CPU Fan connector(s) (4-pin) x 1 Chassis Fan connector(s) (4-pin) x 2 |
| POWER | — |
| OTHERS | Chassis Intrusion x 1 AT/ATX mode select jumper x 1 Front panel header x 1 Clear CMOS jumper x 1 |
| OS | |
| OS SUPPORT | Windows® 10 64bit, Linux Ubuntu 64bit (18.04.1/Kernal4.8.0) |
Ordering Information [ATX-Q370A]
| PART NUMBER | ATX-Q370A-A10-2L |
|---|---|
| CPU | LGA 1151 socket |
| RAM | DDR4 2666/2400/2133 |
| FAN/ FANLESS | Fan |
| DISPLAY | HDMI x 1 VGA x 1 DP x 1 |
| LVDS | — |
| STORAGE | SATA3 x 4 M.2 2280 M-key x 1 |
| LAN | Intel®GbE x 2 |
| USB | USB 3.2 Gen 2 x 4 USB 3.2 Gen 1 x 2 USB 2.0 x 4 |
| RS-232 | 5 |
| RS-232/422/485 | 1 |
| EXPANSION SLOT | PCIe[x16] x 1, PCIe[x4] (open edge) x 2, PCIe[x1] (open edge) x 2, PCI x 2, M.2 2230 E-key x 1, M.2 2280 M-key x 1 |
| POWER | ATX |
| TPM | — |
| TEMP | 32°F ~140°F (0°C ~ 60°C) |
Downloads [ATX-Q370A]
1. Datasheet: ATX-Q370A,datasheet 2.0
2. Manual: ATX-Q370A Manual 1.0
Packing List
- 14001-00630100 SATA 6G Cable (7P, 180; 90, 500mm 2 in 1)
- I/O Shield
- ATX-Q370A
Optional Accessories
| 14001-00400100 | COM Port Cable (9P, 260mm, p=2.54mm w/bracket) |
| 1709100330 | USB 2.0 cable (9P, 330MM, p=2.54mm, w/bracket) |
| 170910020K | USB 2.0 cable (9P, 200MM, p=2.54mm, w/o bracket) |
| 175921156B | CPU Cooler (2-Ball, Push-pin Type) |
| 1759200172 | CPU Cooler (2-Ball, Screw with Retention Plate) |
