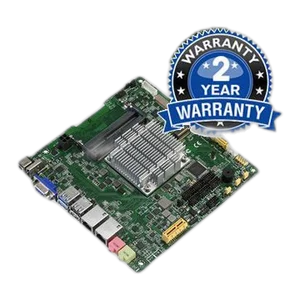

Bo mạch chủ Mini-ITX EMB-APL1
Mini-ITX Embedded Motherboard with Intel® N3350(DC)/N4200(QC)/E3930(DC) Processor
Overview
Mini-ITX Embedded Motherboard with Intel® N3350(DC)/N4200(QC) Processor

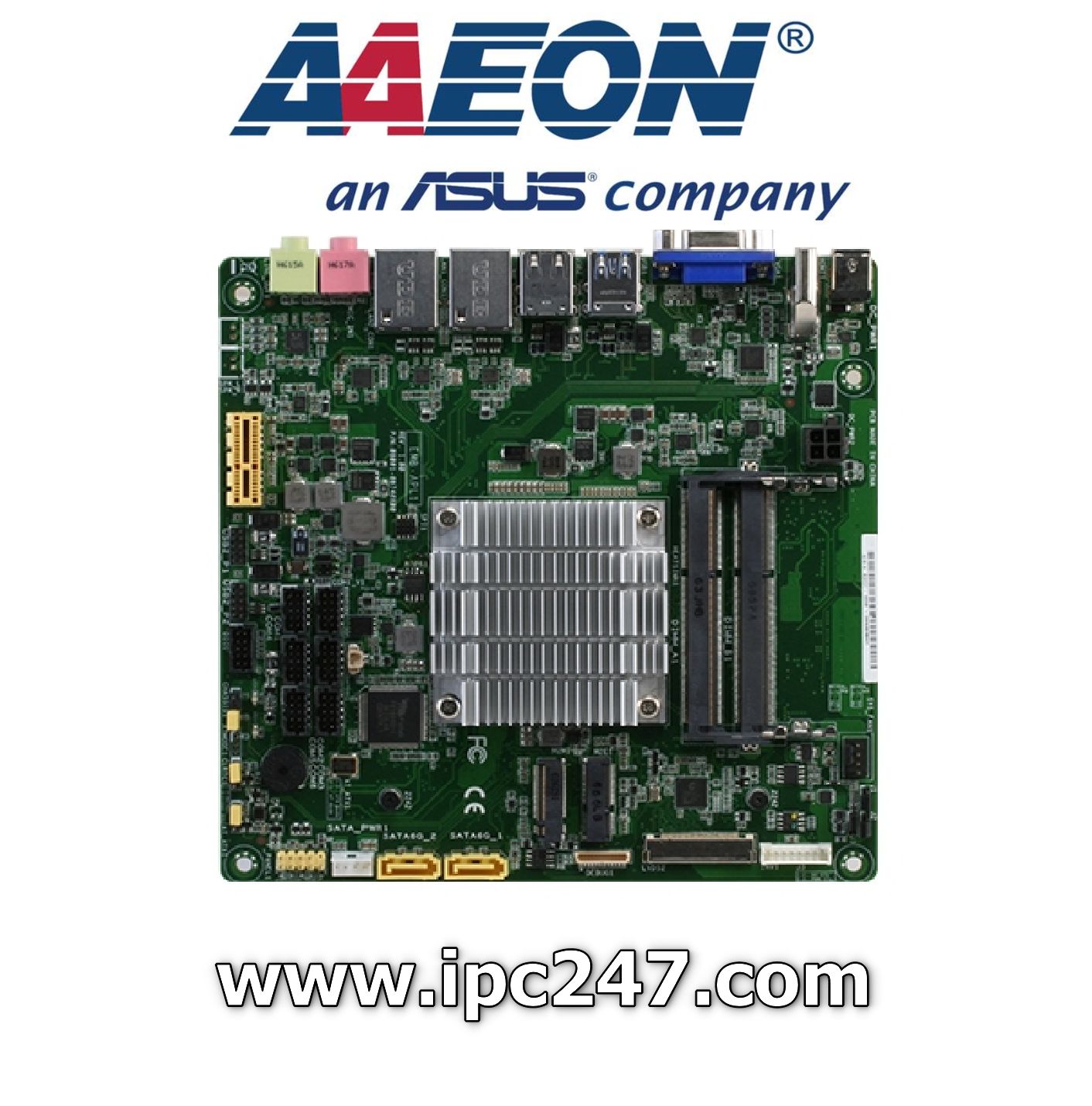

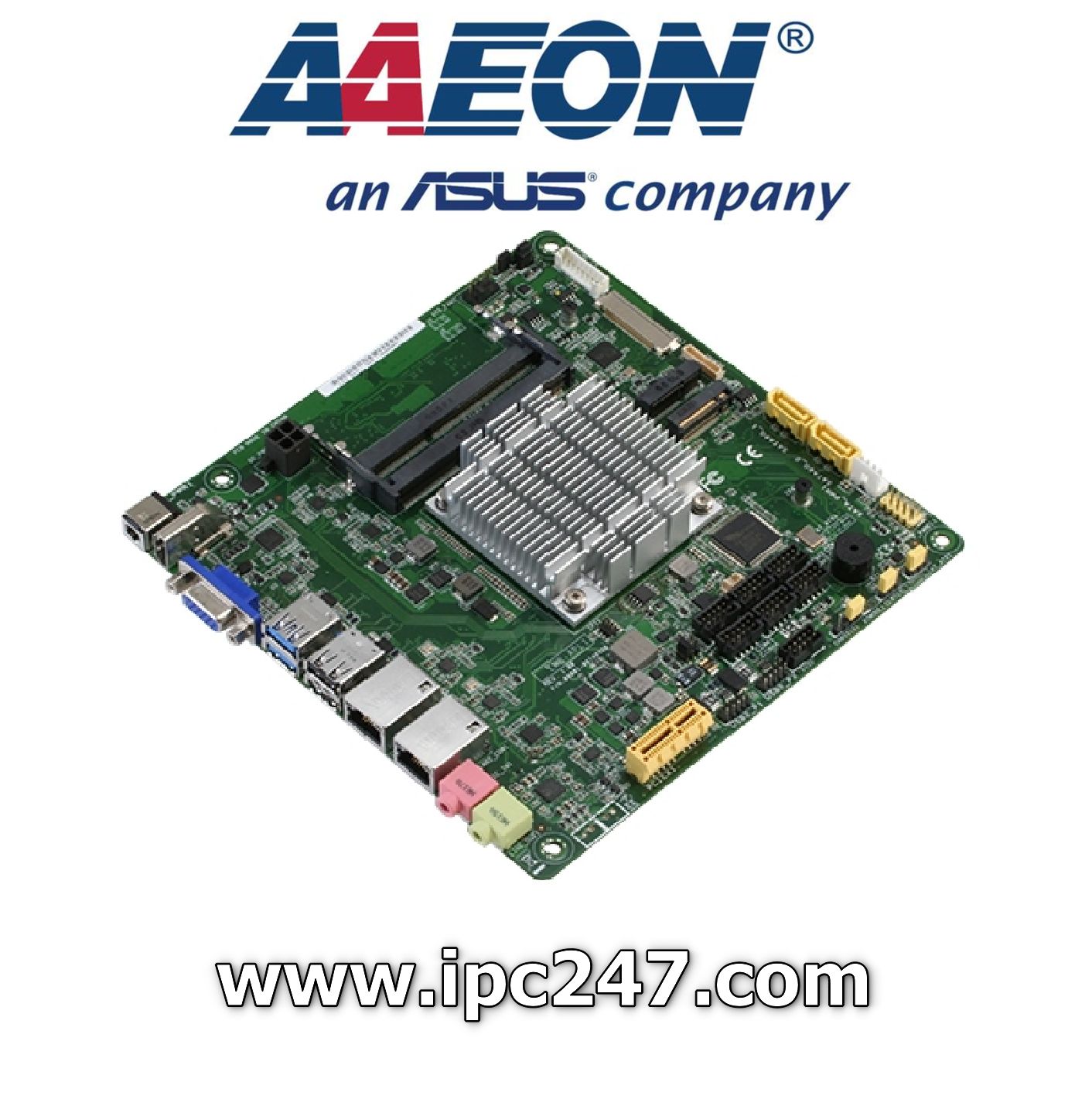

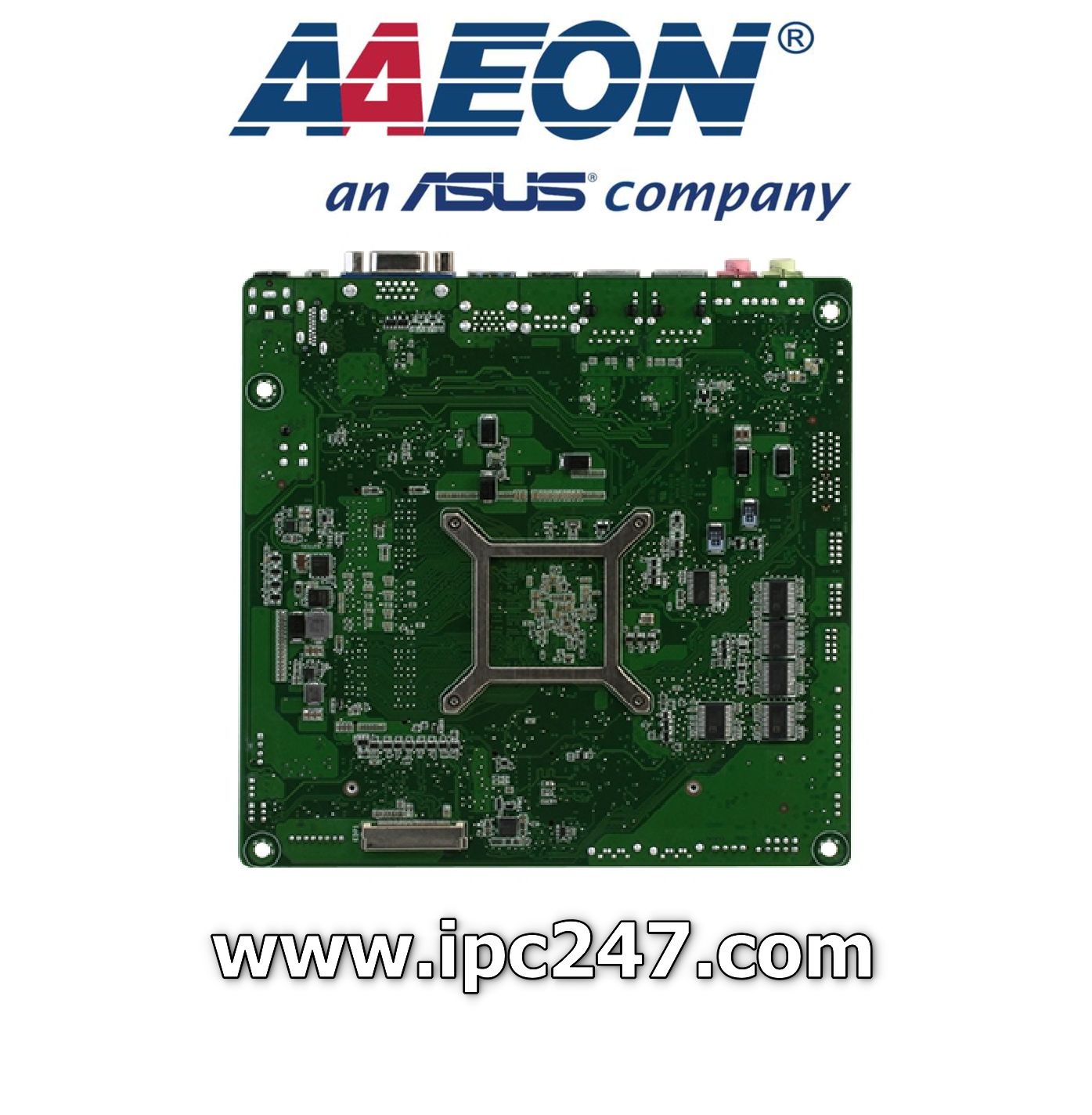

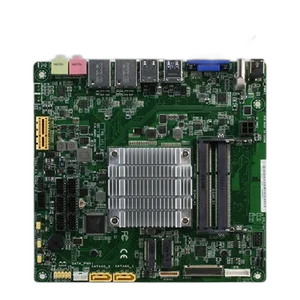

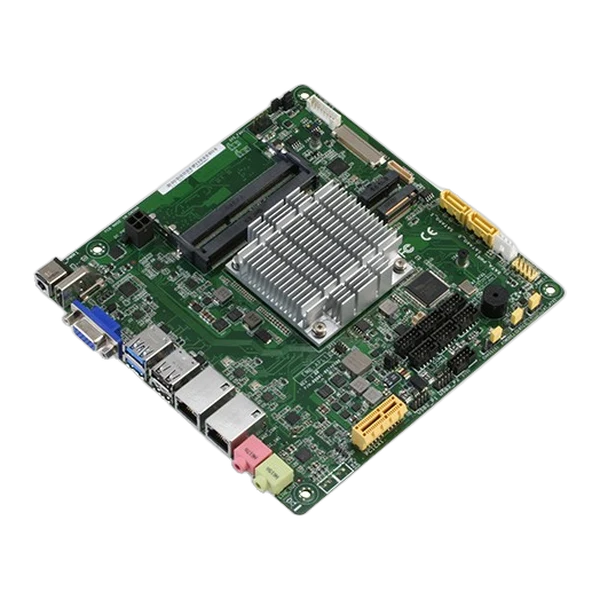

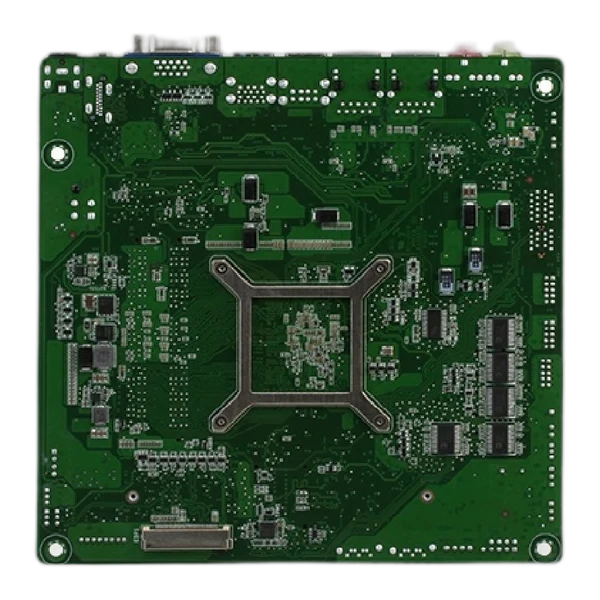

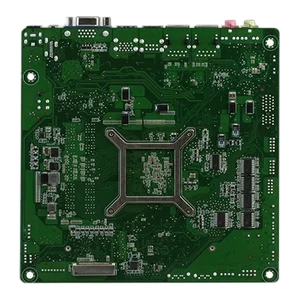

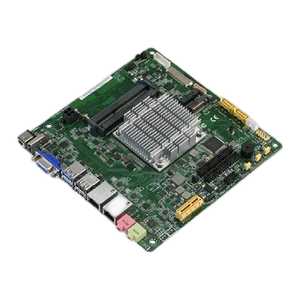

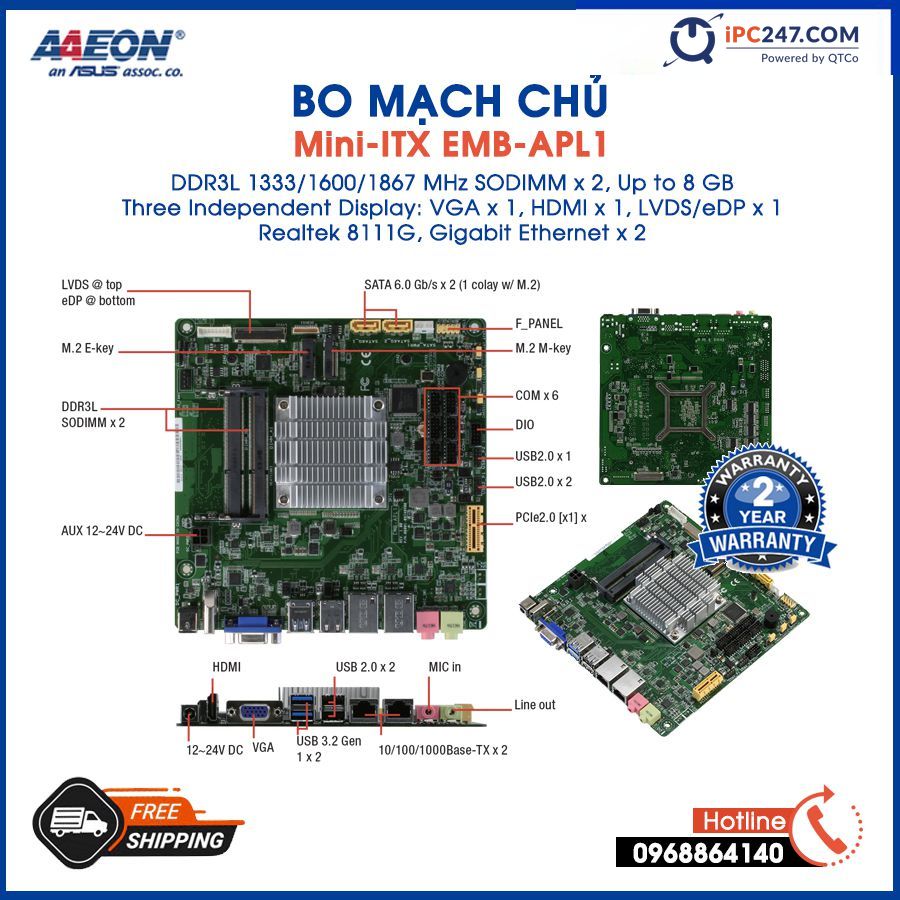

Features
- DDR3L 1333/1600/1867 MHz SODIMM x 2, Up to 8 GB
- Three Independent Display: VGA x 1, HDMI x 1, LVDS/eDP x 1
- Realtek 8111G, Gigabit Ethernet x 2
- COM Port x 6 (RS-232 x 5, RS-232/422/485 x 1)
- M.2 Slot(M-key) x 1, M.2 Slot(E-key) x 1, PCIe2.0 [x1] x 1
- 12~24V DC Wide Range Voltage Power Input
- Low Profile
Specifications [EMB-APL1]
| SYSTEM | |
| PROCESSOR | N4200, (4C @ 2.50GHz CPU [Burst Mode] 750MHz GFX [Turbo], ~6W TDP) N3350, (2C @ 2.40GHz CPU [Burst Mode], 650MHz GFX [Turbo], ~6W TDP) E3930, (2C @ 1.80GHz CPU [Burst Mode], 550MHz GFX [Turbo], ~6.5W TDP) |
| CHIPSET | Intergrated into SoC |
| MEMORY | DDR3L 1333/1600/1867MHz SODIMM x 2, max. 8GB, non-ECC, un-buffered memory |
| I/O CHIPSET | NCT6116D |
| ETHERNET | Realtek PCIe Gb LAN 8111G x 2 |
| AUDIO | Realtek® ALC3236-CG |
| TPM | Nuvoton NPCT652ABCYX TPM2.0 (default: No) |
| EXPANSION SLOT | PCIe2.0 [x1] x 1 M.2 M key (22 x 42mm) x 1, for SATA M.2 E Key (22 x 30mm) x 1, for PCIe |
| BIOS | 128Mbit Flash ROM x 1, AMI BIOS |
| H/W MONITOR | Temperature Monitor on CPU/System, Voltage Monitor on Vcore/5V/12V, Fan Monitor on CPU/Chassis |
| WATCHDOG TIMER | 1~255 steps by software program |
| SMART FAN CONTROL | Chassis Fan (Fanless) |
| WAKE ON LAN/ PXE | Yes (WOL/PXE) |
| POWER STATE | S3, S4, S5 |
| GRAPHICS | |
| GRAPHICS CHIPSET | Intel® HD Graphics |
| GRAPHICS MULTI DISPLAY | Three Independent Display |
| VGA | Up to 1920 x 1200 @60Hz |
| DVI | — |
| HDMI | Up to 3840 x 2160 @ 30Hz |
| DISPLAYPORT | — |
| LVDS | Up to 1920 x 1200 @60Hz, Daul Channel 18/24 bit (via PS8625) (colay with eDP) |
| EDP | Up to 4096 x 2160 @60Hz |
| BACKLIGHT CONTROL | Voltage/PWM |
| ENVIRONMENTAL & POWER & ME | |
| BATTERY | Lithium battery |
| POWER REQUIREMENT | 12V~24V wide-range voltage input back panel DC jack x 1; 4-pin ATX Power connector x 1 |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~ 85°C) |
| OPERATING HUMIDITY | 0% ~ 90% RH, non-condensing |
| CERTIFICATION | CE & FCC Class A |
| FORM FACTOR | Mini-ITX: 6.7″ x 6.7″ (170mm x 170mm) |
| WEIGHT | 1.1 lb (0.5 Kg) |
| MTBF (HOURS) | 263,080 |

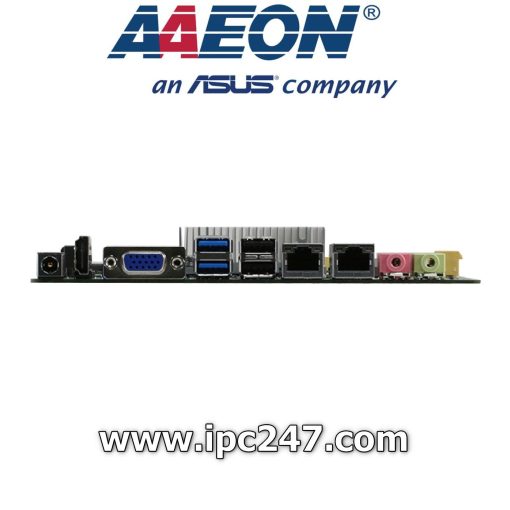

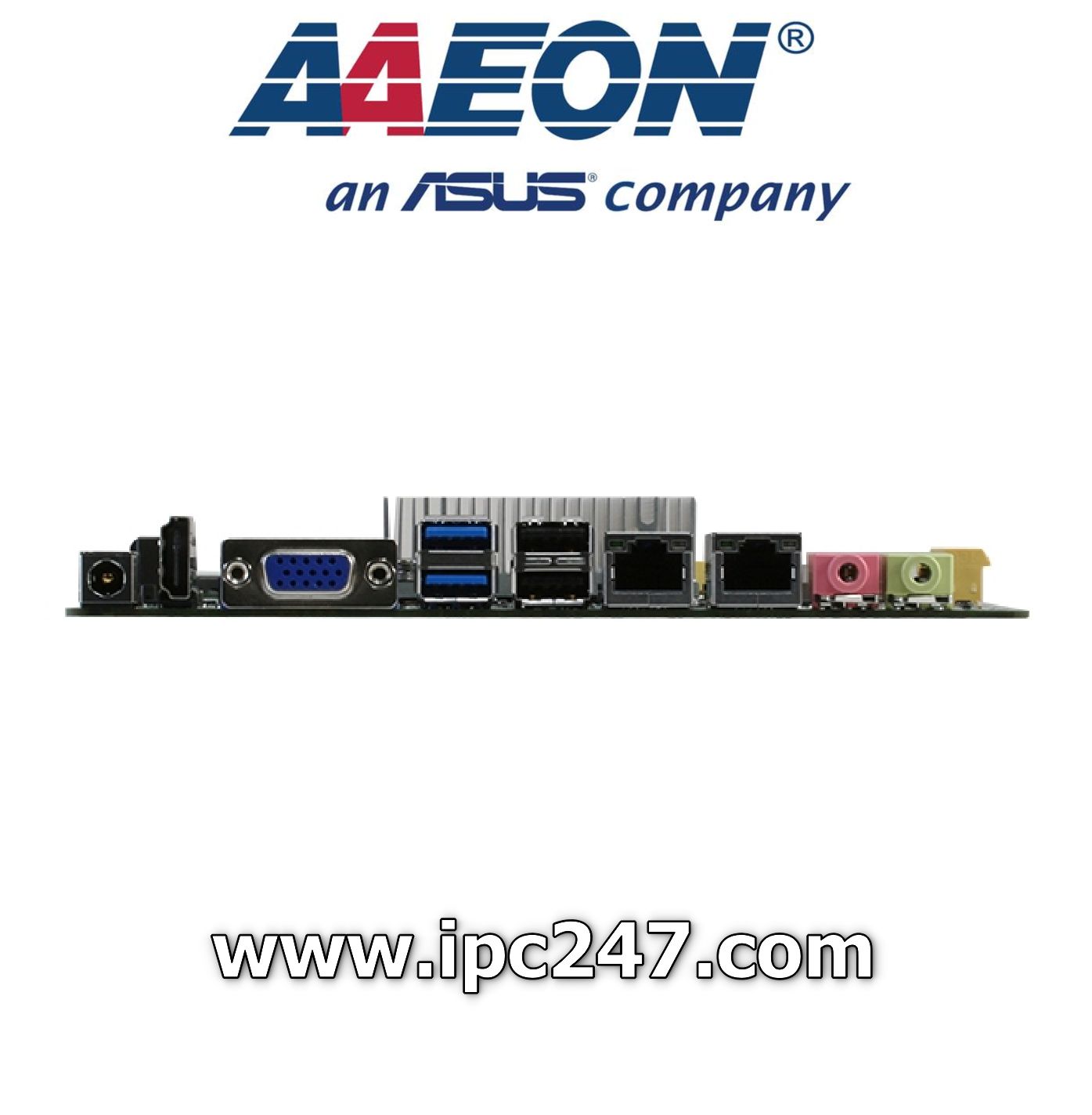

| REAR I/O PORTS | |
| USB | USB 3.2 Gen 1 (5 Gbps) x 2, USB 2.0 x 2 |
| DISPLAY I/O | HDMI x 1, VGA x 1 |
| AUDIO I/O | Mic-in, Line-out |
| LAN I/O | RJ-45 x 2 |
| SERIAL PORT | — |
| PS/2 PORT | — |
| OTHERS | DC power jack x 1 |
| INTERNAL I/O CONNECTORS | |
| STORAGE | SATA 6.0Gb/s x 2(1 colay with M.2 M-key), M.2 M-key (22 x 42mm) x 1 |
| USB | USB 2.0 headers support additional 3 USB ports (2*5-pin, p=2.00mm) x 2 |
| DISPLAY I/O | 40-pin LVDS/eDP connector x 1(default LVDS) |
| AUDIO I/O | — |
| SERIAL PORT | RS-232/422/485 x 1, RS-232 x 5 |
| PS/2 PORT | — |
| PARALLEL PORT | — |
| DIO | 8-bit x 1 (In/Out programmable) |
| FAN | 4-pin Chassis Fan x 1 |
| POWER | — |
| OTHERS | Front panel header x 1, Clear CMOS jumper x 1, AT/ATX mode select jumper (optional) x 1, SATA power connector x 1, M.2 E key (22 x 30mm) for PCIe x 1 |
| OS | |
| OS SUPPORT | WIndows® 10 64bit Ubuntu16.04.02/Kernel4.8.0 |
Ordering Information [EMB-APL1]
| PART NUMBER | EMB-APL1-A10-3350-LV | EMB-APL1-A10-4200-LV |
|---|---|---|
| CPU | N3350 | N4200 |
| RAM | SODIMM x 2 | SODIMM x 2 |
| FAN/ FANLESS | Fanless | Fanless |
| DISPLAY | VGA, HDMI, LVDS | VGA, HDMI, LVDS |
| STORAGE | SATA3 x 1, M.2(M-key) | SATA3 x 1, M.2(M-key) |
| LVDS | Daul Channel 18/24 bit | Daul Channel 18/24 bit |
| LAN | GbE x 2 | GbE x 2 |
| USB | USB 2.0 x 5, USB 3.2 Gen 1 x 2 |
USB 2.0 x 5, USB 3.2 Gen 1 x 2 |
| RS-232 | 5 | 5 |
| RS-232/422/485 | 1 | 1 |
| EXPANSION SLOT | PCIe2.0[x1] x 1, M.2(M-key) x 1, M.2(E-Key) x 1 |
PCIe2.0[x1] x 1, M.2(M-key) x 1, M.2(E-Key) x 1 |
| POWER | 12V-24V DC | 12V-24V DC |
| TPM | — | — |
| TEMP | 32°F ~140°F (0°C ~ 60°C) | 32°F ~140°F (0°C ~ 60°C) |
Downloads [EMB-APL1]
1. Datasheet:
2. Manual: EBM-APL1, Manual 3.0
Packing List
- 14001-00630100 SATA 6G Cable (7P, 180; 90, 500mm 2 in1)
- 14001-00230100 SATA to Power Cable (4P, 120MM)
- Heatsink
- I/O Shield
- EMB-APL1
Optional Accessories
| Part Number | Description |
| 1709100201 | USB 2.0 Cable (10P, 200MM, p=2.00mm, w/bracket) |
| 1700100491 | USB 2.0 Cable (2 x 5P, 490mm, p=2.00mm) |
| 1709050201 | USB 2.0 Cable (5P, 220mm, p=2.00mm) |
| 1701100206 | COM Cable (200MM, p=2.00mm) |
| 1702150300 | SATA Power Cable (4P, 300MM p=2.54mm) |
| 125590084A | Adapter 12V, 84W/N3 |
