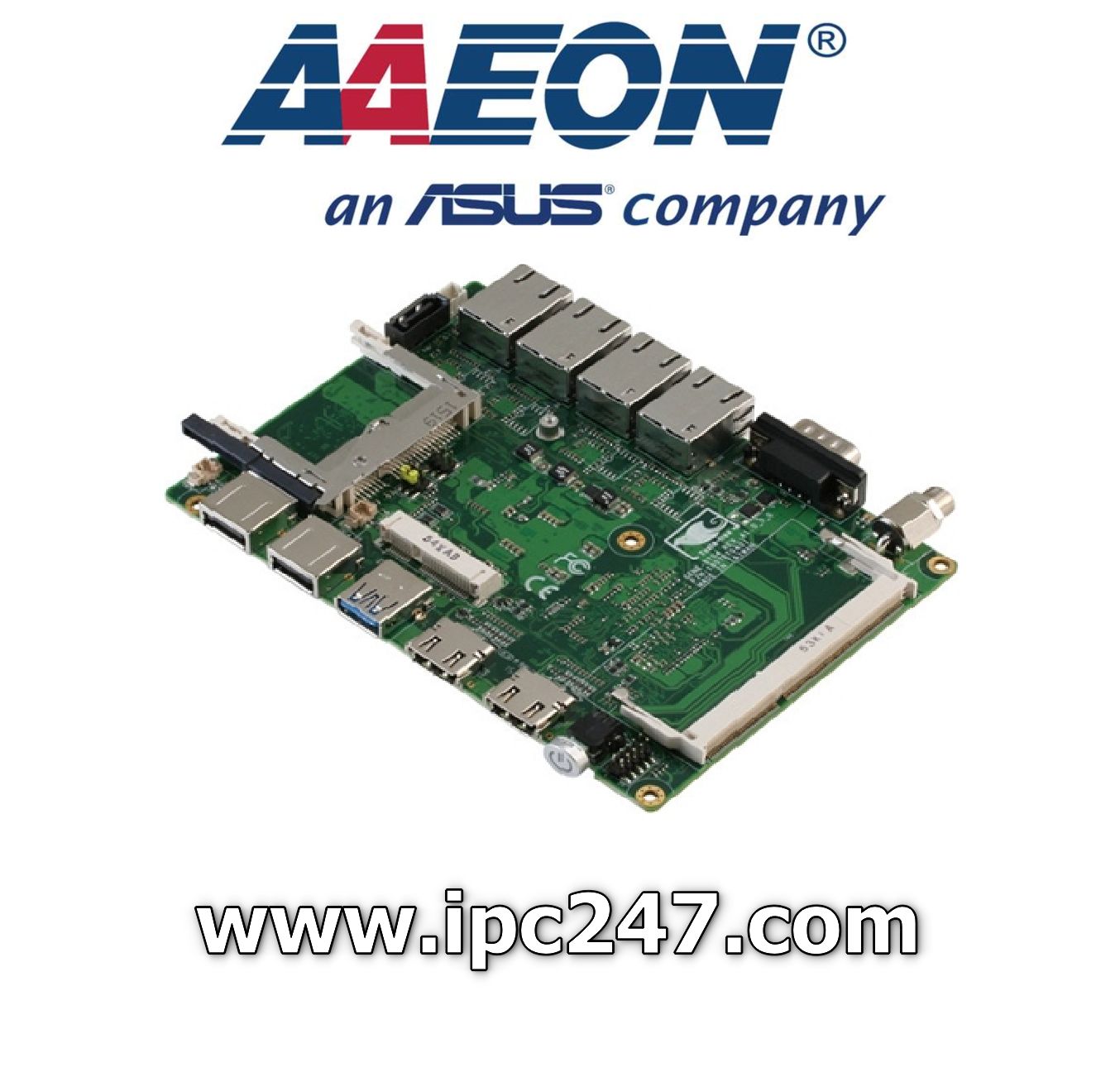

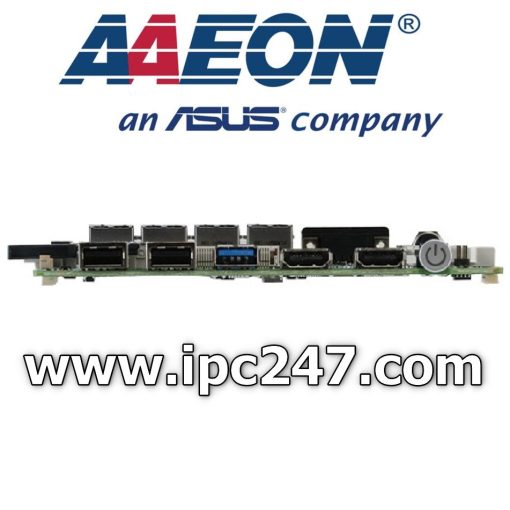

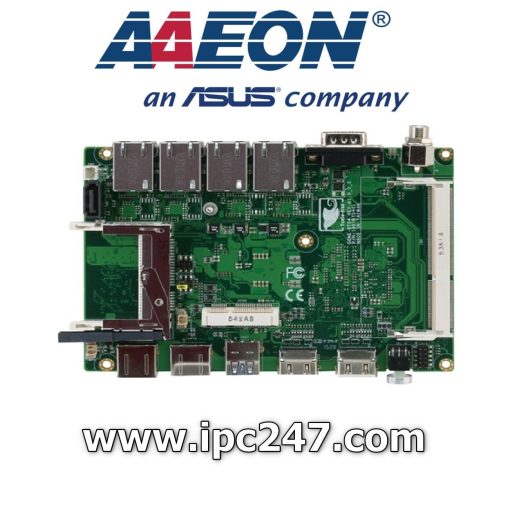

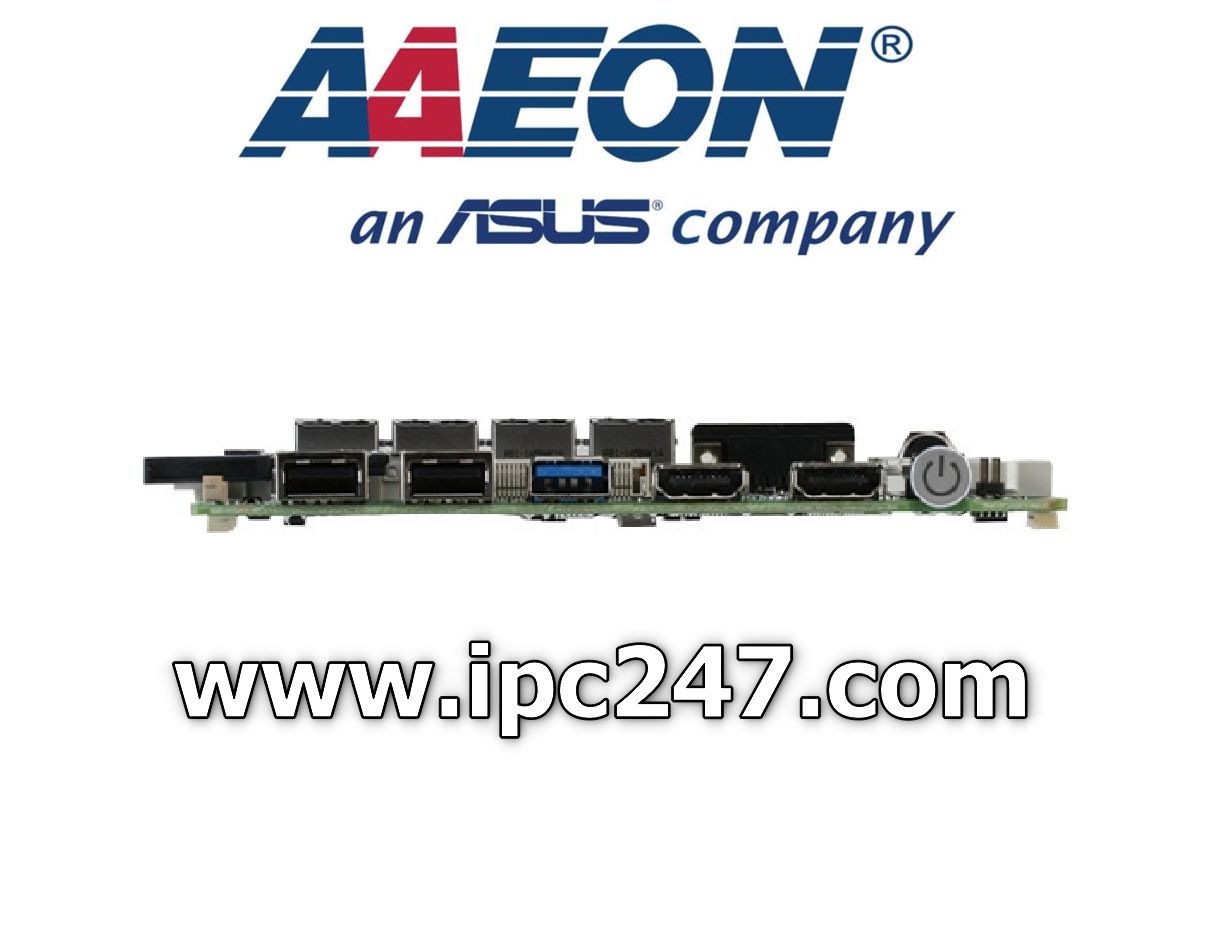

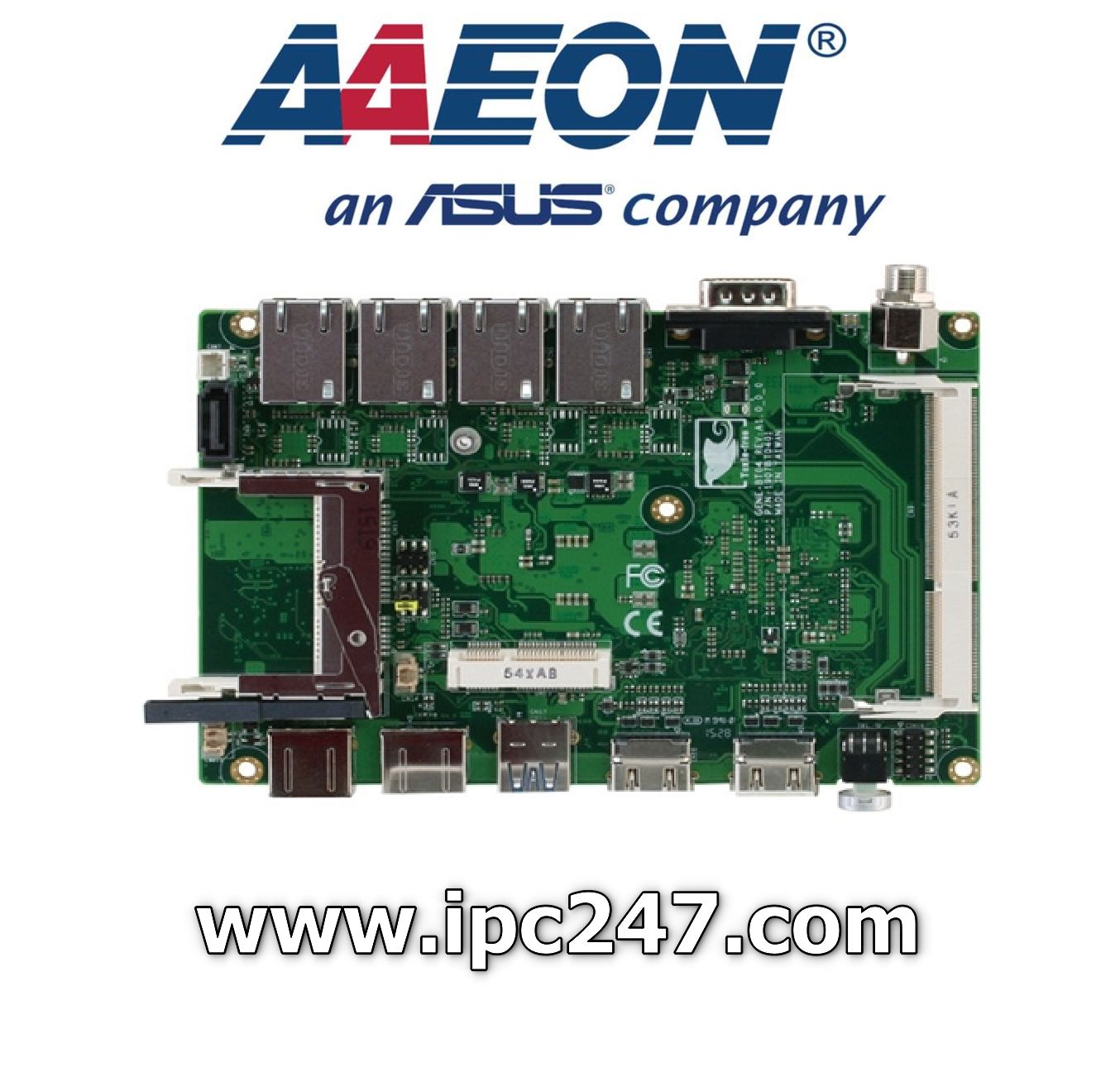

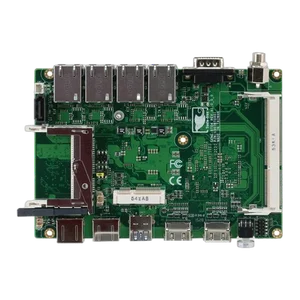

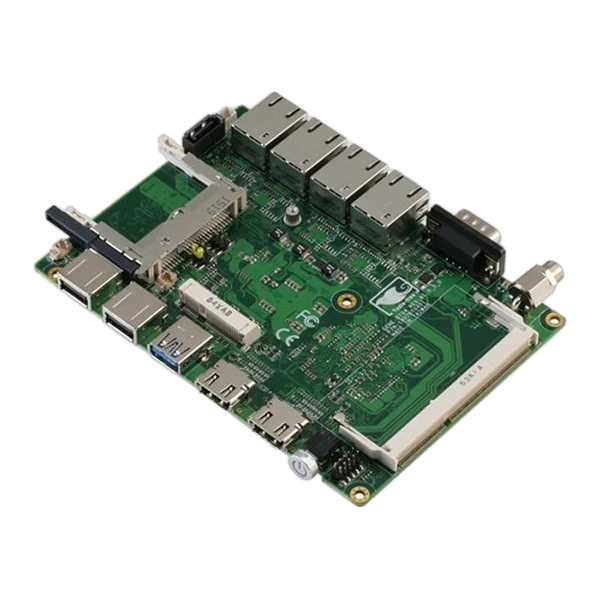

Bo mạch con 3.5 inch GENE-BT04
3.5” SubCompact Board with Intel® Celeron® J1900/N2807 Processor SoC
Overview
Targeted at the signage/ networking market, the GENE-BT04 is capable of 2k resolution with its two HDMI ports (audio included with one port) while its four Giga LAN ports and Intel® I211 Ethernet chipset provides the muscle for any networking requirement.
Features
- Intel® Celeron® J1900/ N2807 Processor SoC
- DDR3L 1333 SODIMM slot x1, Max. up to 8GB
- Intel® LAN i211AT x4 Gigabit Ethernet, RJ-45 x 4
- HDMI x 2: HDMI 1 (w/ Audio), HDMI 2 (w/o Audio)
- USB 2.0 x 2, USB 3.2 Gen 1 x 1, COM x 1
- Mini-Card x 1 (Full-size)
- SATA 2.0 x 1
- DC 12V ATX Mode
- 12 ~ 24V DC Input, ATX Mode
Specifications [GENE-BT04]
SYSTEM | |
FORM FACTOR | 3.5″ SubCompact Board |
CPU | Intel® Celeron® J1900/ N2807 Processor SoC |
CPU FREQUENCY | Up to 2.0 GHz |
CHIPSET | Intel® Celeron® J1900/ N2807 Processor SoC |
MEMORY TYPE | DDR3L 1333, SODIMM x 1 |
MAX. MEMORY CAPACITY | Up to 8G |
BIOS | UEFI |
WAKE ON LAN | Yes |
WATCHDOG TIMER | 255 Levels |
POWER REQUIREMENT | +12V ~ +24V |
POWER SUPPLY TYPE | ATX mode |
POWER CONSUMPTION (TYPICAL) | Intel® N2807, DDR3L 1600MHz 4G, 0.65A@ +12V |
DIMENSION (L X W) | 5.75″ x 4″ (146mm x 101.6mm) |
OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
MTBF (HOURS) | 155,000 |
CERTIFICATION | CE/FCC |
DISPLAY | |
VGA/LCD CONTROLLER | Intel® Celeron® J1900/ N2807 Processor SoC |
VIDEO OUTPUT | HDMI x 2: HDMI 1(w/Audio), HDMI 2(w/o Audio) |
BACKLIGHT INVERTER SUPPLY | — |
I/O | |
ETHERNET | Intel® I211AT(or 210), 10/100/1000Base-TX, RJ-45 x 4 |
AUDIO | High definition audio interface |
USB PORT | USB 2.0 x 2, USB 3.2 Gen 1 x 1 |
SERIAL PORT | RS-232 x 1 |
PARALLEL PORT | — |
HDD INTERFACE | SATA 2.0 x 1 |
FDD INTERFACE | — |
SSD | CFast™ x 1 |
EXPANSION SLOT | Mini-Card x 1 (for USB only) |
DIO | 4 Bit |
SIM | x 1 |
TPM | x 1 |
TOUCH | — |
Ordering Information [GENE-BT04]
PART NUMBER | GENE-BT04-A11-0001 | GENE-BT04-A11-0002 |
---|---|---|
CPU | Intel® Celeron® N2807 | Intel® Celeron® J1900 |
FAN/FANLESS | Fanless | Fanless |
DISPLAY | HDMI x 2 | HDMI x 2 |
LVDS | — | — |
STORAGE | SATA x 1 | SATA x 1 |
LAN | GbE x 4 | GbE x 4 |
USB | USB 3.2 Gen 1 x 1 USB 2.0 x 2 |
USB 3.2 Gen 1 x 1 USB 2.0 x 2 |
RS-232 | 1 | 1 |
RS-232/422/485 | — | — |
EXPANSION SLOT | Mini-Card x 1 (Full) | Mini-Card x 1 (Full) |
POWER | 12V ~ 24V | 12V ~ 24V |
POWER TEMP | 0°C ~ 60°C | 0°C ~ 60°C |
OTHERS | DIO x 4 | DIO x 4 |
Downloads [GENE-BT04]
1. Datasheet: GENE-BT04, datasheet 1.0
2. BIOS:
– GENE-BT04 1.2
– GENE-BT04 | V1.0 1.0
3. Driver
– Chip Driver: Windows 7 64, Windows 7 32, Windows 8.1 32, Windows 8.1 64, Windows 10 32, Windows 10 64
– Graphic Driver: Windows 7 64, Windows 7 32, Windows 8.1 32, Windows 8.1 64, Windows 10 32, Windows 10 64
– AUDIO Driver: Windows 7 64, Windows 7 32, Windows 8 64, Windows 10 32, Windows 10 64
– Lan Driver: Linux, Windows 7 64, Windows 7 32, Windows 8.1 32, Windows 8.1 64, Windows 10 32, Windows 10 64
– TXE Driver: Windows 8.1 32, Windows 8.1 64, Windows 10 32, Windows 10 64
– USB3.0: Windows 7 64, Windows 7 32, Windows 10 32, Windows 10 64
– MBI Driver: Windows 8.1 32, Windows 8.1 64, Windows 10 32, Windows 10 64
4. Manual: GENE-BT04, manual 4.0
Packing List
- 1702041004: Power Cable
- GENE-BT04 with Heatspreader
Optional Accessorie
Part Number | Description | QTY |
1709070500 | (TF)SATA CABLE, 7P Pitch 1.27mm, 50cm | 1 |
1702150155 | (TF)Power Cable, 15P SATA(F), 2P 2.0mm Housing(PH), 15cm | 1 |
