Bo mạch nhúng có dải nhiệt độ rộng

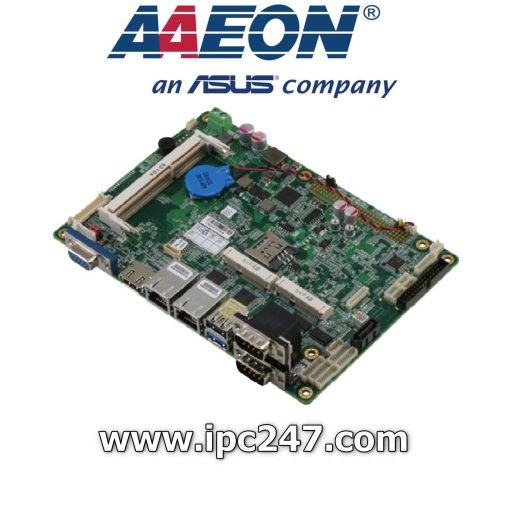

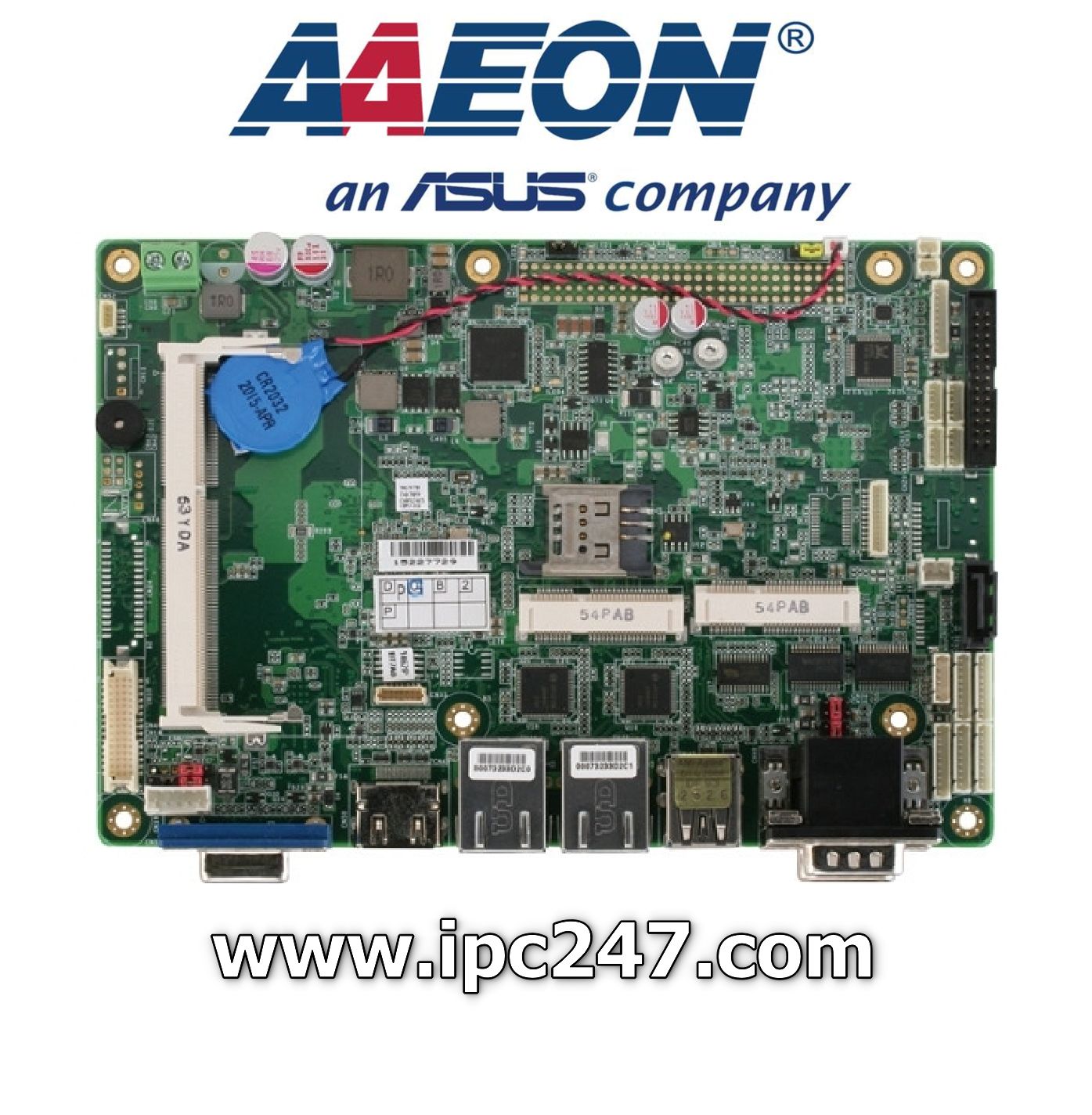

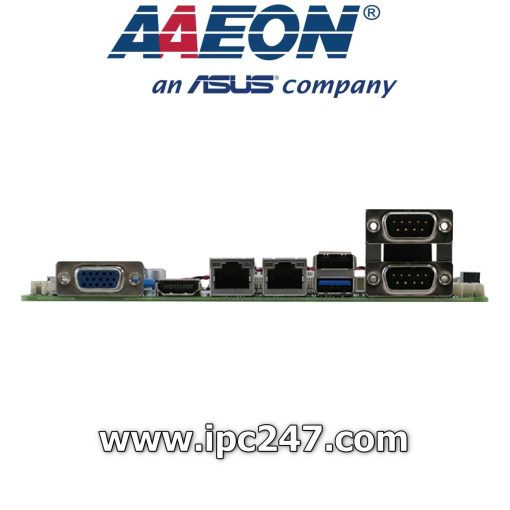

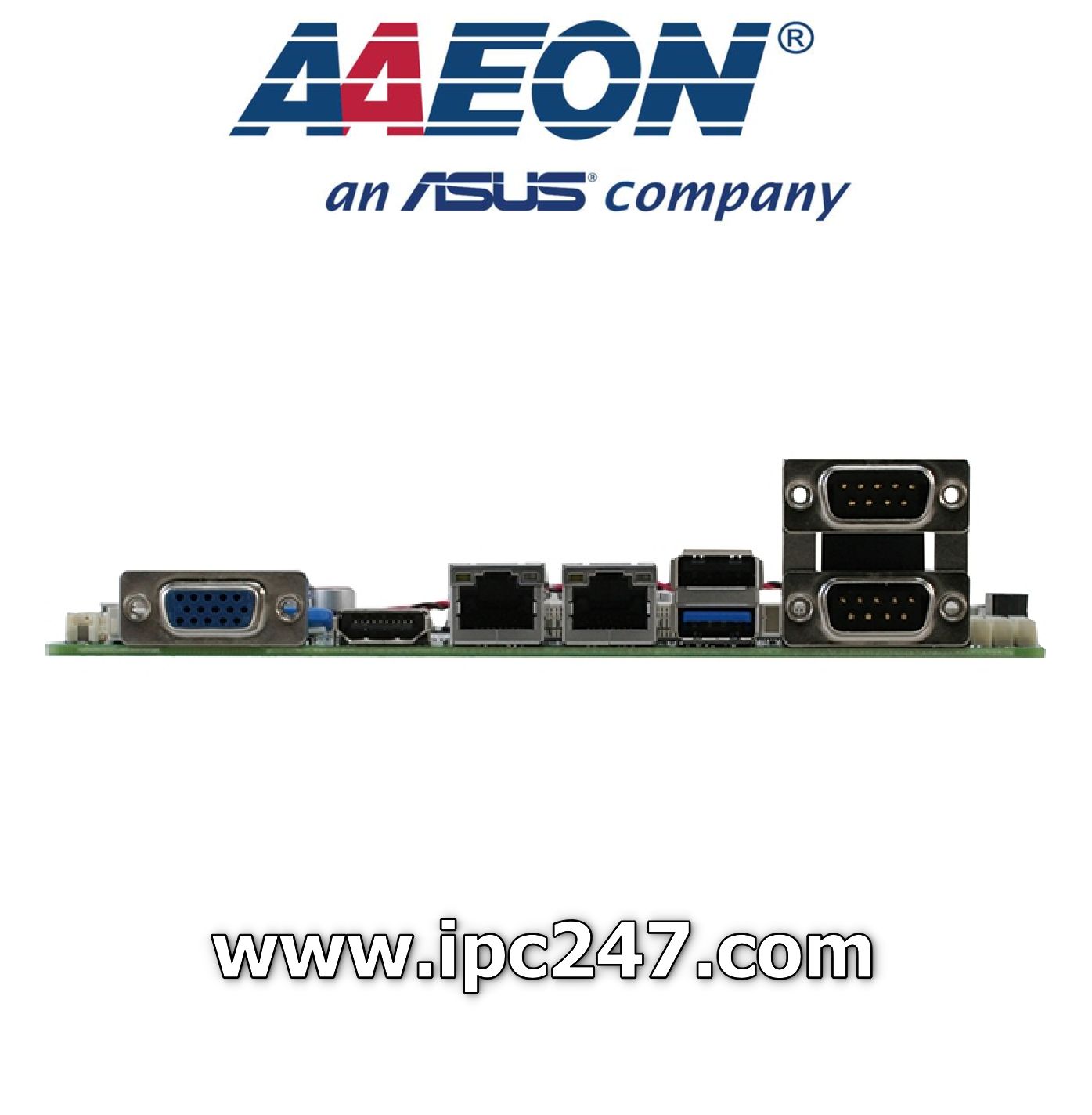

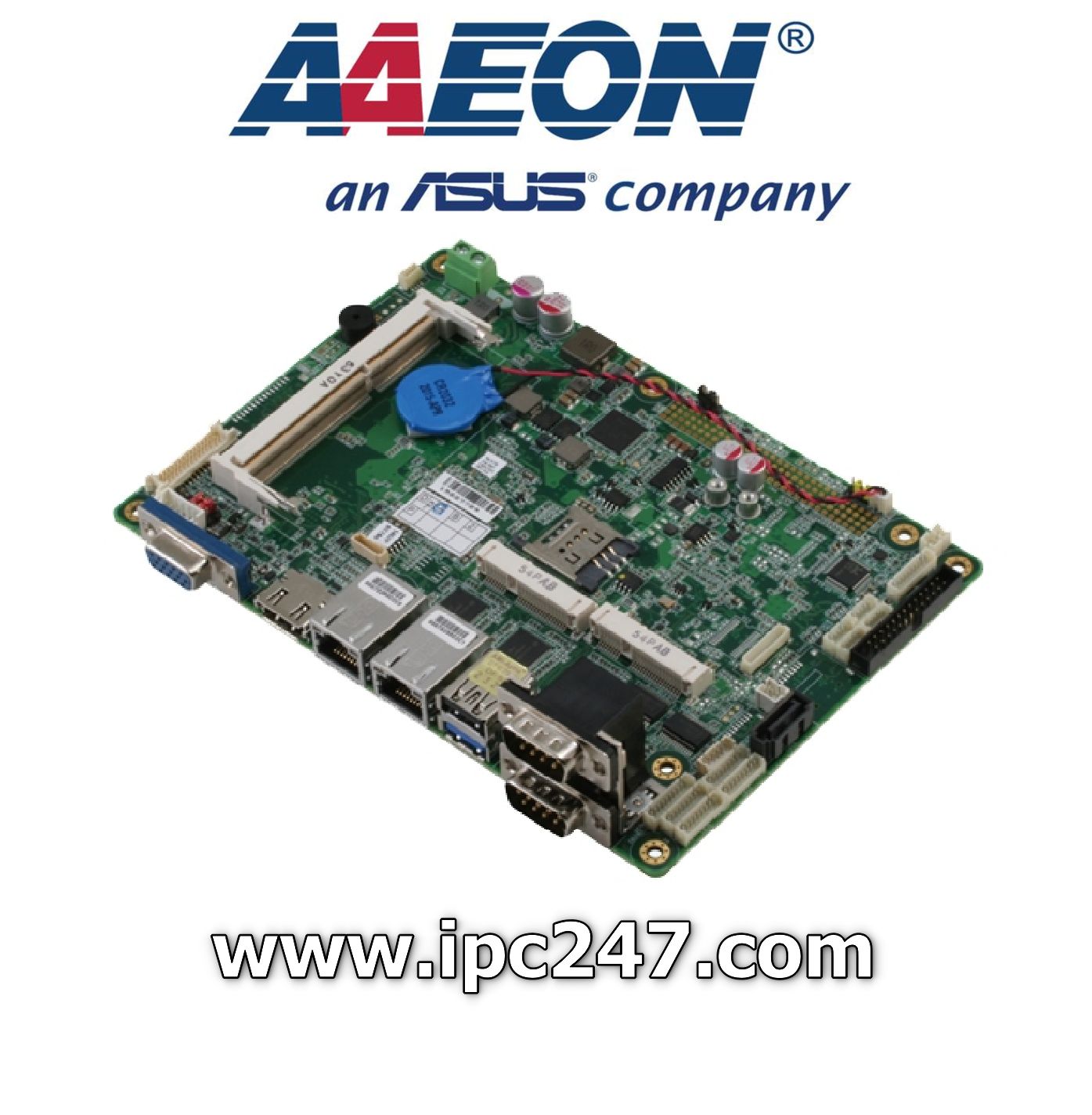

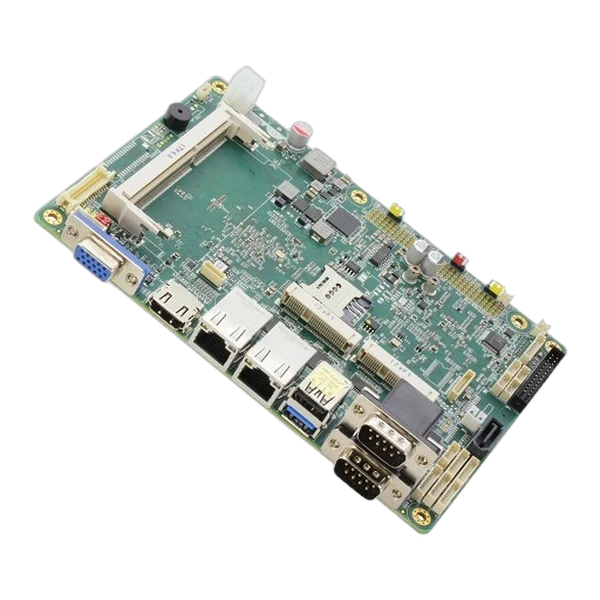

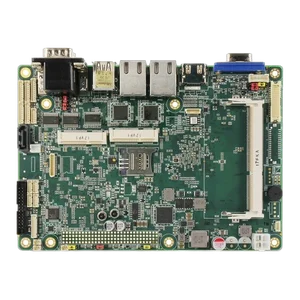

EPIC-BT07
EPIC Board with Intel® Atom™/ Celeron® Processor SoC
Overview
The EPIC-BT07 caters to the needs of the market through six COM ports, an interface still popular among most industrial users. Other expansion interface include the PC/104 bus that allow expansions to be stacked atop on the main board, reducing the lateral area needed. The board is also capable of dual display through two of the three display interface available: LVDS, CRT, and HDMI.
For wide temperature range products, please refer to models that have the serial number W1 or W2 in the model name.
Applications
- Gaming & Entertainment
- Industrial Automation
- Digital Signage
Features
- Onboard Intel® Atom™ E3845/ Celeron® J1900, N2807 Processor
- SoC
- DDR3L 1333MHz SoDIMM x 1, Up to 8GB
- LVDS 24-bit Dual Channel
- Dual Display Configuration: VGA+ LVDS, VGA + HDMI or HDMI + LVDS
- SATA 3.0Gb/s x 1, mSATA/ Mini-Card x 1, Micro-SD Slot x 1 (E3800 Series Only)
- USB 3.2 Gen 1 x 1, USB2.0 x 5, RS-232 x 4, RS-232/422/485 x 2 (COM2, COM3)
- Mini-Card x 1, SIM x 1, PCI-104 (Optional)
- 16-bit Digital IO/LPT, SMBus x 1, I2C (Optional)
- Audio 2CH, 2W Audio Amp., TPM (Optional), Touch Controller (Optional)
- 9 ~ 24VDC Wide Range or 12VDC Power Input

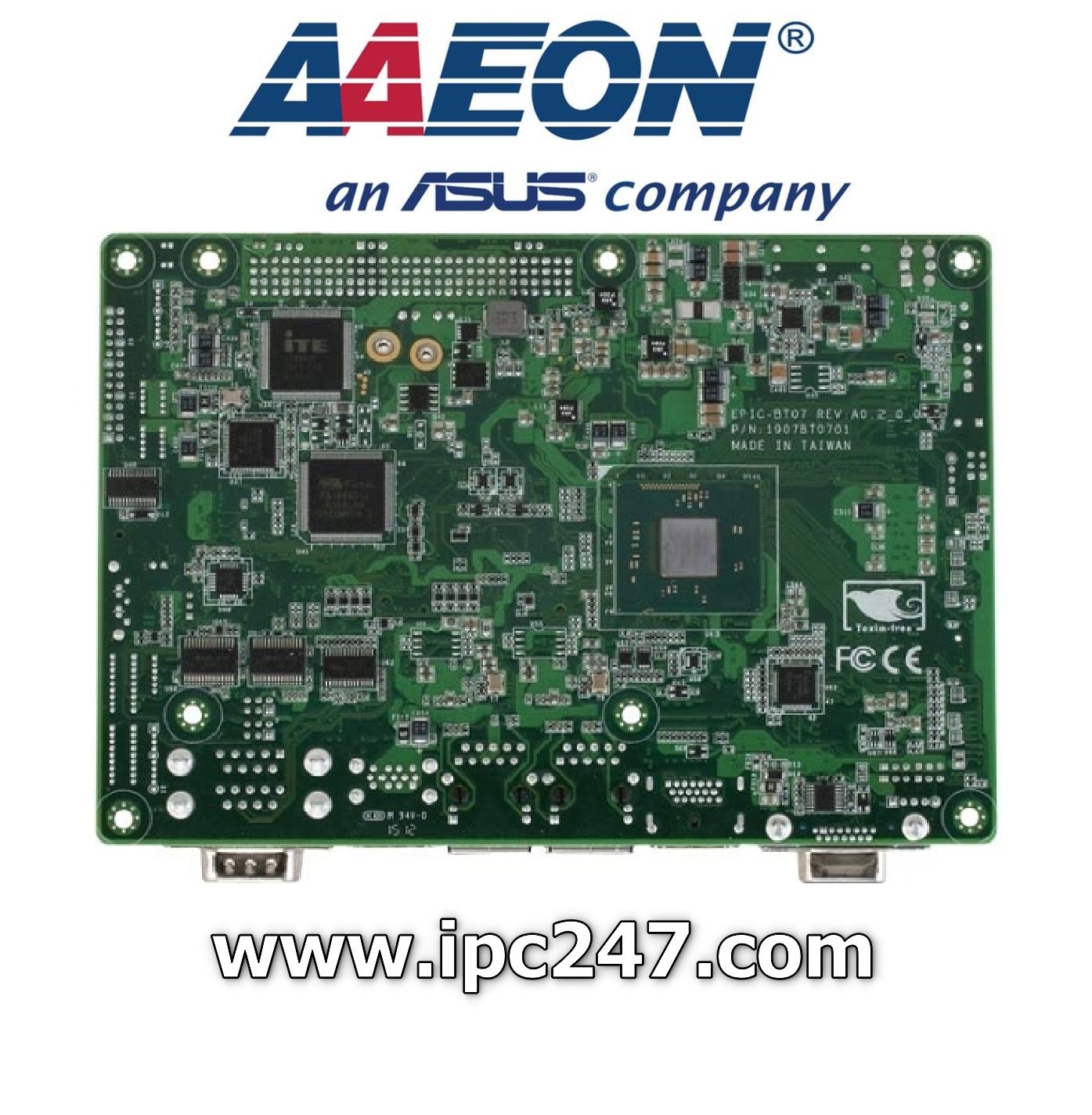

- SoC Processor on Solder Side Design
Specifications [EPIC-BT07]
| SYSTEM | |
| FORM FACTOR | EPIC |
| CPU | Intel® Atom™ E3845/Celeron® J1900/N2807 |
| CPU FREQUENCY | Up to 2.0 GHz |
| CHIPSET | Intel® Atom™/ Celeron® SoC |
| MEMORY TYPE | DDR3L 1333, SODIMM x 1 |
| MAX. MEMORY CAPACITY | Up to 8GB |
| BIOS | AMI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | +12V or 9-24V AT/ATX (default) |
| POWER SUPPLY TYPE | AT/ ATX |
| POWER CONSUMPTION (TYPICAL) | 11.8W |
| DIMENSION (L X W) | 4.53″ x 6.50″ (115mm x 165mm) |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 110,000 |
| CERTIFICATION | CE/FCC |
| DISPLAY | |
| VGA/LCD CONTROLLER | Intel® Atom™/ Celeron® SoC |
| VIDEO OUTPUT | CRT, LVDS, HDMI |
| BACKLIGHT INVERTER SUPPLY | Max. 12V |
| I/O | |
| ETHERNET | Intel® i211 Gigabit Ethernet, RJ-45 x 2 |
| AUDIO | High Definition Audio Interface |
| USB PORT | USB 2.0 x 5 USB 3.2 Gen 1 x 1 |
| SERIAL PORT | COM1, 4, 5, 6 : RS-232 x 4 COM2, 3 : RS-232/422/485 x 1 (Ring/ +5V/ +12V) |
| PARALLEL PORT | SPP/EPP/ECP x 1 |
| HDD INTERFACE | SATA 2.0 x 1 |
| FDD INTERFACE | — |
| SSD | mSATA x 1 (Share with half-size Mini-Card by BOM) |
| EXPANSION SLOT | Mini-Card x 1, Micro-SD x 1 (Only E3800 series) PCI-104 x 1 (optional) 16-bit DIO or LPT SMbus x 1, I2C x 1 (optional), PS/2 x 1 |
| PWM LCD SUPPORT | — |
| DIO | 16-bit |
| TPM | Optional |
| TOUCH | Optional |
Ordering Information [EPIC-BT07]
| PART NUMBER | EPIC-BT07-A10-0001 | EPIC-BT07-A10-0002 | EPIC-BT07-A10-0003 | EPIC-BT07W2-A10-0001 |
|---|---|---|---|---|
| CPU | Atom™ E3845 (10W) | Celeron® J1900 (10W) | Celeron® N2807 (4.3W) | Atom™ E3845 (10W) |
| MEMORY | DDR3L (Max. 8GB) | DDR3L (Max. 8GB) | DDR3L (Max. 4GB) | DDR3L (Max. 8GB) |
| FAN/FANLESS | Heat-Spreader (Heat-sink option) | Heat-Spreader (Heat-sink option) | Heat-Spreader (Heat-sink option) | Heat-Spreader (Heat-sink option) |
| DISPLAY | VGA+LVDS, VGA+HDMI, LVDS+HDMI | VGA+LVDS, VGA+HDMI, LVDS+HDMI | VGA+LVDS, VGA+HDMI, LVDS+HDMI | VGA+LVDS, VGA+HDMI, LVDS+HDMI |
| LVDS | 24b, 2CH | 24b, 2CH | 24b, 2CH | 24b, 2CH |
| STORAGE | SATA 2 x 1, mSATA x 1 |
SATA 2 x 1, mSATA x 1 |
SATA 2 x 1, mSATA x 1 |
SATA 2 x 1, mSATA x 1 |
| LAN | GbE x 2 | GbE x 2 | GbE x 2 | GbE x 2 |
| USB | USB 3.2 Gen 1 x 1 UBS2.0 x 5 |
USB 3.2 Gen 1 x 1 UBS2.0 x 5 |
USB 3.2 Gen 1 x 1 UBS2.0 x 5 |
USB 3.2 Gen 1 x 1 UBS2.0 x 5 |
| RS-232 | 4 | 4 | 4 | 4 |
| RS-232/422/485 | 2 | 2 | 2 | 2 |
| EXPANSION SLOT | Mini-Card x 1, SIM x 1, PCI-104 x 1, Micro-SD x 1 |
Mini-Card x 1, SIM x 1 |
Mini-Card x 1, SIM x 1 |
Mini-Card x 1, SIM x 1, PCI-104 x 1, Micro-SD x 1 |
| POWER | 9-24VDC, AT/ATX | 9-24VDC, AT/ATX | 9-24VDC, AT/ATX | 9-24VDC, AT/ATX |
| OPERATING TEMP | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | -40°C ~ 85°C |
| OTHERS | 16CH DIO or LPT, Audio, 2W Amp, PS/2, SMbus |
16CH DIO or LPT, Audio, 2W Amp, PS/2, SMbus |
16CH DIO or LPT, Audio, 2W Amp, PS/2, SMbus |
16CH DIO or LPT, Audio, 2W Amp, PS/2, SMbus |
Downloads [EPIC-BT07]
1. Datasheet: EPIC-BT07, datasheet 1.0
2. Manual: EPIC-BT07, manual 5.0
Packing List
- 1709070500: SATA Cable
- 1702150155: SATA Power Cable
- M10BT07010: Heat-Spreader
- EPIC-BT07
Optional Accessories
| Part Number | Description | QTY |
| 170204010R | 2-Pin Power in to 4-Pin Housing Cable | 1 |
| 1709100254 | Audio Cable | 1 |
| 1701260200 | DIO/LPT Cable | 1 |
| 1700050207 | USB Cable | 4 |
| 1700060155 | PS/2 KB/Mouse Cable | 1 |
| 1701090150 | COM Cable | 4 |
| EPIC-BT07-HSK01 | Metal, Al, Heat Sink, 165*95*14mm, Silver, EPIC-BT07 (Used with heatspreader) | 1 |
