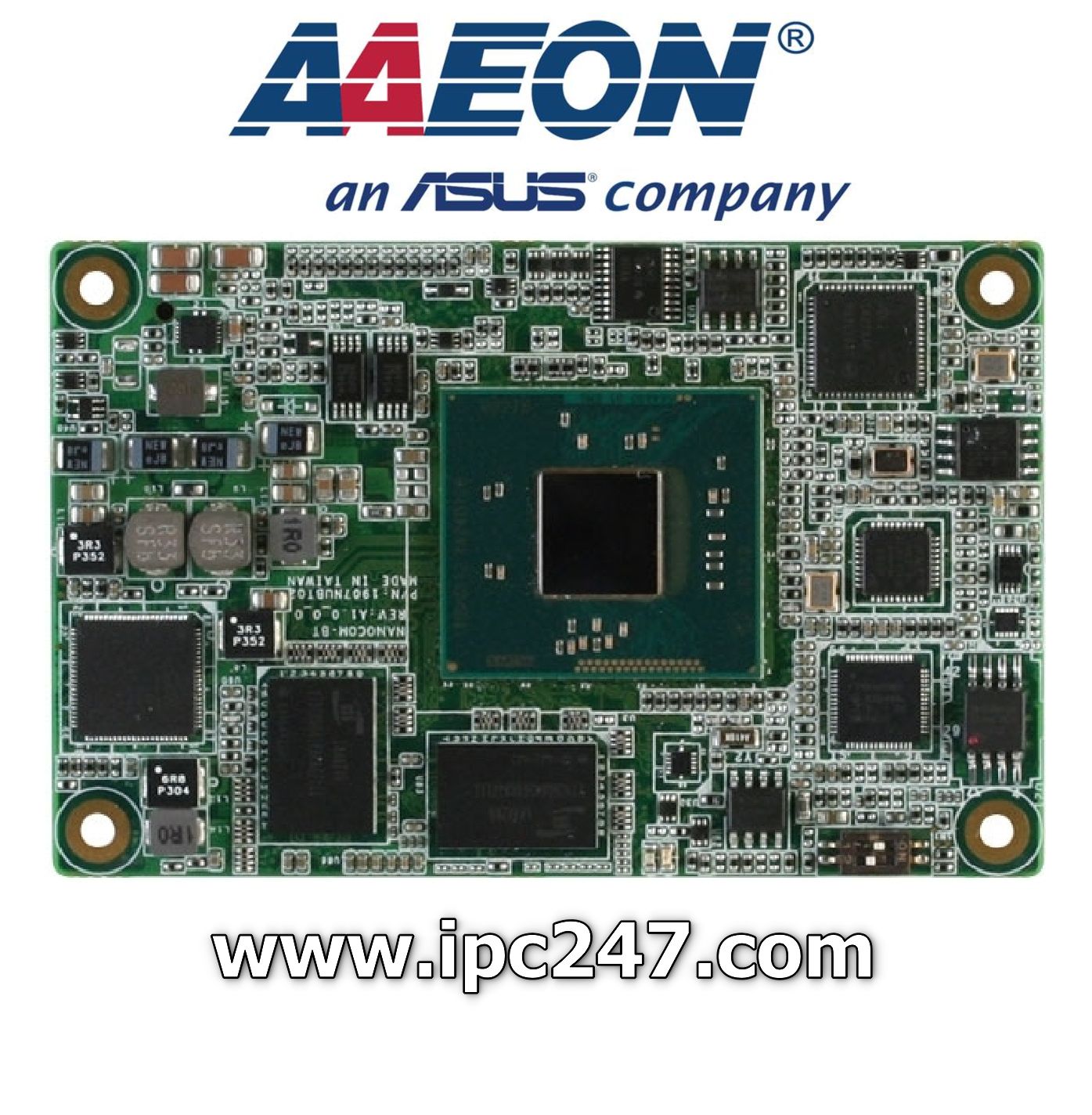

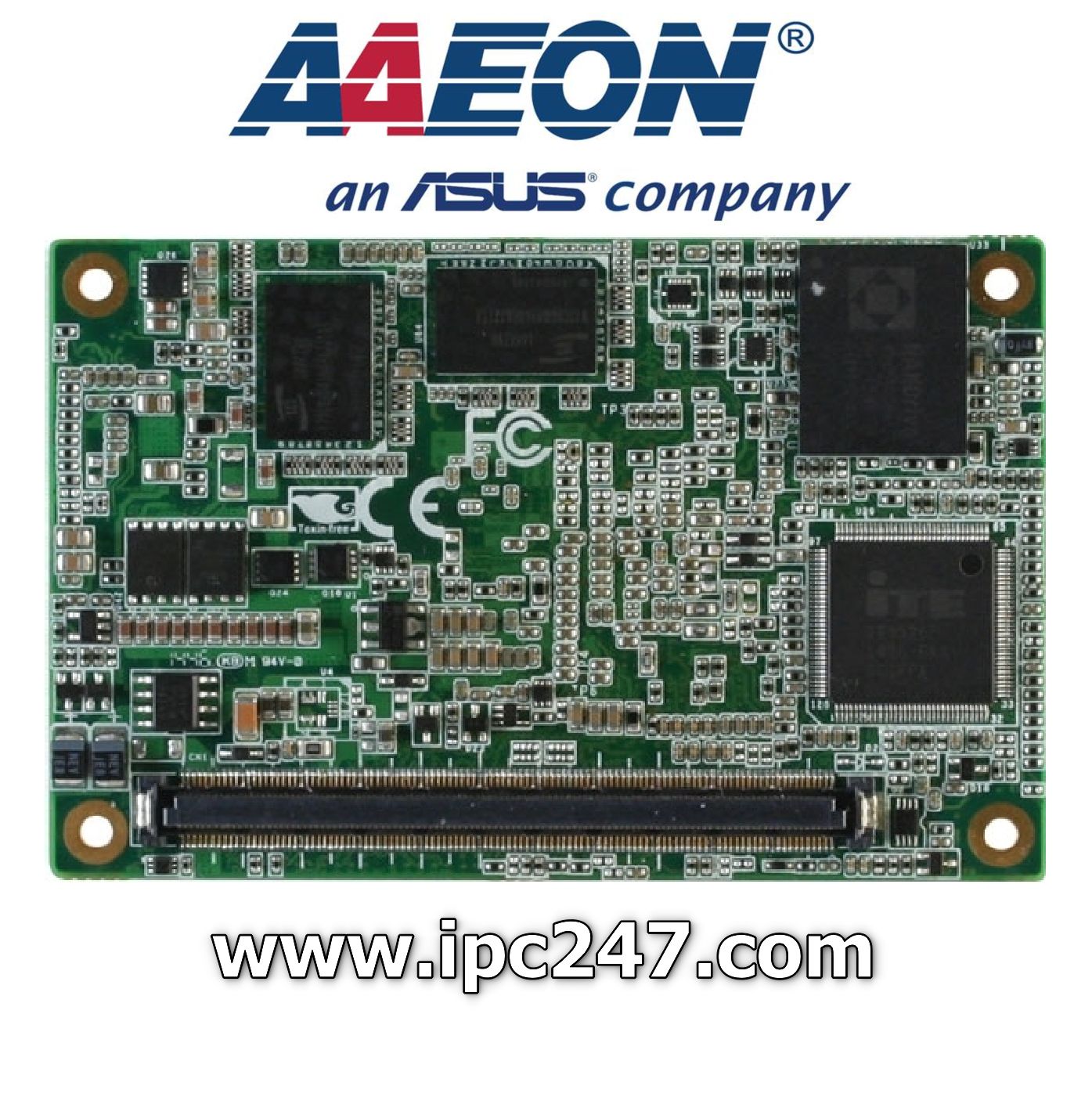

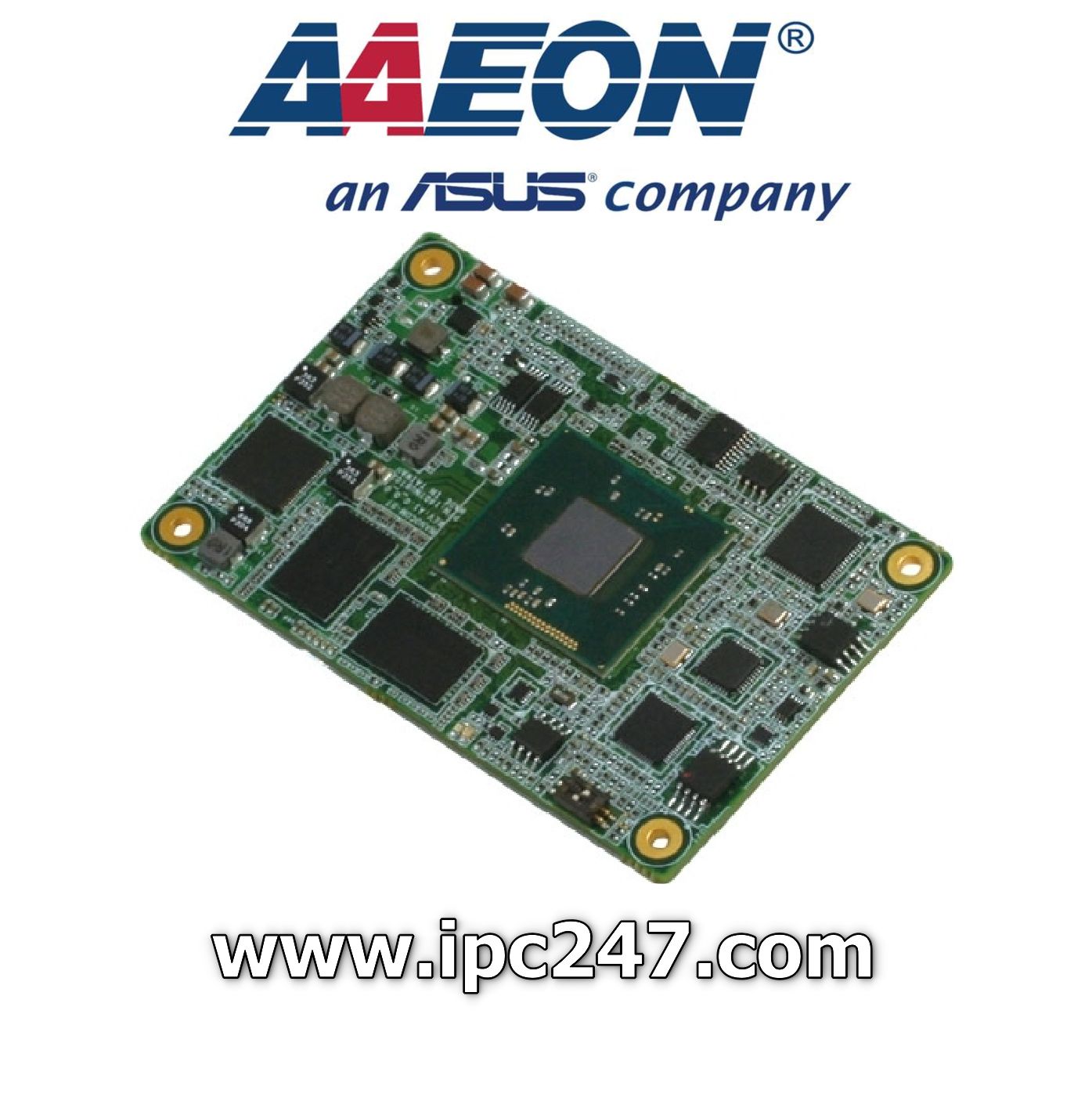

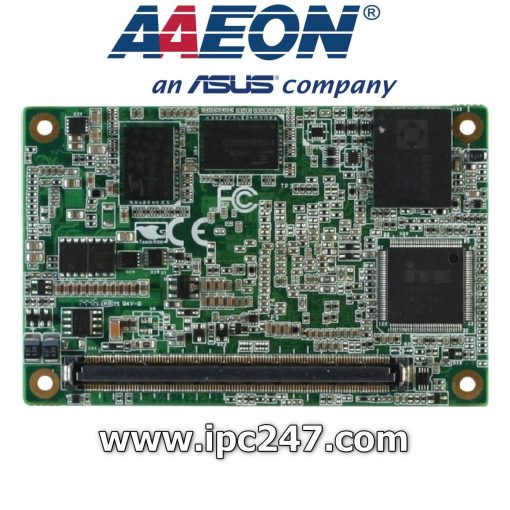

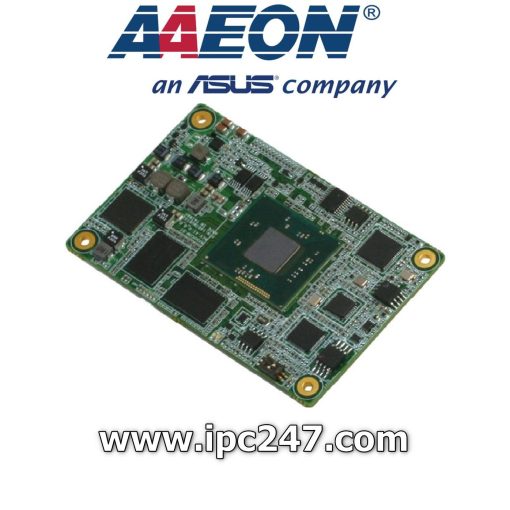

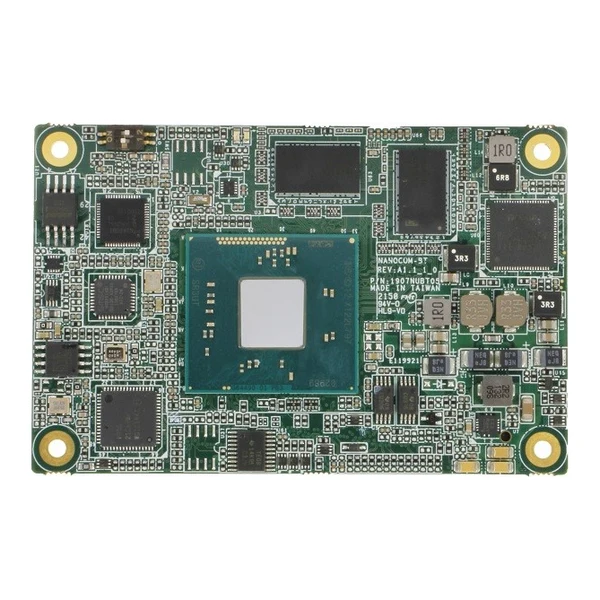

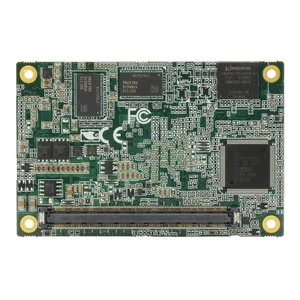

Bo mạch nhúng NANOCOM-BT
COM Express Type 10 CPU Module with Onboard Intel® Atom™ Processor SoC
Overview
The NanoCOM-BT is a cutting-edge product that provides high performance and low power consumption in the embedded market.
NanoCOM-BT adopts the latest Intel® Atom™ N2000/E3800 processor. The system memory deploys with onboard DDR3L 2 GB memory. In addition, Intel® I211/i210 supports 10/100/1000Base-TX that allows faster network connections. This model applies three PCI-Express〔x1〕, one LPC bus, and one SMBus. Moreover, two SATA 3.0Gb/s are configured on the NanoCOM-BT. NanoCOM-BT also equips six USB2.0 and one USB2.0/3.0 bus for flexible I/O expansions.
The display of NanoCOM-BT supports CRT/LCD simultaneous/ dual view display. This brand new COM Express Module is developed to cater to the requirements of Automation, Medical, ticket machine, transportation, gaming, KIOSK, and POS/POI applications.
Applications
- Automation
- Medical
- Ticket Machine
- Transportation
- Gaming
- KIOSK
- POS/POI
Features
- Intel® Atom™ E3800/ Celeron® N2000 Series Processor SoC
- Onboard DDR3L 2 GB Memory (Optional to 4 GB)
- Gigabit Ethernet x 1
- 18/24-bit Single Channel LVDS LCDs, DDI x 1
- High Definition Audio Interface
- SATA x 2, eMMC (Optional)
- USB 2.0 x 6 + USB 2.0/USB 3.2 Gen 1 x 1, GPIO 8-bit, PCI-Express [x1] x 3
- COM Express Pin-out Type 10
- Mini Size, 84mm x 55mm, COM.0 Rev. 2.1
Specifications [NanoCOM-BT]
| SYSTEM | |
| FORM FACTOR | COM Express Mini size, Type 10 |
| CPU | Intel® Atom™/ Celeron® Processor SoC (M/I) |
| CPU FREQUENCY | Up to E3845, 1.91 GHz |
| CHIPSET | Intel® Atom™/ Celeron® Processor SoC |
| MEMORY TYPE | Non-ECC DDR3L-1333 |
| MAX. MEMORY CAPACITY | 2 GB DDR3L Onboard (up to 4 GB) |
| BIOS | AMI BIOS, Legacy free |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | Standard : +12V, AT/ATX, Optional: +5V, AT/ATX |
| POWER SUPPLY TYPE | AT/ATX |
| POWER CONSUMPTION (TYPICAL) | 0.7A@12V, full load, E3845 |
| DIMENSION (L X W) | 3.31” x 2.17” (84 mm x 55 mm) |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) -40°F ~ 185°F (-40°C ~ 85°C) by E3800, 2GB SKU |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~ 85°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 90,000 |
| CERTIFICATION | CE/FCC Class A |
| DISPLAY | |
| DISPLAY CONTROLLER | Intel® HD Graphic |
| VIDEO OUTPUT | LVDS LCD/eDP, DDI x 1 |
| LVDS INTERFACE | Supports 18-bit and 24-bit Single channel |
| I/O | |
| ETHERNET | Intel® I210IT |
| AUDIO | High Definition Audio Interface |
| USB SUPPORT | USB 2.0 x 7, USB 3.2 Gen 1 x 1 |
| SERIAL PORT | Tx/Rx x 2 |
| HDD INTERFACE | SATA 2 x 2 |
| ONBOARD STORAGE | Optional for 8GB/16GB eMMC |
| EXPANSION SLOT | PCIe [x1] x 3 (up to 3 devices) LPC SMBus I2C |
| GPIO | GPIO 8-bit |
| TPM | — |
Ordering Information [NanoCOM-BT]
| PART NUMBER | NANOCOM-BT-A10-0001 | NANOCOM-BT-A10-0002 | NANOCOM-BT-A10-0003 | NANOCOM-BT-A10-0006 | NANOCOM-BTW2-A10-0003 |
|---|---|---|---|---|---|
| COM EXPRESS TYPE | 10 (COM.0 Rev. 2.1) | 10 (COM.0 Rev. 2.1) | 10 (COM.0 Rev. 2.1) | 10 (COM.0 Rev. 2.1) | 10 (COM.0 Rev. 2.1) |
| CPU | N2930, 4C/1.83 GHz | N2807, 2C/1.58 GHz | E3845, 4C/1.91 GHz | E3825, 2C/1.33 GHz | E3845, 4C/1.91 GHz |
| MEMORY | 2GB DDR3L | 2GB DDR3L | 2GB DDR3L | 2GB DDR3L | 2GB DDR3L |
| DISPLAY | LVDS/eDP, DDI | LVDS/eDP, DDI | LVDS/eDP, DDI | LVDS/eDP, DDI | LVDS/eDP, DDI |
| LVDS | 18/24bit,1CH | 18/24bit,1CH | 18/24bit,1CH | 18/24bit,1CH | 18/24bit,1CH |
| STORAGE | SATA x 2 | SATA x 2 | SATA x 2 16GB eMMC | SATA x 2 8GB eMMC | SATA x 2 16GB eMMC |
| LAN | GbE x 1 | GbE x 1 | GbE x 1 | GbE x 1 | GbE x 1 |
| USB | USB 3.2 Gen 1 x 1, USB 2.0 x 7 |
USB 3.2 Gen 1 x 1, USB 2.0 x 7 |
USB 3.2 Gen 1 x 1, USB 2.0 x 7 |
USB 3.2 Gen 1 x 1, USB 2.0 x 7 |
USB 3.2 Gen 1 x 1, USB 2.0 x 7 |
| UART | 2 (Tx/Rx) | 2 (Tx/Rx) | 2 (Tx/Rx) | 2 (Tx/Rx) | 2 (Tx/Rx) |
| EXPANSION SLOT | PCIe [x1] x 3 | PCIe [x1] x 3 | PCIe [x1] x 3 | PCIe [x1] x 3 | PCIe [x1] x 3 |
| POWER | +12V (ATX) | +12V (ATX) | +12V (ATX) | +12V (ATX) | +12V (ATX) |
| POWER TEMP | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | -40°C ~ 85°C |
| OTHERS | LPC, GPIO 8Bit, HDA, I2C, SMBus | LPC, GPIO 8Bit, HDA, I2C, SMBus | LPC, GPIO 8Bit, HDA, I2C, SMBus | LPC, GPIO 8Bit, HDA, I2C, SMBus | LPC, GPIO 8Bit, HDA, I2C, SMBus |
Downloads [NanoCOM-BT]
1. Datasheet: NanoCOM-BT, datasheet 1.0
2. Manual: NanoCOM-BT, manual 5.0
Packing List
- M2.5 Screw x 4
- NanoCOM-BT
Optional Accessories
| ECB-920A-A10-0001 | COM Type 1/6/10 Carrier Board, ATX, GbE, 8 USB, 2 COM, 4 SATA, PCIe, AT/ATX, Legacy Free, Rev. A1.0 |
| PER-A134 | Heat Spreader, for NanoCOM-BT, Onboard CPU |
| NanoCOM-FAN01 | CPU Cooler, 84 x 55x 22.2 mm, used with HSP |
| PER-A123 | Passive Heatsink, for NanoCOM size, to be used with Heat Spreader |
