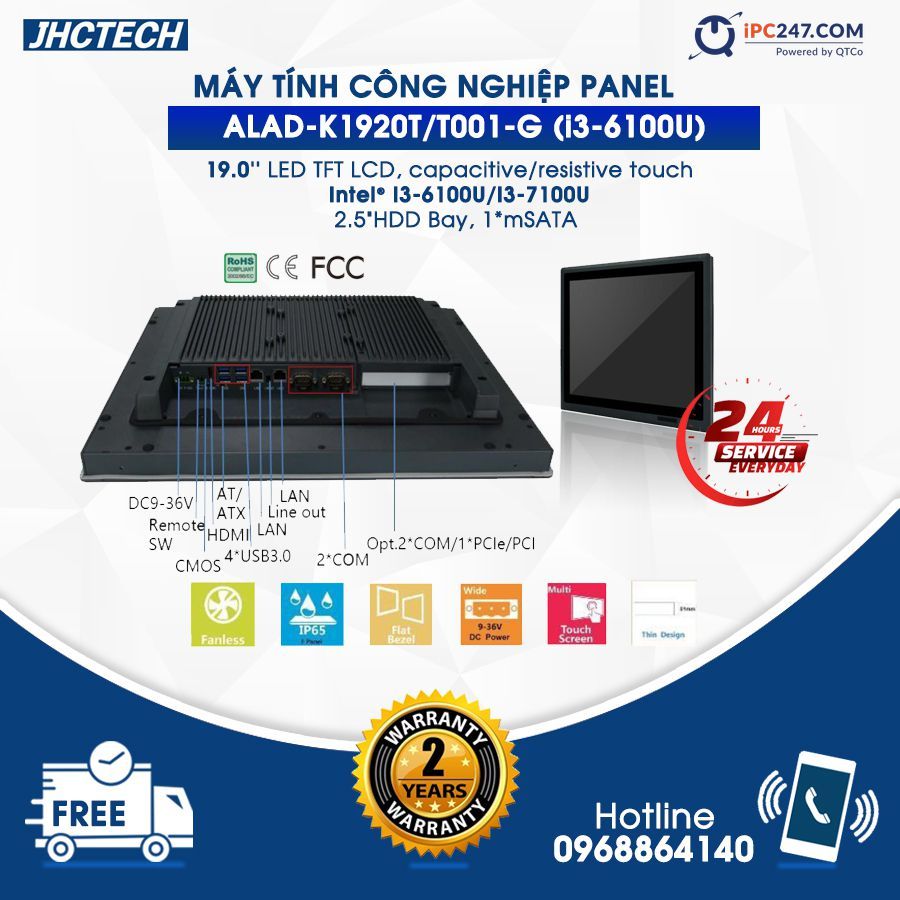

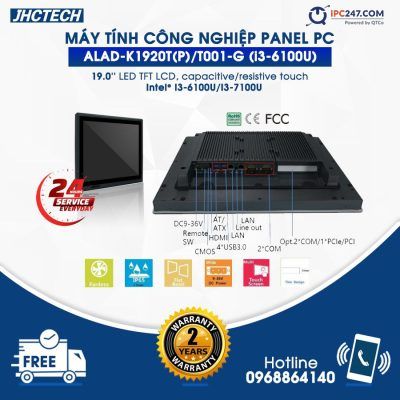

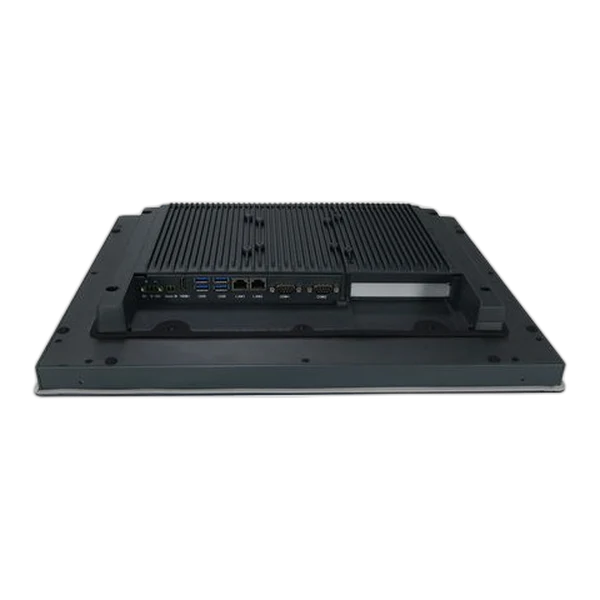

Máy tính cảm ứng công nghiệp ALAD-K1920T/T001-G (i3-6100U)
Feature:
- Aluminum die–casting chassis, fanless design
- 19.0” LED TFT LCD, capacitive/resistive touch
- Intel® Skylake–U Core I3/I†/IF CPU
- 1*DDR4 S133 SODIWW, Wax 16√B
- 1*Wini PCIe, Optional 1*PCI/PCIe X1 4*COW, S*LAN, 4*USB3.◇, 1*USBS.◇
- 1*S.†” HDD Bay, 1*W.S
- ATX button&Remote button DC 9~36V power input

Specification
System | ||
CPU | Intel® Skylake Core I3–6100U S.3√Hz, SC4T, TDP 1†W(Optional I†–6200U, IF–6500U) Intel® Skylake | |
Celeron 3855U 1.6GHz, 2C2T, TDP 15W | ||
Chipset | Intel® SOC | |
System Wemory | 1*DDR4 S133 WHz SODIWW, Wax 16√B | |
BIOS | Insyde SPI 64Wbit flash | |
Storage | 1*S.†” easy-pluggable SATA HDD bay, support SATA3.0 6√bps HDD/SSD, 1*W.S (SS4S B–Key) | |
Display | 19.0” LED backlight TFT LCD and HDWI (4K resolution), dual display, Intel® HD √raphics 510/520 | |
Touch | † wire resistive touch, optional projected capacitive touch, USB control | |
Expansion | 1*Wini PCIe(PCIe&USB signal, optional 1*3S-bit PCI or 1*PCIeX1 | |
Real I/O | 4*COW: 2*RSS3S, S*RSS3S/4SS/48†, DB9(When using PCI/PCIe, there are only S*COW)4*USB3.0 Type A | |
1*HDWI | ||
2*RJ45 | ||
Front I/O | 1*USB2.0 Type A | |
LAN | Intel® I210AT chip, 10/100/1000 Wbps | |
Control SW/LED | Power button, S–pin connecter with power switch signal, HDD LED | |
Power Supply | DC to DC: 9~36V input, consumption: TBD | |
OS Supply | Windows 7, Windows 8.1, Windows 10, Linux | |
Wechanical & Environmental | ||
Construction | Aluminum die–casting front bezel and chassis, fin–shaped radiator shell | |
Operating Temperature | 0~50°C –HDD( –10~50°C –SSD), with airflow | |
Storage Temperature | –20~60°C | |
Storage Humidty | 10~95%@40℃, non–condensing | |
Shock | 10g peak acceleration(duration 11ms), in operating with HDD | |
Vibration | 1g 5~500Hz, in operating with HDD | |
Wounting | Panel mounting, VESA 100*100and 75*75mm | |
Dimension | (W*H*D):453.5*388.5*64.1mm; mounting cut out(W*H): 445.0*380.0mm | |
Net Weight | TBD | |
EWC | CE, FCC Class A | |
LCD | ||
Type | 19.0″ TFT LCD | |
resolution | 1280(H)×1024(V) | |
color | 16.7M | |
Pixel pitch | 0.294×0.294 | |
Brightness(cd/m2) | 470 | |
Viewing angle | 85 degrees(left), 85 degrees(right), 85 degrees(up), 85 degrees(down) | |
operatingtemperature | -15~65℃ | |
Backlight lifetime | 50,000 hours | |
LCD | ||
Type | 5 wire resistive touch | Projected capactive touch |
resolution | gapless | gapless |
Light transmittance | 83% | 90% |
interface | USB | USB |
consumption | +5V@300mA | +5V@300mA |
OS | Windows/Linux | Windows/Linux |
Click lifetime | 35 million times | 3 billion times |
Model NO. | CPU & Touch | Description |
ALAD-K1920T/T001-G | Intel core i3-6100U 5 wire resistive touch |
Industrial touch panel computer, 19.0″ TFT LCD, HDMI, Dual display, 4*COM(or 2*COM+1*PCI/PCIeX1), 5*USB, 2*LAN, 1*Mini PCIe, 2*3W speaker, 1*2.5” SATA Bay, 1*M.2, DC 9~36 power input. |
