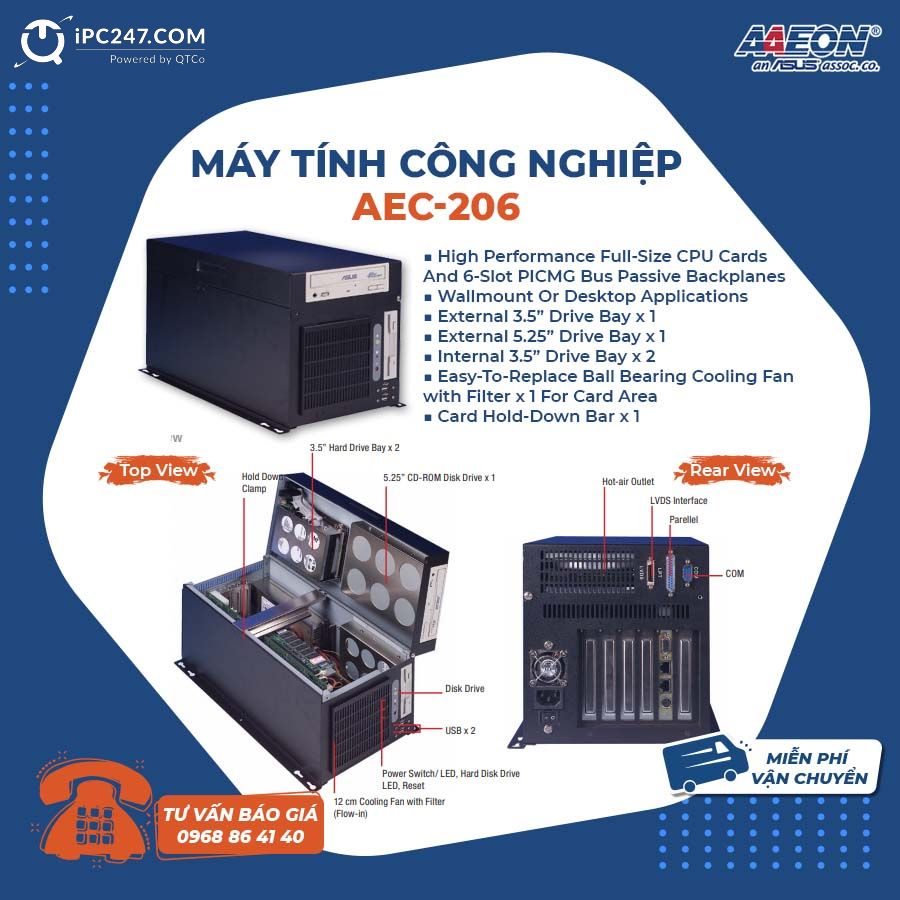

Máy tính công nghiệp AAEON AEC-206
Overview
- 6-Slot Wallmount Chassis, Full-Size/ Half-Size CPU Cards Support

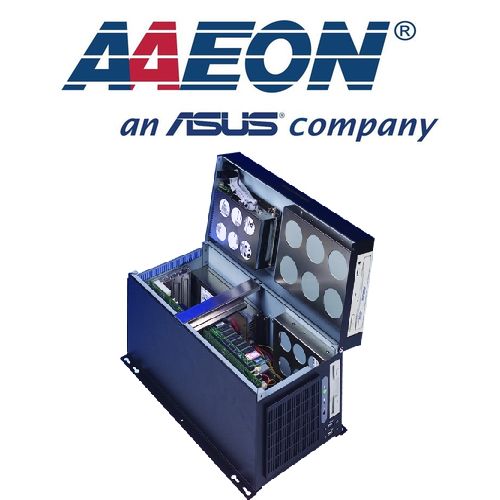

- The 6-slot AEC-206 wallmount chassis sports one 5.25″ and one 3.5″ external drive bays, two 3.5″ internal drive bays, and full-size CPU cards.
Applications
- Automation
- Industrial Automation
- Factory Automation
- Control Box
- Banking machine
- Transportation ITS
- HMI
- Workstation
Features
- High Performance Full-Size CPU Cards And 6-Slot PICMG Bus Passive Backplanes
- Wallmount Or Desktop Applications
- External 3.5” Drive Bay x 1
- External 5.25” Drive Bay x 1
- Internal 3.5” Drive Bay x 2
- Easy-To-Replace Ball Bearing Cooling Fan with Filter x 1 For Card Area
- Card Hold-Down Bar x 1
Specifications [AEC-206]
|
|||
| Construction | Heavy-duty Steel | ||

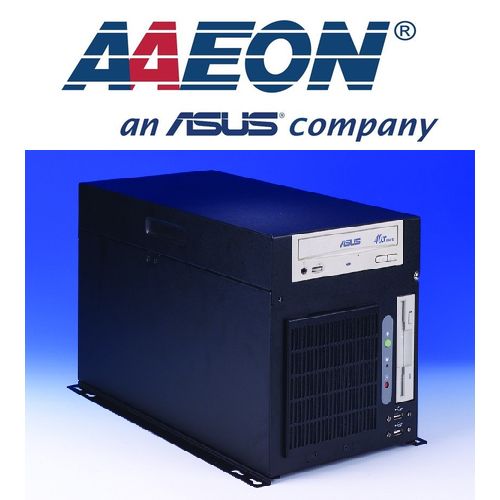

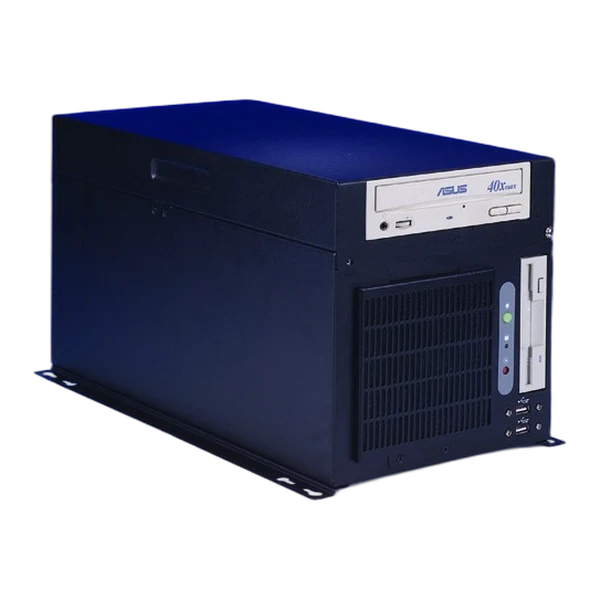

| Front Panel | Power On/ Off Switch with LED x 1 Reset Button x 1 Hard Disk Drive Active LED x 1 USB x 2 |
||

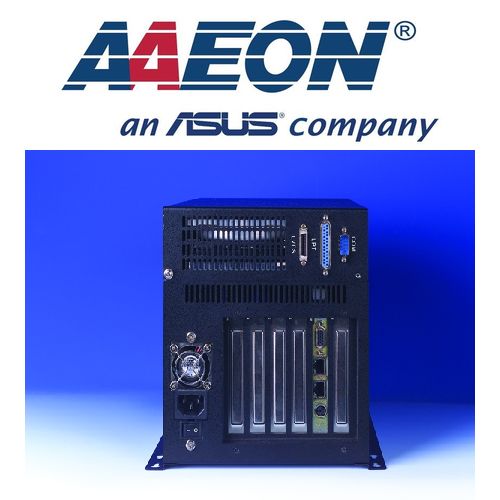

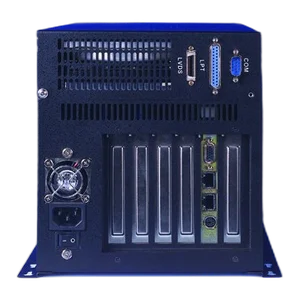

| Rear Panel | COM x 1 Parallel x 1 Reserved Cut-out for LVDS Connector x 1 6 slots (including system slot), supports max. 339 mm (length) for expansion card |
||
| Color | Black | ||
| Dimension (W x D x H) | 7.7” (W) x 15.55” (D) x 8.5” (H) (196mm x 395mm x 216mm) | ||
| Carton Dimension | 12.2” (W) x 13.2” (D) x 20” (H) (310mm x 335mm x 510mm) | ||
| Net Weight | 17 lb (7.8 kg) | ||
| Gross Weight | 20 lb (9.2 kg) | ||
| Storage | External: 5.25” Drive Bay x 1 (Front Accessible) 3.5″ Drive Bay x 1 (Front Accessible) Internal: 3.5″ Drive Bay x 2 |
||
| System Fan | 12cm Ball Bearing Fan with Removable Filter (Flow-in) x 1 | ||
| ENVIRONMENTAL | |||
| Operating Temperature | 32°F ~ 122°F (0°C ~ 50°C) | ||
| Storage Temperature | 32°F ~ 167°F (0°C ~ 75°C) | ||
| Storage Humidity | 5 ~ 95%@40°C, non-condensing | ||
| Vibration | 1 Grms/ 5 ~ 500Hz/ random operation | ||
| Shock | 15 G peak acceleration (11 msec. duration) | ||
| EMC | CE/FCC class A | ||
Ordering Information [AEC-206]
| Part Number | TF-AEC-206-B-00 |
|---|---|
| Description | Wallmount, 6-Slot Chassis Bare for 1U Power, PS_SW (AT/ATX), Black |
Optional Accessories
Power Supply Options
| P/N | TYPE | PFC Support | Input Voltage | Watt | Size |
| 1757930015 | ATX | Active PFC | Auto 115-230V | 300W | 1U (40.5cm) |
| 1757215005 | ATX | Active PFC | Auto 115-230V | 150W | 1U (40.5cm) |
Passive Backplane Options
| P/N | Description | Master Interface | Slots | Power Connector, ATX Extend Function |
| BP-206SG-P2 | Wallmount, PICMG, 6-Slot Backplane, 2 PCI, 3 ISA, Single Segment, ATX | PICMG 1.0 | 2/3/1 (PCI/ ISA/ PICMG) | ATX, 3-pin ATX extend |
| BP-206SG-P4 | Wallmount, PICMG, 6-Slot Backplane, 4 PCI, 2 ISA, Single Segment, ATX | PICMG 1.0 | 4/2/2 (PCI/ ISA/ PICMG) | AT, ATX, 3-pin ATX extend |
| BP-206SI | Wallmount, ISA 6-Slot Backplane, 6 ISA, Single segment, AT/ATX | ISA | 0/6/0 (PCI/ ISA/ PICMG) | AT/ATX |
CPU Cards Options
| Model/Name | Description | Master Interface |
| FSB-H81H | Socket LGA 1150, Intel® 4th Gereneration Core™ i3/i5/i7 | PICMG 1.3 |
| FSB-B75H | Socket LGA 1155, Intel® 3rd Generation Core™ i3/i5/i7 | PICMG 1.3 |
| FSB-G41H | Socket LGA 775, Intel® Core™ 2 Duo/ Core™ 2 Quad (800/1066/1333) | PICMG 1.3 |
| FSB-B75G | Socket LGA 1155, Intel® 3rd Generation i3/i5/i7 | PICMG 1.0 |
| HSB-945P | Onboard Intel® Atom™ N270 1.6 GHz | PCI |
| HSB-800I | Onboard AMD LX 800 Processor | ISA |
| HSB-LN2I | Onboard Intel® Atom™ D525/N455 | ISA |
CPU Cooler Options
| Model/Name | Description |
| 1759218000 | LGA1155/1150 CPU Cooler (1.5U) |
| 175920000G | LGA775 CPU Cooler (1U) |
| 1759200335 | LGA775 CPU Cooler (1U) |
