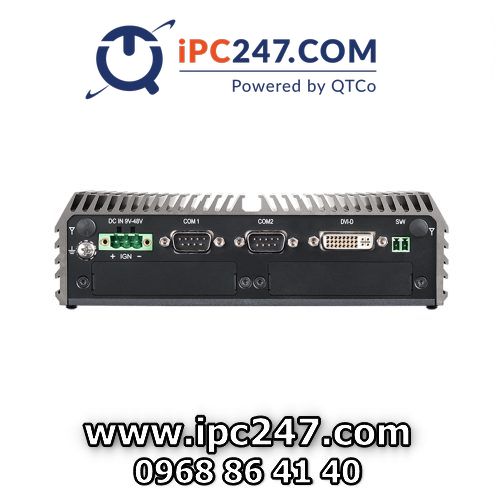

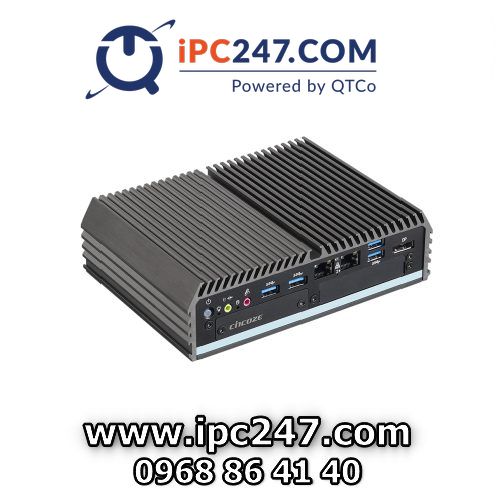

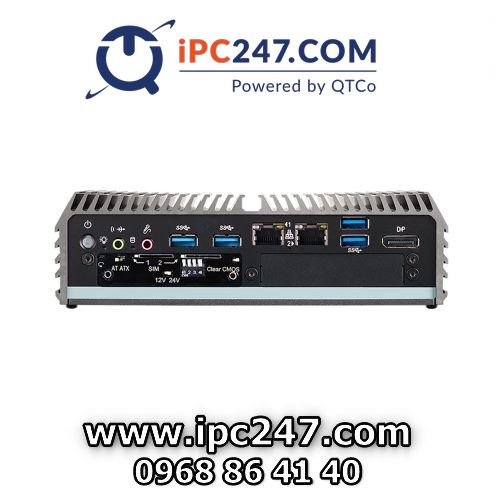

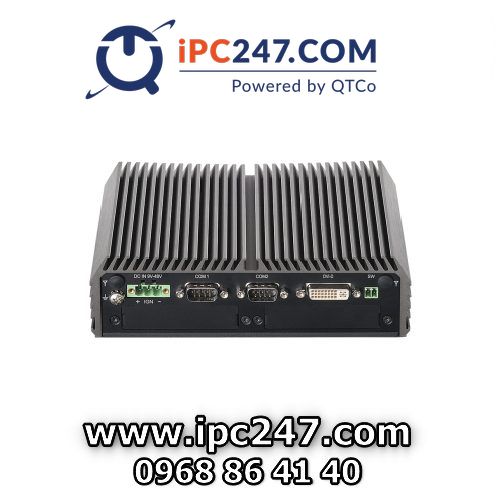

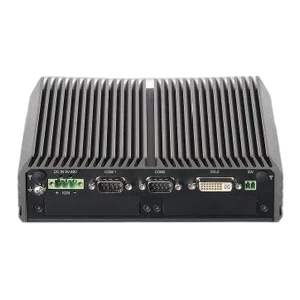

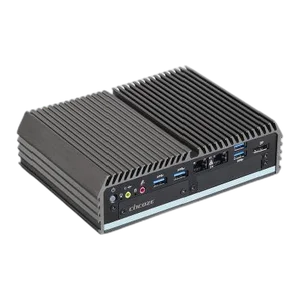

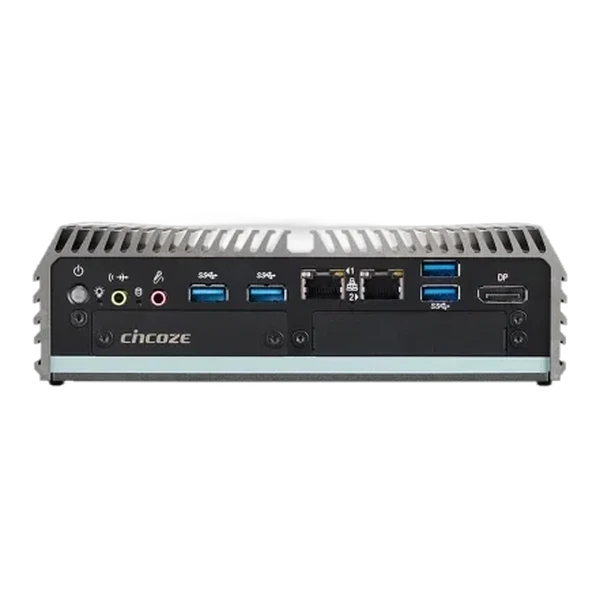

Máy tính công nghiệp không quạt DC-1200
Overview
Intel® Pentium® N4200 Processor Compact Fanless Embedded Computer
Features
- Onboard Intel® Pentium® N4200 Processor
- Supports Triple Independent Display
- Supports CMI Interface for I/O Expandability
- Supports PoE+ and Power Ignition Function (with optional CFM modules)
- 1x 2.5” SATA Drive Bay, 1x mSATA Socket
- 2x Full Size Mini-PCIe Socket, 2x SIM Card Socket
- Compact Size (185 x 131 x 56.5 mm)
- Wide Operating Temperature -40°C to 70°C
- E-mark (E13), LVD EN60950-1
Specifications
| Model Name | DC-1200 | |
| Processor System | CPU | Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz |
| BIOS | AMI BIOS, 8MB SPI Flash ROM built on board | |
| Memory | Technology | DDR3L 1333/1600/1866 MHz (un-buffered and non-ECC) |
| Max. Capacity | 8 GB | |
| Socket | 1x 204-Pin SO-DIMM | |
| Display | Integrated Graphics | Integrated Intel® HD Graphics 505 (Pentium® N4200) |
| Triple Display Supported | Yes (DVI-D, DisplayPort and one output from optional CMI module) | |
| Audio | Codec | Realtek ALC888-GR |
| I/O Ports | DVI-D | 1 (1920 x 1080 @60Hz) |
| GbE LAN | 2 (RJ45, Intel® I210AT Supports WoL, Teaming, Jumbo Frame & PXE) | |
| USB 3.0 | 4 | |
| COM Port | 2 (DB9, RS-232/422/485 with Auto Flow Control (Supports 5V/12V)) | |
| Line-out | 1 | |
| Mic-in | 1 | |
| ATX Power On/Off Button | 1 | |
| AT/ATX Mode Switch | 1 | |
| Clear CMOS Switch | 1 | |
| Remote Power On/Off Connector | 1 | |
| Ignition DIP Switch | 1 (12V/24V, need to work with CFM module) | |
| Storage | 2.5” HDD/SSD Drive Bay | 1 (SATA 3.0) |
| mSATA | 1 (SATA 3.0, Shared by Mini-PCIe Socket) | |
| Expansion | Mini-PCIe Socket | 2 (Full-size) |
| SIM Socket | 2 (for Signal Redundancy) | |
| Control Function Module (CFM) Interface | 2 | |
| Combined Multiple I/O (CMI) Interface | 2 | |
| Antenna Holes | 2 | |
| Other Functions | Watchdog Timer | Software Programmable Supports 256 Levels System Reset |
| Supports Instant Reboot Technology | 0.2 sec | |
| Power Requirement |
Power Type | AT / ATX |
| Power Supply Voltage | 9~48VDC | |
| Power Connector | 1x 3-pin Terminal Block | |
| Power Adaptor | Power Adapter AC/DC 12V/5A 60W or 24V/5A 120W (Optional) | |
| Physical | Dimension (WxDxH) | 185 x 131 x 56.5 mm |
| Weight | 1.42kg | |
| Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | Wall / VESA / Din Rail (Optional: Side + Din Rail Mounting Kit) | |
| Unibody Chassis | Yes | |
| Fanless Design | Yes | |
| Jumper-less Design | Yes | |
| Cable-less Design | Yes | |
| Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | 58V | |
| Over Current Protection | 15A | |
| ESD Protection | +/-15kV (air), +/-8kV (contact) | |
| Surge Protection | 3.84 kV (impedance 12 ohm 1.2/50us waveform) | |
| Operating System | Windows | Windows® 10 |
| Linux | Supports by project | |
| Environment | Operating Temperature | -40°C to 70°C * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | -40°C to 85°C | |
| Relative Humidity | 95%RH @ 70°C (non-Condensing) | |
| Shock | Operating, 50 Grms, Half-sine 11 ms Duration * w/ SSD, according to IEC60068-2-27 |
|
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes * w/ SSD, according to IEC60068-2-64 |
|
| MTBF | 479,119Hours | |
| Certification | EMC | • CE • FCC Class A |
| Safety | LVD (EN60950-1)(Pending) E-mark (E13) Certified(Pending) |
|
