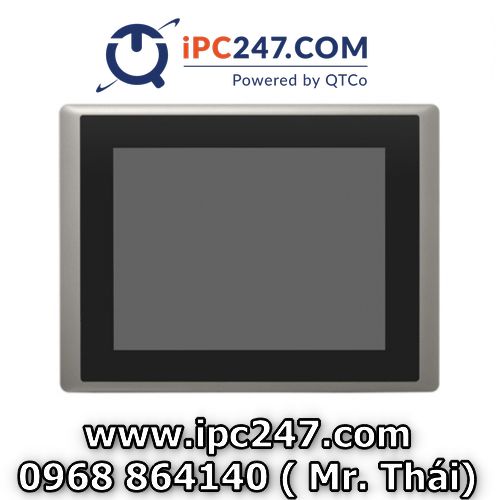

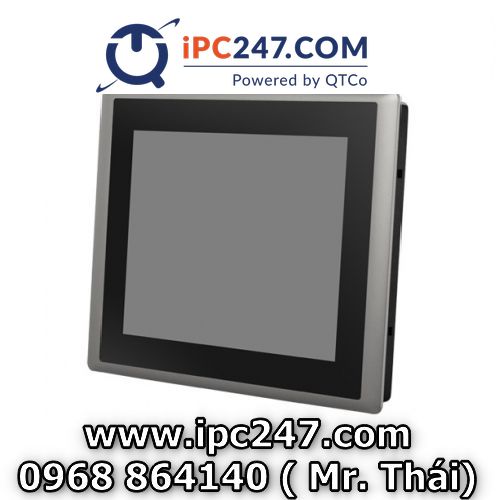

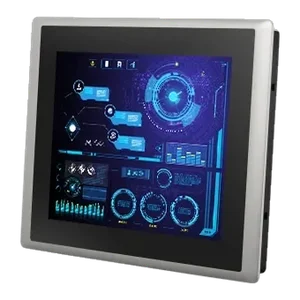

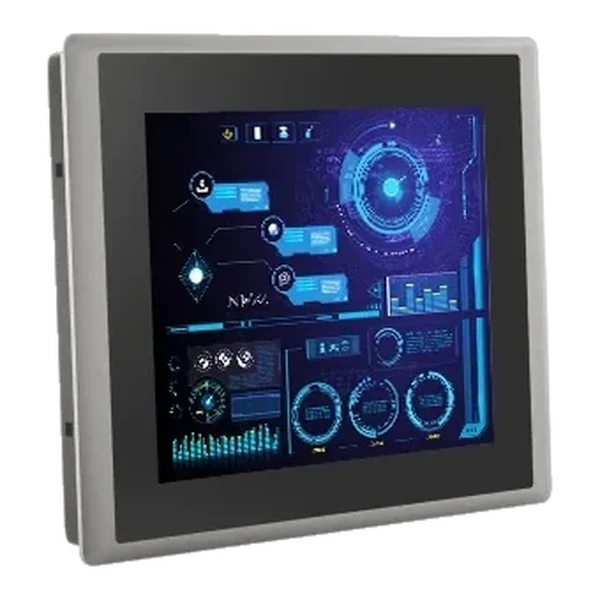

Máy tính công nghiệp màn hình cảm ứng CV-112H/P2002E

Máy tính công nghiệp màn hình cảm ứng

CV-112H/P2002E

Overview

12.1" 6th Gen. Intel® Core™ Processor U Series Fanless Touch Panel PC with CFM & CDS Technology

Features

• 12.1" XGA TFT-LCD with Resistive 5-wire / Projected CapacitiveTouch
• Onboard Intel® 6th Generation Core™ Processor U Series (15W)
• 2x DDR4 SO-DIMM Socket, Support Up to 32 GB
• Integrated Intel® HD Graphics 520 Support Triple Display
• 2x 2.5” SATA HDD Bay, 1x mSATA and 1x CFast Socket
• IP65 Compliant Aluminum Die-Cast Front Frame
• 2x Full-size Mini-PCIe Socket for Wireless and I/O Expansion
• Support CFM Technology for PoE and Ignition Sensing Functions
• Rich I/O (2x GbE LAN, 6x COM, 5x USB, 16x Isolated DIO)
• Support Instant Reboot Technology
• Wide Operating Temperature (-20°C to 70°C)
• SuperCap integrated for CMOS Battery Maintenance-Free
• PCI/PCIe Expandable Version Available (CV-112H/P2002E)



Specifications

Model Name		CV-112H/P2002E
Model No.		CV-112HR/P2002E	CV-112HC/P2002E
Display	LCD Size	12.1" (4:3)
	Max. Resolution	1024 x 768
	Brightness (cd/m2)	500
	Contrast Ratio	700 : 1
	LCD Color	16.2M
	Pixel Pitch (mm)	0.24 (H) x 0.24 (V)
	Viewing Angle (H-V)	160 / 160
	Backlight MTBF	30,000 hrs (LED Backlight)
Touch	Resistive 5-wire	V	-
	Projected Capacitive	-	V
Processor System		Onboard 6th Intel® Core™ U processors (Skylake) - Intel® Core™ i5-6300U processor (3M Cache, up to 3.00 GHz) - Intel® Core™ i3-6100U processor (3M Cache, 2.30 GHz) - TDP: 15 W - BIOS: AMI 64Mbit SPI BIOS
Memory		2x DDR4 260-pin SO-DIMM socket, support up to 32 GB (2133MHz, un-buffered and non-ECC type)
Graphics		Intel® HD Graphics 520
		Triple display with 1x VGA, 1x DVI-D and 1x CDS interface
Audio		Realtek® ALC888-GR
		High Definition Audio
I/O Interface		1x VGA (Up to 1920 x 1080 @ 60Hz), DB-15
		1x DVI-D (Up to 1920 x 1080 @ 60Hz)
		1x CDS Interface, Compact PCI Connector
		2x GbE LAN (Support WoL, Teaming, Jumbo Frame and PXE), RJ45 - GbE1: Intel I219LM - GbE2: Intel I210AT
		2x PoE+ (with Optional CFM PoE Module) - Comply with IEEE 802.3at, Offers Up to 25.5W Per Port
		6x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9
		4x USB 3.0, Type-A
		1x USB 2.0, Type-A
		16x Isolated DIO (8x DI/8x DO), 20-Pin Terminal Block
		1x Line-out & 1x Mic-in, Phone Jack 3.5mm
		1x Power On/Off Switch
		1x Reset Button
		1x AT/ATX Switch
		1x Remote Power On/Off Connector, 2-Pin Terminal Block
		1x External FAN Connector, 4-Pin Terminal Block
Storage		2x 2.5” SATA HDD/SSD Bay, Support RAID 0/1 (Gen3)
		2x mSATA (One Shared by Mini-PCIe Socket) (Gen2)
		1x CFast Socket (Gen3)
Expansion		1x CFM PoE interface
		1x CFM IGN interface
		2x Full-size Mini-PCIe Socket
		1x PCI or 1x PCIex4 Expansion slot Optional Riser Card: 1x PCI, 1x PCIex4 Support maximum dimension of add-on card (H x L): 100mm x 200mm
		1x Universal I/O Bracket
		1x SIM Socket
		4x Antenna Hole
Other Function		Support CDS Technology
		Support CFM Technology
		Support Instant Reboot Technology (0.2 sec)
		Support Power Ignition Sensing (IGN)
		Support OSD Function (LCD On/Off, Brightness Up, Brightness Down for CDS Display Module)
		Internal Speaker AMP 2W + 2W
		SuperCap Integrated
		Watchdog Timer: Software Programmable Supports 1~255 sec. System Reset
Power Requirement		Support AT/ATX Power Mode
		Power Input Voltage 9~48VDC
		One 3-pin Terminal Block Connector
		Optional Power Adapter AC/DC 12V/5A 60W or 24V/5A 120W
Physical		Dimension (WxHxD): 345 x 265.3 x 100 mm
		Weight: 6.34 kg
		Die-cast Flat Surface
		Support Panel/Wall /Arm/ VESA / Mounting

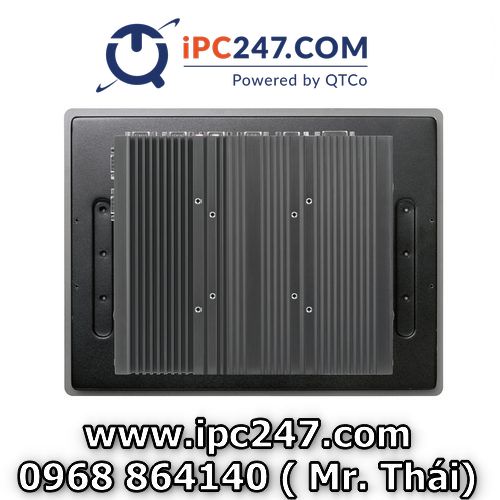

		Fanless Design
		Jumper-less Design
Protection		Reverse Power Input Protection
		Over Voltage Protection: 58V
		Over Current Protection: 15A
		ESD Protection: +/-15kV (air), +/-8kV (contact)
		Surge Protection: 3kW
Operating Stystem		Windows® 10 Windows® 8.1 Windows® 7
		Linux® Kernel 4.4
Environment		Operating Temperature: -20°C to 70°C (With extended temperature peripherals; Ambient with air flow According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
		Storage Temperature: -30°C to 80°C
		Relative Humidity: 90% RH @ 40°C (Non-condensing)
		IP Level: IP65 Compliant Front Panel
		EMC: CE, FCC Class A
