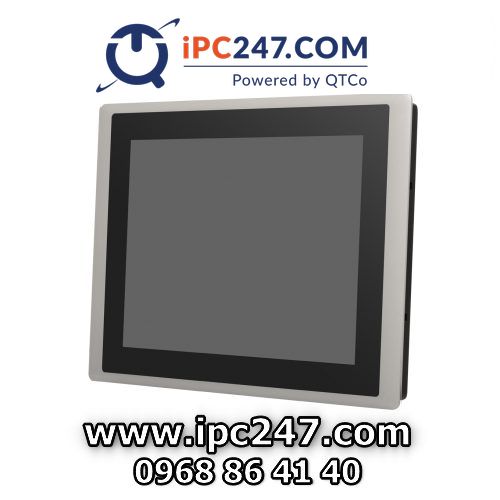

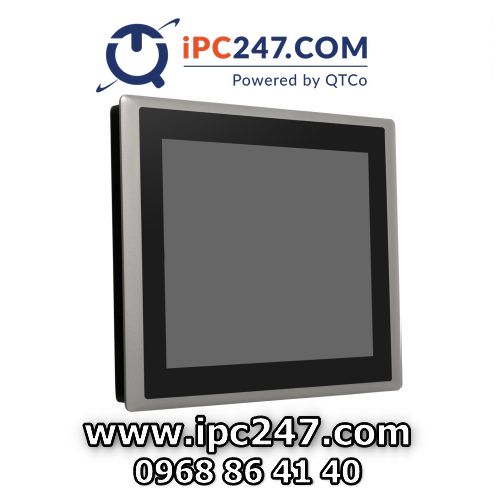

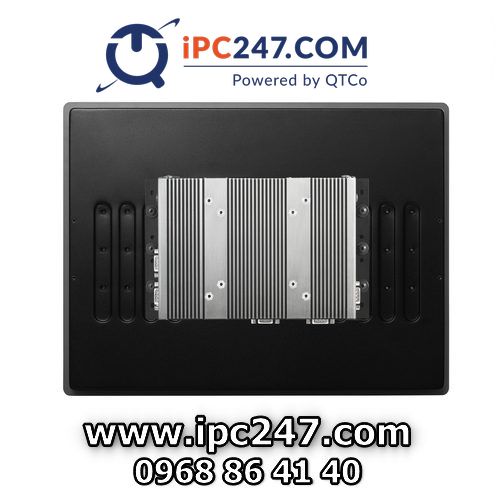

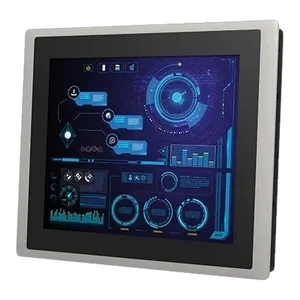

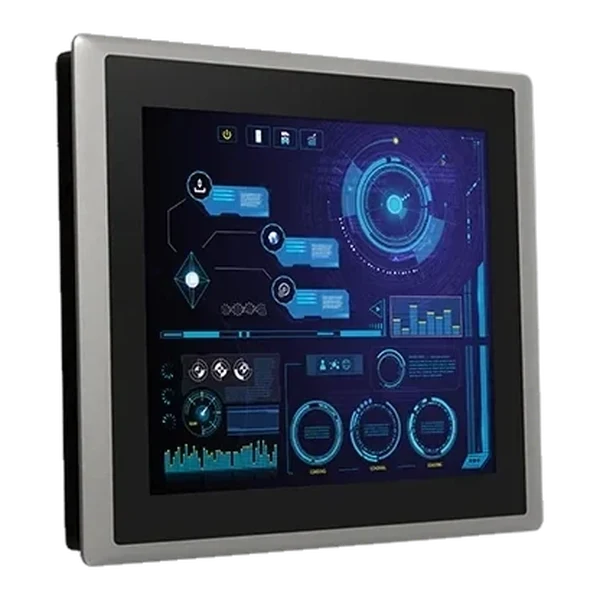

Máy tính công nghiệp màn hình cảm ứng CV-115/P1101
Overview

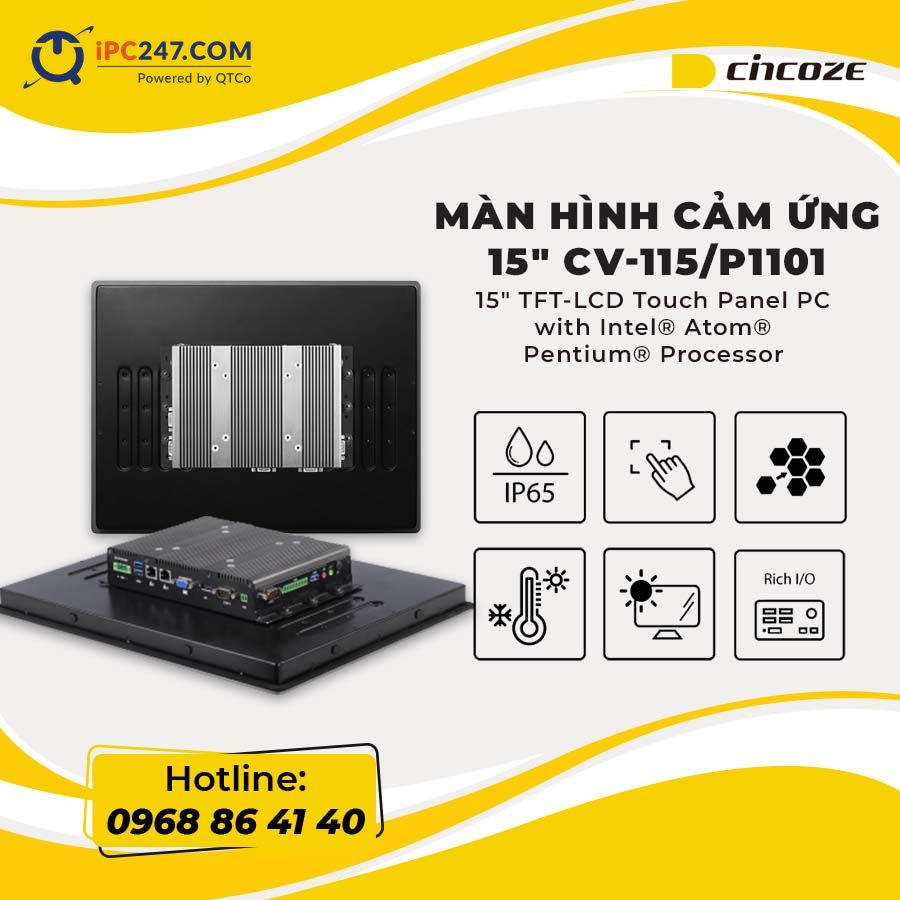

15″ TFT-LCD Touch Panel PC with Intel® Atom® / Pentium® Processor
Features
- 15″ TFT-LCD XGA with Resistive 5-wire or P-Cap Touchscreen
- Onboard Intel® Atom® / Pentium® Processor
- Triple Independent Displays (via VGA and DisplayPort outputs)
- Rich I/O (2x GbE LAN, 4x USB 3.0, 4x COM, 8x Isolated DIO)
- 2x Full Size Mini-PCIe, 1x 2.5” SATA Drive Bay, 1x mSATA Socket
- Designed with Aluminum Die-casting Front Frame
- True Flat IP65 Front Panel Protection
- Supports CDS Technology, Ignition Sensing and Power over Ethernet
- Supports Panel / VESA Mounting
Specifications
| Model Series | CV-115/P1101 | ||
| Model Name | CV-115R/P1101 | CV-115C/P1101 | |
| Display | LCD Size | 15″ (4:3) | |
| Max. Resolution | 1024 x 768 | ||
| Brightness (cd/m2) | 350 | ||
| Contrast Ratio | 800 : 1 | ||
| LCD Color | 16.2M | ||
| Pixel Pitch (mm) | 0.297 (H) x 0.297 (V) | ||
| Viewing Angle (H-V) | 160 / 150 | ||
| Backlight MTBF | 50000 hrs (LED Backlight) | ||
| Touch | Resistive 5-wire | V | – |
| Projected Capacitive | – | V | |
| System | Processor | • Onboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz • Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz |
|
| Memory | • 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket • Supports up to 8GB (un-buffered and non-ECC) |
||
| Graphics | • Integrated Intel® HD Graphics 505 • Supports Triple Independent Display (1x CDS, 1x VGA, 1x DisplayPort) |
||
| Audio | Realtek ALC888-GR | ||
| I/O Interface | VGA | 1x VGA (1920 x 1200 @60Hz) | |
| DP | 1x DisplayPort (4K x 2K @60Hz) | ||
| LAN | 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 – GbE1: Intel® I210AT – GbE2: Intel® I210AT |
||
| Serial Port | 4x RS-232/422/485, DB9 with Auto Flow Control (Supports 5V/12V), DB9 | ||
| USB | 4x USB 3.0 (Type-A) | ||
| Isolated DIO | 8x Isolated DIO (4x DI/4x DO), 10-Pin Terminal Block | ||
| Line-Out | 1x Phone Jack 3.5mm | ||
| Mic-In | 1x Phone Jack 3.5mm | ||
| Power Button | 1x ATX Power On/Off Button | ||
| Reset Button | 1x Rest Button | ||
| AT/ATX Switch | 1x AT/ATX Mode Switch | ||
| Clear CMOS Switch | 1x Clear CMOS Switch | ||
| Remote Power On/Off Connector | 1x Remote Power On/Off Connector, 2-pin Terminal Block | ||
| Storage | SSD/HDD | 1x 2.5” HDD/SSD Drive Bay (SATA 3.0) | |
| mSATA | 1x mSATA Socket (SATA 3.0, Shared by Mini-PCIe Socket) | ||
| Expansion | PCI / PCIe | – | |
| CFM (Control Function Module) Interface | – Optional CFM IGN Module for Power Ignition Function – Optional CFM PoE Module for Power over Ethernet Function |
||
| CDS (Convertible Display System) Technology | 1x CDS Interface for Convertible Display Module | ||
| Mini PCI Express | 2x Full-size Mini-PCIe Sockets | ||
| SIM Socket | 1x SIM Socket | ||
| Antenna Holes | 4x Antenna Holes | ||
| Other Function | Instant Reboot | Support 0.2sec | |
| Super Cap | SuperCap Integrated for CMOS Battery-free Operation | ||
| OSD Function | LCD On/Off, Brightness Up, Brightness Down | ||
| Internal Speaker | AMP 2W + 2W | ||
| Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset | ||
| Power Requirement | Power Type | AT/ATX | |
| Power Input Voltage | 9~48VDC | ||
| Connector | 3-pin Terminal Block | ||
| Power Adaptor | Optional AC/DC Adapter ．AC/DC 12V/5A, 60W ．AC/DC 24V/5A, 120W (Optional) |
||
| Physical | Dimension (WxHxD) | 408 x 312.4 x 72.35 mm | |
| Weight Information | 5.85 kg | ||
| Front Panel Construction | Flat Rugged Aluminum Die-casting Bezel | ||
| Mounting | Panel / VESA / *Rack Mounting (*with optional mounting kit) | ||
| Fanless Design | Yes | ||
| Protection | Reverse Power Input Protection | V | |
| Over Voltage Protection | 58V | ||
| Over Current Protection | 15A | ||
| ESD Protection | +/-15kV(Air), +/-8kV(Contact) | ||
| Surge Protection | 3.84 kV (impedance 12 ohm 1.2/50us waveform) | ||
| Operating System | Windows | Windows® 10 | |
| Linux | Support by project | ||
| Environment | Operating Temperature | Operating Temperature: 0°C to 60°C (with extended temperature peripherals; Ambient with air flow) |
|
| Storage Temperature | -20°C to 65°C | ||
| Relative Humidity | 90% RH @ 40°C (non-condensing) | ||
| Shock | Operating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) |
||
| Vibration | Operating, 1.5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) |
||
| IP Level | IP 65 Compliant Front Panel | ||
| EMC | CE/ FCC Class A | ||
