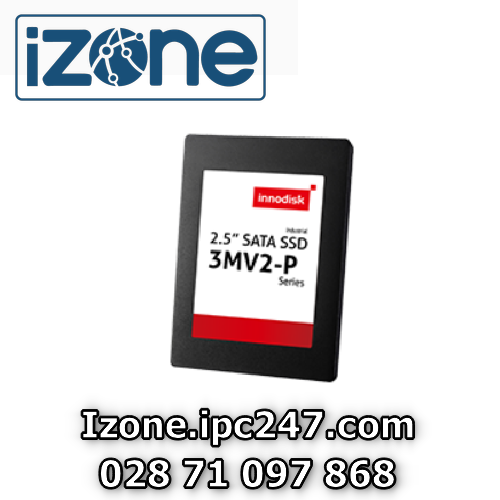

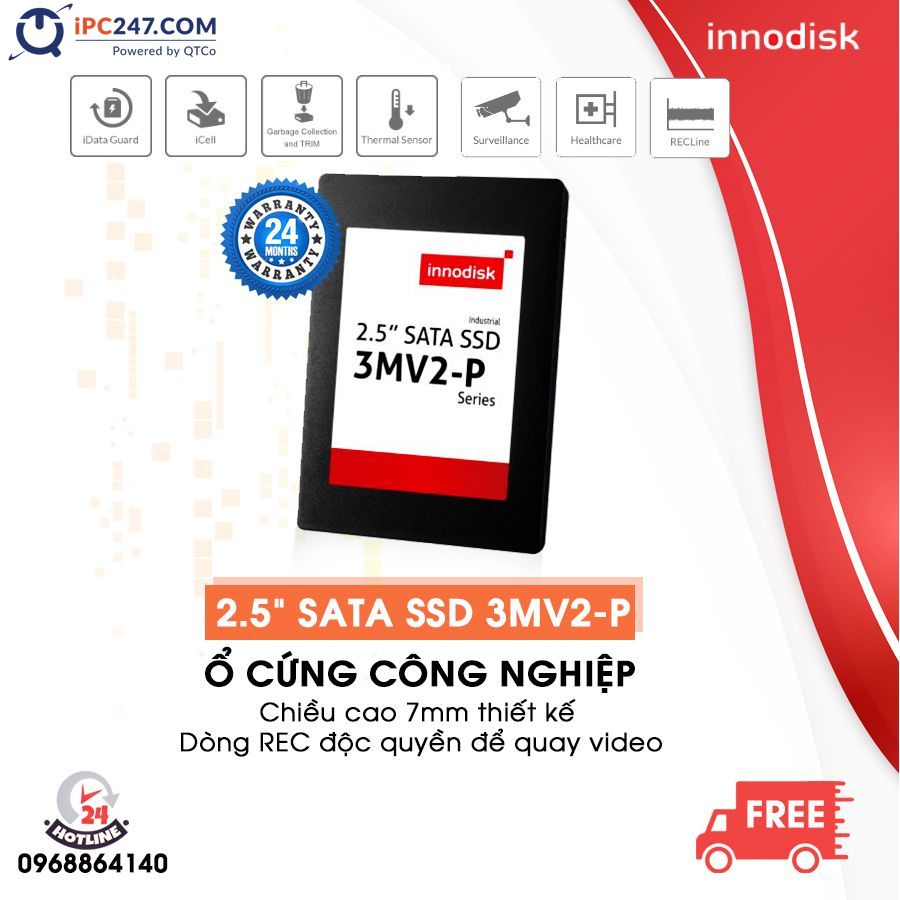

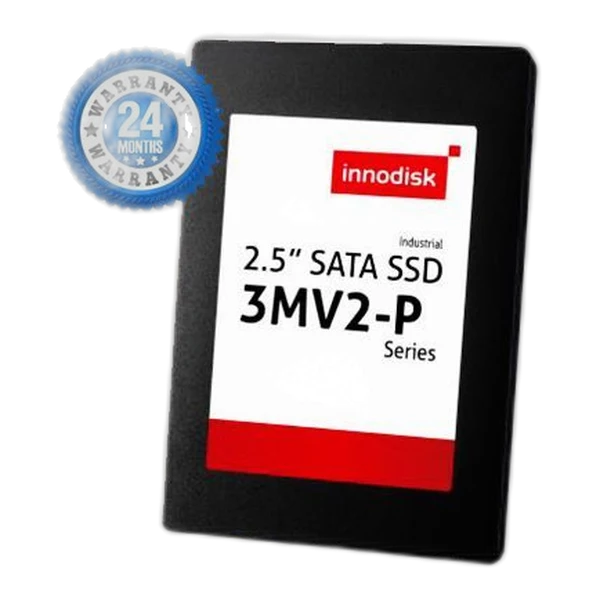

Ổ cứng công nghiệp INNODISK 2.5″ SATA SSD 3MV2-P
Overview
InnoREC is innodisk’s proprietary flash feature set designed specifically for surveillance applications. Through the smart integration of firmware and hardware, the speed and performance required by modern surveillance solutions is fully met. 2.5” SATA SSD 3MV2-P products provide high capacity flash memory Solid State Drive (SSD) that electrically complies with Serial ATA (SATA) standard. It supports SATA III standard (6.0GHz) with high performance and supports several features, including REC line, iData Guard, iCell, Quick Erase, Thermal sensor, passive cooling and S.M.A.R.T.
![Ổ cứng công nghiệp INNODISK 2.5" SATA SSD 3MV2-P 2.5" SATA SSD 3MV2](http://localhost/pc/wp-content/uploads/2021/07/2.5-SATA-SSD-3MV2-P-300x300.jpg)
Product Features
- InnoREC soultion for surveillance application
- 7mm height mechinicial design
- Exclusive REC line for video recording
- Ensures steady performance without any frame-loss
- Built-in thermal sensor
- Support S.M.A.R.T, TRIM, NCQ and iData Guard
Specifications
Model Name | 2.5″ SATA SSD 3MV2-P |
Interface | SATA III 6.0 Gb/s |
Flash Type | MLC |
Type | 2.5″ |
Capacity | 8GB~2TB |
Max. Channels | 4 |
Sequential R/W (MB/sec, max.) | 520/450 (steady performance refer to TPS) |
Max. Power Consumption | 5.78 W (5V x 1155 mA ) |
Thermal Sensor | Y |
External DRAM Buffer | Y |
H/W Write Protect | Optional |
iCell | Y |
ATA Security | Y |
S.M.A.R.T. | Y |
Dimension (WxLxH/mm) | 69.85 X 100.00 X 6.9 / 69.85 X 100.00 X 9.5 |
Vibration | 20G@7~2000Hz |
Shock | [email protected] |
MTBF | >3 million hours |
Storage Temperature | -55°C ~ +95°C |
Operation Temperature | Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
Order Information
Operation Temp. | 8GB | 16GB | 32GB | 64GB | 128GB | 256GB | 512GB | 1TB | 2TB |
Standard Grade (0°C ~ +70°C) |
DVS25-08GD81BC1SC | DVS25-16GD81BC1DC | DVS25-32GD81BC1QC | DVS25-64GD81BC1QC | DVS25-A28D81BC1QC | DVS25-B56D81BC1QC | DVS25-C12D81BC1QC | DVS25-01TD81BCAQC | DVS25-02TD81BCAQC |
Industrial Grade (-40°C ~ +85°C) |
DVS25-08GD81BW1SC | DVS25-16GD81BW1DC | DVS25-32GD81BW1QC | DVS25-64GD81BW1QC | DVS25-A28D81BW1QC | DVS25-B56D81BW1QC | DVS25-C12D81BW1QC | DVS25-01TD81BWAQC | DVS25-02TD81BWAQC |
