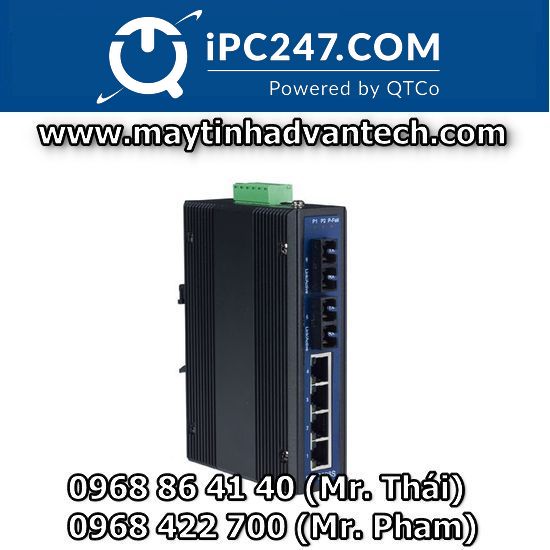

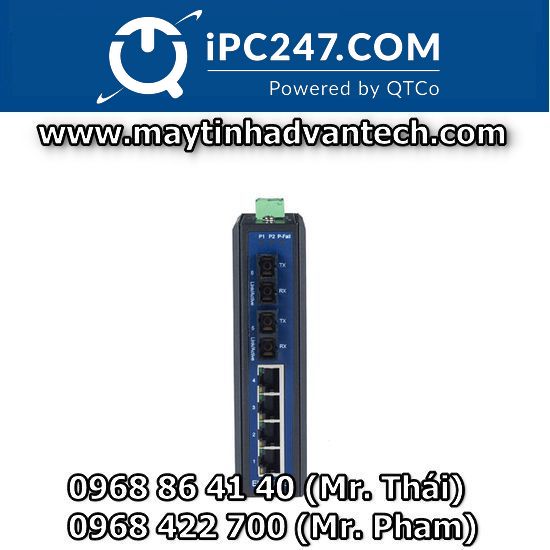

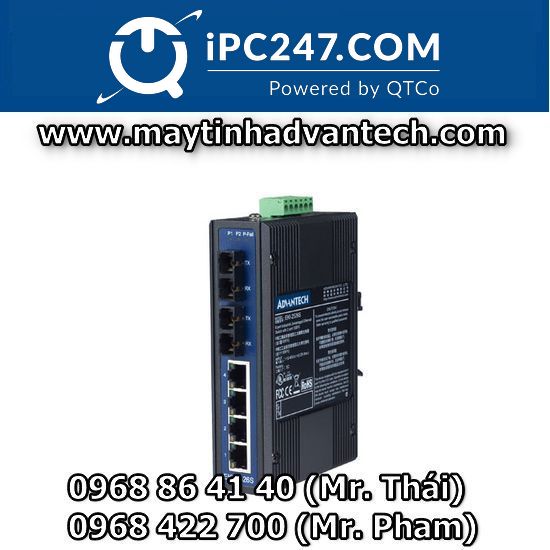

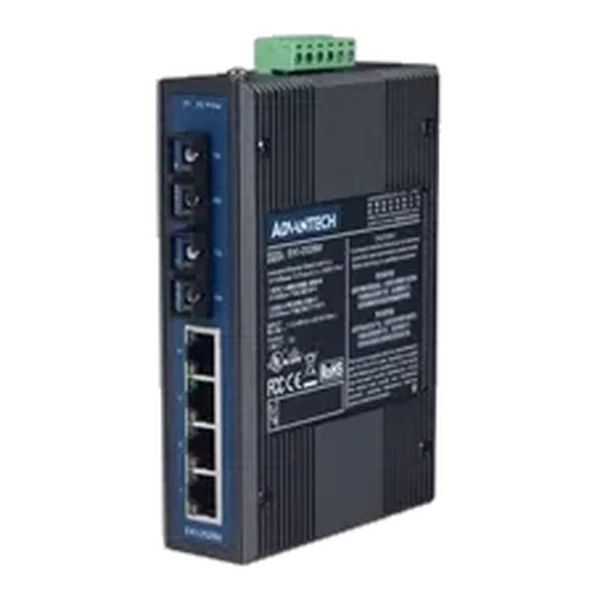

Switch công nghiệp EKI-2526S

• Provides 4 x 10/100 Mbps Ethernet ports with RJ45 connector
• Provides 2 x 100 Mbps Single-mode SC type fiber optic port
• Supports full/half duplex flow control
• Supports MDI/MDI-X auto crossover
• Provides broadcast storm protection
• Provides Redundant 12 ~ 48 VDC power input
• Provides flexible mounting: DIN-rail and Wall mount
• EKI-2525M/2526M/2526S are industrial-grade Ethernet switches that enable you to expand your industrial network fast and cost-effectively. The EKI-2525M/2526M/2526S have four 10/100 Mbps Ethernet ports, and additionally the EKI-2525M/2526M provides one or two multi-mode fiber-optic ports, while the EKI-2526S provides two single-mode fiber-optic ports. Using fiber-optics, you can prevent noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 30 km) transmissions.
  EKI-2525M/2526M/2526S have industrial-grade designs, assuring high reliability and stability in harsh environments, making it a robust bridge between enterprise fiber-optic backbones and Ethernet devices. EKI-2525M/2526M/2526S includes a switch controller that can automatically sense transmission speeds. The RJ45 interface can also be autodetected, so MDI or MDI-X is automatically selected and a crossover cable is not required. All the Ethernet ports have memory buffers that support the store and forward mechanism, assuring all data is transmitted properly.

Phản hồi trong vòng 24 tiếng kể từ khi nhận được thông báo.

Switch công nghiệp EKI-2526S

• Datasheet (PDF), Manual/ Driver/ BIOS/ FAQ
