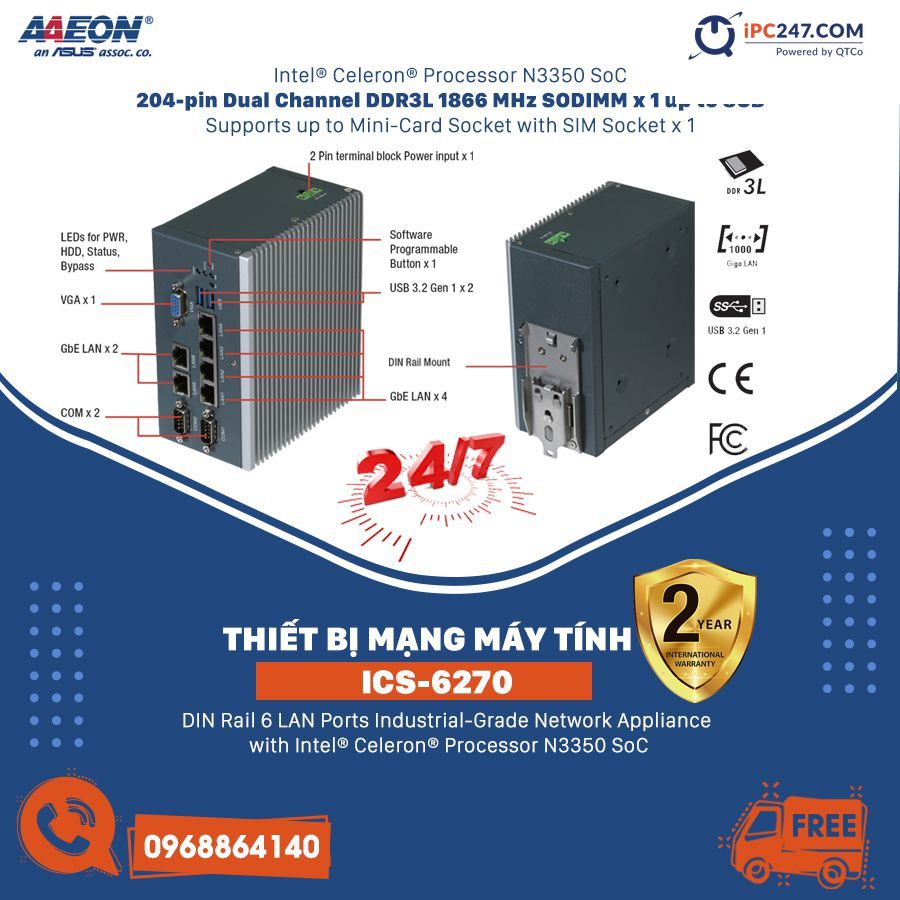

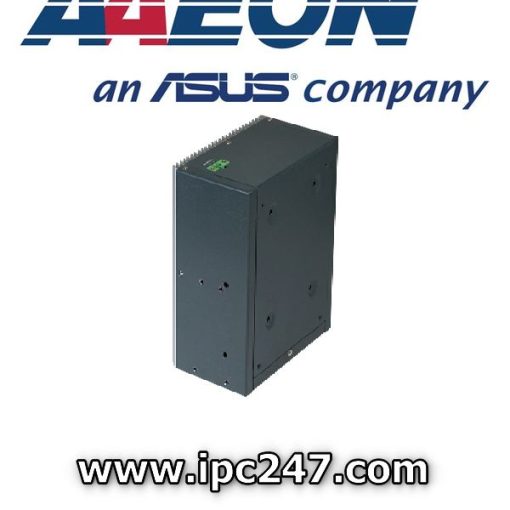

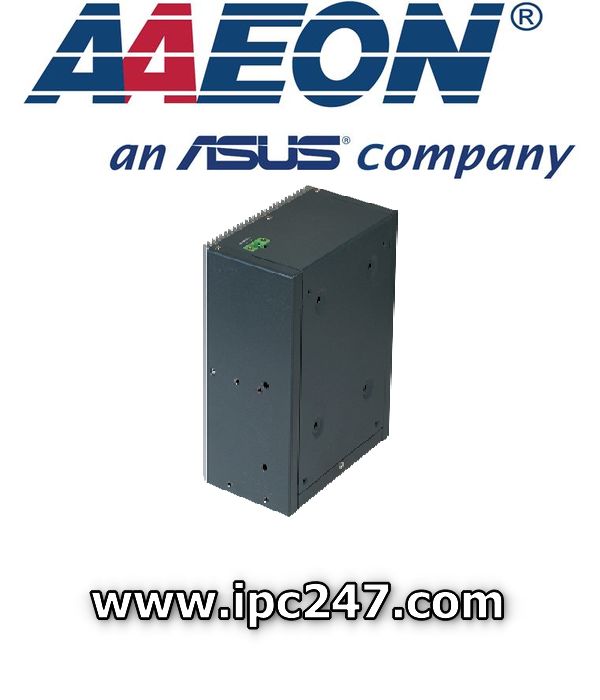

Thiết bị mạng cấp công nghiệp
(ICS-6270)
- DIN Rail 6 LAN Ports Industrial-Grade Network Appliance with Intel® Celeron® Processor N3350 SoC
Overview

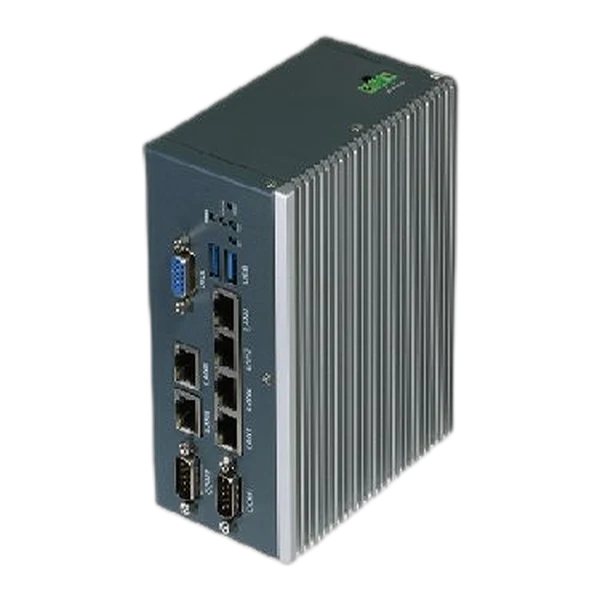

The ICS-6270 is a highly scalable and rugged hardware solution for critical infrastructure in harsh industrial-based environments, and as such has been designed to industrial-grade requirements, operating at an impressive wide-temperature range of -40°C ~ 75°C. It is enclosed within a corrosion-proof steel casing for resistance against outer stimuli, and features an aluminum heatsink, enhancing the cooling function and maximizing air circulation.
The system is built around the Intel® Atom Apollo Lake processor SoC, with optional support for TPM v1.2 9660 and TPM2.0 9665. 2-pair LAN bypass function is also supported. Storage choices include a 2.5” HDD bay and a CFast™ socket, as well as a co-lay for BOM optional mSATA, whilst system memory comprises a 204-pin DDR3L 1867MHz SODIMM slot, with a capability of 8GB.

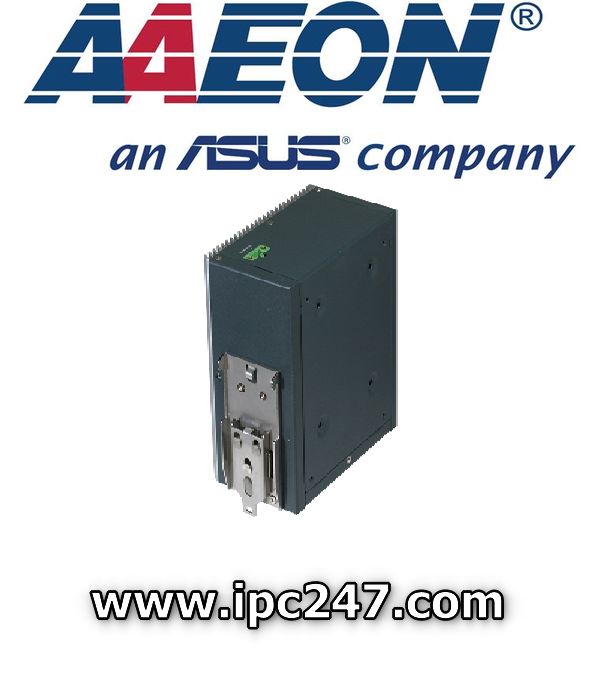

Featuring 6 native LED LAN ports, USB 3.0 ports, a VGA port and an isolated COM port (RS-232/422/485), the ICS-6270 provides a plethora of expansion and flexibility options. A 2Pin Terminal Block +9~36VDC is located on the top panel, whilst a DIN rail and wallmount on the rear I/O enable easy physical deployment, ensuring hassle-free integration with existing hardware systems.
The ICS-6270 offers a preemptive shield against cybersecurity threats such as malware infection, PLC logic degradation, problematic modems and remote bases, hijacked interfaces, and compromised control systems. More importantly, the ICS-6270 facilitates a secure hardware environment, ensuring interoperability and system responsiveness.
Applications
- Industrial Cyber Security
- Critical Infrastructure Protection
- Industrial Control Systems Security
Features
- Intel® Celeron® Processor N3350 SoC
- 204-pin Dual Channel DDR3L 1866 MHz SODIMM x 1 up to 8GB
- 10/100/1000Base-TX Ethernet port x 6 (Supports up to 2 Pairs bypass)
- Supports up to Mini-Card Socket with SIM Socket x 1
- +9 – 36V DC Power Input Terminal Block
- Supports up to RS-232/422/485 COM Port x 2 with ESD Protection
- -40°C~75°C Operating Temp.
Specifications [ICS-6270]
| SYSTEM | |
| FORM FACTOR | DIN Rail/ Desktop |
| PROCESSOR | Intel® Celeron® Processor N3350 |
| SYSTEM MEMORY | 204-pin DDR3L 1866MHz x 1, SODIMM Up to 8GB |
| CHIPSET | Intel® HD Graphics 500 |
| ETHERNET | Intel® i211, Gigabit Ethernet x 6 |
| BYPASS | Supports up to 2 pairs |
| BIOS | AMI SPI Flash BIOS |
| SERIAL ATA | SATA 6.0 Gb/s port x 1, for 2.5” HDD/SSD |
| CF/CFAST/MSATA | CFast™ socket x 1 (co-lay mSATA) |
| EXPANSION INTERFACE | Supports Mini-Card slot x 1 with SIM socket |
| USB | USB 3.2 Gen 1 x 2 |
| SERIAL PORT | Supports up to RS-232/422/485 COM Port x 2 |
| WATCHDOG TIMER | 1~255 steps by software programmable |
| RTC | Internal RTC |
| SYSTEM FAN | Fanless |
| COLOR | Dark Grey |
| POWER SUPPLY | 2 Pin Terminal Block |
| DIMENSION | 4.96″ x 2.93″ x 5.74″ (126 x 74.5 x 146mm) |
| POWER REQUIREMENT | +9 ~ 36V, 2-pin terminal block |
| MTBF (HOURS) | 101292 |
| DISPLAY | |
| GRAPHICS CHIPSET | – |
| INTERFACE | VGA port x 1 |
| I/O | |

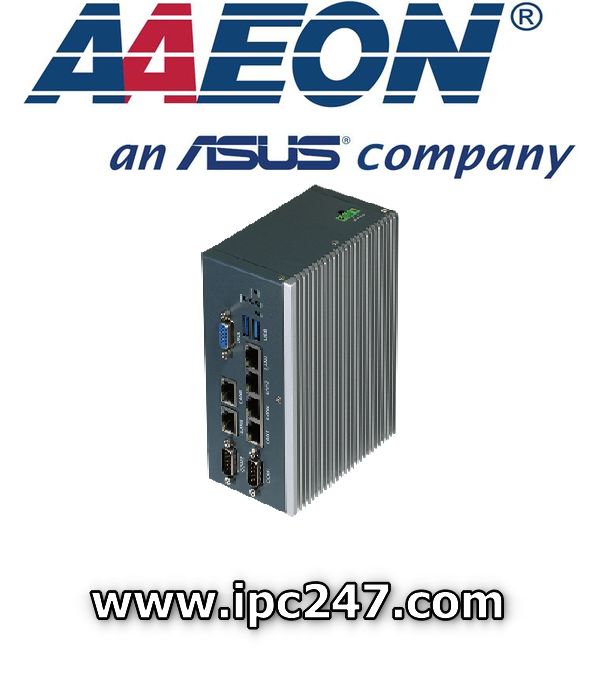

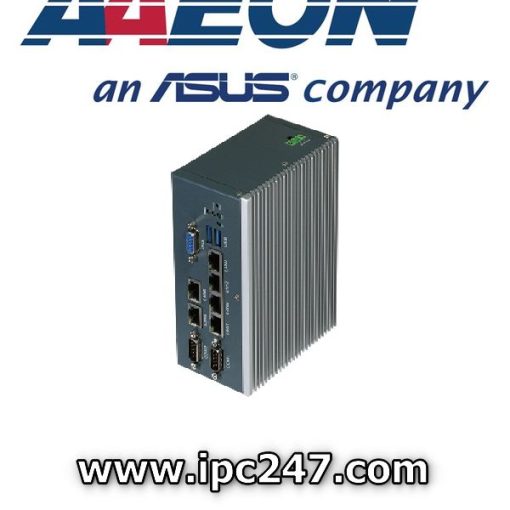

| FRONT I/O PANEL | RJ-45 GbE x 6 RS-232/422/485 COM Port x 2 VGA port x 1 USB 3.2 Gen 1 x 2 Software programmable button x 1 Power LED x 1 HDD LED x 1 Status LED x 1 Bypass LED x 2 |

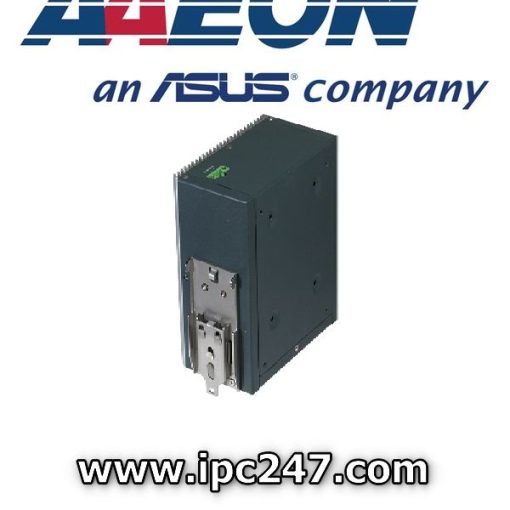

| REAR I/O PANEL | DIN Rail/ Wallmount Lock |
| TOP PANEL | 2-Pin Terminal Block +9~36VDC x 1 |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -40°F ~ 156°F (-40°C ~ 75°C) |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~ 85°C) |
| OPERATING HUMIDITY | 10%~80% relative humidity, non-condensing |
| STORAGE HUMIDITY | 10%~80% @40°C; non-condensing |
| VIBRATION | 0.5 Grms/ 5 ~ 500Hz / operation (SSD) 1.5 Grms/ 5 ~ 500Hz / non operation |
| SHOCK | 10 G peak acceleration (11 m sec. duration), operation 20 G peak acceleration (11 m sec. duration), non operation |
Ordering Information [ICS-6270]
| PART NUMBER | ICS-6270A-A10-00 |
|---|---|
| CPU | Intel® Celeron® N3350 |
| MEMORY | 204-pin DDR3L SODIMM socket x 1 |
| BYPASS | 1 Pair |
| MINI-CARD SLOT | Full Size and SIM socket x 1 |
| STORAGE | CFast socket x 1 SATA 6.0 Gb/s port x 1 |
| LAN | 6 |
| USB | USB 3.2 Gen 1 x 2 |
| RS-232/422/485 | COM x 2 COM2 with isolation |
| SYSTEM FAN | 1 |
| TPM | Optional, default N/A |
| DISPLAY | VGA x 1 |
| MOUNTING | DIN Rail |
| POWER | +9~36V DC In |
Downloads [ICS-6270]
Packing List
- 2 Pin Phoenix Contact Connector (Male)
- SATA Cable x 1
- SATA Power Cable x 1
- DIN Rail Kit x 1
- ICS-6270
Optional Accessories
| 9761627020 | Wallmount Kit (No Packing) |
| 1255300407 | 2 Pin Phoenix Contact 40W Power Adapter |
