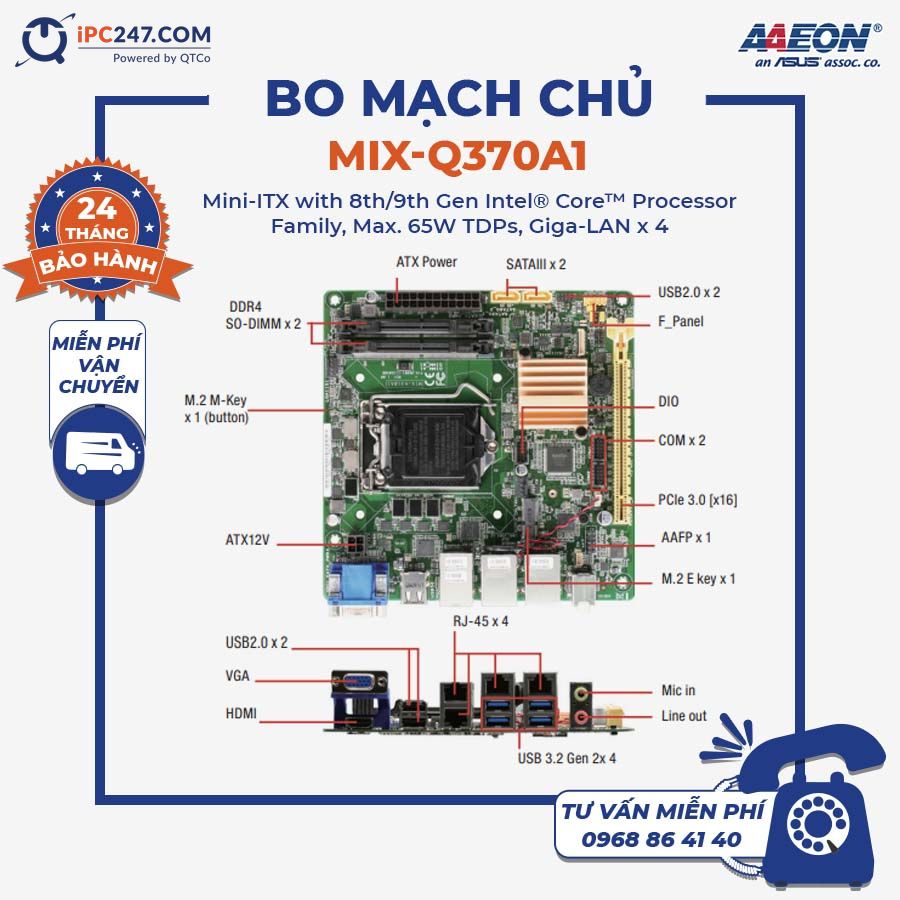

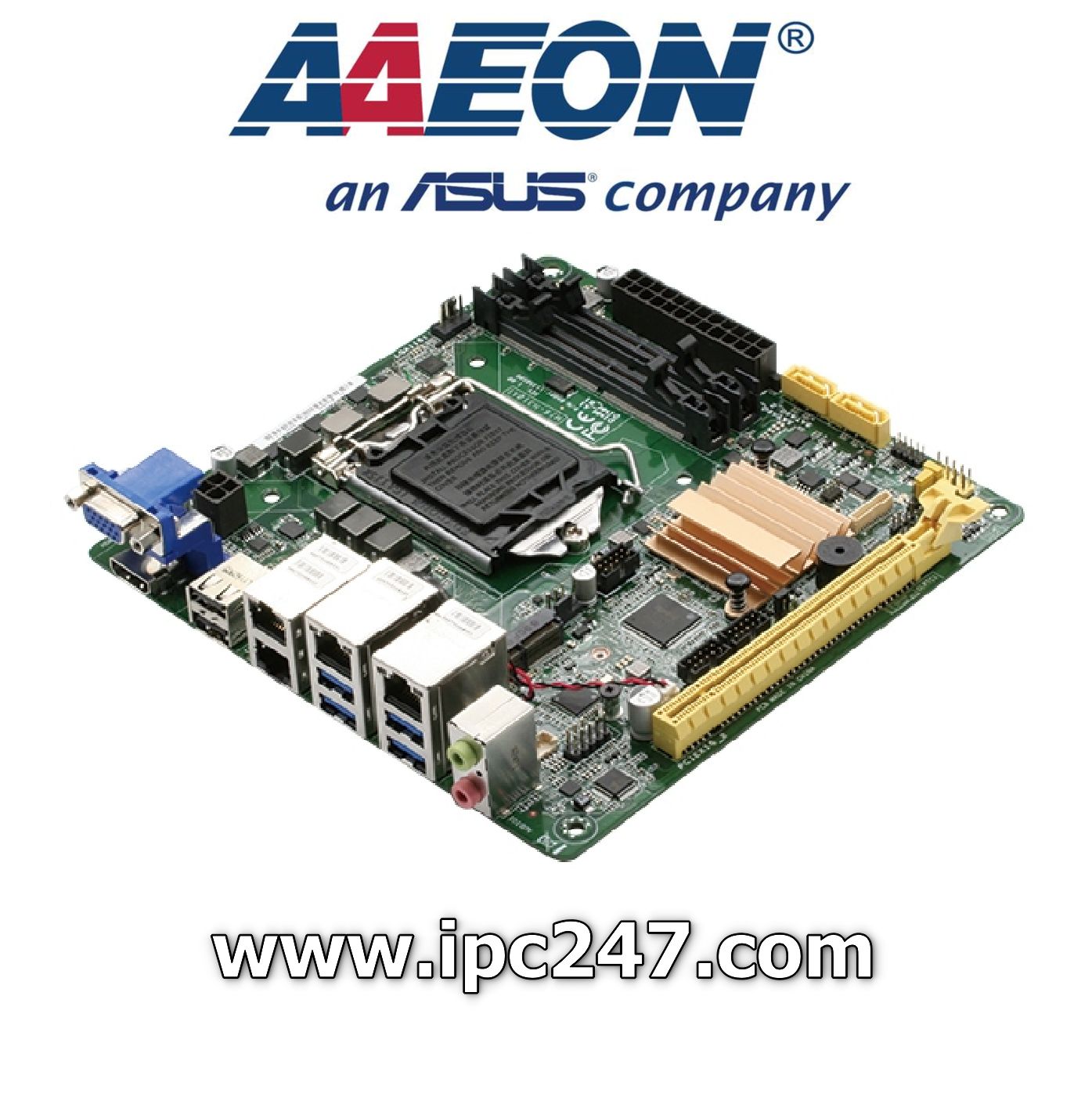

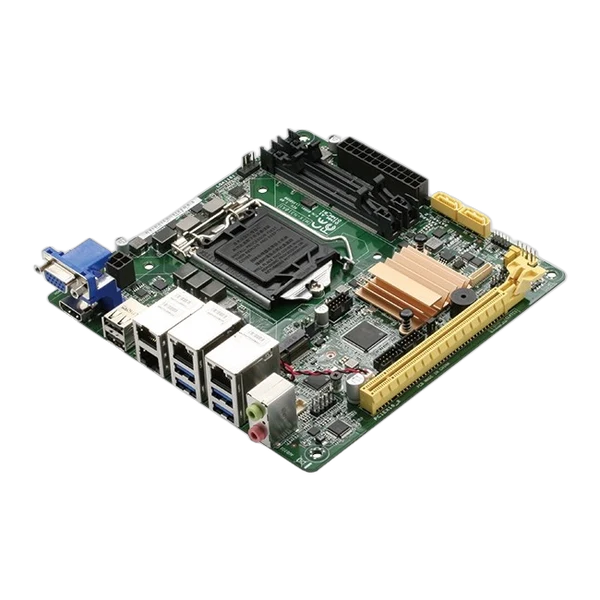

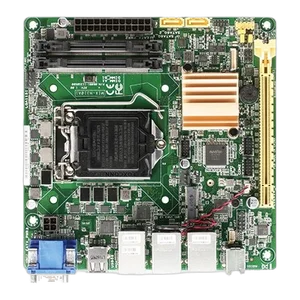

Bo mạch chủ Mini-ITX MIX-Q370A1
Mini-ITX with 8th/9th Gen Intel® Core™ Processor Family, Max. 65W TDPs, Giga-LAN x 4
Overview
The MIX-Q370A1 mini-ITX board from AAEON offers the power of 8th Generation Intel Core Processors (Coffee Lake) on a compact form factor designed for embedded applications like smart displays, kiosks, and CNC machine controllers. With a powerful compliment of I/O features including USB 3.1 and Intel Gigabit LAN ports, the MIX-Q370A1 is the flexible solution for a wide range of embedded applications.
Features
- 8th/9th Gen. Intel® Core™ LGA1151 Processor
- DDR4 DRAM Support, 2666MHz, Max. 32GB
- M.2 Slot (M key- SATA only) x 1, M.2 Slot (E key) x 1
- USB 3.2 Gen 2 Port x 4, USB 2.0 Port x 4
- Intel® LAN 211AT x 3, 219LM for iAMT 12.0 x 1
- SATA 6.0 Gb/s x 2
- PCI-Express [x16] (Gen3) x 1
- ATX Power
Specifications [MIX-Q370A1]
| SYSTEM | |
| PROCESSOR | Intel® Coffee Lake-S LGA 1151 socket Processor Max. 65W TDPs |
| CHIPSET | Intel® Q370 Express Chipset |
| MEMORY | DDR4 2666/2400/2133 MHz SODIMM x 2, Up to 32GB, Non-ECC, Un-buffered Memory, Dual channel memory architecture |
| I/O CHIPSET | NCT6793D |
| ETHERNET | Intel® PCIe Gb LAN 219LM x 1, Intel® PCIe Gb LAN i211AT x 3 |
| AUDIO | Realtek® ALC887 with Amp. |
| TPM | NPCT650ABBYX TPM2.0 (default: No) |
| EXPANSION SLOT | PCIe3.0 [x16] x 1 M.2 E-key(22x30mm; Support CNVi) |
| BIOS | 256Mbit Flash ROM, AMI BIOS |
| H/W MONITOR | Temperature Monitor on CPU/Chassis, Voltage Monitor on Vcore/5V/12V, Fan Monitor on CPU/Chassis |
| WATCHDOG TIMER | 1~255 steps by software program |
| SMART FAN CONTROL | CPU Fan/ Chassis Fan |
| WAKE ON LAN/ PXE | Yes (WOL / PXE) |
| POWER STATE | S3, S4, S5 |
| GRAPHICS | |
| GRAPHICS CHIPSET | Intel® HD Graphics |
| GRAPHICS MULTI DISPLAY | HDMI+VGA |
| VGA | Up to 1920 x 1200 @ 60 Hz |
| DVI | — |
| HDMI | Up to 4096 x 2160 @30Hz(HDMI 1.4) |
| DISPLAYPORT | — |
| LVDS | — |
| EDP | — |
| BACKLIGHT CONTROL | — |
| ENVIRONMENTAL & POWER & ME | |
| BATTERY | Lithium battery |
| POWER REQUIREMENT | ATX |
| OPERATING TEMPERATURE | 32°F ~140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~185°F (-40°C ~85°C) |
| OPERATING HUMIDITY | 0%~90%RH, non-condensing |
| CERTIFICATION | CE & FCC |
| FORM FACTOR | Mini-ITX: 6.7” x 6.7” (170mm x 170mm) |
| WEIGHT | 1.1 lb (0.5 Kg) |
| MTBF (HOURS) | — |
| REAR I/O PORTS | |
| USB | USB 3.2 Gen 2 (10 Gbps) x 4, USB 2.0 x 2 |
| DISPLAY I/O | VGA x 1, HDMI x 1 |
| AUDIO I/O | Mic-in x 1, Line-out x 1 |
| LAN I/O | LAN (RJ-45) port x 4 |
| SERIAL PORT | — |
| PS/2 PORT | — |
| OTHERS | — |
| INTERNAL I/O CONNECTORS | |
| STORAGE | SATA3.0 (6.0Gb/s) x 2, M.2 M-key (22 x 80mm) at bottom side x 1(SATA only) |
| USB | USB 2.0 (2 x 5-pin, 2.00mm) x 1 ports support additional 2 USB. |
| DISPLAY I/O | — |
| AUDIO I/O | AAFP x 1, Speaker x 1 |
| SERIAL PORT | Boxer header for COM (RS-232/422/485) x 1, Boxer header for COM (RS-232) x 1 |
| PS/2 PORT | — |
| PARALLEL PORT | — |
| DIO | Digital I/O box header x 1 |
| FAN | 4-pin CPU Fan connector x 1, 4-pin Chassis Fan connector x 1 |
| POWER | — |
| OTHERS | Front Panel connector x 1, Chassis Intrusion x 1, Buzzer onboard x 1, CMOS jumper x 1 |
| OS | |
| OS SUPPORT | Windows® 10 64-bit, Linux Ubuntu18.04. 64bit |
Ordering Information [MIX-Q370A1]
| PART NUMBER | MIX-Q370A1-A10-2L | MIX-Q370A1-A10-4L |
|---|---|---|
| CPU | Socket | Socket |
| RAM | SODIMM x 2 | SODIMM x 2 |
| FAN/FANLESS | Fan | Fan |
| DISPLAY | VGA, HDMI | VGA, HDMI |
| STORAGE | SATA3 x2, M.2(M-key) | SATA3 x2, M.2(M-key) |
| LVDS | — | — |
| LAN | GbE x 2 | GbE x 4 |
| USB | USB 2.0 x 4 USB 3.2 Gen 2 x 4 |
USB 2.0 x 4 USB 3.2 Gen 2 x 4 |
| RS-232 | 1 | 1 |
| RS-232/422/485 | 1 | 1 |
| EXPANSION SLOT | PCIe3.0[x16] x 1, M.2(E-Key) x 1 | PCIe3.0[x16] x 1, M.2(E-Key) x 1 |
| POWER | ATX | ATX |
| TPM | — | — |
| TEMP | 0~60˚C | 0~60˚C |
Downloads [MIX-Q370A1]
1. Datasheet: MIX-Q370A1, datasheet 1.0
2. Manual: MIX-Q370A1 Manual 1.0
Packing List
- SATA Cable
- I/O Shield
- MIX-Q370A1
Optional Accessories
| Part Number | Description |
| 1759200172 | CPU Cooler (2-Ball, Screw with Retention Plate) |
| 175921156B | CPU Cooler (2-Ball, Push-pin Type) |
| COOLER -65W-01 | CPU Cooler |
| 1709100201 | USB 2.0 Cable (10P, 200mm, p=2.00mm, w/bracket) |
| 1701100206 | COM Cable (200mm, p=2.00mm) |
| 1700100491 | USB 2.0 Cable (10P, 490mm, p=2.00mm) |
| 1709050201 | USB 2.0 Cable (5P, 220mm, p=2.00mm) |
