Bo mạch công nghiệp 3.5 inch GENE-BT06
3.5"Atom
Bo mạch công nghiệp 3.5 inch GENE-BT06
- Intel® Atom™ E3845/ E3825 and Celeron® Processor SoC, Onboard DDR3L Memory Max. 4 GB
- Hoạt động liên tục 24/7
- Bảo hành 24 tháng
GiáLiên hệBáo giá theo cấu hình (CPU, RAM, ổ lưu trữ, hệ điều hành) trong 2 giờ làm việc. Xem dải giá theo dạng máy.
- Chính hãng, bảo hành hãng
- Giao toàn quốc từ TP.HCM
- Kỹ thuật dựng máy & sửa chữa
- Báo giá trong 2 giờ làm việc
Thông số kỹ thuật
| Part Number · Description | QTY |
|---|---|
| 1700050207 · (TF)USB CABLE, 1*5P Pitch=1.25mm Housinh, 20cm, for PFM-945C | 2 |
| 1701090150 · (TF)Flat Cable, D-Sub 9(M), 9P Housing, 9P 1.25mm pitch Housing, 15cm | 3 |
| 1709100254 · (TF)PHONE JACK Cable, 3P AUDIO JACK, 1*10P 1.25mm HOUSING(F), 25cm | 1 |
| 1702150155 · (TF)Power Cable, 15P SATA(F), 2P 2.0mm Housing(PH), 15cm | 1 |
| 170220020B · (TF)Power Cable, 20P ATX(M), 4P 5.08mm Housing(F), +3P 2.5mm Housing (XH), 20cm | 1 |
| 1700060157 · (TF)Cable, 6P 2.0mm Housing, 6P JACK W/SCREW KB&MS, 15cm | 1 |
| 1702002010 · (TF)Power CABLE, 1*2P Pitch=5.0mm Housing, 10cm, for PFM-945C.(12V only) | 1 |
| 175011901C · (TF)BATTERY, 3V, MAXELL, CR2032M1S8-LF | 1 |
Mô tả Bo mạch công nghiệp 3.5 inch GENE-BT06
Bo mạch công nghiệp 3.5 inch GENE-BT06

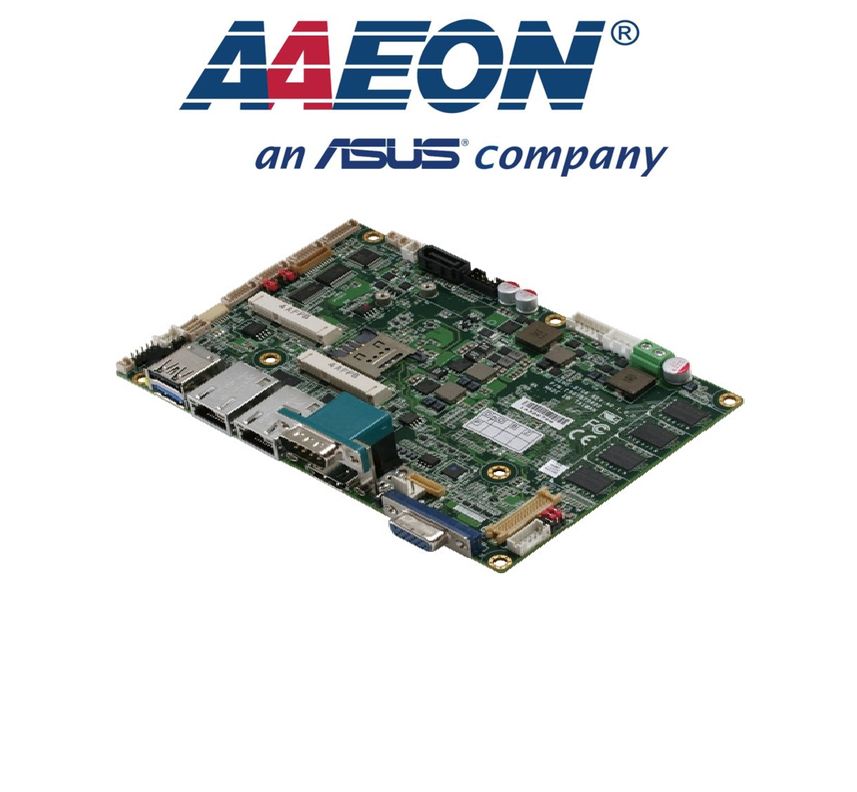

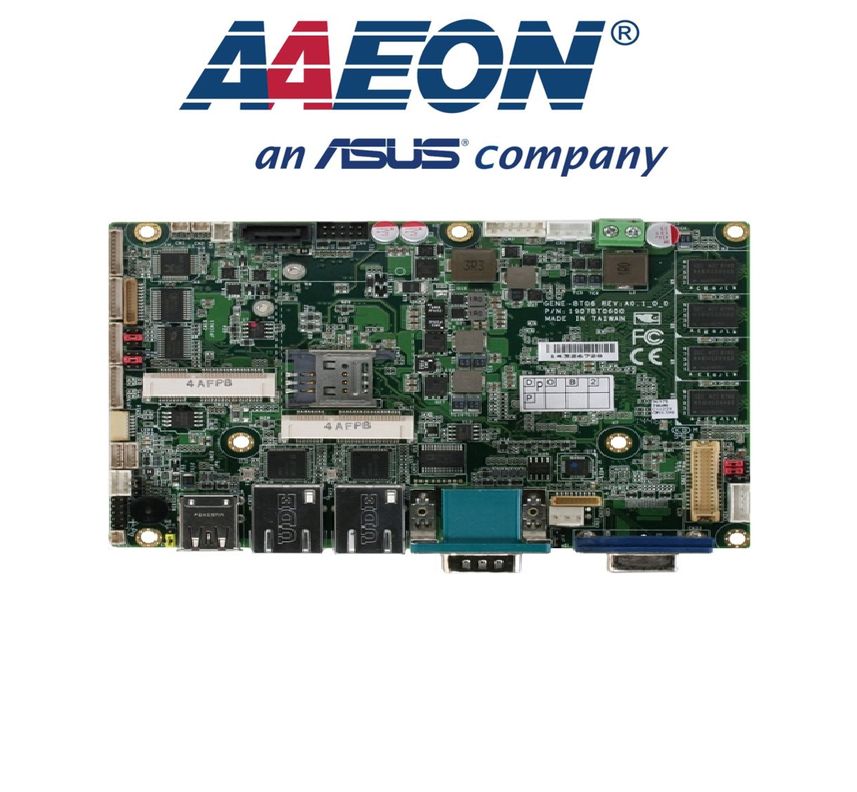

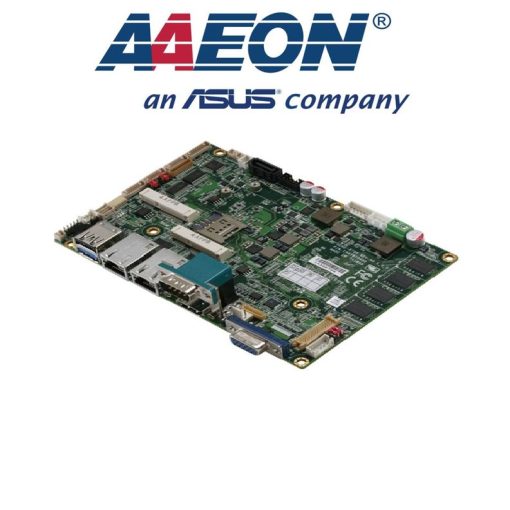

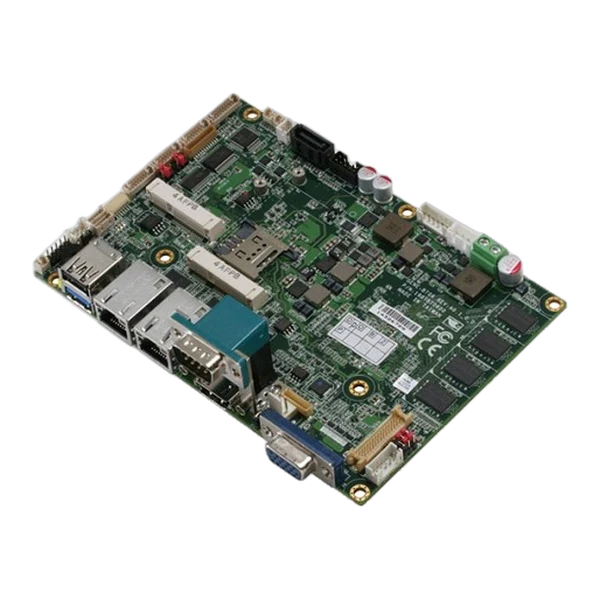

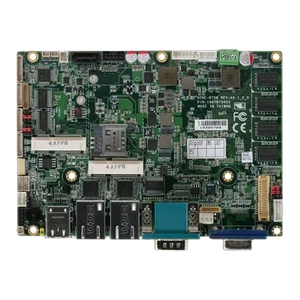

3.5” SubCompact Board with Intel® Atom™ E3845/ E3825 and Celeron® Processor SoC
Overview
Building on one of the most popular form factors in today’s computing landscape, the 3.5” GENE-BT06 has everything any in-vehicle solutions has to offer: Soldered connections rather than wired one for sturdiness in high shock/ vibration settings; Wide operable voltages in observation of fluctuating voltages in vehicles; Compactness for easy installation; and different SKUs for users demanding different performance levels. The CPU is now located at the solder side of the board and is accompanied by a heat spreader. Compared with the use of a heat sink in previous models, this change reduces vertical space needed while still retaining effective heat dissipation, making it more conducive for usage in confined spaces. The CPU, along with other components such as RAMs, is soldered onto the board for a sturdier connection when used in high shock/ high vibration environments. Observing conditions, such as fluctuating voltages, in vehicles, the board can be powered by a DC voltage with a range of 9 ~ 24V, in addition to the standard input of 12V.A version supporting extended temperature ranges will be forthcoming in the near future. SKUs featuring dual-core (E3825, N2807) and quad-core (E3845, J1900) CPUs are designed for users demanding various levels of performance. Furthermore, dual display is also provided with the board’s VGA, LVDS, and HDMI interface, while the media being played can be stored using any mSATA device, supported by one of the two PCIe slots. The GENE-BT06 was born out of the needs of this ongoing market trend. The need for infotainment in vehicles is on the rise and the GENE-BT06 is the ideal solution to support this growing trend.Applications
- Building
- Factory Automation
- KIOSK
- Medical Equipment
- Test & Measurement
- Transportation

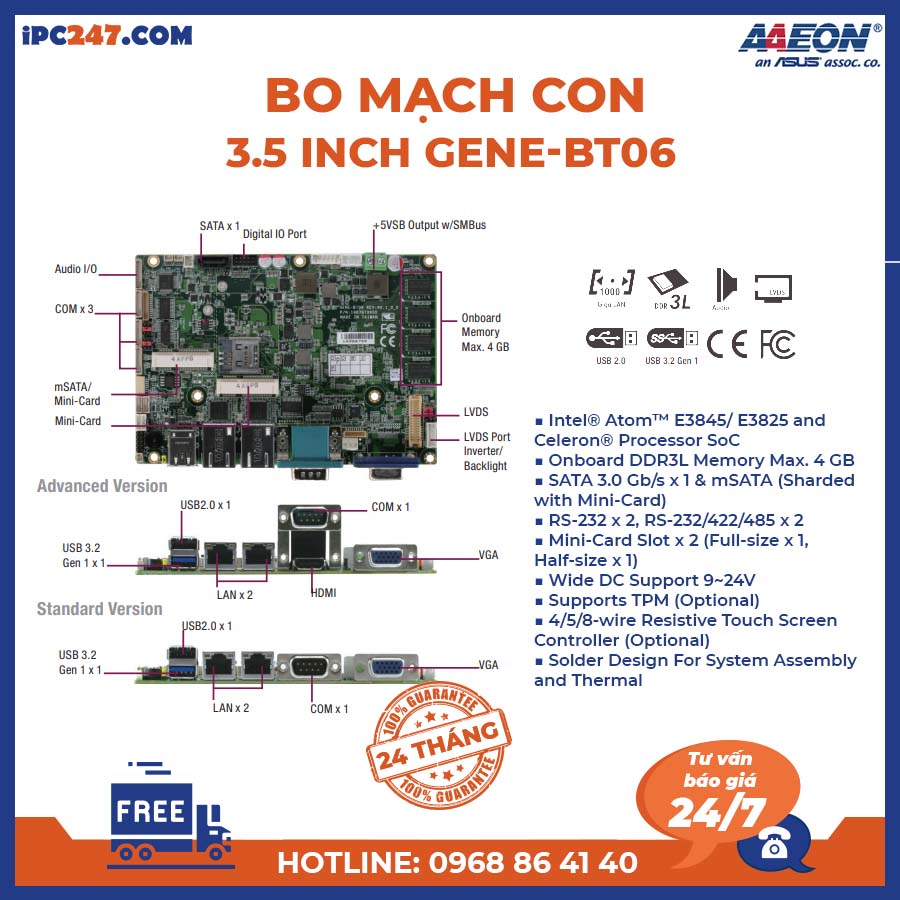

Features
- Intel® Atom™ E3845/ E3825 and Celeron® Processor SoC
- Onboard DDR3L Memory Max. 4 GB
- CRT, 18/24-bit Dual-Channel LVDS LCD, HDMI (DP Sharded with HDMI/CRT, Optional)
- 2 CH Audio
- SATA 3.0 Gb/s x 1 & mSATA (Sharded with Mini-Card)
- Supports 8-bit Digital I/O, USB2.0 x 3, USB 3.2 Gen 1 x 1
- RS-232 x 2, RS-232/422/485 x 2
- Mini-Card Slot x 2 (Full-size x 1, Half-size x 1)
- Wide DC Support 9~24V
- Supports TPM (Optional)
- 4/5/8-wire Resistive Touch Screen Controller (Optional)
- Solder Design For System Assembly and Thermal
Specifications [GENE-BT06]
| SYSTEM | |
| FORM FACTOR | 3.5" SubCompact Board |
| CPU | Intel® Atom™ E3845/E3825 |
| CPU FREQUENCY | Up to 2.0GHz |
| CHIPSET | Intel® Atom™ series Processor SoC |
| MEMORY TYPE | Onboard DDR3L 1066/1333 |
| MAX. MEMORY CAPACITY | Up to 4GB |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | Wide DC support 9~24V |
| POWER SUPPLY TYPE | AT/ATX |
| POWER CONSUMPTION (TYPICAL) | Intel® E3845, Onboard DDR3L 1600MHz 4G, 0.64A@+12V |
| DIMENSION (L X W) | 5.75" x 4" (146mm x 101.6mm) |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) or WiTAS 2 (TBD) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 110,000 |
| CERTIFICATION | CE/FCC |
| DISPLAY | |
| VGA/LCD CONTROLLER | Intel® Atom™ Processor SoC |

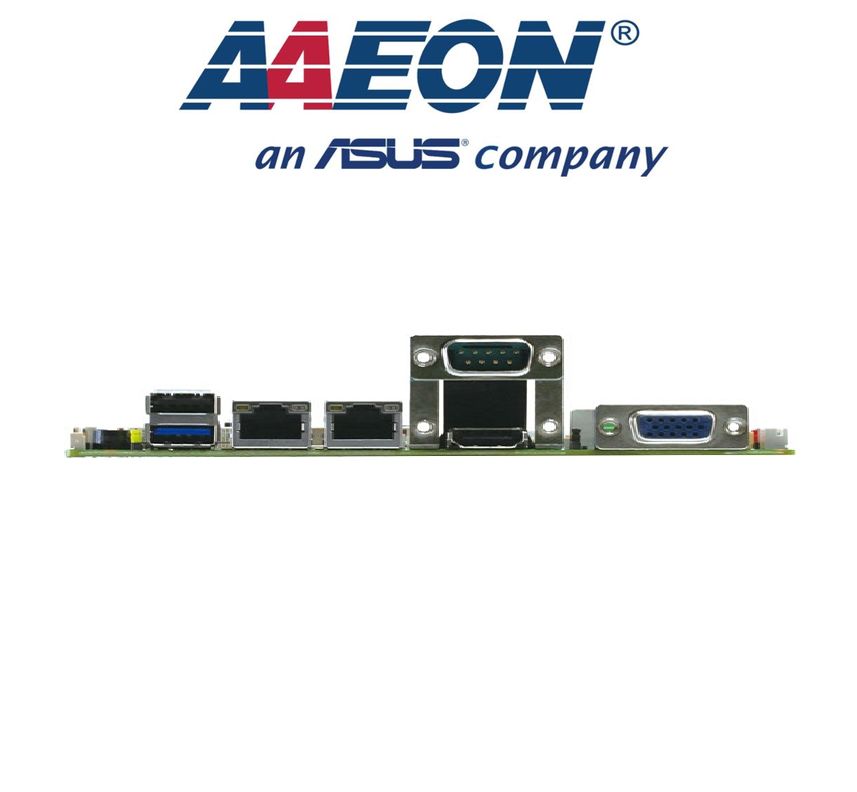

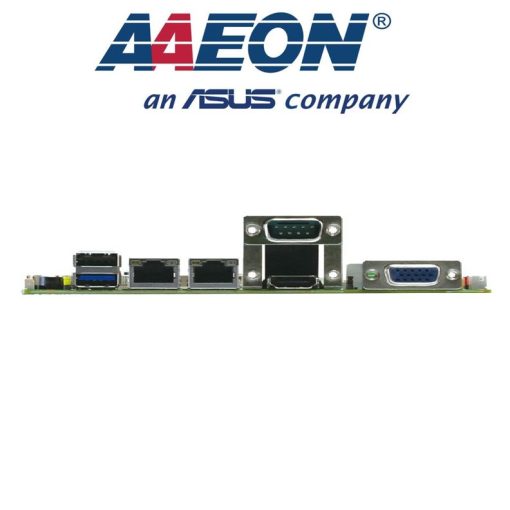

| VIDEO OUTPUT | CRT+LVDS, HDMI+LVDS , CRT+HDMI |
| BACKLIGHT INVERTER SUPPLY | 18/24-bit dual-channel LVDS LCD |
| I/O | |
| ETHERNET | Intel® I211 (or 210), 10/100/1000Base-TX, RJ-45 x 2 |
| AUDIO | High definition audio interface |
| USB PORT | USB 2.0 x 3, USB 3.2 Gen 1 x 1 |
| SERIAL PORT | RS-232 x 2 , RS-232/422/485 x 2 |
| PARALLEL PORT | SPP/EPP/ECP x 1 |
| HDD INTERFACE | SATA 2.0 x 1 |
| FDD INTERFACE | — |
| SSD | mSATA (Half-size, shared with Mini-Card) |
| EXPANSION SLOT | Mini-Card x 1 (Full-size) |
| DIO | 8-bit |
| SIM | x 1 |
| TPM | x 1 |
| TOUCH | x 1 |
Ordering Information [GENE-BT06]
| PART NUMBER | GENE-BT06-A11-0001 | GENE-BT06-A11-0002 | GENE-BT06W2-A11-0001 | GENE-BT06W2-A11-0002 |
|---|---|---|---|---|
| CPU | Intel® Atom™ E3825 | Intel® Atom™ E3845 | Intel® Atom™ E3825 | Intel® Atom™ E3845 |
| FAN/ FANLESS | Fanless | Fanless | Fanless | Fanless |
| MEMORY | Onboard 2GB | Onboard 4GB | Onboard 2GB | Onboard 4GB |
| DISPLAY | VGA, LVDS | VGA, LVDS, HDMI | VGA, LVDS | VGA, LVDS, HDMI |
| LVDS | 24bit, 2CH | 24bit, 2CH | 24bit, 2CH | 24bit, 2CH |
| STORAGE | SATA x 1 mSATA x 1 (half size) | SATA x 1 mSATA x 1 (half size) | SATA x 1 mSATA x 1 (half size) | SATA x 1 mSATA x 1 (half size) |
| LAN | GbE x 2 | GbE x 2 | GbE x 2 | GbE x 2 |
| USB | USB 3.2 Gen 1 x 1 USB 2.0 x 3 | USB 3.2 Gen 1 x 1 USB 2.0 x 3 | USB 3.2 Gen 1 x 1 USB 2.0 x 3 | USB 3.2 Gen 1 x 1 USB 2.0 x 3 |
| RS-232 | 2 | 2 | 2 | 2 |
| RS-232/422/485 | 2 | 2 | 2 | 2 |
| EXPANSION SLOT | MiniCard x 1 (Full) | MiniCard x 1 (Full) | MiniCard x 1 (Full) | MiniCard x 1 (Full) |
| POWER | 9~24V | 9~24V | 12V | 12V |
| POWER TEMP | 0°C ~ 60°C | 0°C ~ 60°C | WTAS 2 (-40°C~85°C) | WTAS 2 (-40°C~85°C) |
| OTHERS | DIO x 8 | Touch Controller, TPM, SIM, DIO x 8 | DIO x 8 | Touch Controller, TPM, SIM, DIO x 8 |
Downloads [GENE-WHU6]
1. Datasheet
2. BIOS
-GENE-BT06 1.5: **BIOS update for WiTAS, 2017-02-08
-GENE-BT06 1.9: Set PCIE port ASPM default to disable, Support SMBIOS preserve feature, 2018-12-20
-GENE-BT06 2.0: Implement negative temperature function, Fixed COM3 fail when disable COM4, Added the Panel Type 1280*800, Disable NTFS module
-GENE-BT06 | V1.0 1.0: First Version
3. Driver- Audio Driver: Step4 - Audio Driver, Windows 7 64, Windows 7 32, Windows 8.1 32, Windows 8.1 64, Windows 10 32, Windows 10 64, 2018-11-15
- Chipset Driver: Step1 - Chipset Driver, Windows 7 64, Windows 7 32, Windows 8.1 32, Windows 8.1 64, Windows 10 32, Windows 10 64, 2018-11-15
- Graphics Driver: Step2 - Graphic Driver, Windows 7 64, Windows 7 32, Windows 8.1 32, Windows 8.1 64, Windows 10 32, Windows 10 64, 2018-11-15
- LAN Driver: Step3 - LAN Driver, Linux, Windows 7 64, Windows 7 32, Windows 8.1 32, Windows 10 32, Windows 10 64, 2018-11-15
- MBI Driver: Step8 - MBI(Optional) Driver, Windows 8.1 32, Windows 8.1 64, Windows 10 32, Windows 10 64, 2018-11-15
- Penmount(Dynapro Resistive): Step6 - PenMount Touch 6000 Driver, Windows 7 64, Windows 7 32, Windows 8.1 32, Windows 8.1 64, Windows 10 32, Windows 10 642018-11-15
- Serial Port Driver: Step10 - Serial Port Driver (Optional), Windows 7 64, Windows 7 32, Windows 8.1 32, Windows 8.1 64, Windows 10 32, Windows 10 64, 2018-11-15
- TPM Driver, Step7 - TPM Driver, Windows 7 64, Windows 7 32, Windows 8.1 32, Windows 8.1 64, Windows 10 32, Windows 10 64, 2018-11-15
-TXE Driver: Step5 - TXE Driver, Windows 8.1 32, Windows 8.1 64, Windows 10 32, Windows 10 64, 2018-11-15 - USB3.0: Step9 - USB3.0 Driver, Windows 7 64, Windows 7 32, 2018-11-154. Manual: GENE-BT06, manual 6.0, 2019-05-20
Packing List
- GENE-BT06 with Heatspreader
Optional Accessories
