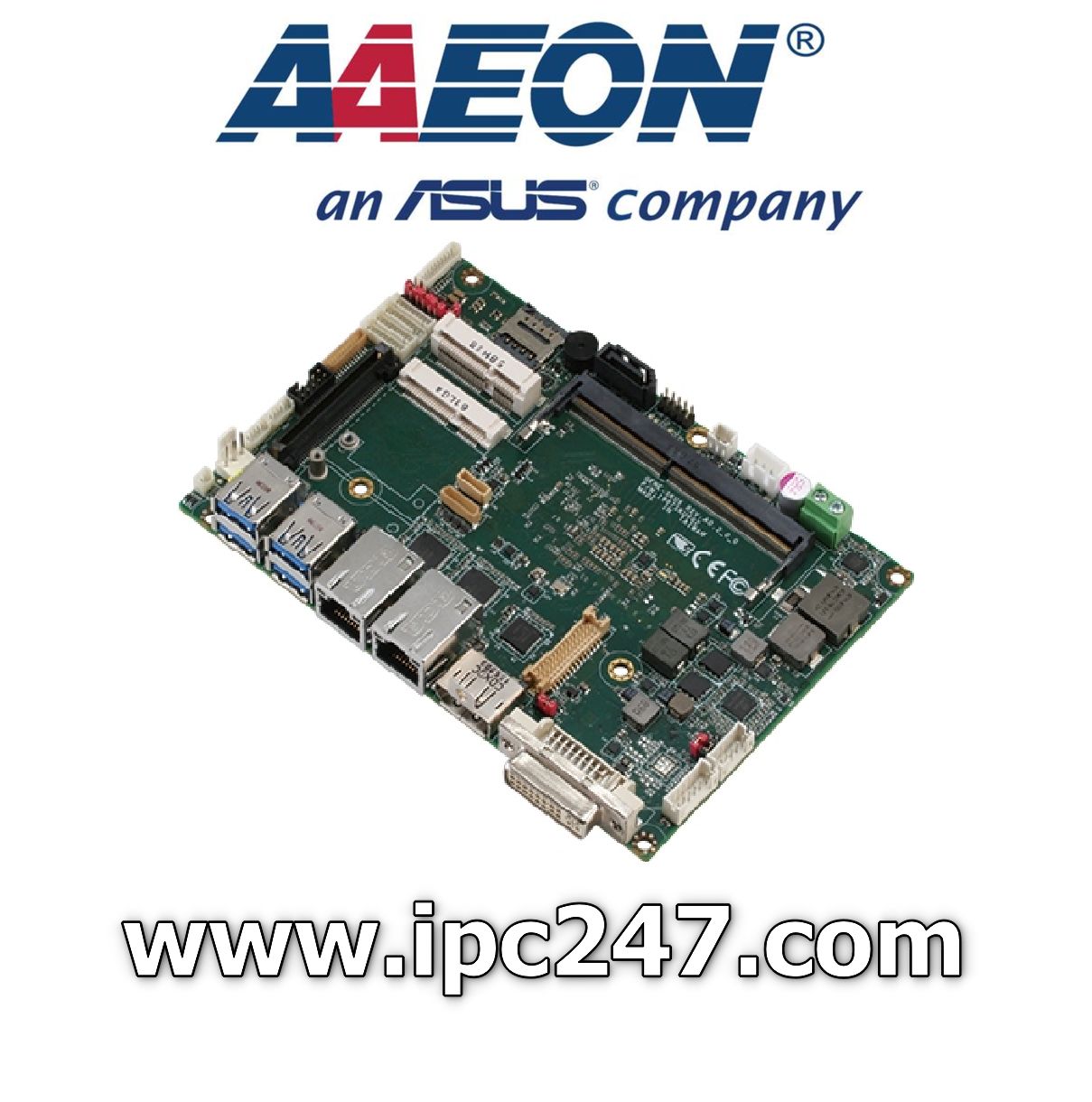

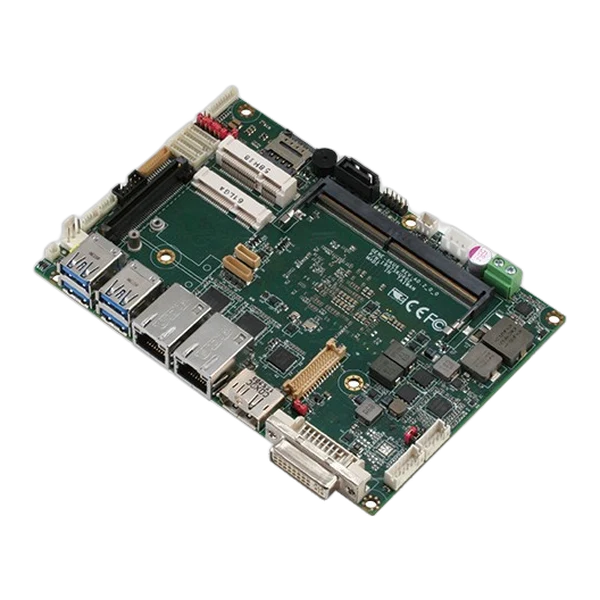

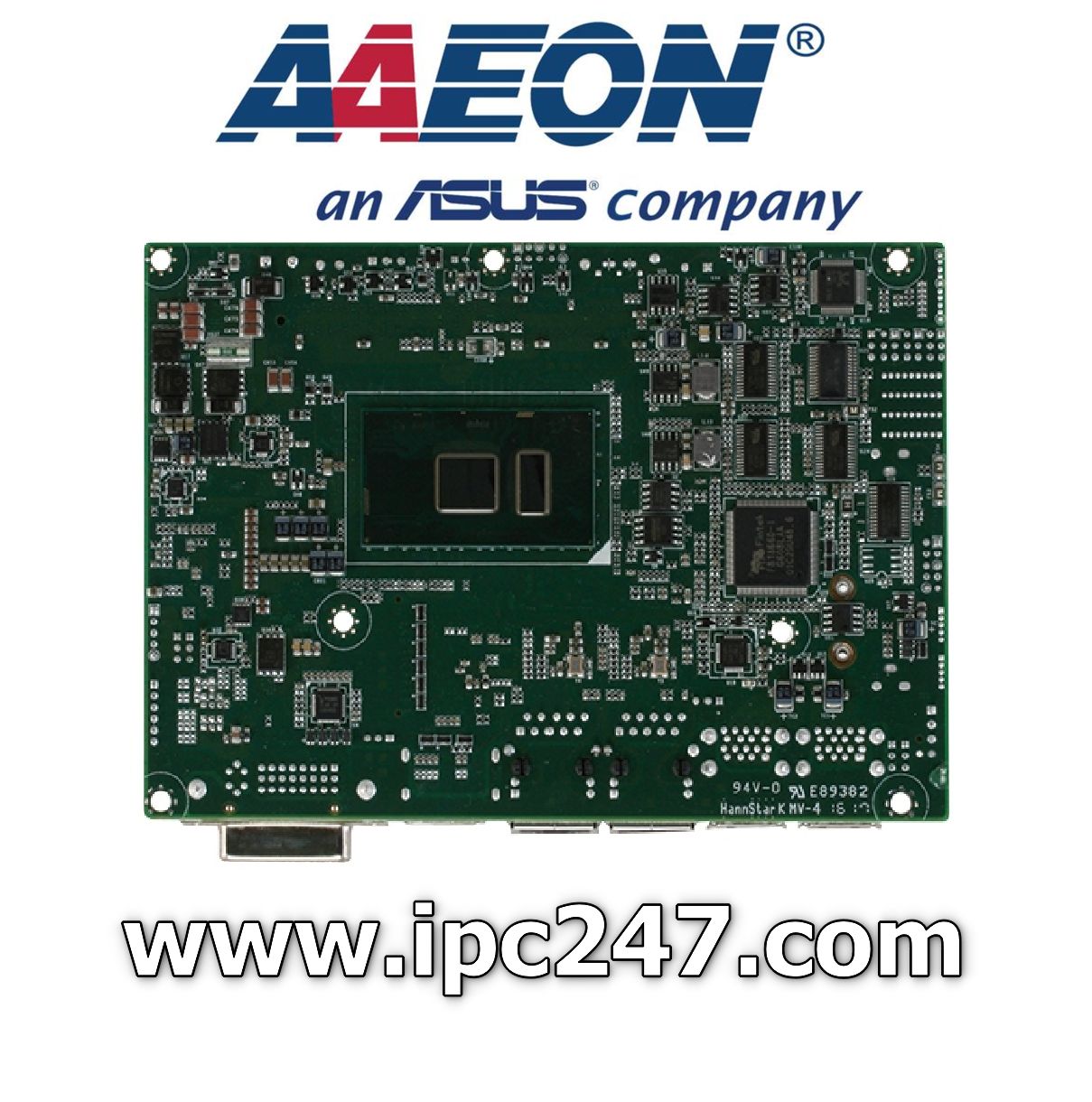

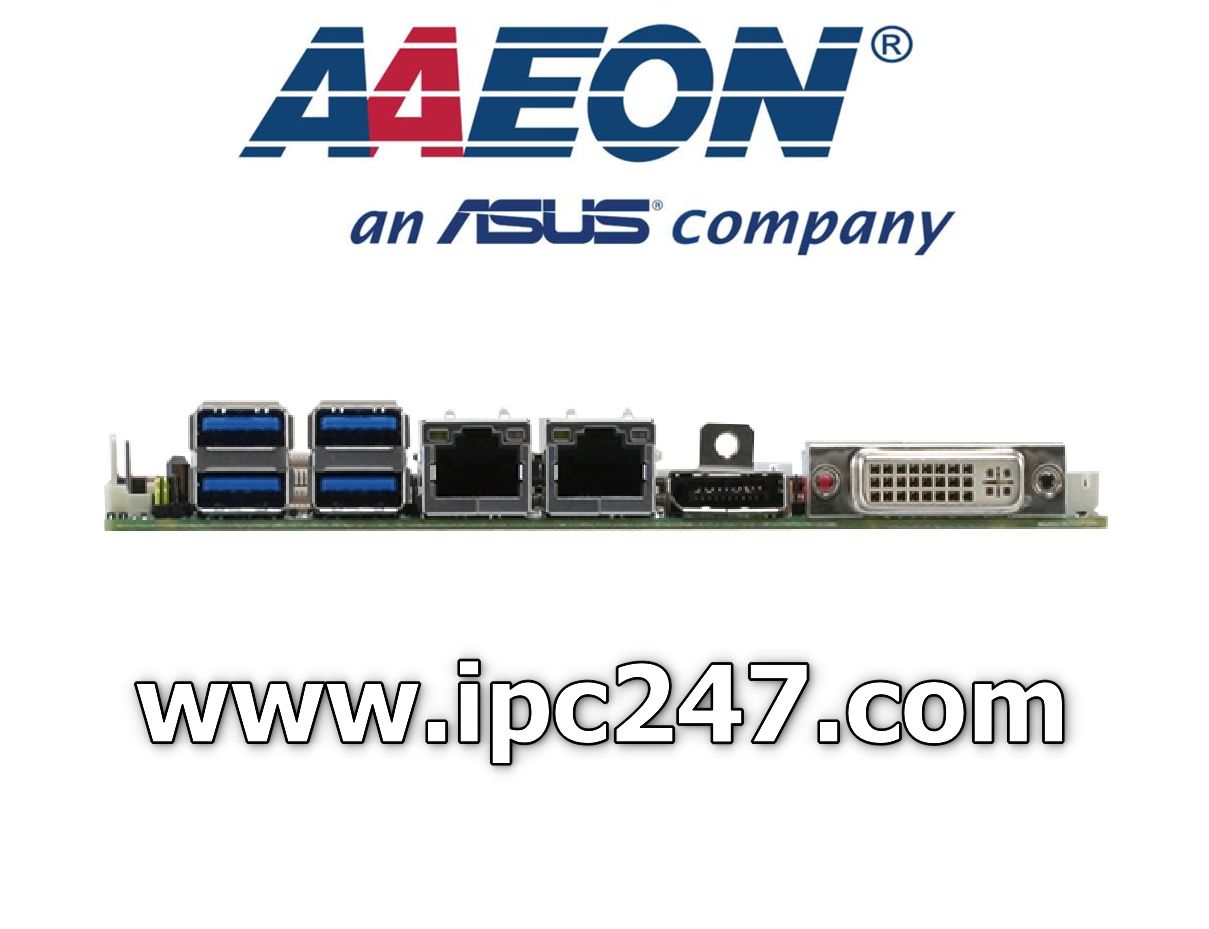

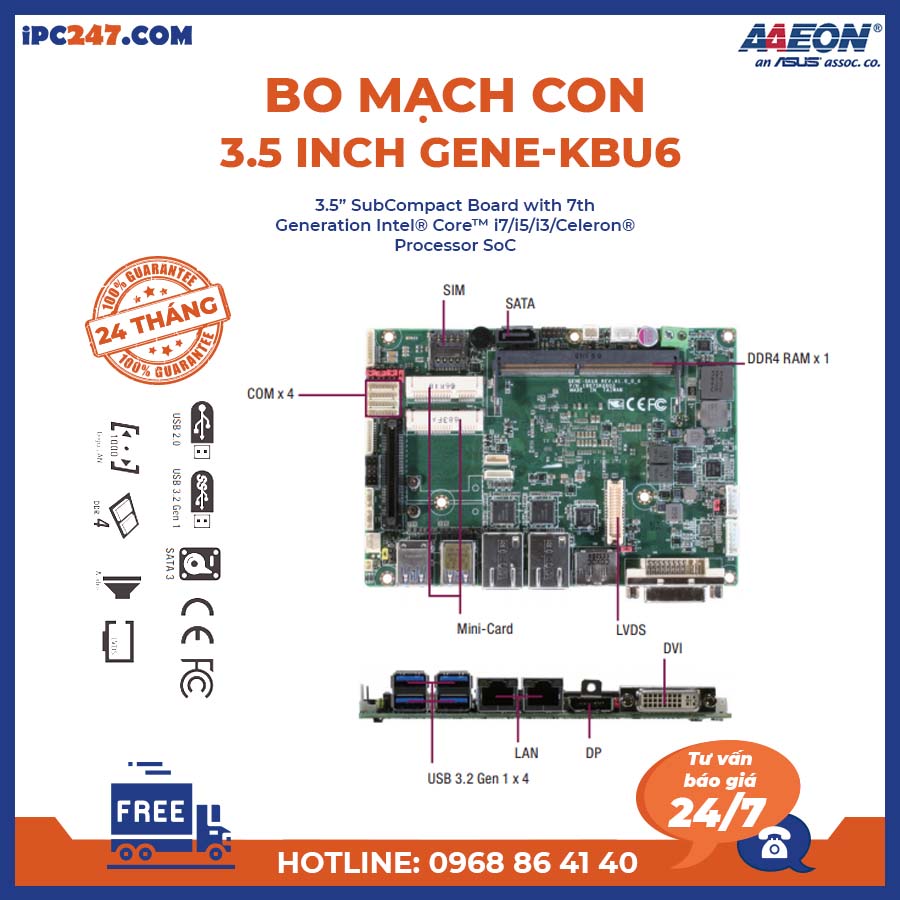

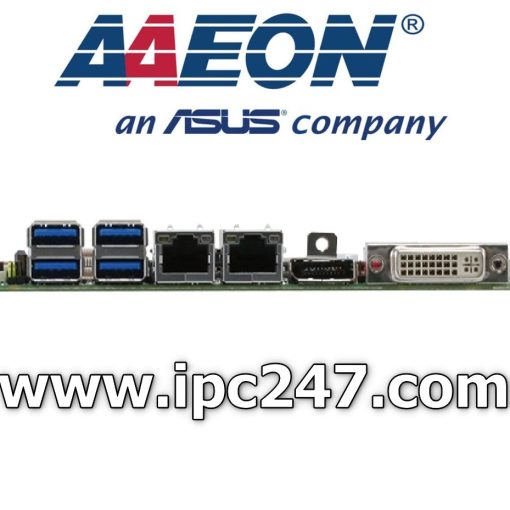

Bo mạch con 3.5 inch GENE-KBU6
3.5” SubCompact Board with 7th Generation Intel® Core™ i7/i5/i3/Celeron® Processor SoC
Overview
An expandable 3.5” SubCompact Board with Intel® 7th Generation U Core™ i7/i5/i3/Celeron® Processor SoC
All versions of the GENE-KBU6 are designed with a fanless heatsink that facilitate heat mitigation and airflow, ensuring product quality and longevity. This 3.5″ single board is specifically designed for applications such as Robotics and Industrial Automation, and is powered by the latest Intel Kabylake processor, facilitating faster processing time and better image resolution. Field tests have shown that the GENE-KBU6 surpasses the Skylake model by 20%, and provides a 10% improvement in graphics power. It also supports 4K display, DDR4 SO-DIMM and EtherCAT, making it a perfect appliance for Machine Vision applications.
The GENE-KBU6 features a unique BIO interface built for speedy customization, enabling flexible PoE expansion options, impeccably suited for any industrial or embedded computing applications.
Features
- 7th Generation Intel® Core™ i7/i5/i3/Celeron® Processor SoC
- DDR4 1866/2133, SODIMM x 1
- DVI, 18/24-bit Dual-Channel LVDS
- 2 CH Audio
- SATA 6.0 Gb/s x 1 & mSATA (Share with Half-size Mini-Card and Selective by BIOS)
- Supports 8-bit Digital I/O, USB 2.0 x 2 , USB 3.2 Gen 1 x 4
- COM x 4 (RS-232 x 1, RS-232/422/485 x 3)
- Mini-Card Slot x 1 (Full size), TPM (Optional), SIM
- Wide DC Support 9~36V, +12V Only (Optional)
- 4/5/8-wire Resistive Touch Screen Controller
- BIO Connector for Daughter Board
- Solder Design for System Assembly and Thermal
Specifications [GENE-KBU6]
| SYSTEM | |
| FORM FACTOR | 3.5″ SubCompact Board |
| CPU | 7th Generation Intel® Core™ i7-7600U Processor SoC |
| CPU FREQUENCY | Up to 3.9GHz |
| CHIPSET | 7th Generation Intel® Processor SoC |
| MEMORY TYPE | DDR4 1866/2133, SODIMM x 1 |
| MAX. MEMORY CAPACITY | Up to 16GB |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | +9 ~ 36V or +12V |
| POWER SUPPLY TYPE | AT/ ATX |
| POWER CONSUMPTION (TYPICAL) | Intel® i7-7600U, DDR4 2400MHz 16GB, 1.85A@ +12V |
| DIMENSION (L X W) | 5.75″ x 4″ (146mm x 101.7mm) |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 81°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 123,000 |
| CERTIFICATION | CE/FCC |
| DISPLAY | |
| VGA/LCD CONTROLLER | 7th Generation Intel® Processor SoC |
| VIDEO OUTPUT | DVI-D, LVDS, DP (Default) DVI-I, LVDS (include VGA signal) |
| BACKLIGHT INVERTER SUPPLY | Yes |
| I/O | |
| ETHERNET | Intel® i210/i211, 10/100/1000Base-TX, RJ-45 x 2 |
| AUDIO | High Definition Audio Interface |
| USB PORT | USB 3.2 Gen 1 x 4, USB 2.0 x 2 |
| SERIAL PORT | RS-232 x 1, RS-232/422/485 x 3 |
| PARALLEL PORT | — |
| HDD INTERFACE | SATA 3.0 x 1, +5V SATA power connector x 1 |
| FDD INTERFACE | — |
| SSD | mSATA (Shared with half-size MiniCard and Selected by BIOS) |
| EXPANSION SLOT | BIO x 1, Mini-Card x 2 and default is mSATA x 1 (Half-size), Mini-Card x 1 (Full-size) |
| DIO | 8-bit |
| SIM | x 1 |
| TPM | TPM 2.0 x 1 |
| TOUCH | x 1 |
Ordering Information [GENE-KBU6]
| PART NUMBER | GENE-KBU6-A10-0001 | GENE-KBU6-A10-0002 |
|---|---|---|
| CPU | Intel® i7-7600U | Intel® i5-7300U |
| FAN/FANLESS | Fanless | Fanless |
| DISPLAY | DVI-D+LVDS+DP | DVI-D+LVDS+DP |
| LVDS | 18/24-bit, 2CH | 18/24-bit, 2CH |
| STORAGE | SATA x 1, mSATA x 1 |
SATA x 1, mSATA x 1 |
| LAN | GbE x 2 | GbE x 2 |
| USB | USB 3.2 Gen 1 x 4, USB 2.0 x 2 |
USB 3.2 Gen 1 x 4, USB 2.0 x 2 |
| RS-232 | 1 | 1 |
| RS-232/422/485 | 3 | 3 |
| EXPANSION SLOT | MiniCard x 1 (Full-size) | MiniCard x 1 (Full-size) |
| POWER | 9~36V | 9~36V |
| POWER TEMP | 0°C ~ 60°C | 0°C ~ 60°C |
| OTHERS | DIO x 8, SIM, Touch Controller, TPM | DIO x 8, SIM, Touch Controller, TPM |
Downloads [GENE-KBU6]
1. Datasheet: GENE-KBU6, datasheet 2.0
2. BIOS:
– GENE-KBU6 1.0
– GENE-KBU6 2.5
3. Driver
– Serial Port Driver (Optional) Driver: Step 6 – Serial Port Driver (Optional) Driver, Windows 10 64
– Graphic Driver: Step 2 – Graphic Driver, Windows 10 64
– LAN Driver: Step 3 – LAN Driver, Linux, Windows 10 64
– Step 5 – USB3.0 Driver: Windows 7 64, Windows 7 32, Windows 8.1 64, Windows 10 64
– Audio Driver: Step 4 – Audio Driver, Windows 10 64
– PenMount Touch 6000 Driver: Step 5 – PenMount Touch 6000 Driver, Windows 10 64
– Chipset Driver: Step 1 – Chipset Driver, Windows 10 64
– Step 8 – Serial Port Driver (Optional): Windows 7 64, Windows 7 32, Windows 8.1 64, Windows 10 64
4. Manual: GENE-KBU6, Manual 6.0
Packing List
- GENE-KBU6 with Heatspreader
Optional Accessorie
| Part Number | Description | QTY |
| 1700050207 | (TF)USB CABLE, 1 x 5P Pitch=1.25mm Housinh, 20cm, for PFM-945C | 2 |
| 1701090150 | (TF)Flat Cable, D-Sub 9(M), 9P Housing, 9P 1.25mm pitch Housing, 15cm | 4 |
| 1709100254 | (TF)PHONE JACK Cable, 3P AUDIO JACK, 1 x 10P 1.25mm HOUSING(F), 25cm | 1 |
| 1702150155 | (TF)Power Cable, 15P SATA(F), 2P 2.0mm Housing(PH), 15cm | 1 |
| 170220020B | (TF)Power Cable, 20P ATX(M), 4P 5.08mm Housing(F), +3P 2.5mm Housing (XH), 20cm | 1 |
| 1702002010 | (TF)Power CABLE, 1 x 2P Pitch=5.0mm Housing, 10cm, for PFM-945C, (12V only) | 1 |
| GENE-KBU6-FAN01 | CPU Cooler, 3P, 5000RPM, A1.0, REV. A1.0 | 1 |
| GENE-KBU6-HSK02 | Heatsink, 146 x 101.6 x 29mm, Silver, for GENE-KBU6 | 1 |
