Bo mạch công nghiệp 3.5 inch GENE-SKU6
3.5"Celeron
Bo mạch công nghiệp 3.5 inch GENE-SKU6
- Intel® Core™ i7/i5/i3/Celeron® Processor SoC DDR4 1866/2133, SODIMM x 1
- Hoạt động liên tục 24/7
- Bảo hành 24 tháng
GiáLiên hệBáo giá theo cấu hình (CPU, RAM, ổ lưu trữ, hệ điều hành) trong 2 giờ làm việc. Xem dải giá theo dạng máy.
- Chính hãng, bảo hành hãng
- Giao toàn quốc từ TP.HCM
- Kỹ thuật dựng máy & sửa chữa
- Báo giá trong 2 giờ làm việc
Thông số kỹ thuật
| Part Number · Description | QTY |
|---|---|
| 1700050207 · (TF)USB CABLE.1*5P Pitch=1.25mm Housinh.20cm.for PFM-945C | 2 |
| 1701090150 · (TF)Flat Cable.D-Sub 9(M).9P Housing.9P 1.25mm pitch Housing.15cm | 4 |
| 1709100254 · (TF)PHONE JACK Cable.3P AUDIO JACK.1*10P 1.25mm HOUSING(F).25cm | 1 |
| 1702150155 · (TF)Power Cable.15P SATA(F).2P 2.0mm Housing(PH).15cm | 1 |
| 170220020B · (TF)Power Cable.20P ATX(M).4P 5.08mm Housing(F).+3P 2.5mm Housing(XH).20cm | 1 |
| 1702002010 · (TF)Power CABLE.1*2P Pitch=5.0mm Housing.10cm.for PFM-945C.(12V only) | 1 |
| GENE-SKU6-FAN01 · CPU Cooler, 3P, 5000RPM, A1.0, REV. A1.0 | 1 |
| GENE-SKU6-HSK01 · Al, Heatsink, 146 x 80 x 14mm, Silver, REV. A1.0 | 1 |
| GENE-SKU6-HSK02 · Heatsink, 146 x 101.6 x 29mm, Silver, for GENE-SKU6 | 1 |
| GENE-SKU6-HSK03 · Heat Sink.72*28*10mm.GENE-SKU6.SODIMM DDR4 | 1 |
Mô tả Bo mạch công nghiệp 3.5 inch GENE-SKU6
Bo mạch công nghiệp 3.5 inch GENE-SKU6

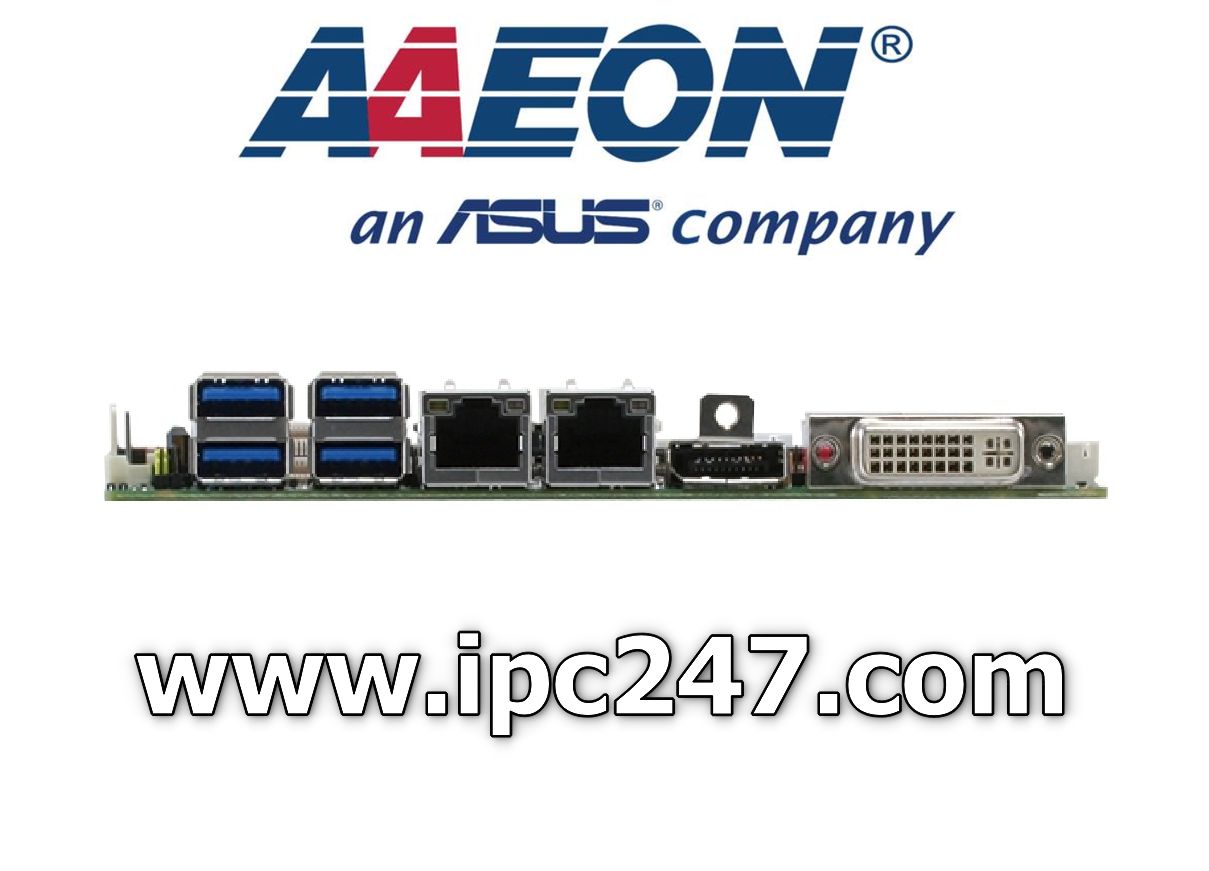

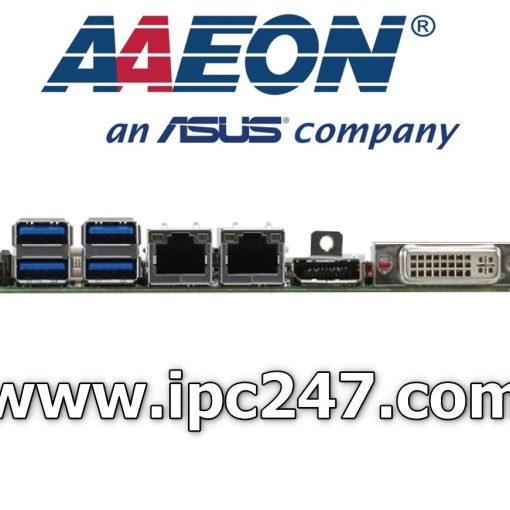

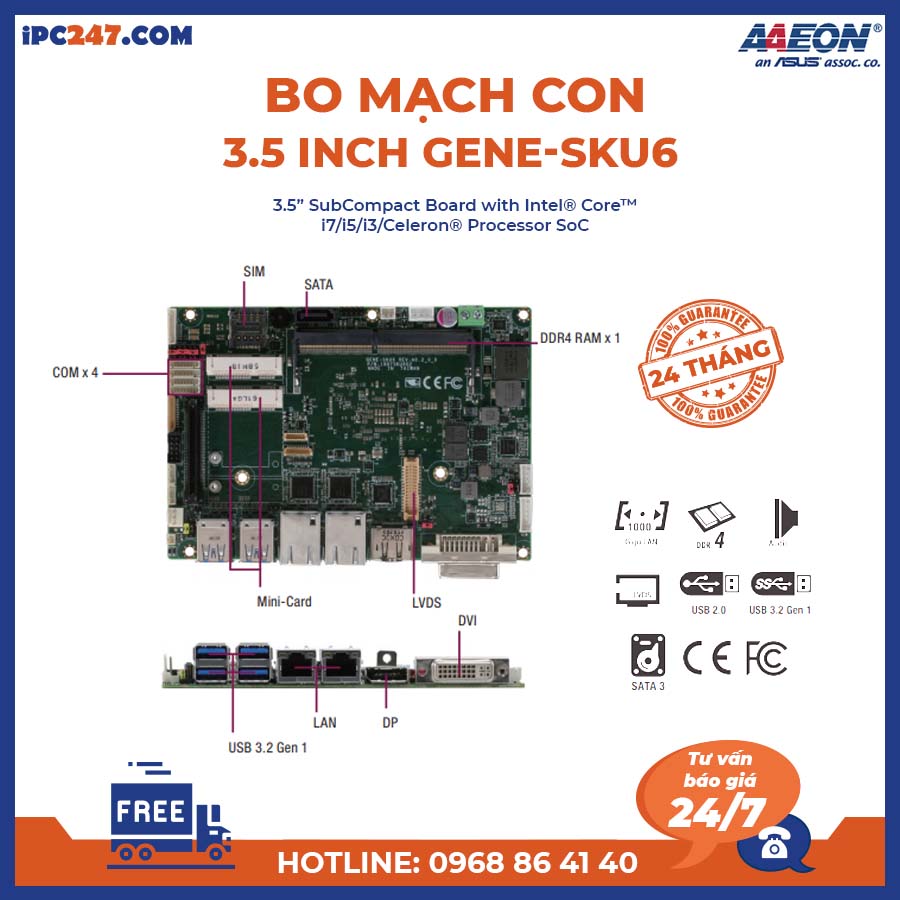

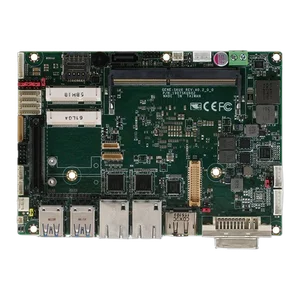

3.5” SubCompact Board with Intel® Core™ i7/i5/i3/Celeron® Processor SoC
Overview

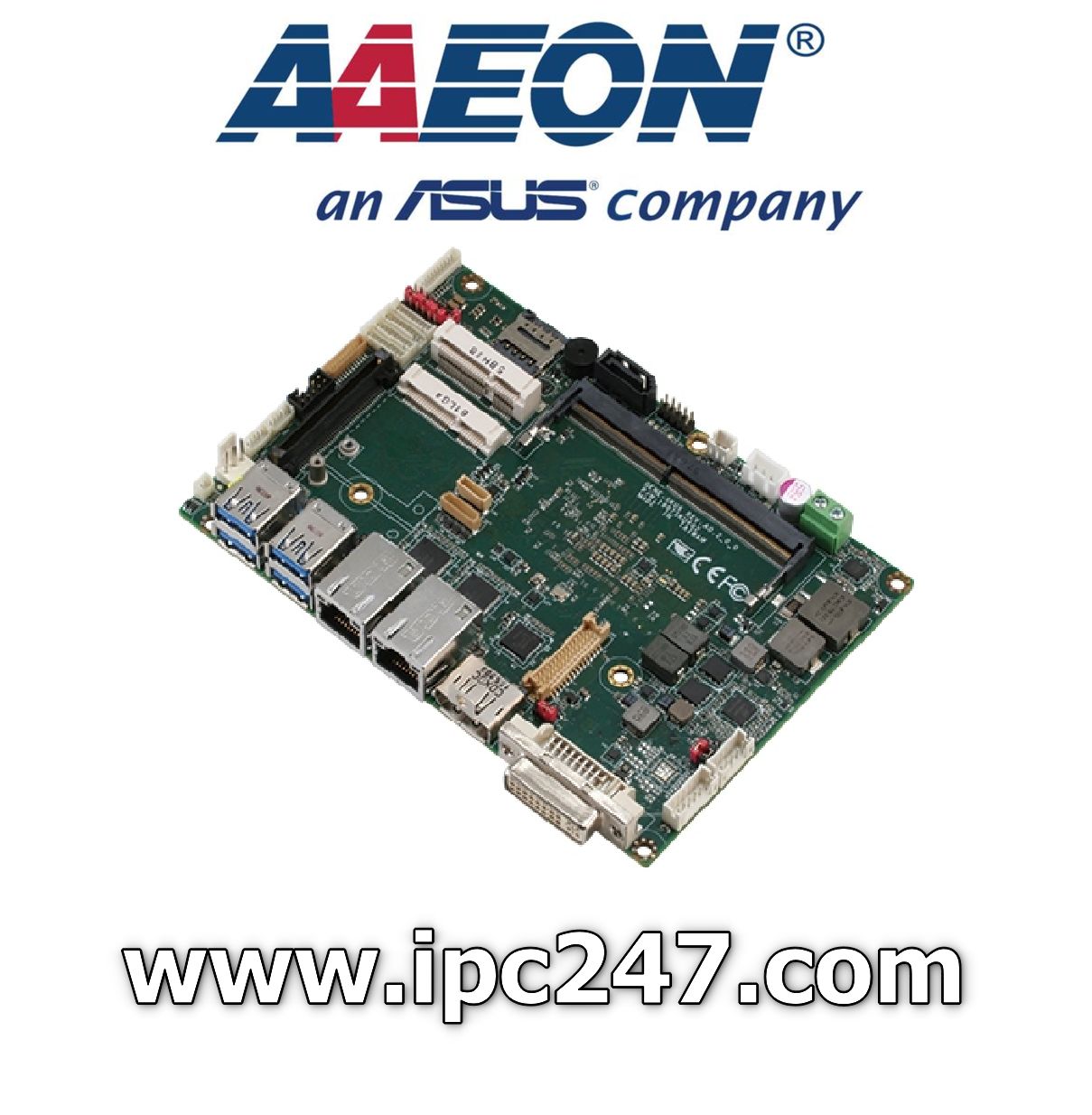

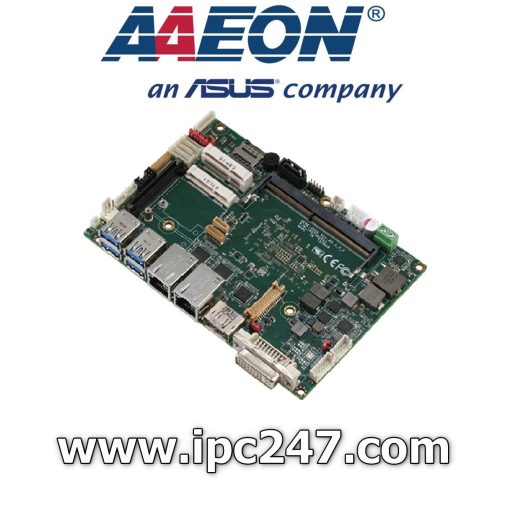

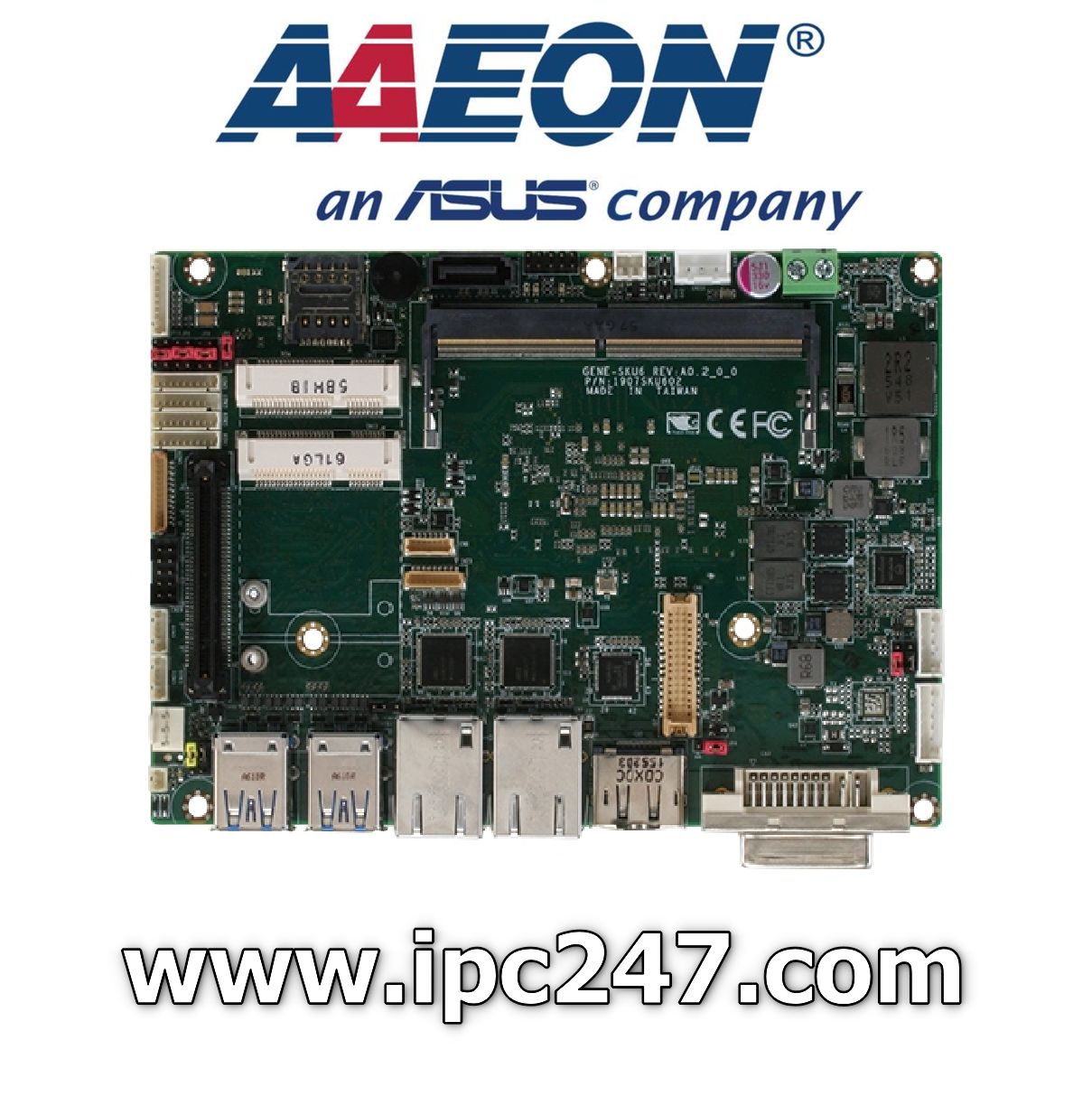

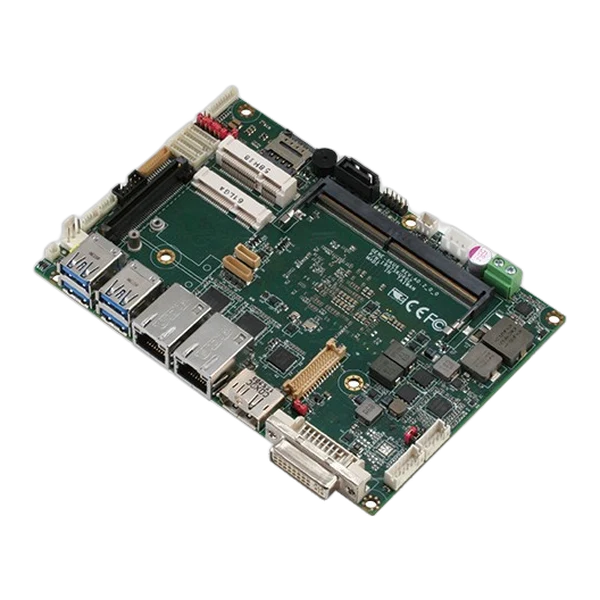

Compactly designed for low-power, high-efficiency consumption in confined environments, the GENE-SKU6 boasts a unique layout with the CPU(i7-6600U) located on the solder side of the board, which is consolidated by a heat spreader that facilitates quiet, fanless heat dissipation and vertical space reduction. The GENE-SKU6 offers multiple expansion platforms, such as MiniCards, mSATA and AAEON’s unique BIO interface, which provides for speedy, dynamic customization and fast turnaround time, making it ideally suited for most industrial or embedded computing applications. PoE (Power over Ethernet) support is also available for optional expansion. This feature provides connection to devices, such as wireless access points or an IP camera, and minimizes the fuss of traditional deployments with long power lines or limitations caused by a shortage of power outlets. The GENE-SKU6 offers a highly flexible and dynamic BIO (board-to-board I/O) which can connect a Daughter Board for additional I/O port expansion, allowing users to implement their desired features without investing inordinate amounts of time and money in R&D. As an Intel® Core™ i solution, it can be used in consolidating surveillance systems, data analysis and other forms of smart industrial factory controls, and is ideally suited for smaller spaces, as it stands at 3.5 inches, the same size as a hard disk drive, which will really drive down manufacturing and other production costs.Features
- Intel® Core™ i7/i5/i3/Celeron® Processor SoC
- DDR4 1866/2133, SODIMM x 1
- DVI, DP, 18/24-bit Dual-Channel LVDS
- 2 CH Audio
- SATA 6.0 Gb/s x 1 & mSATA (Shared with Half-size Mini-Card and Selected by BIOS)
- Supports 8-bit Digital I/O, USB 2.0 x 2 , USB 3.2 Gen 1 x 4
- COM x 4 (RS-232 x 1, RS-232/422/485 x 3)
- Mini-Card Slot x 1 (Full size), TPM, SIM
- Wide DC Support 9~36V, +12V Only (Optional)
- 4/5/8-wire Resistive Touch Screen Controller
- BIO Connector for Daughter Board
- Solder Design for System Assembly and Thermal
Specifications [GENE-SKU6]
| SYSTEM | |
| FORM FACTOR | 3.5" SubCompact Board |
| CPU | 6th Generation Intel® Core™ i7-6600U/i5-6300U Processor SoC |
| CPU FREQUENCY | Up to 3.4GHz |
| CHIPSET | 6th Generation Intel® Core™ i7-6600U/i5-6300U Processor SoC |
| MEMORY TYPE | DDR4 1866/2133, SODIMM x1 |
| MAX. MEMORY CAPACITY | Up to 16 GB |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | +9~36V or +12V |
| POWER SUPPLY TYPE | AT/ ATX |
| POWER CONSUMPTION (TYPICAL) | Intel® i7-6600U, DDR4 2133MHz 16GB, 1.75A@ +12V |
| DIMENSION (L X W) | 5.75" x 4" (146mm x 101.7mm) |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~ 85°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 123,000 |
| CERTIFICATION | CE/FCC |
| DISPLAY | |
| VGA/LCD CONTROLLER | 6th Generation Intel® Core™ Processor SoC |
| VIDEO OUTPUT | DVI-D, LVDS, DP (Default) DVI-I, LVDS (include VGA signal) |
| BACKLIGHT INVERTER SUPPLY | Yes |
| I/O | |
| ETHERNET | Intel® i210/i211, 10/100/1000Base-TX, RJ-45 x 2 |
| AUDIO | High Definition Audio Interface |
| USB PORT | USB 3.2 Gen 1 x 4 USB 2.0 x 2 |
| SERIAL PORT | RS-232 x 1, RS-232/422/485 x 3 |
| PARALLEL PORT | — |
| HDD INTERFACE | SATA 3.0 x 1 +5V SATA power connector x 1 |
| FDD INTERFACE | — |
| SSD | mSATA (Shared with Half-size Mini-Card and Selected by BIOS) |
| EXPANSION SLOT | BIO x 1 mSATA x 1 (Half-size), Mini-Card x 1 (Full-size) |
| DIO | 8-bit |
| SIM | x 1 |
| TPM | TPM2.0 |
| TOUCH | x 1 |
Ordering Information [GENE-SKU6]
| PART NUMBER | GENE-SKU6-A10-0001 | GENE-SKU6-A10-0002 | GENE-SKU6-A10-0003 | GENE-SKU6W1-A10-0002 |
|---|---|---|---|---|
| CPU | Intel® i5-6300U | Intel® i7-6600U | Intel® i3-6100U | Intel® i7-6600U |
| FAN/FANLESS | Fanless | Fanless | Fanless | Fanless |
| DISPLAY | DVI-D+LVDS+DP | DVI-D+LVDS+DP | DVI-D+LVDS+DP | DVI-D+LVDS+DP |
| LVDS | 18/24-bit, 2CH | 18/24-bit, 2CH | 18/24-bit, 2CH | 18/24-bit, 2CH |
| STORAGE | SATA x 1 mSATA x 1 | SATA x 1 mSATA x 1 | SATA x 1 mSATA x 1 | SATA x 1 mSATA x 1 |
| LAN | GbE x 2 | GbE x 2 | GbE x 2 | GbE x 2 |
| USB | USB 3.2 Gen 1 x 4 USB 2.0 x 2 | USB 3.2 Gen 1 x 4 USB 2.0 x 2 | USB 3.2 Gen 1 x 4 USB 2.0 x 2 | USB 3.2 Gen 1 x 4 USB 2.0 x 2 |
| RS-232 | 1 | 1 | 1 | 1 |
| RS-232/422/485 | 3 | 3 | 3 | 3 |
| EXPANSION SLOT | MiniCard x 1 (Full-size) | MiniCard x 1 (Full-size) | MiniCard x 1 (Full-size) | MiniCard x 1 (Full-size) |
| POWER | 9~36V | 9~36V | 9~36V | 9~36V |
| POWER TEMP | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | -20°C ~ 70°C |
| OTHERS | DIO x 8, SIM, Touch Controller, TPM | DIO x 8, SIM, Touch Controller, TPM | DIO x 8, SIM, Touch Controller, TPM | DIO x 8, SIM, Touch Controller, TPM |
Downloads [GENE-SKU6]
1. Datasheet: GENE-SKU6, datasheet 2.0
2. BIOS:
- GENE-SKU6 1.1
- GENE-SKU6 1.2
3. Driver
- Step 4 - Audio Driver: Windows 7 64, Windows 7 32, Windows 8.1 64, Windows 10 64
- Step 6 - TPM 2.0 Driver: Windows 7 64, Windows 7 32, Windows 8.1 64, Windows 10 64
- Step 1 - Chipset Driver: Windows 7 64, Windows 7 32, Windows 8.1 64, Windows 10 64
- Step 5 - USB3.0 Driver: Windows 7 64, Windows 7 32, Windows 8.1 64, Windows 10 64
- Step 7 - PenMount Touch 6000 Driver: Windows 7 64, Windows 7 32, Windows 8.1 64, Windows 10 64
- Step 2 - Graphic Driver: Windows 7 64, Windows 7 32, Windows 8.1 64, Windows 10 64
- Step 3 - LAN Driver: Linux, Windows 7 64, Windows 7 32, Windows 8.1 64, Windows 10 64
- Step 8 - Serial Port Driver (Optional): Windows 7 64, Windows 7 32, Windows 8.1 64, Windows 10 64
4. Manual: GENE-SKU6, Manual 11.0
Packing List
- GENE-SKU6 with Heatspreader
Optional Accessories
