Bo mạch nhúng có dải nhiệt độ rộng

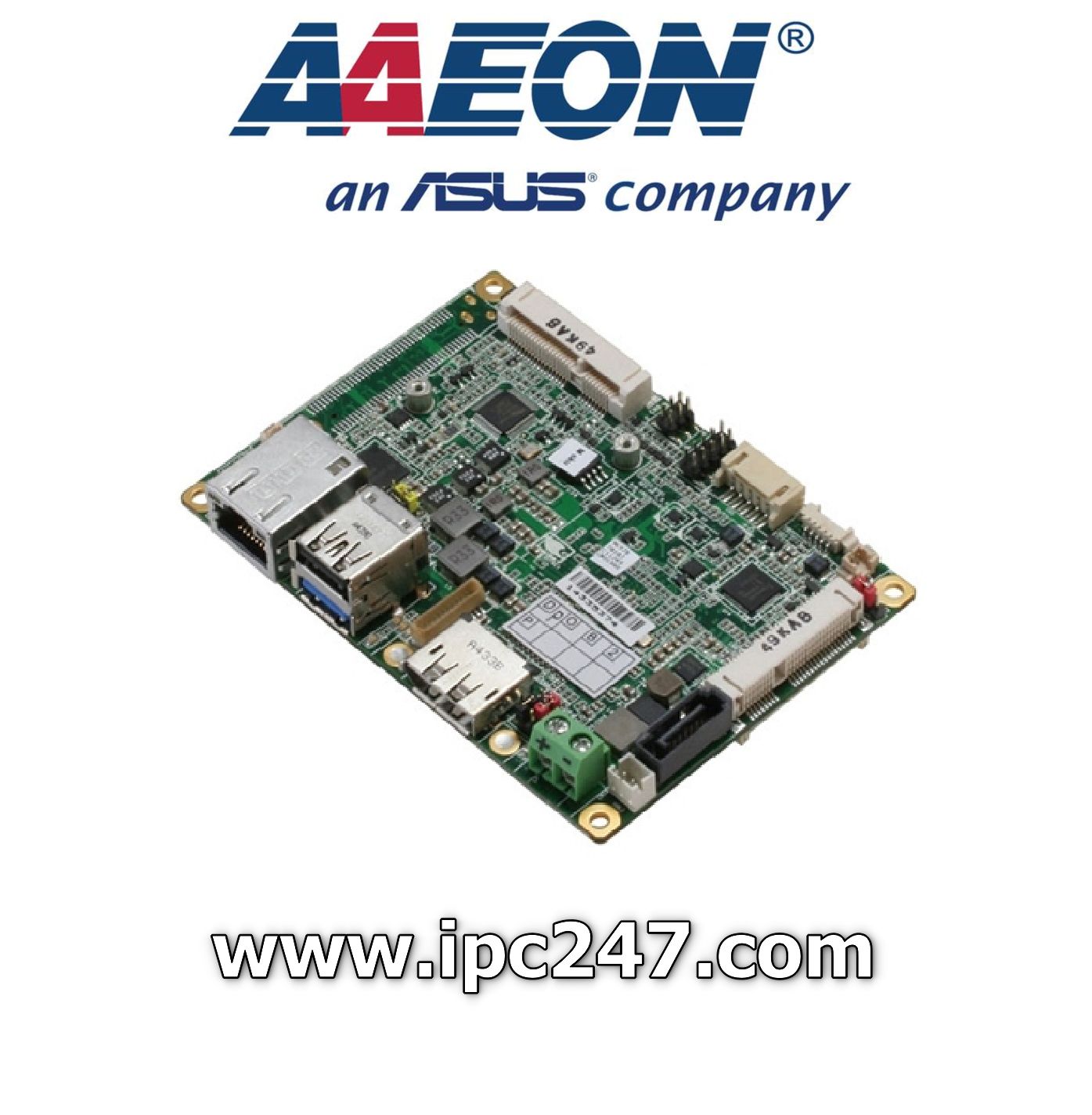

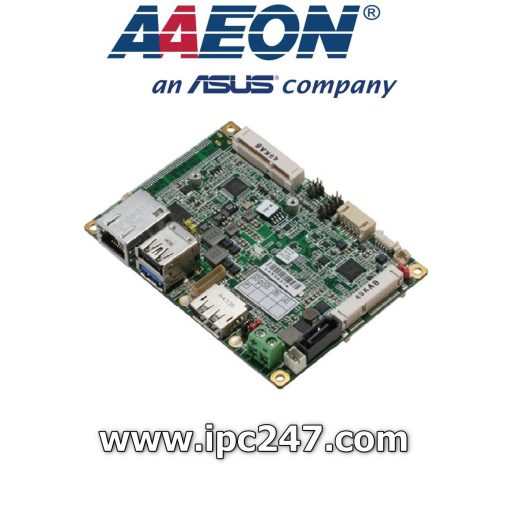

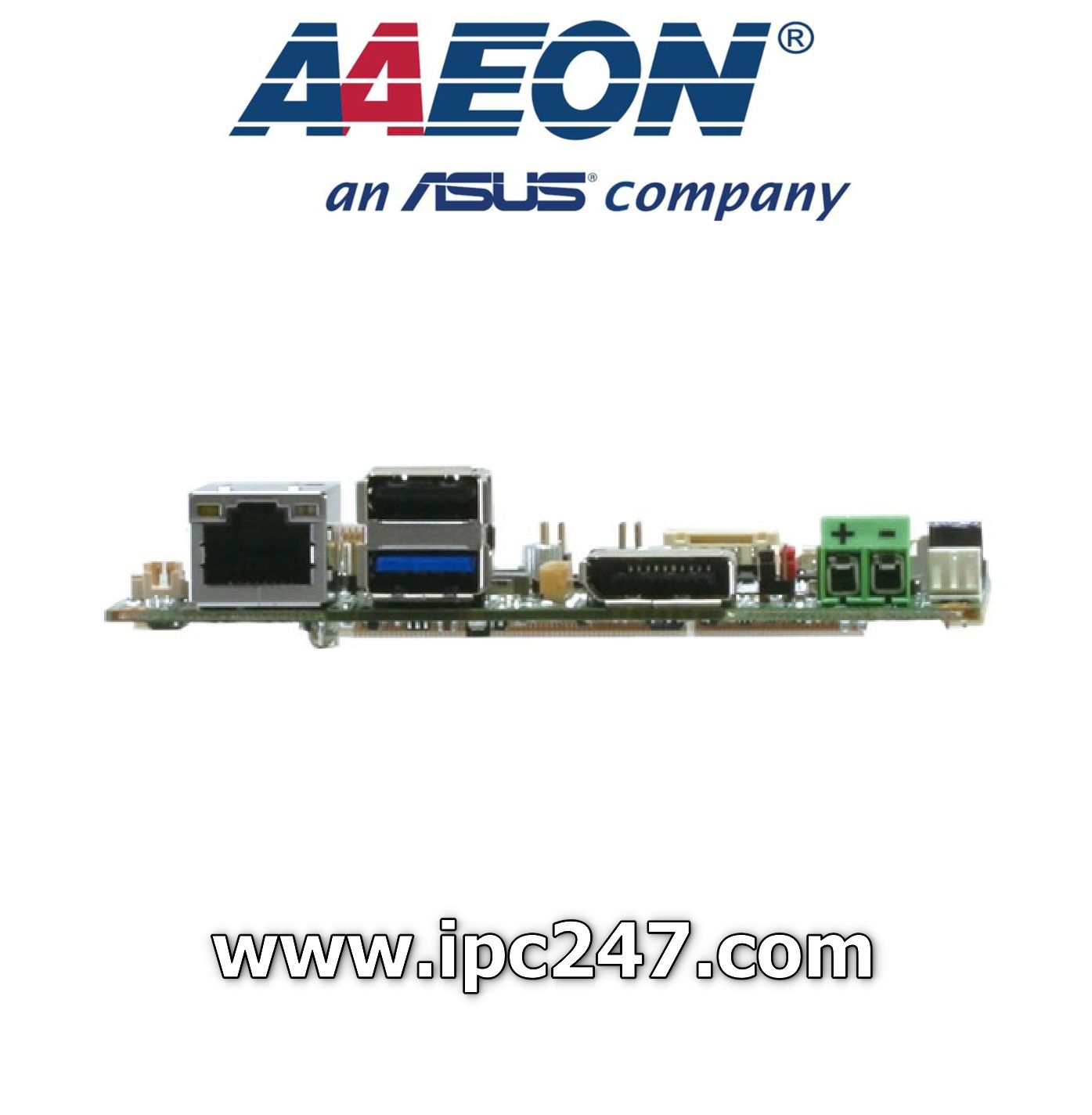

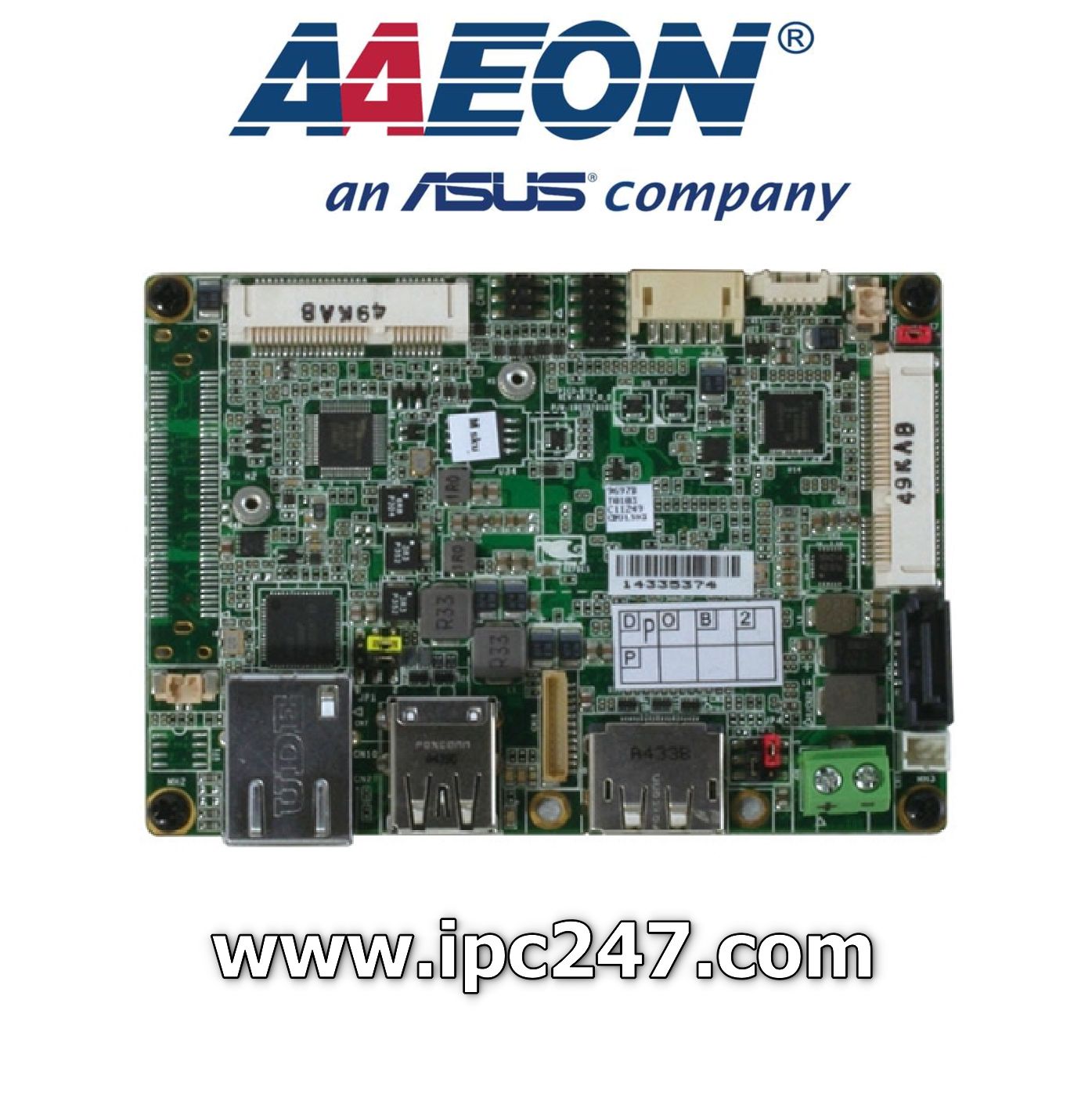

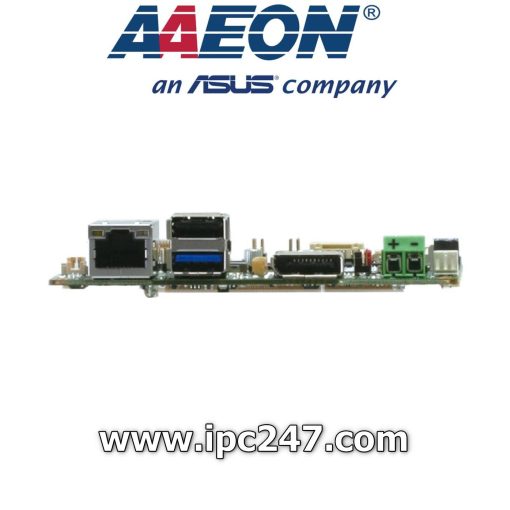

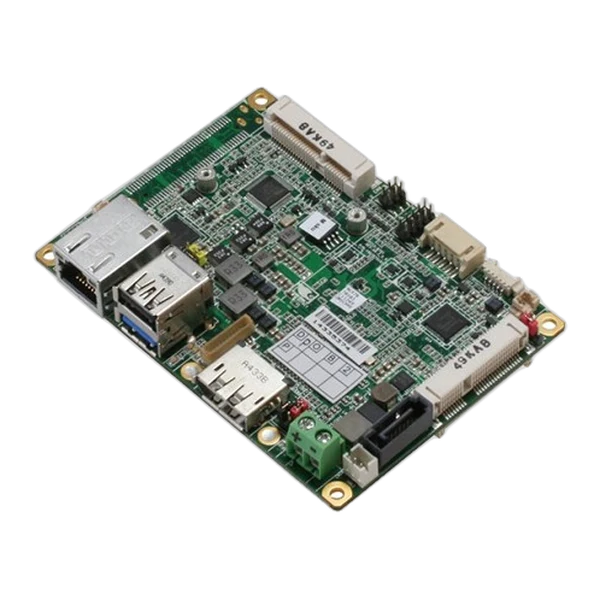

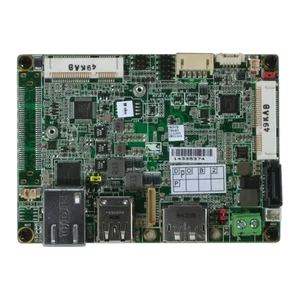

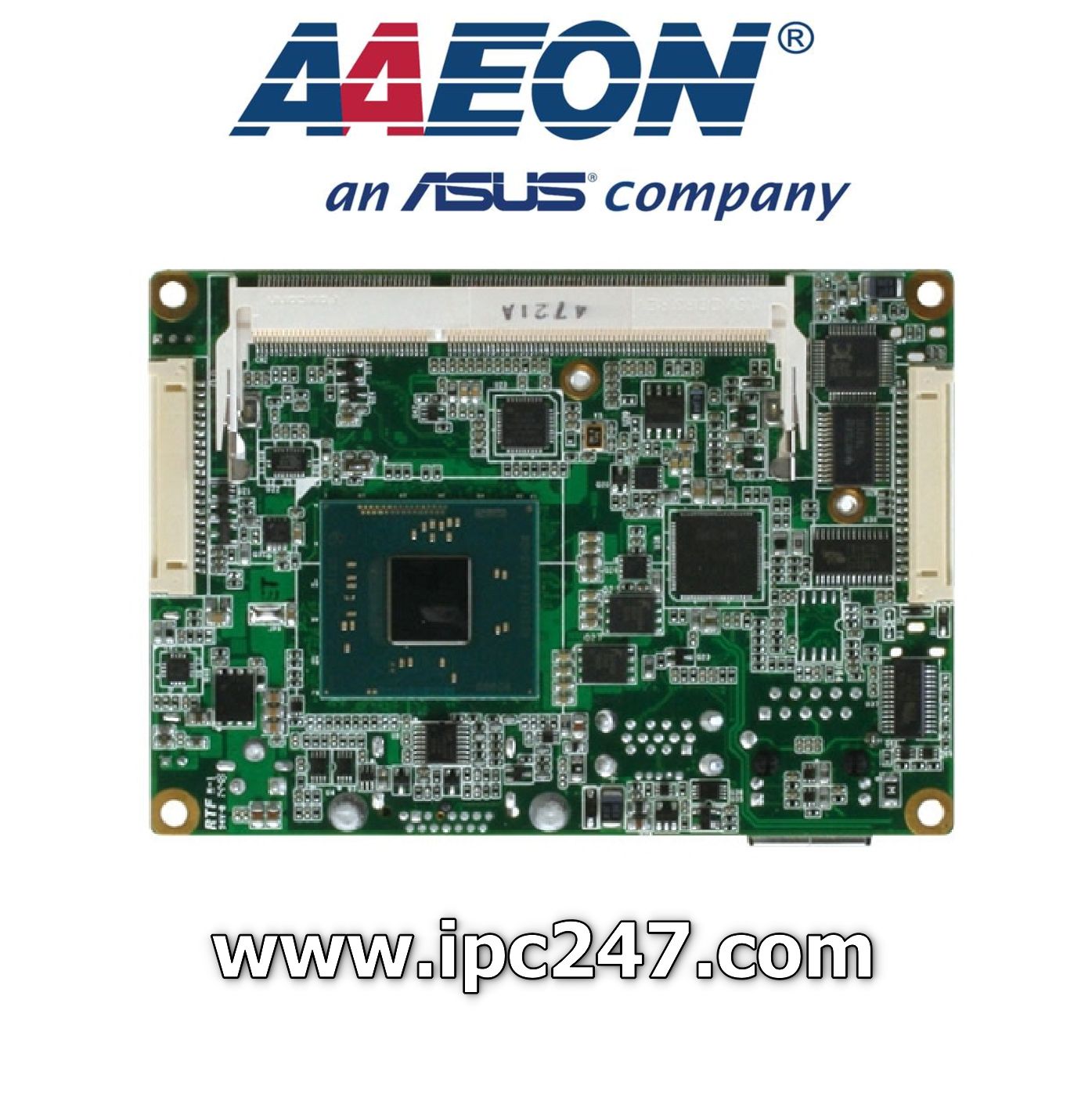

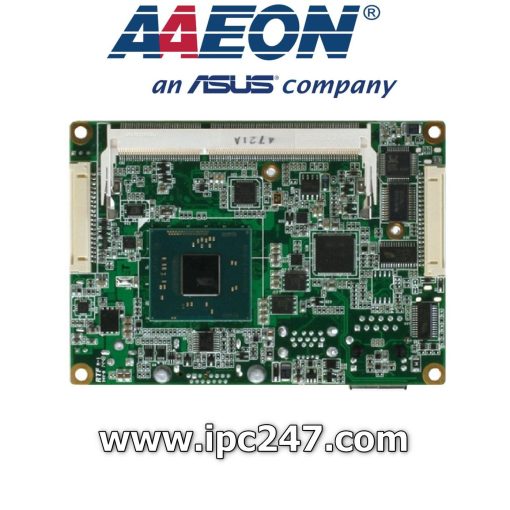

PICO-BT01
Pico-ITX Board with Intel® Atom™/ Celeron® Processor SoC
Overview
The PICO-BT01 is the embedded board with PICO-ITX form factor AAEON developed. It supports Intel®’s Atom™ E3845/E3825 SoC Up to 1.91 GHz. Moreover, the Intel® Atom™ E3845/E3825 SoC offers a high performance computing platform with low power consumption. This new product supports DDR3L SODIMM at speeds of 1066/1333 MHz, up to 8 GB.
One half size Mini-Card and one mSATA interfaces provide ample storages (mSATA can be changed to full size Mini-Card by BOM). With one Gigabit Ethernet, two COM ports, and both USB 3.2 Gen 1 and USB2.0 ports, the PICO-BT01 meets the requirements of today’s demanding applications.
Display requirements are met with an abundance of interfaces such as VGA, DP and LVDS. The PICO-BT01 supports 18/24-bit LVDS with PWM function.
With all of its integrated features, the PICO-BT01 strikes a balance of performance and price. This versatile product targets Industrial Automation, Entertainment, Networking, KIOSK/POS, Transportation, Banking, Healthcare and Digital Signage, applications that require high performance and high reliability.
Flexible Expansion
The PICO-BT01 offers a unique BIO (board-to-board I/O) to connect a Daughter Board for additional I/O port expansion, allowing users to implement their desired features without investing heavily in R&D.
Applications
- Building/ Factory Automation
- Panel PC
- KIOSK
- Medical Equipment
- Test & Measurement
Features
- Onboard Intel® Atom™ E3800/ Celeron® J1900/N2807 Processor SoC
- DDR3L 1066/1333 MHz SODIMM x 1, Up to 8 GB
- 18/24-bit LVDS LCD, CRT Co-lay Display Port
- SATA 3.0Gb/s x 1, Mini-Card(Full size)/mSATA(default) x 1
- USB 3.2 Gen 1 x 1, USB 2.0 x 2
- Gigabit Ethernet x 1, RJ-45 x 1
- RS-232 x 1, RS-232/422/485 x 1
- Mini-card x 1 (Half size)
- 4-Bit Digital I/O
- BIO Connector for Daughter Board Optional
| SYSTEM | |
| FORM FACTOR | Pico-ITX |
| CPU | Onboard Intel® Atom™ E3845/ Celeron® J1900/N2807 Processor SoC |
| CPU FREQUENCY | Up to 2.0 GHz |
| CHIPSET | Intel® E3845/J1900/N2807 |
| MEMORY TYPE | 204-pin DDR3L SODIMM x 1, DDR3L 1066/1333, Max. 8GB |
| MAX. MEMORY CAPACITY | Up to 8GB |
| BIOS | AMI/SPI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 levels |
| POWER REQUIREMENT | +12VDC |
| POWER SUPPLY TYPE | AT/ATX (default) optional lockable connector |
| POWER CONSUMPTION (TYPICAL) | Intel® Celeron® J1900 2.0GHz , DDR3L 1333 MHz 8 GB 1.14A@+12V |
| SYSTEM COOLING | Heat-spreader, heatsink or cooler optional |
| DIMENSION | 3.94″ x 2.84″ (100mm x 72mm) |
| GROSS WEIGHT | 0.88lb (0.4 kg) |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) or WiTAS 2 (-40˚C ~ 85˚C) |
| STORAGE TEMPERATURE | -40˚F ~ 176˚F (-40˚C ~ 80˚C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 80,000 |
| CERTIFICATION | CE,FCC |
| DISPLAY | |
| CHIPSET | Intel® E3845/J1900/N2807 |
| RESOLUTION | VGA up to 2048 x 1152 @60Hz or DP up to 2560 x 1400 @60Hz LVDS (18/24-bit) up to 1400 x 900 @60Hz |
| LCD INTERFACE | 18/24-bit Single LVDS |
| I/O | |
| STORAGE/SSD | SATA 3.0Gb/s x 1, Mini-Card(Full-size)/mSATA(default) x 1 |
| ETHERNET | Intel Gigabit Ethernet, 10/100/1000Base-TX x 1 (Atom E series with I210IT, Celeron J/N series with I211AT) |
| USB PORT | USB 3.2 Gen 1 x 1 Rear IO, USB 2.0 x 1 Rear IO and x 1 Pin header |
| SERIAL PORT | RS-232 x 1, RS-232/422/485 x 1 (Ring /+5V/+12V) |
| AUDIO | Line-out x 1 |
| DIO | 4-bit (2-in, 2-out) |
| EXPANSION SLOT | Mini-Card (Half-size) x 1, BIO x 1 |
| SIM | Option by BIO Board |
Ordering Information [PICO-BT01]
| PART NUMBER | PICO-BT01-A11-0002 | PICO-BT01-A11-0003 | PICO-BT01-A11-0004 | PICO-BT01-A11-0005 | PICO-BT01W2-A11-0003 | PICO-BT01W2-A11-0004 |
|---|---|---|---|---|---|---|
| CPU | Celeron® N2807 (Dual Core) | Atom™ E3845 (Quad Core) | Atom™ E3825 (Dual Core) | Celeron® J1900 (Quad Core) | Atom™ E3845 (Quad Core) | Atom™ E3825 (Quad Core) |
| RAM | DDR3L, Max. 4GB | DDR3L, Max. 8 GB | DDR3L, Max. 8 GB | DDR3L, Max. 8 GB | DDR3L, Max. 8 GB | DDR3L, Max. 8 GB |
| FAN/FANLESS | Heat-spreader | Heat-spreader | Heat-spreader | Heat-spreader | Heat-spreader | Heat-spreader |
| DISPLAY | DP+LVDS | CRT+LVDS | DP+LVDS | CRT+LVDS | CRT+LVDS | DP+LVDS |
| LVDS | 24bit 1CH | 24bit 1CH | 24bit 1CH | 24bit 1CH | 24bit 1CH | 24bit 1CH |
| STORAGE | SATAII x 1, Mini-Card (Full size)/mSATA (default) x 1 | SATAII x 1, Mini-Card (Full size)/mSATA (default) x 1 | SATAII x 1, Mini-Card (Full size)/mSATA (default) x 1 | SATAII x 1, Mini-Card (Full size)/mSATA (default) x 1 | SATAII x 1, Mini-Card (Full size)/mSATA (default) x 1 | SATAII x 1, Mini-Card (Full size)/mSATA (default) x 1 |
| LAN | GbE x 1 | GbE x 1 | GbE x 1 | GbE x 1 | GbE x 1 | GbE x 1 |
| USB | USB 3.2 Gen 1 x 1, UBS2.0 x 2 |
USB 3.2 Gen 1 x 1, UBS2.0 x 2 |
USB 3.2 Gen 1 x 1, UBS2.0 x 2 |
USB 3.2 Gen 1 x 1, UBS2.0 x 2 |
USB 3.2 Gen 1 x 1, UBS2.0 x 2 |
USB 3.2 Gen 1 x 1, UBS2.0 x 2 |
| RS-232 | 1 | 1 | 1 | 1 | 1 | 1 |
| RS-232/422/485 | 1 | 1 | 1 | 1 | 1 | 1 |
| EXPANSION SLOT | Mini-card x 1 (Half size), DIO 4-bit | Mini-card x 1 (Half size), DIO 4-bit | Mini-card x 1 (Half size), DIO 4-bit | Mini-card x 1 (Half size), DIO 4-bit | Mini-card x 1 (Half size), DIO 4-bit | Mini-card x 1 (Half size), DIO 4-bit |
| POWER | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) |
| TEMP | 32°F ~ 131°F (0°C ~ 60°C) | 32°F ~ 131°F (0°C ~ 60°C) | 32°F ~ 131°F (0°C ~ 60°C) | 32°F ~ 131°F (0°C ~ 60°C) | WiTAS 2 (-40°C ~ 85°C) | WiTAS 2 (-40°C ~ 85°C) |
| OTHERS | Line-out | Line-out, BIO x 1 | Line-out | Line-out | Line-out, BIO x 1 | Line-out, BIO x 1 |
Downloads [PICO-BT01]
1. Datasheet: PICO-BT01, datasheet 2.0
2. Manual: PICO-BT01, Manual 10.0
Packing List
- PICO-BT01-HSP01: Heat Spreader
- 1703200153: COM x 2, Line-out Cable
- PICO-BT01
Optional Accessories
| Part Number | Description | Qty. |
| 1709070500 | SATA Cable | 1 |
| 1702150155 | SATA Power Cable | 1 |
| 1702040167 | Power/FAN Cable 16cm | 1 |
| PICO-BT01-FAN01 | CPU Cooler.84*53*22.2mm.Silver.used with HSP | 1 |
| PICO-BT01W1-HSK01 | Heatsink for E3845 WiTAS1. To be used with heat Spreader. | 1 |
| PICO-BT01-HSK01 | Heatsink for standand product.To be used with heat Spreader. | 1 |
| 1700050207 | USB Cable 20cm | — |
