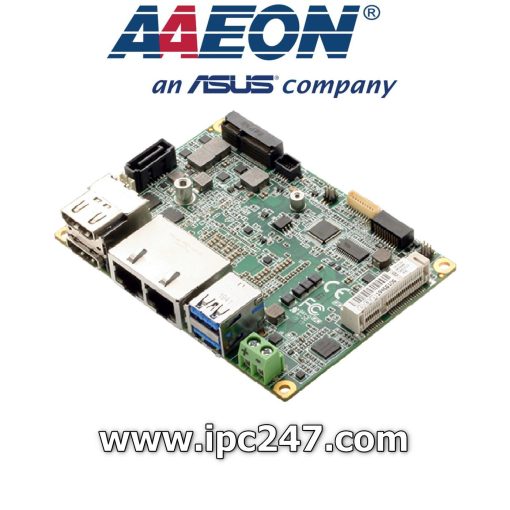

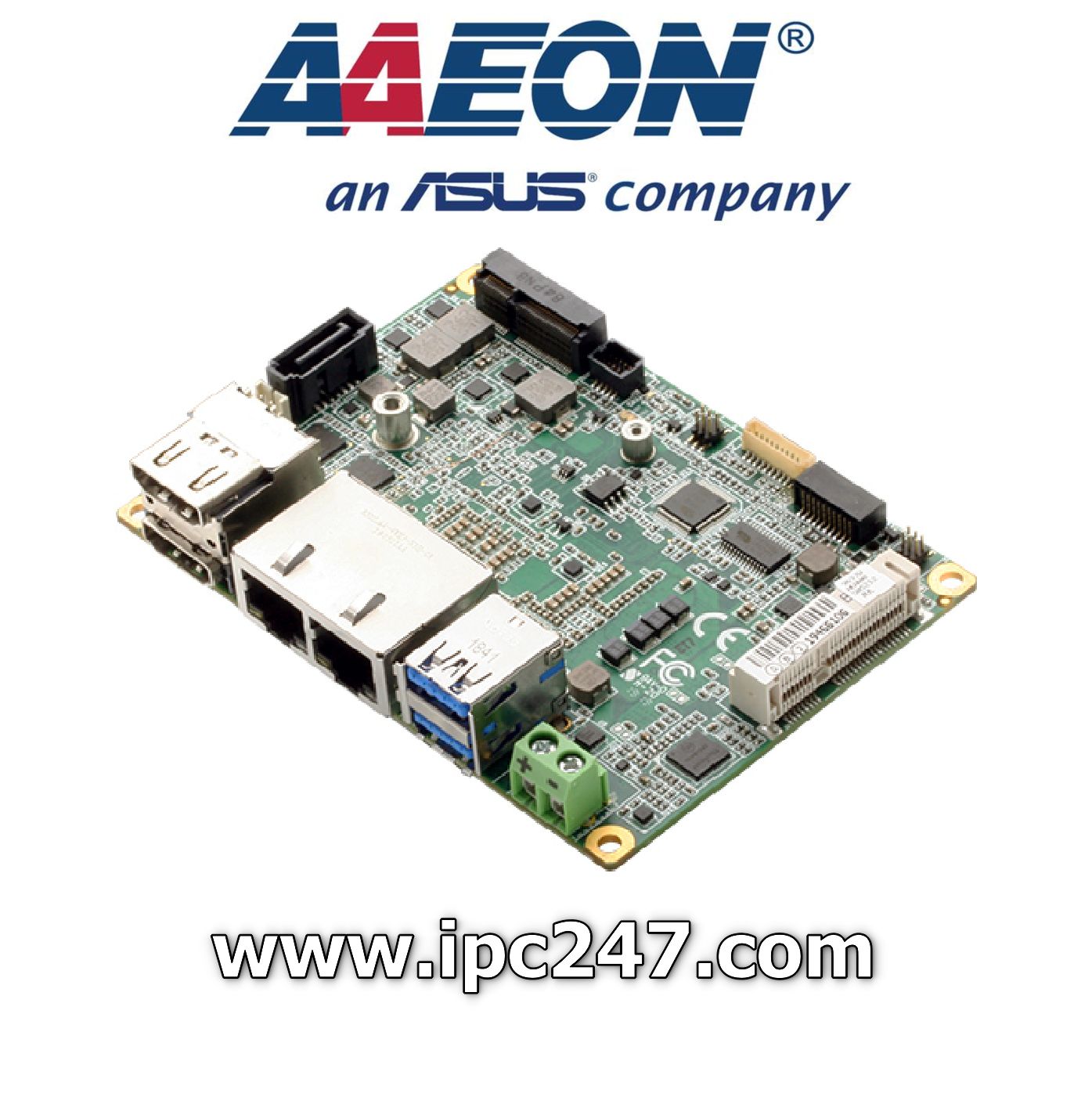

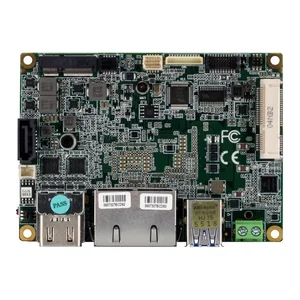

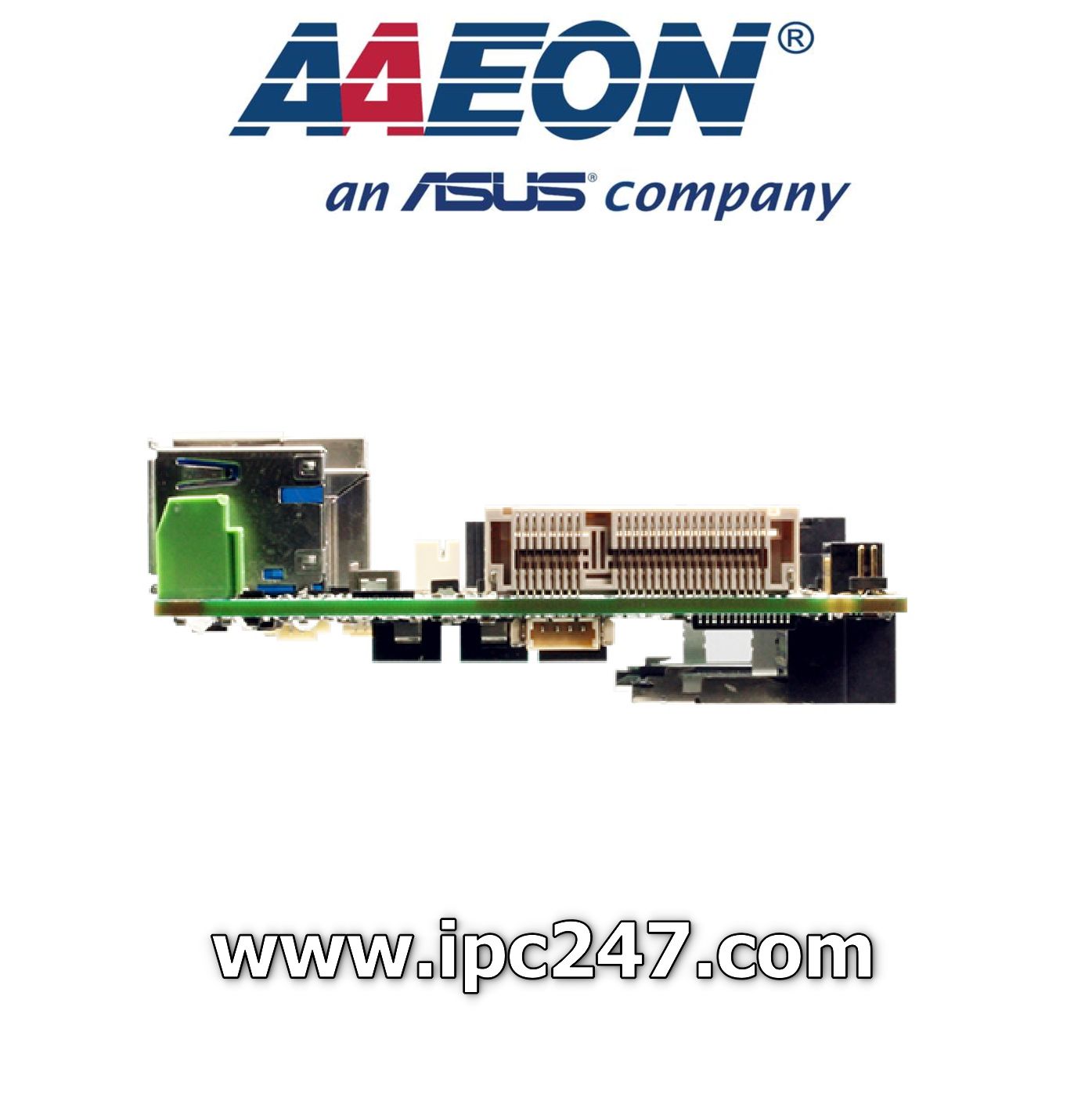

Bo mạch PICO-WHU4 (PICO-ITX)
Pico-ITX Board with 8th Generation Intel® Core™ i7/i5/i3/Celeron® U-Series Processor SoC
Overview
PICO-WHU4 is a compact PICO-ITX board featuring 8th Generation Intel® Core™ Processors designed for AI and Edge Computing.
The PICO-WHU4 from AAEON is the latest in compact embedded computing from AAEON. Powered by 8th Generation Intel® Core™ i3/i5/i7 and Celeron® processors (formerly Whiskey Lake) and supporting up to 16 GB of RAM, this compact PICO-ITX board is capable of powering a range of AI and Edge Computing applications from Smart Retail to Smart City. PICO-WHU4 offers I/O features to allow flexibility for easy integration into existing systems and projects.
Powered by Intel®
PICO-WHU4 is powered by the 8th Generation Intel® Core™ i3/i5/i7 and Celeron® processors (formerly Whiskey Lake), providing high computing performance on a compact board.
Compact Embedded Board
The PICO-ITX form factor is perfect for projects which require high performance from a small board. PICO-WHU4 also offers wide operating temperature range (0°C-60°C) so it can work almost anywhere.
Built for [email protected]
PICO-WHU4 is built to power AI and edge computing applications, with support for a range of frameworks. PICO-WHU4 also supports expansion cards like AI Core X with Intel® Movidius® Myriad™ X for even more [email protected] processing power.
I/O Flexibility

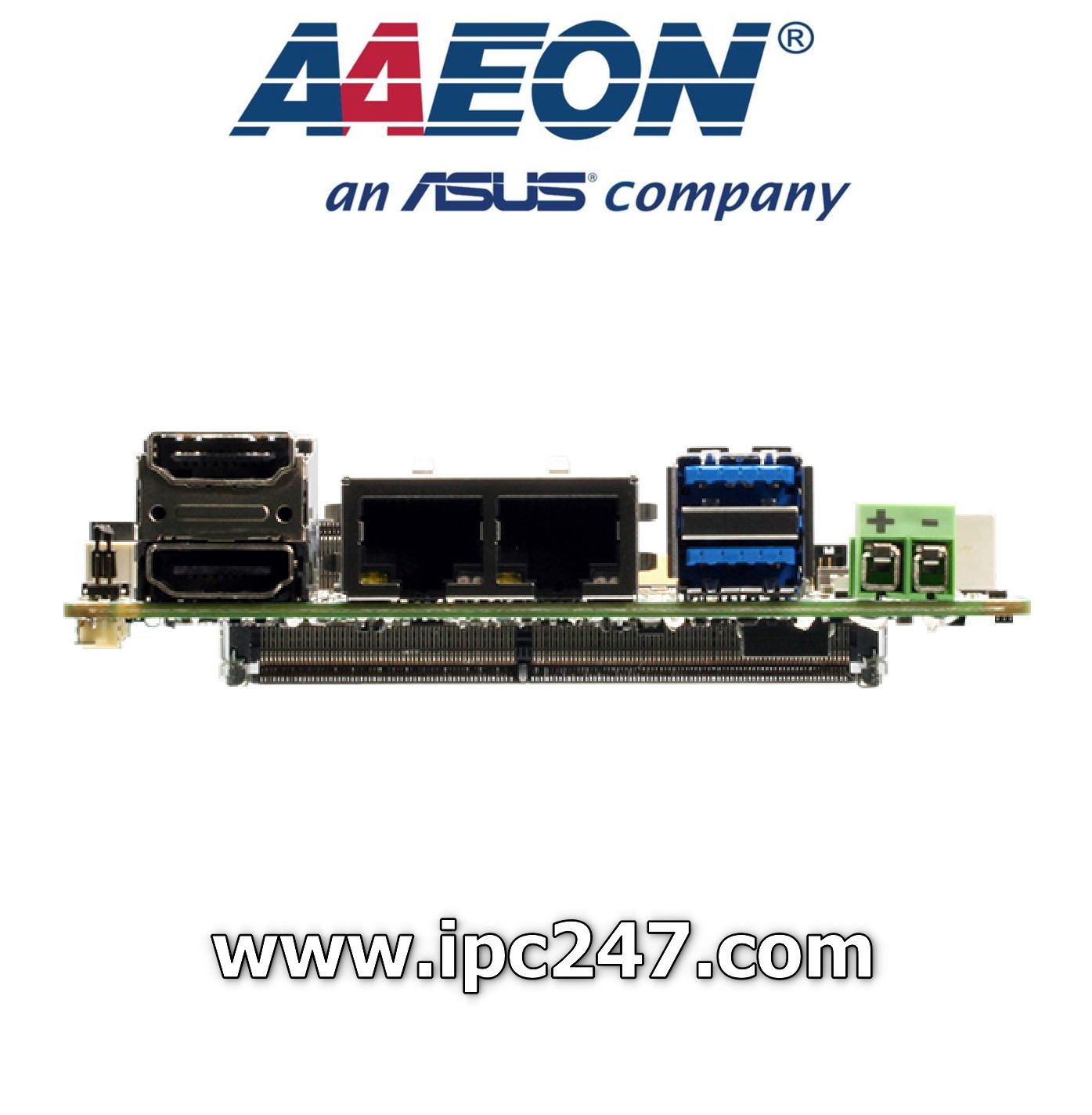

PICO-WHU4 features a host of I/O ports perfect for embedded operations or powering [email protected] applications, including four USB ports (two USB 3.2 Gen 2 ports and two USB 2.0 headers), two Ethernet ports, and two COM headers.
Turn Key System
AAEON offers customers the ability to customize their PICO-WHU4, including the turn-key PICO-WHU4-SEMI embedded system, allowing you to get your project up and running quickly.

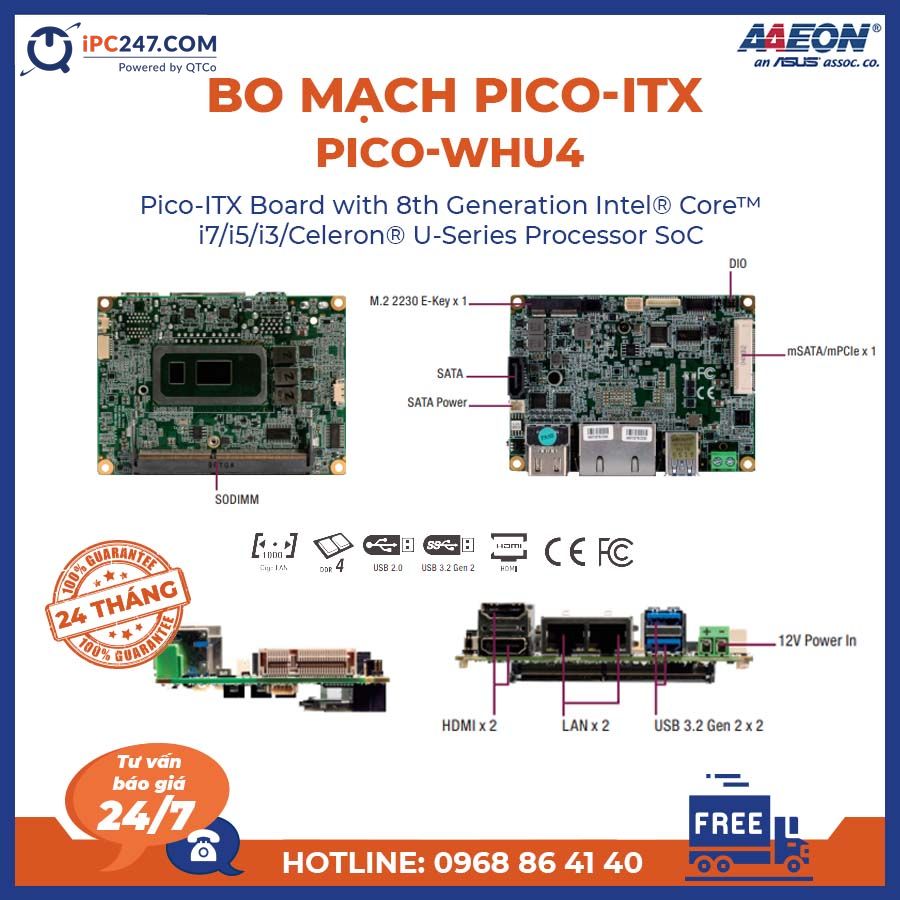

Features
- 8th Intel® Core™ i7/i5/i3/Celeron Processor SoC

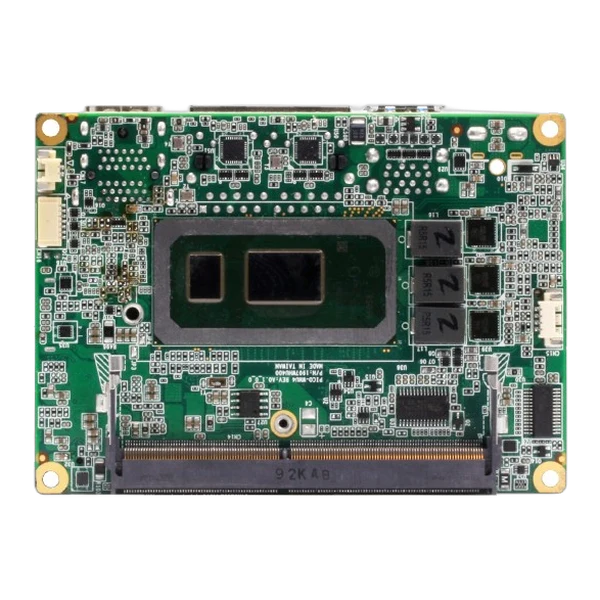

- Non-ECC DDR4 SODIMM Slot x 1, up to 32GB
- Dual HDMI ports (HDMI 1.4b)
- GbE x 2, SATA 6.0 Gb/s x 1, GPIO x 4
- USB 3.2 Gen 2 x 2 (Rear), USB 2.0 x 2 Pin header, RS-232/422/485 x 2
- Full size mSATA/mPCIe x 1 (Select by BIOS), M.2 2230 (E key) x 1
- 12V Only (Terminal block and DC barrel co-design)
Specifications [PICO-WHU4]
| SYSTEM | |
| FORM FACTOR | PICO-ITX |
| CPU | Intel® 8th Generation Core™ i7/i5/i3/Celeron SoC i7-8665UE (4C, 1.7GHz, up to 4.4GHz) i5-8365UE (4C, 1.6GHz, up to 4.1GHz) i3-8145UE (2C, 2.2GHz, up to 3.9GHz) 4305UE (2C, 2GHz) |
| CPU FREQUENCY | Up to 4.4GHz |
| CHIPSET | Intel® 8th Generation Core™ i7/i5/i3/Celeron SoC i7-8665UE (4C, 1.7GHz, up to 4.4GHz) i5-8365UE (4C, 1.6GHz, up to 4.1GHz) i3-8145UE (2C, 2.2GHz, up to 3.9GHz) 4305UE (2C, 2GHz) |
| MEMORY TYPE | DDR4 2400MHz SODIMM x 1, Max. 16 GB |
| MAX. MEMORY CAPACITY | Up to 16GB |
| BIOS | UEFI only |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | +12V AT/ATX (default) |
| POWER SUPPLY TYPE | Lockable & phoenix Terminal co-lay |
| POWER CONSUMPTION (TYPICAL) | TBD |
| SYSTEM COOLING | Heat-spreader, cooler optional |
| DIMENSION | 3.94″ x 2.84″ (100mm x 72mm) |
| GROSS WEIGHT | TBD |
| OPERATING TEMPERATURE | 32˚F ~ 140˚F (0˚C ~ 60˚C) |
| STORAGE TEMPERATURE | -40˚F ~ 176˚F (-40˚C ~ 80˚C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | TBD |
| CERTIFICATION | CE, FCC |
| DISPLAY | |
| CHIPSET | Intel® 8th Generation Core™ i7/i5/i3/Celeron SoC i7-8665UE (4C, 1.7GHz, up to 4.4GHz) i5-8365UE (4C, 1.6GHz, up to 4.1GHz) i3-8145UE (2C, 2.2GHz, up to 3.9GHz) 4305UE (2C, 2GHz) |
| RESOLUTION | HDMI 1.4b up to 3840 x 2160 x 2 |
| LCD INTERFACE | — |
| I/O | |
| STORAGE/SSD | mini-PCIe(Full) x 1 ( PCIe[x1]x1, USB 3.2 Gen 1/2.0,SATA) SATA 6.0Gb/s x 1, (5V Power) |
| ETHERNET | Realtek 8111G*2 10/100/1000Mbps |
| USB PORT | USB 3.2 Gen 2 (10Gbps) x 2 USB 2.0 x 2 Pin header |
| SERIAL PORT | RS-232/422/485 x 2 |
| AUDIO | — |
| DIO | 4-bit |
| EXPANSION SLOT | M.2 2230 E key x 1 (For WIFI/BT, PCIe/USB signal only) SMBUS/I2C/LPC/eSPI x 1 |
| SIM | — |
Ordering Information [PICO-WHU4]
| PART NUMBER | PICO-WHU4-A11-0001 | PICO-WHU4-A11-0002 | PICO-WHU4-A11-0003 | PICO-WHU4-A11-0004 | PICO-WHU4-A11-DC02 |
|---|---|---|---|---|---|
| CPU | Celeron 4305UE | i3-8145UE | i5-8365UE | i7-8665UE | i3-8145UE |
| MEMORY | DDR4 Socket | DDR4 Socket | DDR4 Socket | DDR4 Socket | DDR4 Socket |
| THERMAL | Option | Option | Option | Option | Option |
| DISPLAY | HDMI x 2 | HDMI x 2 | HDMI x 2 | HDMI x 2 | HDMI x 2 |
| STORAGE | SATAIII x 1 mSATA(Full size) x 1 |
SATAIII x 1 mSATA(Full size) x 1 |
SATAIII x 1 mSATA(Full size) x 1 |
SATAIII x 1 mSATA(Full size) x 1 |
SATAIII x 1 mSATA(Full size) x 1 |
| LAN | GbE x 2 | GbE x 2 | GbE x 2 | GbE x 2 | GbE x 2 |
| USB | USB 3.2 Gen 2 x 2 (Rear) USB 2.0 x2 Pin header |
USB 3.2 Gen 2 x 2 (Rear) USB 2.0 x2 Pin header |
USB 3.2 Gen 2 x 2 (Rear) USB 2.0 x2 Pin header |
USB 3.2 Gen 2 x 2 (Rear) USB 2.0 x2 Pin header |
USB 3.2 Gen 2 x 2 (Rear) USB 2.0 x2 Pin header |
| RS-232 | — | — | — | — | — |
| RS-232/422/485 | 2 | 2 | 2 | 2 | 2 |
| EXPANSION SLOT | M.2 2230 (E Key) x 1 | M.2 2230 (E Key) x 1 | M.2 2230 (E Key) x 1 | M.2 2230 (E Key) x 1 | M.2 2230 (E Key) x 1 |
| POWER | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) | +12V (DC Jack) |
| POWER TEMP | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C |
| OTHERS | — | — | — | — | — |
Downloads [PICO-WHU4]
1. Datasheet: PICO-WHU4 1.0
2. Manual: PICO-WHU4 Manual 2.0
Packing List
- PICO-WHU4
Optional Accessories
| 1702150155 | (TF)Power Cable.15P SATA(F).2P 2.0mm Housing(PH).15cm |
| 1709070500 | (TF)SATA CABLE.7P Pitch 1.27mm.50cm |
| 1701200102 | (TF)SERIAL Cable.WL1010H-2*10P 1.0mm Housing.Dual DB9(M).10cm |
| 170010010D | USB cable (2 Port), 10cm |
| 1702030176 | (TF)Power Cable.3P DC jack.TERMINAL*2.17cm.TKS-G21-LN05 |
| PICO-WHU4-FAN01 | Integrated Cooler for PICO-WHU4, assemble with PICO-WHU4 directly |
| PICO-WHU4-HSP01 | Heat Spreader for PICO-WHU4 |
