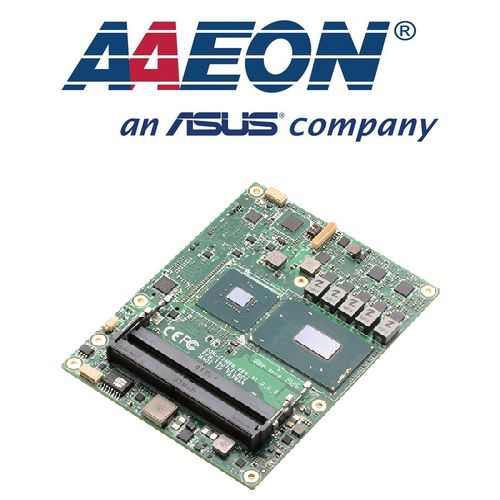

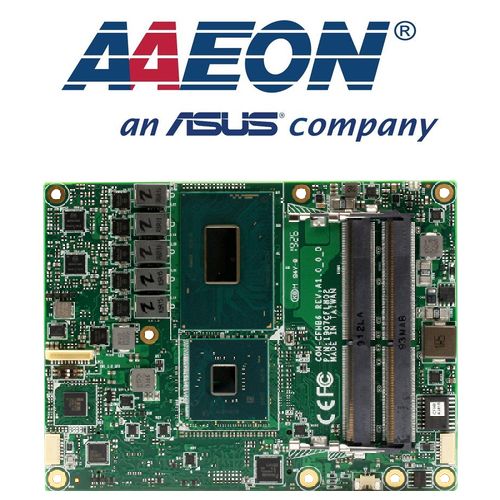

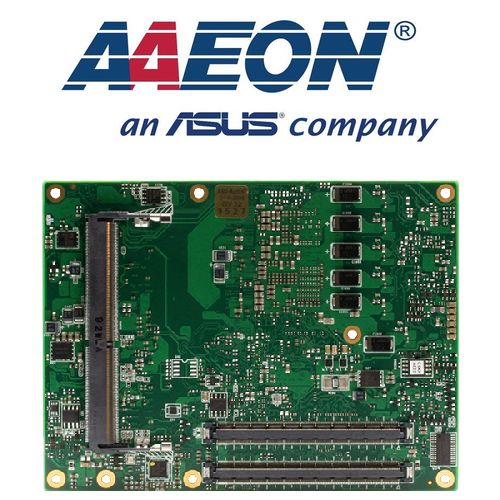

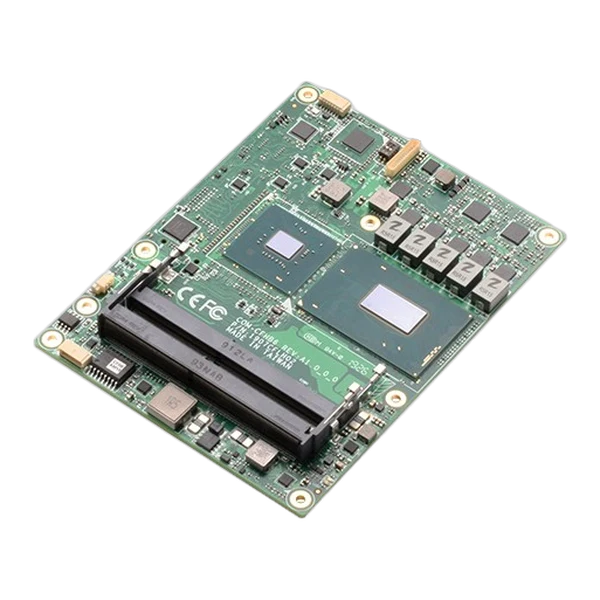

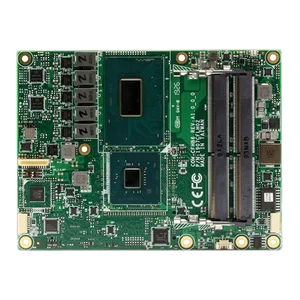

• COM Express Type 6 Basic Size with 8th/9th Generation Intel® Core™ H-Series / Xeon™ Processors
• The COM-CFHB6 features support for a wide range of processors including the Intel Celeron, Xeon, and the 8th/9th Generation Intel Core Processors (Coffee Lake H/Coffee Lake Refresh). From low power 25W processors to 45W 6-core Xeon processors, and with up to 48 GB DDR4 ECC memory, the COM-CFHB6 is flexible enough to accommodate almost any project. The COM-CFHB6 is perfect for applications such as digital signage, factory automation, and even edge AIOT gateways.• Intel PowerFeaturing 8th/9th Generation Intel Core (Coffee Lake), Xeon and Celeron processors, the COM-CFHB6 is built for any level of computing.• Flexible, ExpandableThe COM-CFHB6 features support for four USB 3.1 Gen 2 ports, three display ports, and up to 24 PCIe 3.0 lanes, perfect for edge applications.• Q-service PlusGet the solution you need with Q-Service Plus from AAEON. From board design to BIOS, AAEON can provide customized board solutions.

Features

• 8th / 9th Generation Intel® Core™ i3/i5/i7/ Xeon-E Processors
• Processors
• 3x SODIMM DDR4 2666 Memory up to 48GB, ECC support (by SKU, with CM246 PCH)
• Intel I219 Gigabit Ethernet
• VGA, 18/24-bit 2ch LVDS or 4-lane eDP, DDI up to 3
• High Definition Audio Interface
• SATA x 4, USB2.0 x 8, USB 3.2 Gen 1 X 4
• PCI-Express [x1] x 8, PCI-Express [x16] x1
• GPIO x 8, SMbus, I2C, LPC
• COM Express Basic Size, Pin-Out Type 6, 125mmx95mm

Specifications [COM-CFHB6]

SYSTEM
FORM FACTOR	COM Express Basic Size, Type 6
CPU	8th/9th Gen Intel® Core™ / Xeon™-E Series Processor (i7-8850H / i5-8400H / i3-8100H / Xeon™-E2176M)
CPU FREQUENCY	Up to Xeon-E2176M, 6c/ 2.7GHz
CHIPSET	Intel® QM370/CM246 PCH
MEMORY TYPE	SODIMM DDR4 2666 Socket x 3
MAX. MEMORY CAPACITY	up to 48GB,ECC Support ( only with CM246 PCH)
BIOS	AMI BIOS, Legacy free BIOS
WAKE ON LAN	Yes
WATCHDOG TIMER	255 Levels
POWER REQUIREMENT	Standard: +12V
POWER SUPPLY TYPE	AT/ATX Selection
POWER CONSUMPTION (TYPICAL)	Intel ® Xeon ® E-2176M CPU @2.70GHz, DDR4 16GB x 3, Full load: 62.4W, 5.2A@12V
DIMENSION (L X W)	4.92″ x 3.75″ (125mm x 95mm)
OPERATING TEMPERATURE	32°F ~ 140°F (0°C ~ 60°C) -4˚F ~ 158˚F (-20˚C ~ 70˚C) by screening
STORAGE TEMPERATURE	-4˚F ~ 158˚F (-20˚C ~ 70˚C)
OPERATING HUMIDITY	10% ~ 95% relative humidity, non-condensing
MTBF (HOURS)	80,000
CERTIFICATION	CE/FCC Class A
DISPLAY
VGA/LCD CONTROLLER	Intel® GT2-P630 (E2176M) / GT2-630 ( I7/I5/I3 Series)
VIDEO OUTPUT	VGA, 18/24b 2ch LVDS/eDP, DDI x 2 (3rd one can be added if VGA not require)
I/O
ETHERNET	Intel® Ethernet I219 GbE x1
AUDIO	HD Audio
USB PORT	USB 2.0 x 8 , USB 3.2 Gen 1 x 4
SERIAL PORT	2-wire UART(TX/RX ) x 2
HDD INTERFACE	SATA x 4
EXPANSION SLOT	PCIe [x1] x 8 PCIe [x16] x 1 LPC x1 SMBUS x 1 2-wire UART x 2
GPIO	8-bit
ONBOARD STORAGE	—
TPM	Support 1.2 / 2.0(Optional)

Ordering Information [COM-CFHB6]

PART NUMBER	COM-CFHB6-A10-0001	COM-CFHB6-A10-0002
COM EXPRESS TYPE	Type 6	Type 6
CPU	Xeon E-2176M	I7-8850H
MEMORY	DDR4 SODIMM x 3	DDR4 SODIMM x 3
DISPLAY	VGA, DDIx2 (up to 3)	VGA, DDIx2 (up to 3)
LVDS	18/24b 2ch LVDS/eDP	18/24b 2ch LVDS/eDP
STORAGE	SATAIII x4	SATAIII x4
LAN	GbE x1	GbE x1
USB	USB 2.0 x8 USB 3.2 Gen 1 x 4	USB 2.0 x8 USB 3.2 Gen 1 x 4
UART	2-wire (Tx/Rx) x 2	2-wire (Tx/Rx) x 2
EXPANSION	PCIe [x1] x 8 PCIe[x16] x1 LPC x1 SMBUS x 1	PCIe [x1] x 8 PCIe[x16] x1 LPC x1 SMBUS x 1
POWER	+12V	+12V
TEMPERATURE	0°C ~ 60°C	0°C ~ 60°C
OTHER	—	—
