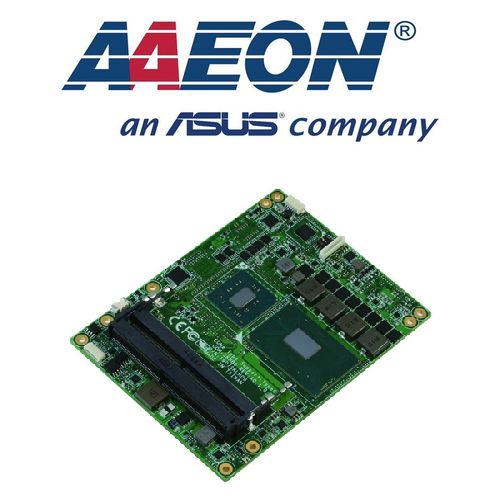

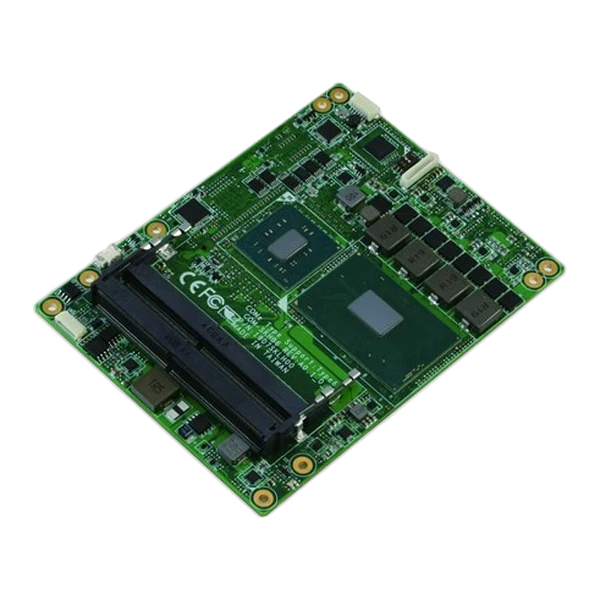

COM Express Modules COM-SKHB6
Overview
- COM Express Type 6 Basic Size with 6th Gen Intel® Core™ i-series Processor
- The COM-SKHB6 features the 6th Generation Intel® Core™ processor (formerly Skylake), Intel® 100 series chipset with maximum memory of up to 32 GB. With a broad assortment of I/Os and expansion interface, from USB 3.0s to PCIe〔x16〕 slots, as well as an operating temperature range of 0 ~ 60°C, the device is poised to provide the most comprehensive support for any industrial or embedded computing applications
Features
- Intel® Core™ i3/i5/i7 Processor with PCH QM170/CM236
- DDR4 SODIMM x 2, up to 32 GB, ECC Supports by SKU
- Gigabit Ethernet x 1
- 18/24-bit Dual Channel LVDS LCD or eDP, DDI x 2 (up to 3), VGA, High Definition Audio Interface
- SATA 3 x 4
- USB 2.0 x 8, USB 3.2 Gen 2 x 4, GPIO 8-bit, PCI-Express [x1] x 8, PCI-Express [x16] x 1
- COM Express Type 6 Basic Size 125mm x 95mm
Specifications [COM-SKHB6]
| SYSTEM | |
| FORM FACTOR | COM Express Basic Size |
| CPU | Onboard 6th Gen Intel® Core™ i-series Processor i7-6820EQ 4c/2.8 GHz i3-6100E 2c/2.7 GHz |
| CPU FREQUENCY | Up to i7-6820EQ 3.50 GHz |
| CHIPSET | PCH QM170 or CM236 (by sku) |
| MEMORY TYPE | DDR4, SODIMM x 2, ECC Support with CM236 sku only, up to 2133 |
| MAX. MEMORY CAPACITY | 32GB |
| BIOS | AMI BIOS, Legacy Free |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 levels |
| POWER REQUIREMENT | Standard: +12V |
| POWER SUPPLY TYPE | AT/ATX Selection |
| POWER CONSUMPTION (TYPICAL) | i7-6820EQ 2.8GHz, DDR4 16GB, 3.08A@12V (during full-loading mode) |
| DIMENSION (L X W) | 4.92″ x 3.75″ (125mm x 95mm) |
| OPERATING TEMPERATURE | 32˚F ~ 140˚F (0˚C ~ 60˚C) |
| STORAGE TEMPERATURE | -4˚F ~ 158˚F (-20˚C ~ 70˚C) |
| OPERATING HUMIDITY | 10% ~90% relative humidity, non-condensing |
| MTBF (HOURS) | 80000 |
| CERTIFICATION | CE/FCC Class A |
| DISPLAY | |
| VGA/LCD CONTROLLER | Intel® HD Graphics P530 / 530 |
| VIDEO OUTPUT | VGA, LVDS or eDP, DDI x2 |
| I/O | |
| ETHERNET | Intel® I219, Gigabit Ethernet |
| AUDIO | HD Audio |
| USB PORT | USB2.0 x 8, USB3.2 Gen 2 x 4 |
| SERIAL PORT | 2-Wire UART (Tx/Rx) x 2 |
| HDD INTERFACE | SATA 3 x 4 |
| EXPANSION SLOT | PCIe[x16] x 1, PCIe[x1] x 8, I2C, LPC, SMBus |
| GPIO | 8-bit |
| ONBOARD STORAGE | — |
| TPM | Optional |
Ordering Information [COM-SKHB6]
| PART NUMBER | COM-SKHB6-A10-0001 | COM-SKHB6-A10-0003 |
|---|---|---|
| COM EXPRESS TYPE | Type 6 | Type 6 |
| CPU | i7-6820EQ | i3-6100E |
| MEMORY | DDR4 SO-DIMM x2 | DDR4 SO-DIMM x2 |
| DISPLAY | VGA, LVDS or eDP, DDI x2 (Up to 3) | VGA, LVDS or eDP, DDI x2 (Up to 3) |
| LVDS | 18/24b 2CH (LVDS shared with eDP) | 18/24b 2CH (LVDS shared with eDP) |
| STORAGE | SATA 3 x 4 | SATA 3 x 4 |
| LAN | GbE x1 | GbE x1 |
| USB | USB 3.2 Gen 2 x 4 USB 2.0 x 8 |
USB 3.2 Gen 2 x 4 USB 2.0 x 8 |
| UART | 2-Wire (Tx/Rx) x2 | 2-Wire (Tx/Rx) x2 |
| EXPANSION | PCIe[x16] x1, PCIe[x1] x8, I2C, LPC, SMBus | PCIe[x16] x1, PCIe[x1] x8, I2C, LPC, SMBus |
| POWER | 12V | 12V |
| TEMPERATURE | 0°C ~ 60°C | 0°C ~ 60°C |
| OTHER | — | — |
Packing List
COM-SKHB6
Optional Accessories
| ECB-920A-A10-0001 | COM Express Type 1/6/10 Carrier Board, Gigabit Ethernet, USB, 2 COM, 4 SATA, PCIe, AT/ATX, Legacy Free, Rev. A1.0 |
| COM-FAN01 | CPU Cooler, 125 x 95 x 26.4mm, Silver, use with HSP |
| COM-SKHB6-HSP01 | Heat Spreader, For COM-SKHB6, Onboard CPU |
CPU Support Chart
| CPU | Base Frequency/ Turbo Boost GHz | Core/ Thread | Graphic |
| E3-1505M v5 | 2.8/3.7 | 4c/8t | Intel® HD Graphics P530 |
| E3-1505L v5 | 2/2.8 | 4c/8t | Intel® HD Graphics P530 |
| i7-6820EQ | 2.8/3.5 | 4c/8t | Intel® HD Graphics 530 |
| i7-6822EQ | 2.0/2.8 | 4c/8t | Intel® HD Graphics 530 |
| i5-6440EQ | 2.7/3.4 | 4c/4t | Intel® HD Graphics 530 |
| i5-6442EQ | 1.9/2.7 | 4c/4t | Intel® HD Graphics 530 |
| i3-6100E | 2.7/— | 2c/4t | Intel® HD Graphics 530 |
| i3-6102E | 1.9/— | 2c/4t | Intel® HD Graphics 530 |
| C-G3900E | 2.4/— | 2c/2t | Intel® HD Graphics 510 |
| C-G3902E | 1.6/— | 2c/2t | Intel® HD Graphics 510 |
