In-Vehicle NVR AAEON VPC-3350S
Overview
- Fanless In-Vehicle/Industrial Network Video Recorder with Intel® Pentium®/ Celeron®/ Atom™ Processor
- The VPC-3350S Mobile NVR from AAEON provides users with choice, flexibility and customization not offered in other Mobile NVRs. The VPC-3350S offers the Intel® Atom® x5 E3940 processor (formerly Apollo Lake) as standard, with options for Pentium® N4200, Celeron® N3350 and Atom® x7 E3950. The core feature of the VPC-3350S is its four PoE Ports, allowing the system to connect to a wide range of devices.
- The innovative design of the VPC-3350S Mobile NVR is available in two configurations: the compact Industrial VPC-3350S and the flexible In-Vehicle VPC-3350S. The Industrial configuration offers an I/O compliment perfect for use in machine vision applications, such as license plate recognition. The In-Vehicle configuration features an innovative modular design allowing ultimate flexibility for less cost, and greater customization with the ability to deploy the system quickly. The VPC-3350S can also be configured with an integrated AI module featuring Intel® Movidius™ Myriad™ X.
Features
- Mobile Network Video Recorder Platform
- Fanless System
- 204-pin Single Channel DDR3L 1866 MHz SODIMM up to 8 GB
- Intel® Integrated Graphics Engine Supports Two Display by HDMI x 1, DP x 1
- Intel® Ethernet Connection x 5 Ports (including 4 x PoE Ports)
- Full Mini-PCIe Socket x 2 (USB + PCIe); (Support up to Mini-PCIe Socket x 4, Optional)
- Built-in CANBus, GPS & G-Sensor (In-vehicle config. by project base)
- E-Mark Certified (In-vehicle config. by project base)
Specifications [VPC-3350S]
|
|||
| Form Factor | Mobile NVR | ||
| processor | Intel® Pentium®/ Celeron®/ Atom™ Processor (Default: E3940; Project base: N4200/N3350, or E3950 w/ customized chassis) | ||
| Chipset | — | ||
| Main Memory | Up to 8GB, DDR3L 204-pin SODIMM | ||
| Display | HDMI x 1, DP x 1 | ||
| Ethernet | Intel® i211 (colay i210) | ||
| PoE Ethernet Port | 4 ports, sharing 60W of power budget for every four PoE ports | ||
| RAID Support | — | ||
| Expansion Slot | Mini-Card slot x 2 (USB2.0 + PCIe, full size), up to 4 slots (in-vehicle config., optional) SATA x 1 Built-in CANBus (In-vehicle config. by project base) |
||
| GPS | Built-in GPS & G-Sensor (In-vehicle config. by project base) | ||

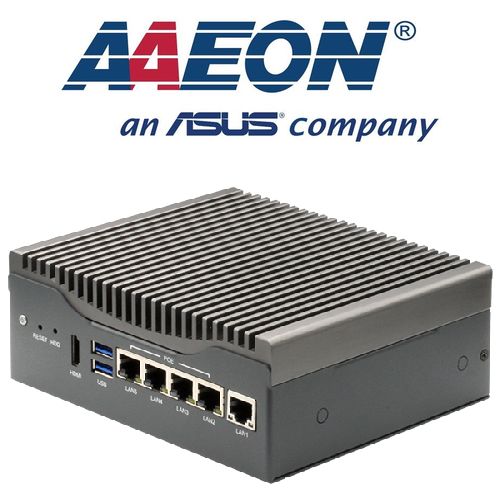

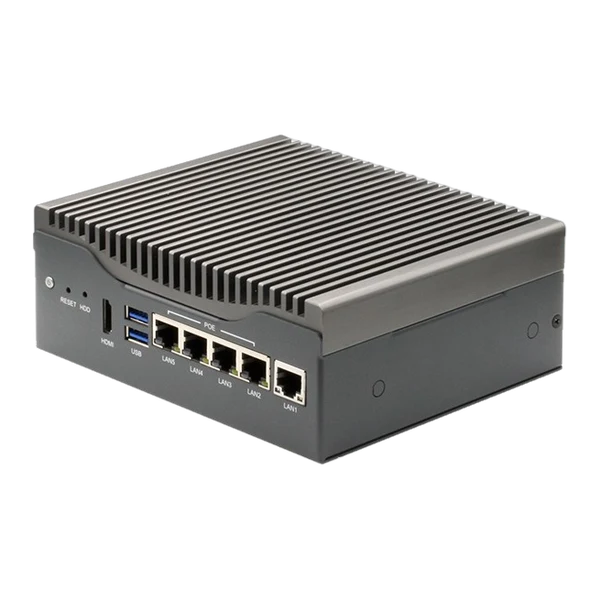

| Front I/O Panel | Power Button x 1 Reset Button x 1 Power/HDD, LED x 2 USB 3.2 Gen 1 x 2 GbE port (RJ-45) x 1 PoE LAN x 4 (IEEE 802.3 at/af) HDMI x 1 CanBus connector x 1 (In-vehicle config. by project base) RS-232 x 3 (In-vehicle config. by project base) |
||

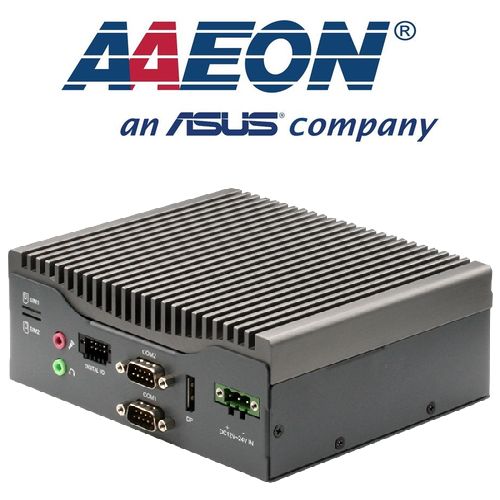

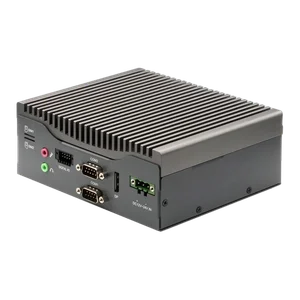

| Rear I/O Panel | DC-In power x 1 8-bit DIO x 1, 4-ch digital input, 4-ch digital output RS-232/422/485 x 2 DP x 1 Audio Line-out x 1 Mic-In x 1 Micro SIM slot x 2 |
||
| STORAGE | |||
| HDD | 2.5” HDD/SSD Bay x 1 | ||
| CF/CFast/mSATA | — | ||
| ENVIRONMENTAL | |||
| Operating Temperature | -4°F ~ 158°F (-20°C ~ 70°C) | ||
| Storage Temperature | -40°F ~ 185°F (-40°C ~ 85°C) | ||
| Storage Humidity | 10%~80% @40°C, non-condensing | ||
| Vibration/Shock | MIL-STD-810G | ||
| Certification | CE & FCC Class A, E-Mark (In-vehicle config. by project base) | ||
| POWER REQUIREMENT | |||
| Power Supply | DC 12-24V; DC9-36V with power ignition (In-vehicle config. by project base) | ||
| MECHANICAL | |||
| Removable HDD Tray | — | ||
| Internal System HDD Bay | — | ||
| Dimension | 6.3″ x 5.28″ x 2.44″ (160mm x 134mm x 62mm) | ||
| Gross Weight | 3.96 lb (1.8 kg) | ||
Ordering Information [VPC-3350S]
| Part Number | VPC-3350S-I4-A10-00 | |
|---|---|---|
| PROCESSOR | Intel® Atom®x5 E3940 | |
| RAM | DDR3L 204-pin SODIMM | |
| COOLER | Fanless | |
| STORAGE | Supporting 2.5” SSD x 1 (Optional SKU: Supporting additional mSATA x1 & eMMC) | |
| RAID SUPPORT | — | |
| DISPLAY | DP x 1, HDMI x 1 |
|
| LAN | GbE x 1 | |
| POE | 4 Ports | |
| USB | USB 3.2 Gen 1 x 2 | |
| RS-232 | — | |
|
2 | |
| EXPANSION SLOT | Mini-Card x 2 | |
| FORM FACTOR | Desktop | |
| POWER | DC 12-24V |
Packing List
- Wallmount bracket
- SATA cable x 1
- Power cable x 1 (for SATA)
- VPC-3350S
Optional Accessories
| 125590120B | Adapter. AC/DC input AC 100-240 output DC 19V 6.32A 120W |
| 9741236A00 | WiFi Module Kit, 802.11ac/a/b/g/n + BT4.2, (SparkLan.WPET-236ACN(BT), USB Signal, with Cable & Antenna |
| 17599RFA0B | WiFi Antenna |
| 1700010252 | WiFi Coaxial Cable |
| 978966660G | GPS Antenna |
| 9741EG25G0 | PCIe Mini Card, 4G LTE Module kit for global band w/ Cable & Antenna, Quectel EG25-G |
| 1702031803 | POWER CORD.3P-250V 10A 180D.1.8M.VDE.FAN-JET.YP-22/YC-12 (Euro) |
| 1702031802 | POWER CORD.3P-125V 10A 180D.1.8M.USA.FANJET.YP12/YC-12 (USA) |
| 170203180E | Power cord. 3P. 125V/7A. 1. 8M. PSE YP12/YC12 Certificat (JPN) |
