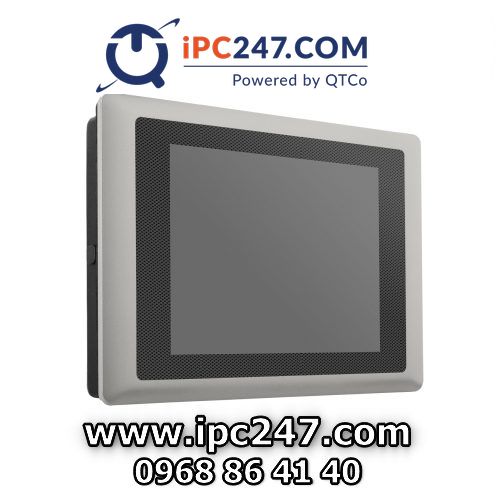

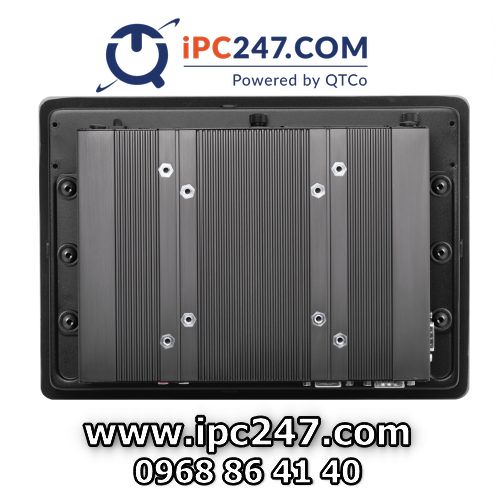

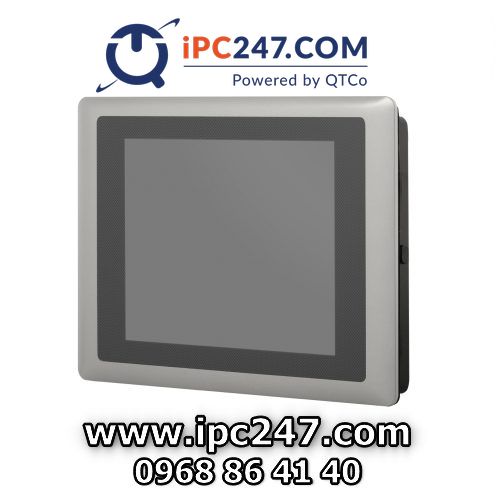

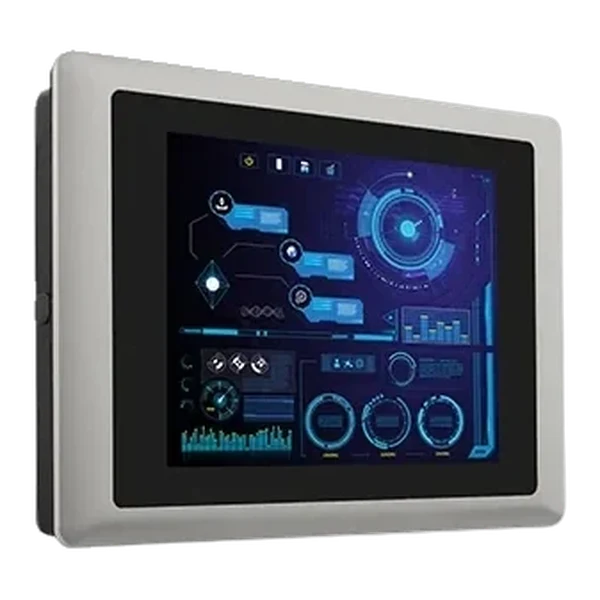

Màn hình cảm ứng công nghiệp CV-108/M1001
Overview
Features
- 8.4″ TFT SVGA 4:3 LCD with Resistive 5-wire Touch
- Designed with Aluminum Die-Cast Front Frame
- 1x USB, 1x COM, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
- IP 65 Compliant Front Panel
- Support Panel / Wall / VESA Mounting
- Convertible Display System (CDS) Supported
- Built-in Two 5W Internal Speakers

Specifications [CV-108 / M1001]
Model Name | CV-108/M1001 | |
Display | LCD Size | 8.4″ (4:3) |
Max. Resolution | 800 x 600 | |
Brightness (cd/m2) | 400 | |
Contrast Ratio | 600 : 1 | |
LCD Color | 262K | |
Pixel Pitch (mm) | 0.213 (H) x 0.213 (V) | |
Viewing Angle (H-V) | 150 / 130 | |
Backlight MTBF | 30000 hrs (LED Backlignt) | |
Touch | Resistive 5-wire | V |
Projected Capacitive | – | |
System | A/D Board | Novatek NT68856UFG |
VGA Input | 1 | |
DVI-D Input | 1 | |
DisplayPort Input | 1 | |
COM Input | 1 | |
USB 2.0 Input | 1 | |
1 | ||
Audio Input | ||
Power Switch | 1 | |
Other Features | Audio | AMP 5W + 5W (Internal Speaker) |
OSD Function | LCD On/Off, Auto, Menu, Up and Down Multi-language OSD |
|
Power | Power Requirement | 9~48VDC |
Connector | 3-pin Terminal Block | |
Power Adaptor | Optional AC/DC 12V/5A, 60W | |
Physical | Dimension (WxHxD) | 262 x 186 x 66 mm |
Weight Information | 2.74 kg | |
Construction Front Panel | Die-casting Flat Surface | |
Mounting | Panel / Wall / VESA / Rack Mounting | |
Fanless Design | V | |
Operating System | Windows | Windows 10 Windows 8.1 Windows 7 |
Liunx | Kernel 3.x | |
Environment | Operating Temperature | Ambient with air flow: -5°C to 60°C (with Industrial Grade Peripherals) |
Storage Temperature | -20°C to 75°C | |
Relative humidity | 90% RH @ 60°C (non-condensing) | |
IP Level | IP 65 Compliant Front Panel | |
EMC | CE/ FCC Class A |
