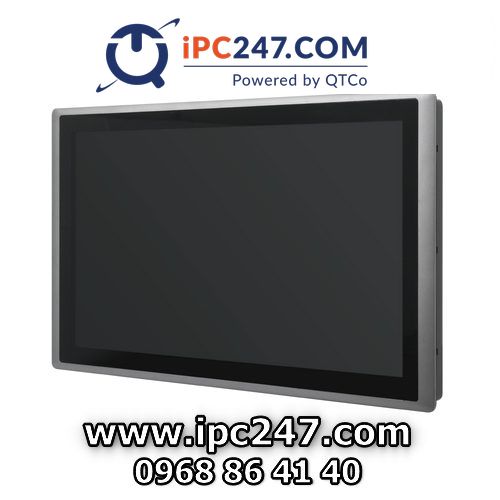

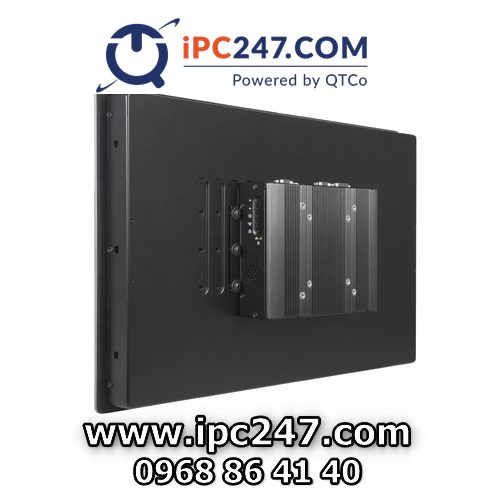

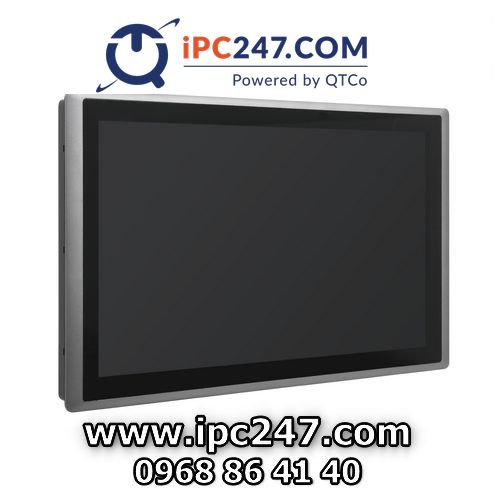

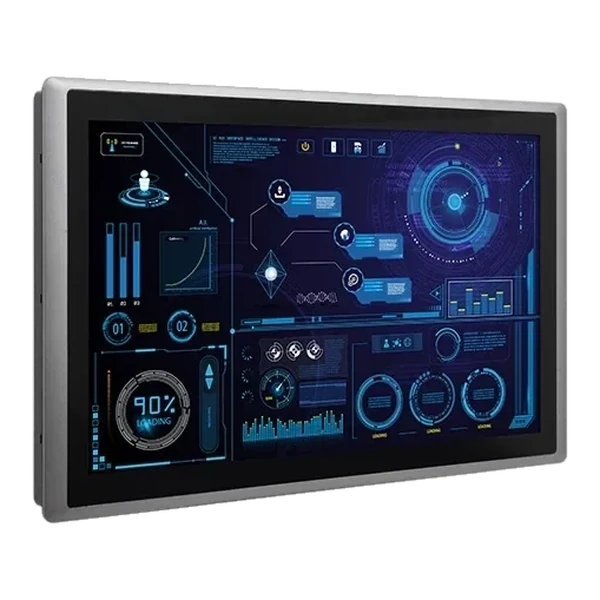

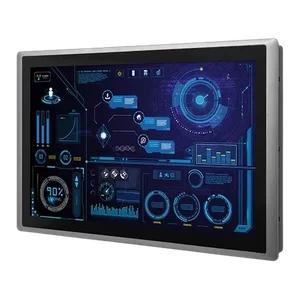

Màn hình cảm ứng công nghiệp CV-W121/M1001
Overview
Features
- 24″ TFT Full HD 16:9 LCD with Resistive 5-wire / Projected Capacitive Touch
- Designed with Aluminum Die-Cast Front Frame
- IP65 Compliant Front Panel
- 1x USB, 1x COM, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
- Built-in Two 5W Internal Speakers
- Convertible Display System (CDS) Supported
- Support Panel / VESA Mounting

Specifications [CV-W121 / M1001]
Model Name | CV-W121/M1001 | |||
Model No. | CV-W121R/M1001 | CV-W121C/M1001 | CV-W121G/M1001 | |
Display | LCD Size | 21.5″ (16:9) | ||
Max. Resolution | 1920 x 1080 | |||
Brightness (cd/m2) | 300 | |||
Contrast Ratio | 5000 : 1 | |||
LCD Color | 16.7M | |||
Pixel Pitch (mm) | 0.24825 (H) x 0.24825 (V) | |||
Viewing Angle (H-V) | 178 / 178 | |||
Backlight MTBF | 50000 hrs (LED Backlignt) | |||
Touch | Resistive 5-wire | V | – | – |
Projected Capacitive | – | V | – | |
System | VGA Input | 1 | ||
DVI-D Input | 1 | |||
DisplayPort Input | 1 | |||
USB 2.0 Input | 1 | |||
Audio Input | 1 | |||
COM Input | 1 | |||
Power Switch | 1 | |||
Other Features | Audio | AMP 5W + 5W (Internal Speaker) | ||
OSD Function | LCD On/ LCD Off, Auto, Menu, Up and Down (Multi-language) | |||
Power | Power Requirement | 9~48VDC | ||
Connector | 3-pin Terminal Block Connector | |||
Power Adaptor | Optional AC/DC 12V/5A, 60W Power Adapter | |||
Environment | Operating Temperature | Ambient with air flow: 0°C to 60°C (With extended temperature peripherals; Ambient with air flow According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) |
||
Storage Temperature | -20°C to 60°C | |||
Relative humidity | 80% RH @ 50°C (Non-Condensing) | |||
IP Level | IP65 Compliant Front Panel | |||
Physical | Dimension (WxHxD) | 550 x 330.5 x 73 mm | ||
Weight | 6.68 kg | |||
Construction Front Panel | Die-cast Flat Surface | |||
Mounting | Panel / Wall / VESA / Rack Mounting | |||
Certification | Safety Certifications | • CE • FCC Class A |
