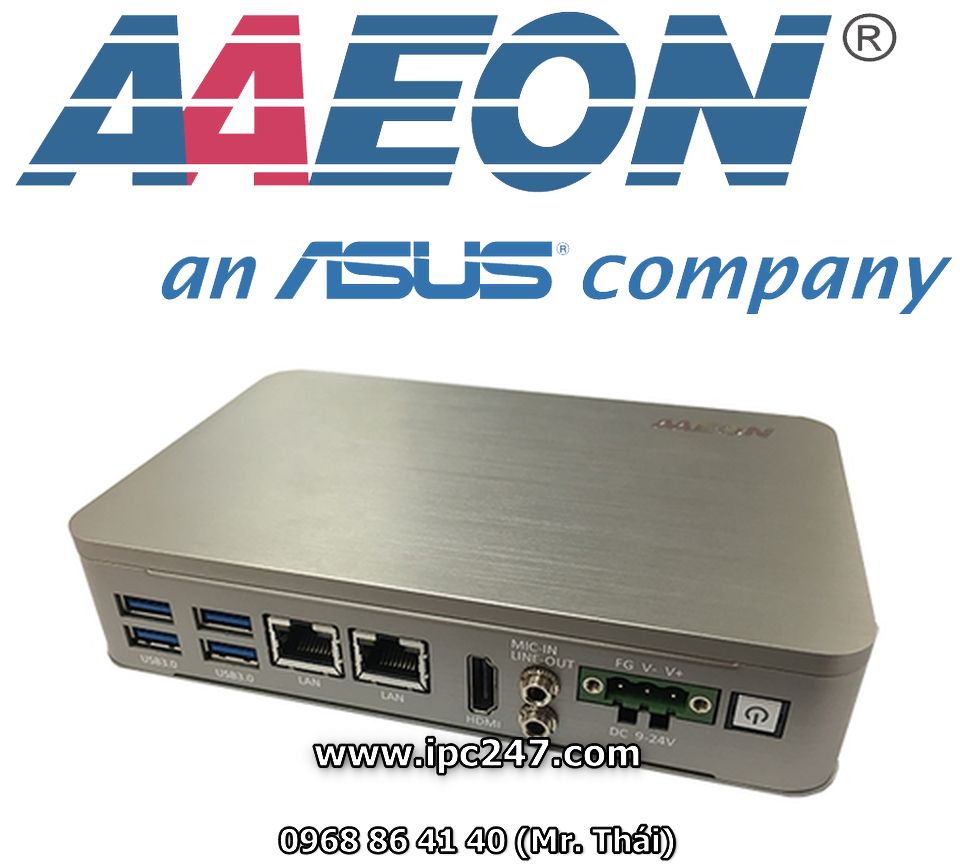

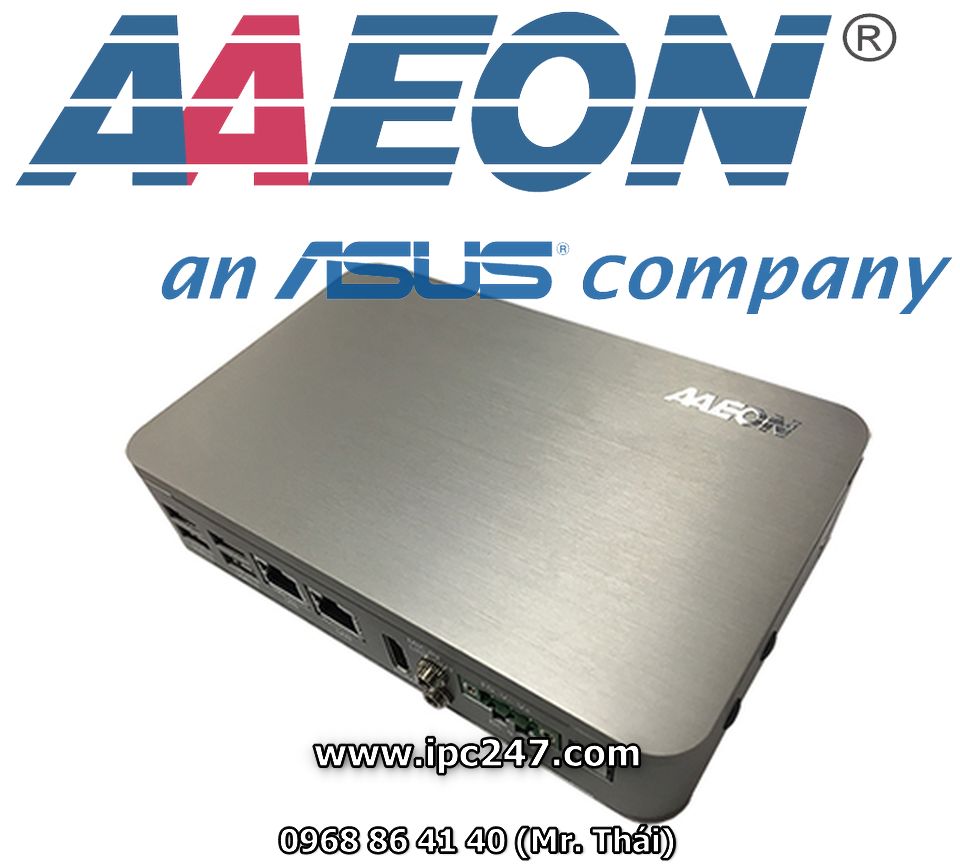

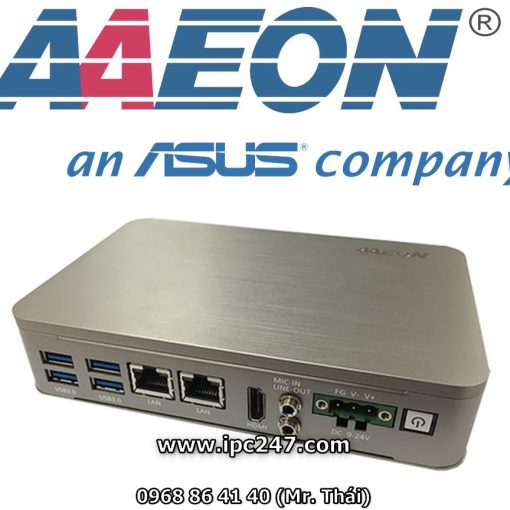

Máy tính công nghiệp không quạt AAEON BOXER-6405
Overview
The BOXER-6405 is a rugged, ultra-compact edge AI computing solution for smart factory applications. Only 37mm thick, it can be deployed almost anywhere, and its -20oC to 60oC operating temperature range means it can handle harsh, factory environments.
The BOXER-6405 is a versatile computer that can be installed with an Intel Movidius deep learning solution to create an AIOT platform, and it can control peripherals and be connected to industrial cameras to establish a powerful machine vision system. It can also serve as an effective IoT gateway device, as WiFi and 4G modules can be installed via the machine’s two mini card slots.

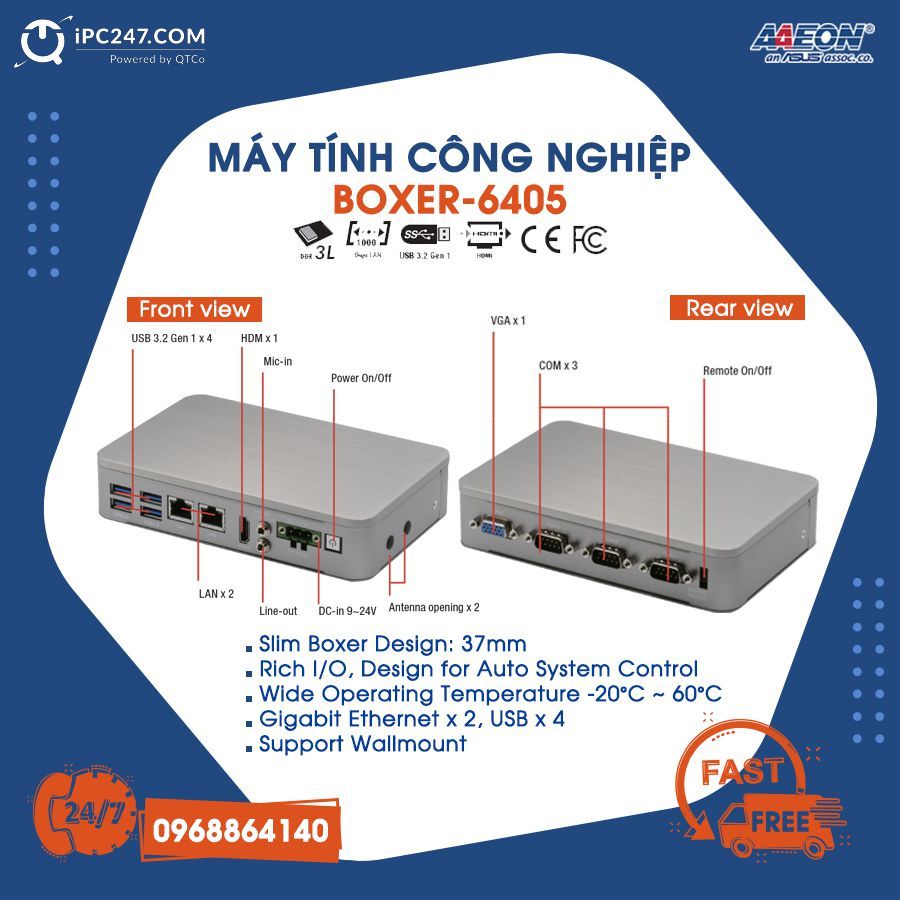

Features
- Slim Boxer Design: 37mm
- Rich I/O, Design for Auto System Control
- Wide Operating Temperature -30°C ~ 60°C
- Gigabit Ethernet x 2, USB x 4
- Support Wallmount
Specifications [BOXER-6405]
| SYSTEM | |
| CPU | Intel® Atom™ processor |
| CHIPSET | Intel® System on Chip |
| SYSTEM MEMORY | DDR3L SO-DIMM slot x 1 Supports 1867 MHz and up to 8GB |
| DISPLAY INTERFACE | HDMI type A x 1 for HDMI v1.4b VGA x 1 |
| STORAGE DEVICE | mSATA |
| ETHERNET | Intel(R) i211-AT x1, Intel(R) i219-LM x1 |

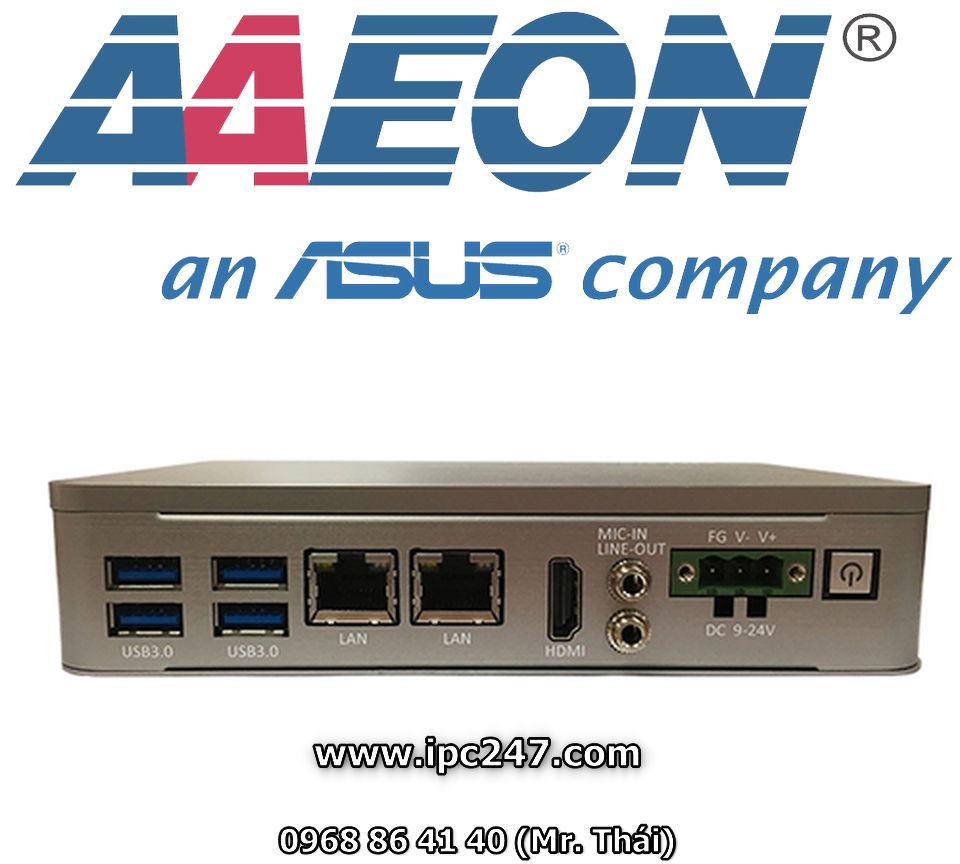

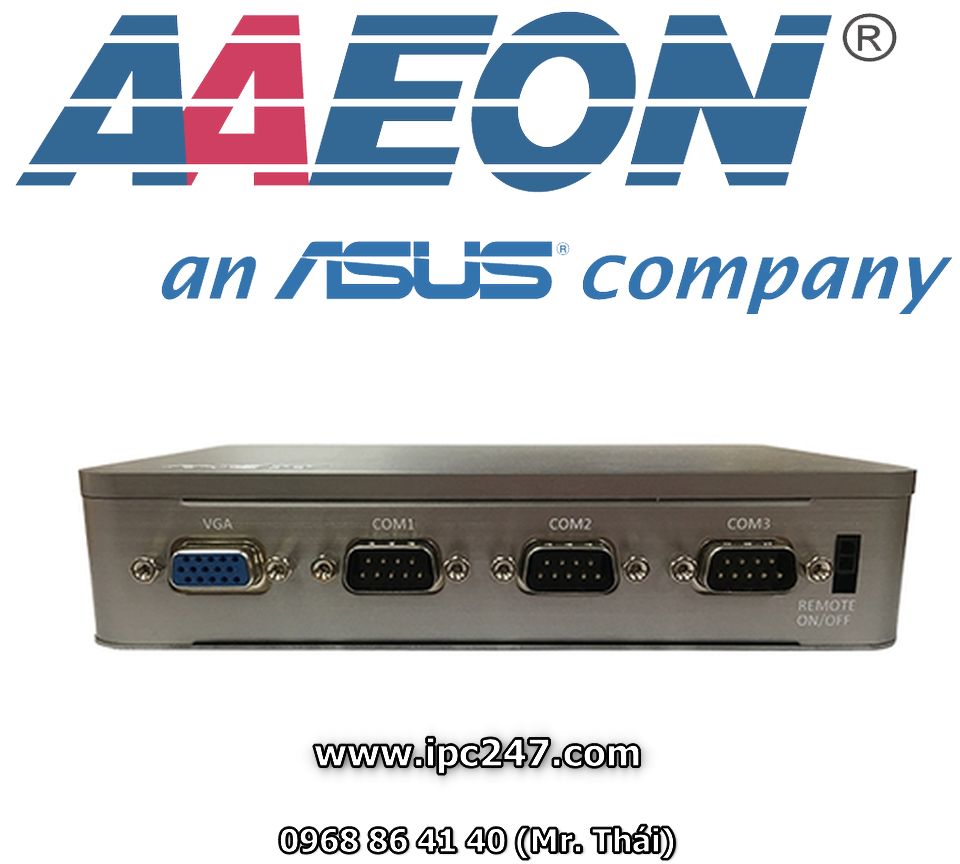

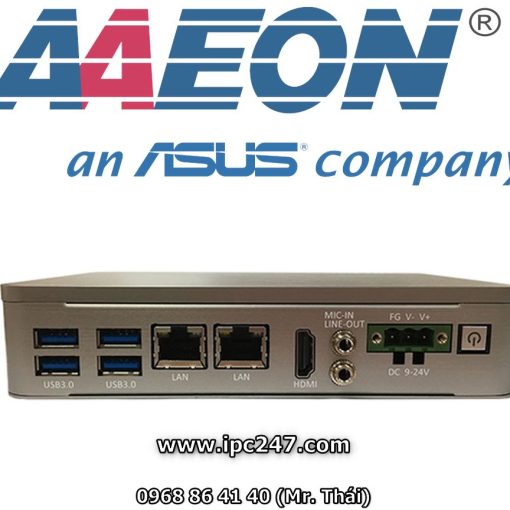

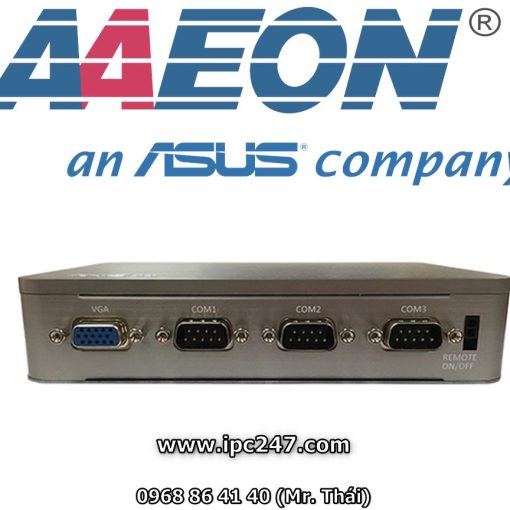

| I/O | Power Button x 1 USB Type A x 4 for USB3.0 HDMI type A x 1 for HDMI v1.4b RJ-45 x 2 for GbE LAN with LED indicator ( i211-AT x 1; i219-LM x 1) Power input x 1 3-pin terminal block in default (+, – , GND) Co-layout 3-pin terminal block & lockable DC-in jack,) Co-layout internal DC Mic-in x 1, Line-out x 1 RS-232/422/485 x 3 with automatic flow control (switch by BIOS) VGA x 1 Remote On/Off Antenna opening x 2 |
| EXPANSION | Full-size Mini PCIe slot x 1 (PCIe/USB/SIM slot), one screw Half-size Minicard slot x 1 (optional for mSATA,PCIE/mSATA auto-detect) |
| INDICATOR | Power LED x1, HDD active LED x1 |
| OS SUPPORT | Windows® 10, Windows® 10 IoT, Linux |
| POWER SUPPLY | |
| POWER REQUIREMENT | 3-pin Phoenix DC Input 9~24V without power protection |
| MECHANICAL | |
| MOUNTING | Wallmount |
| DIMENSIONS (W X H X D) | 6.54″ x 4.2″ x 1.45″ (166mm x 106.6mm x 37mm) |
| GROSS WEIGHT | 3.1 lb (1.4kg) |
| NET WEIGHT | 1.3 lb (0.6 kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -22°F ~ 140°F (-30°C ~ 60°C) with W.T. mSATA (according to IEC68-2-14 with 0.5 m/s AirFlow; with industrial decives) |
| STORAGE TEMPERATURE | -4°F ~ 158°F (-20°C ~ 70°C) |
| STORAGE HUMIDITY | 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 3 Grms/ 5 ~ 500Hz/ operation – mSATA 1 Grms /5 ~ 500Hz/ operation – HDD |
| CERTIFICATION | CE/FCC class A |
Ordering Information [BOXER-6405]
| PART NUMBER | BOXER-6405-A1-1010 | BOXER-6405-A2-1010 |
|---|---|---|
| CPU | N3350 | N4200 |
| PCH | SoC | SoC |
| RAM | — | — |
| LAN | 2 | 2 |
| USB 3.0 | 4 | 4 |
| USB 2.0 | — | — |
| RS-232 | — | — |
| RS-232/422/485 | 3 | 3 |
| DIGITAL I/O | — | — |
| AUDIO | MIC-in, Line-out |
MIC-in, Line-out |
| STORAGE | mSATA x 1 | mSATA x 1 |
| DISPLAY | VGA/ HDMI x1 | VGA/ HDMI x1 |
| EXPANSION | Full-size Minicard x 1 Half-size Minicard x 1 | Full-size Minicard x 1 Half-size Minicard x 1 |
| MOUNTING | Wallmount | Wallmount |
| POWER | 9~24V | 9~24V |
| OPERATION TEMP. | -30°C ~ 60°C | -30°C ~ 60°C |
Optional Accessories
| 1255300402 | Power Adaptor |
| 1702031802 | Power Cord (US type) |
| 1702031803 | Power Cord (European Type) |
| 170203180E | Power Cord (Japanese Type) |
| 9741238H00 | WiFi Module & Antenna |
| 9741EC20E0 | 4G Module & Antenna (for Europe) |
| 9741640404 | Din Rail Mount Kit |
