  Overview

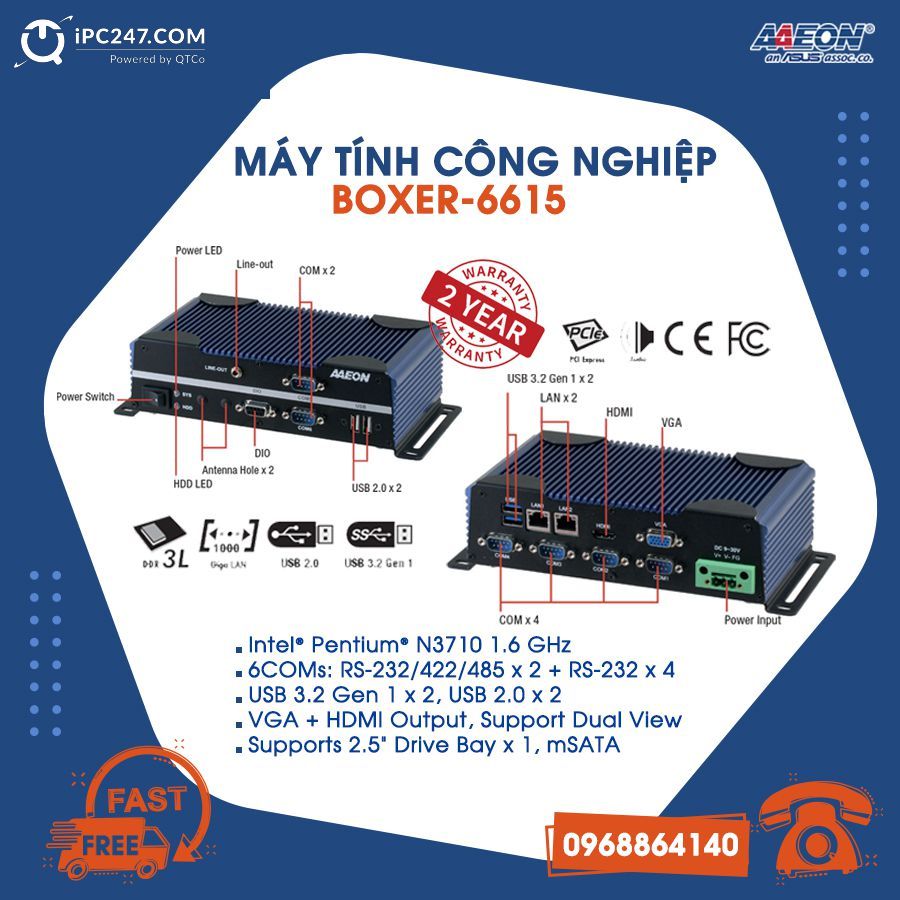

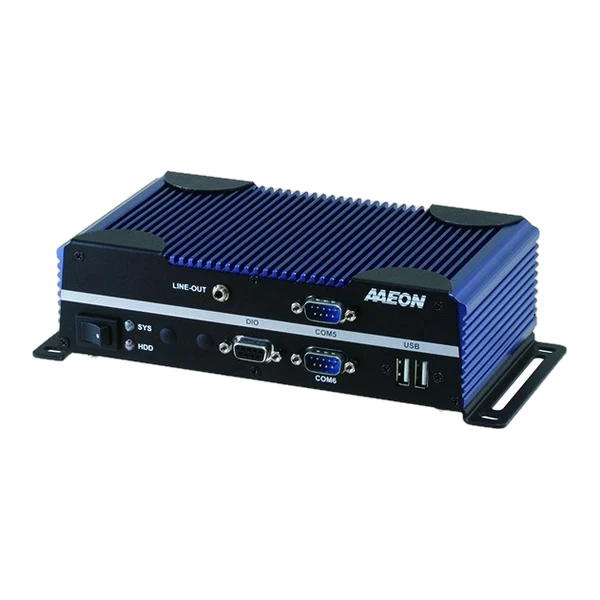

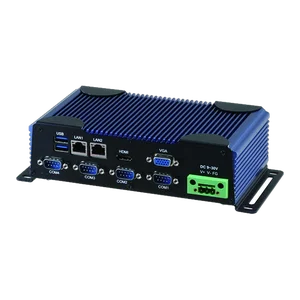

  Fanless Embedded Box PC with Intel® Pentium® N3710, 1.6 GHz

  Features

  • Intel® Pentium® N3710 1.6GHz
  • 6COMs: 2 x RS232/422/485 + 4 x RS-232
  • USB3.0 x 2, USB2.0 x 2
  • VGA + HDMI output, support dual view / simultaneous display
  • Support 2.5” drive bay x 1, mSATA
  • Support 8 channel DIO x 1
  • DDR3L 1600 SODIMM x 1, Memory Max. up to 8GB
  • AAEON’s Hi-Safe Support



  Specifications [BOXER-6615]

  SYSTEM
  CPU	Intel® Pentium® N3710 1.6GHz
  CHIPSET	Intel® System on Chip
  SYSTEM MEMORY	204-pin 1600 DDR3L SODIMM x 1, up to 8GB
  DISPLAY INTERFACE	VGA, HDMI
  STORAGE DEVICE	mSATA, 2.5″ HDD/SSD
  ETHERNET	Realtek RTL-8111E, 10/100/1000Base x2
  I/O	RS-232/422/485 x 2 RS-232 x 4 USB3.0 x 2 USB2.0 x 2 VGA x 1 HDMI x 1 DIO x 1 Line-Out x 1 Antenna holes x 2 Power switch Power input
  EXPANSION	Full-size Mini-Card x 1 Half-size Mini-Card x 1 (optional for mSATA)
  INDICATOR	Power LED HDD active LED
  OS SUPPORT	Windows® 10, Windows® 8.1 (32/64-bit), Windows® 7(32/64-bit), WES7/WES8, Win10 IOT, Linux
  POWER SUPPLY
  POWER REQUIREMENT	9 – 30V with 3-pin terminal block (A2M) 12V with lockable DC jack (A2)
  MECHANICAL
  MOUNTING	Wallmount DIN Rail (Mounting kit is optional)
  DIMENSIONS (W X H X D)	197mm(W) x 55mm(H) x 110mm(D)
  GROSS WEIGHT	6.6 lb (2.8 kg)
  NET WEIGHT	4.4 lb (2 kg)
  ENVIRONMENTAL
  OPERATING TEMPERATURE	‘-20°C ~ 60°C with W.T. SSD/HDD/mSATA (according to IEC68-2-14 with 0.5 m/s AirFlow ; with industrial devices)
  STORAGE TEMPERATURE	-4°F ~ 158°F (-20°C ~ 70°C)
  STORAGE HUMIDITY	95% @ 40°C, non-condensing
  ANTI-VIBRATION	5 Grms/ 5 ~ 500Hz/ operation –mSATA/SSD 1 Grms/ 5~ 500Hz/ operation – HDD
  CERTIFICATION	CE/FCC class A

  Ordering Information [BOXER-6615]

  PART NUMBER	BOXER- 6615-A2-1010	BOXER-6615- A2M-1010
  CPU	Intel® Pentium® N3710 1.6GHz	Intel® Pentium® N3710 1.6GHz
  RAM	—	—
  LAN	2	2
  USB 3.0	2	2
  USB 2.0	2	2
  RS- 232	4	4
  RS- 232/422/485	2	2
  DIO	8 bit	8 bit
  AUDIO	Line-Out	Line-Out
  STORAGE	SATA 2.5” HDD bay x 1 mSATA x 1 (Optional)	SATA 2.5” HDD bay x 1 mSATA x 1 (Optional)
  DISPLAY	VGA x 1 HDMI x 1	VGA x 1 HDMI x 1
  EXPANSION	Full Size Mini-Card x 1 Half Size Mini-Card x 1	Full Size Mini-Card x 1 Half Size Mini-Card x 1
  MOUNTING	Wallmount Din Rail Mounting Kit (Optional)	Wallmount Din Rail Mounting Kit (Optional)
  POWER	DC 12V	DC 9-30V
  TEMP.	-20°C ~ 60°C with W.T. SSD/HDD/ mSATA (according to IEC68-2-14)	-20°C ~ 60°C with W.T. SSD/HDD/ mSATA (according to IEC68-2-14)

  Packing List

  • Wallmount Bracket x 2
  • Screw Package x 1
  • Product DVD x 1
  • Phoenix Power Connector x 1 (For A2M, DC 9 ~30 V only)
  • BOXER-6615

  Optional Accessories

  125530060A	DC Jack for 6615-A2, Power Adapter, AC, 100/240V, 12V/5A, 60W, W/ Lock
  1255900841	3 pin for 6615-A2M, Power Adapter, AC, 100/240V, 12V/7A, 84W
  1702031802	Power Cord (US Type)
  1702031803	Power Cord (European Type)
  170203180E	Power Cord (Japanese Type)
