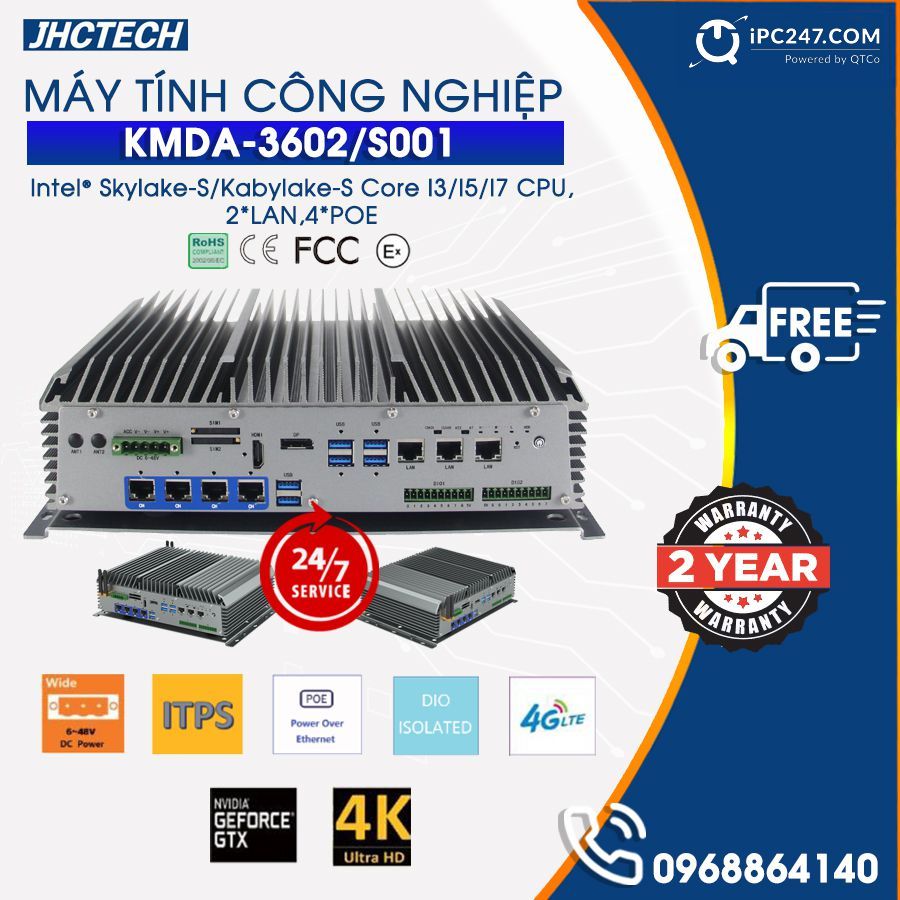

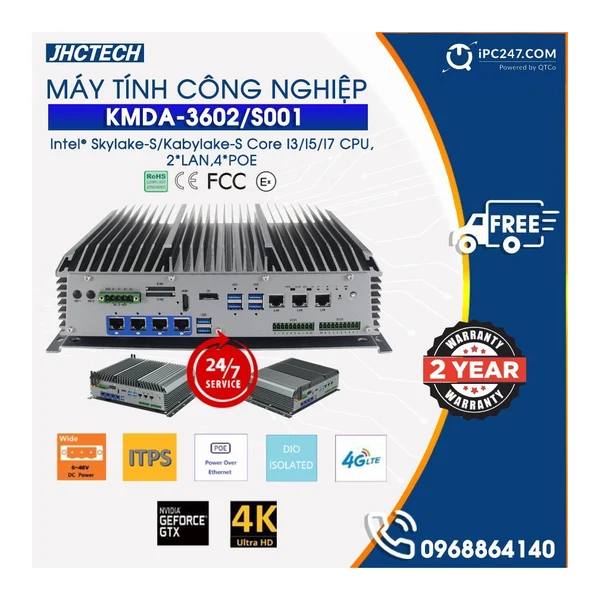

Máy tính công nghiệp không quạt KMDA-3602/S001
Feature:
- Aluminum Chassis, CPU Fanless Cooling
- Intel Kabylake-S/Skylake-S Core I3/I5/I7 CPU
- 2*DDR4 2133/ 2400MHz SODIMM, Up to 32GB
- 1*MXM 3.1 socket, support NVIDIA/AMD GPU
- CPU:1*DP+1*HDMI+1*VGA, GPU:3*DP+1*HDMI
- 3*Gig LAN,4*POE,6*USB3.0,3*USB2.0
- 2*COM,16bit Isolated DIO, Audio out and Mic
- 2*Mini PCIe(PCIe+USB),1*M.2 2242 B-Key
- 1*mSATA, 1*2.5″ SATA bay, Anti-vibration design
- DC 6~48V Wide Power, ITPS Function
Specifications:
| System | |
| CPU | Gen.6th Intel Skylake-S/gen.7th Int ®el Kabylake-S Celeron/Pentium/Core I3/I5/I7 CPU, |
| LGA 1151 socket , suffix T(TE), and consumption TDP 35W | |
| RAM | 2*260-Pin SODIMM, dual channel DDR4 2133/2400MHz, up to 32GB |
| Expansion | 1*Full size Mini PCIe with PCIe+USB and SIM slot,1*Half size Mini PCIe with PCIe+USB,1*M.2 2242 B-key with PCIe+SATA3+USB, 1*Full size mSATA(SATA3+USB), support 4G LTE/Wifi and BDS/GPS |
| Graphics | Gen. 9th Intel HD Graphics, HEVC/H265 HW HD en/decoder, DP1.2 max. res. 4096*2304@60Hz, HDMI1.4b max. res. 3840*2160@30Hz, VGA max. res. 2650*1600@60Hz, 3 independed display |
| GPU | MXM3.1 NVIDIA GTX/AMD RX series GPU module,support 3*DP1.2/1.3 and 1*HDMI1.4b/2.0 4K/5K display |
| Audio | Realtek ALC662VD controller, Audio out and MIC |
| LAN | 2*Intel I210AT PCIe Ethernet; 4*Intel I210AT POE, TDP 15.4W/port; 1*Intel I219LM support iVpro |
| Storage | 1*2.5″ HDD/SSD bay, SATA 6.0Gbps; 1*mSATA; 1*M.2 2242 B-key |
| DIO | 16 bit 2.5KV Optical Isolation DIO, 8 bit input(High:5-24V,Low:0-1.5V) and 8bit output(100mA) |
| O Ports | 7*RJ45 Gig-LAN and POE(Front) |
| 6*USB3.0 Type A (Front ); 2*USB2.0 Type A(Rear) ,1*USB2.0 Type A(Inside) | |
| 8bit DI:1*10-pin ter. connecter and 8bit DO: 1*10-pin ter. connecter(Front) | |
| 2*RS232/422/485 DB9(Rear) | |
| 1*Audio-out and 1*MIC, 3.5mm phone jack(Rear) | |
| 1*HDMI +1*DP+1*VGA(Front); 3*DP+1*HDMI(Rear) | |
| LED | 1*Power LED, 1*HDD LED, 3*CPU term. LED（Red is warning , Yellow is high, Green is normal) |
| Control SW | 1*Power button, 1*Reset button(Front);1*2pin ter. power-on signal(Rear), 1*AT/ATX select dip(Front) |
| Power Supply | DC 6~48V ITPS w/ACC signal in 5-pin ter.(Front),Consumption:TDP 24V/4.83A(I5-7500T+GTX 1060M) |
| Watchdog Timer | Watchdog timeout programmable via software from 1 to 255 seconds |
| OS Support | Windows 7, Windows 10, Linux Fedora Ubuntu |
| Mechanical | |
| Structure | Aluminum and SGCC chassis |
| Color | Silver |
| Mounting | Desktop Mounting, with Anti-Vibration plane |
| Dimension | (W*H*D)：284*222*81.2mm |
| Weight | 5.60KG |
| Environmental | |
| Operation temperature | -20°C～65°C – Fanless, 35W CPU without GPU,and with wide operating temp. SSD, airflow |
| -10°C～50°C – Fanless, 35W CPU+80W GPU | |
| Storage temperature | -40°C ~ 85°C |
| Storage humidity | 10~90%@40°C, non-condensing |
| Vibration | 5 grms/5~500Hz/random/in working status(SSD); 1 grms/5~500Hz/random/in working status(HDD) |
| Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD） |
| EMC | E-Mark, CE/FCC Class A |
| Ordering info | |
| KMDA-3602/S001 | GPU In-Vehical Computer, Intel ®Q170+SKL/KAL-S LGA1151 CPU,MXM3.1 GPU,3*LAN,4*POE,6*USB3.0,3*USB2.0, 2* COM,16*Iso. DIO,1*M.2,2*Mini PCIe, 2*HDMI,4*DP,1*VGA,Audio,2*I-port, 1*2.5″ SATA bay,1*mSATA, ITPS DC 6~48V |
| NVIDIA GT 1030 | MXM3.1 Type A, NVIDIA GT 1030, GDDR5 2GB, 64bit, 384 cuda cores |
| NVIDIA GTX 1050TI | MXM3.1 Type A, NVIDIA GTX 1050TI, GDDR5 4GB, 128bit, 768 cuda cores |
| NVIDIA GTX 1060 | MXM3.1 Type B, NVIDIA GTX 1060, GDDR5 6GB, 192bit, 1280 cuda cores |
| PA-220DC24 | AC/DC power adapter, DC 24V/9.17A 220W |
| PA-120DC19 | AC/DC power adapter, DC 19V/6.32A 120W |
