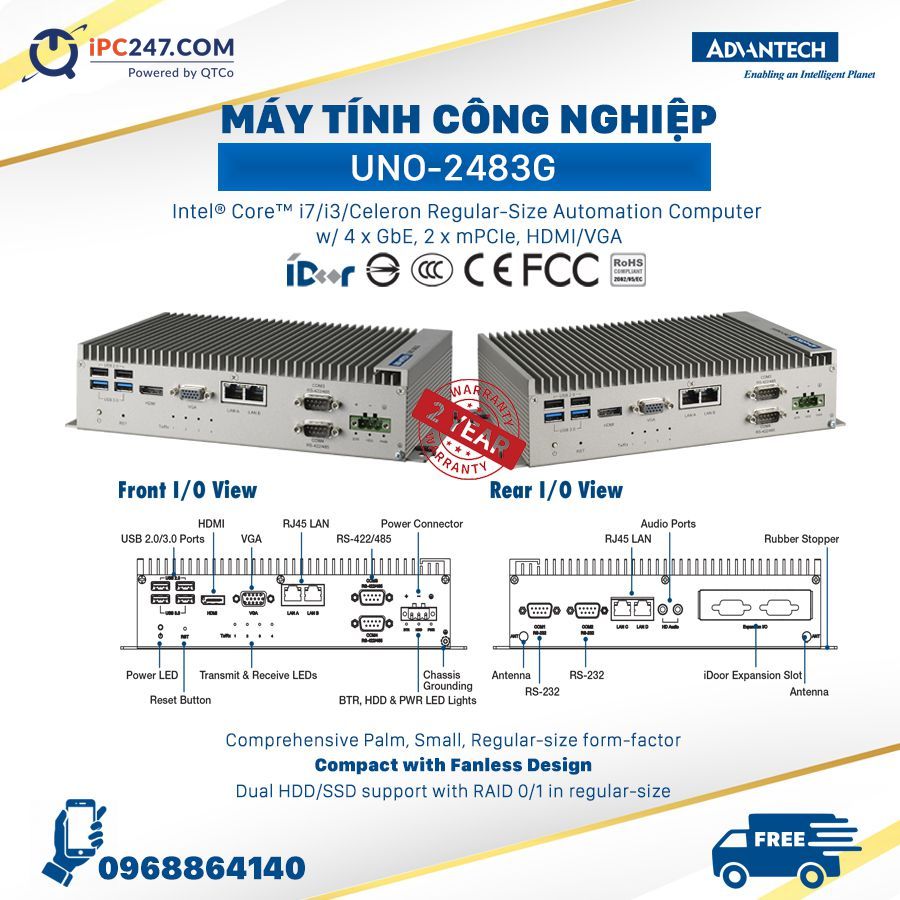

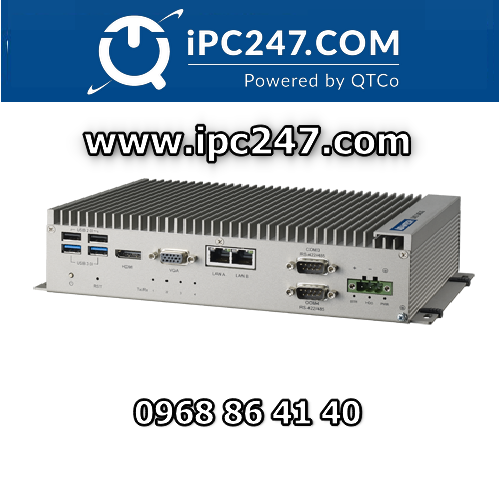

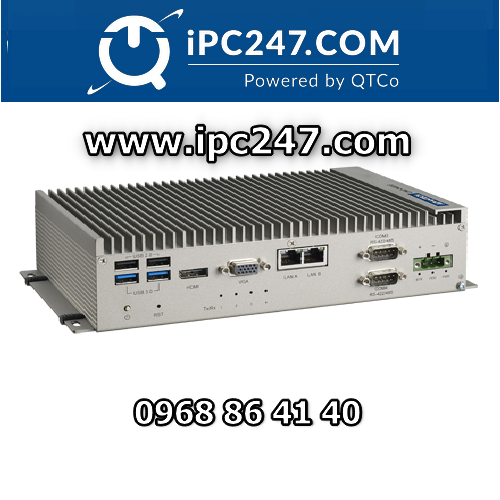

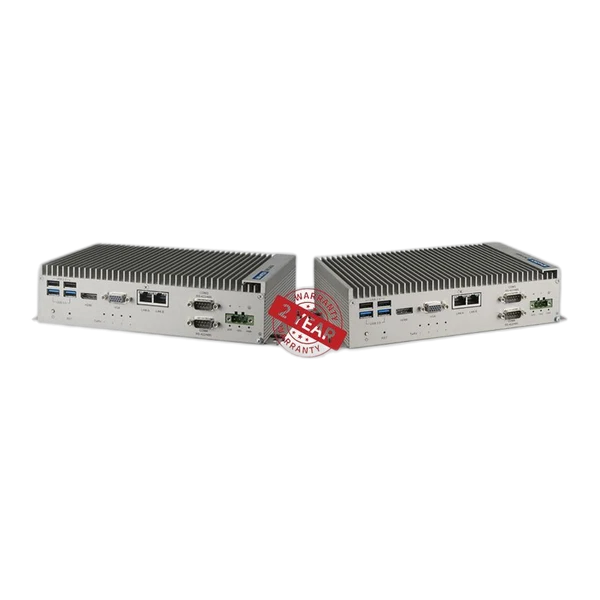

Máy tính công nghiệp không quạt UNO-2483G

Máy tính công nghiệp không quạt UNO-2483G

Intel® Core™ i7/i3/Celeron Regular-Size Automation Computer w/ 4 x GbE, 2 x mPCIe, HDMI/VGA

Hoạt động liên tục 24/7
Bảo hành 24 tháng

Mã: UNO-2483G Danh mục: Máy tính nhúng Advantech

Mô tả

Mục lục

Máy tính công nghiệp không quạt UNO-2483G

Overview

Intel® Core™ i7/i3/Celeron Regular-Size Automation Computer w/ 4 x GbE, 2 x mPCIe, HDMI/VGA

Features

4th Generation Intel® Core™ i7/i3/Celeron Processors up to 1.9GHz with 4GB/8GB DDR3L Memory

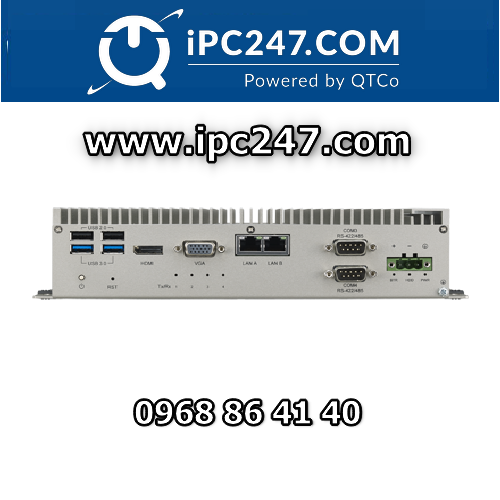

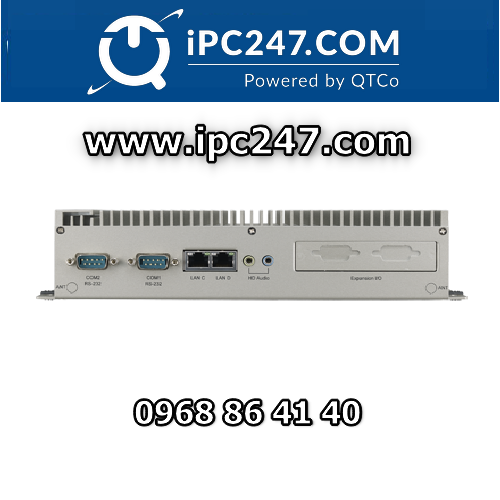

4 x GbE, 4 x USB 2.0/3.0, 2 x RS-232, 2 x RS-422/485, 1 x VGA, 1 x HDMI, Audio
Comprehensive Palm, Small, Regular-size form-factor
Compact with Fanless Design
Rubber Stopper Design with Captive Screw
Dual HDD/SSD support with RAID 0/1 in regular-size
Diverse system IO and Isolated Digital IO by iDoor Technology
Supports Fieldbus Protocol by iDoor Technology
3G/GPS/GPRS/WiFi Communication by iDoor Technology
Supports MRAM by iDoor Technology
Chassis Grounding Protection
LAN Redundancy (Teaming)
Fault-Protected RS-485 Transceivers With Extended Common-Mode Range

Specifications[UNO-2483G]

Part number	UNO-2483G-434AE	UNO-2483G-474AE	UNO-2483G-4C3AE
General	28W (Typical), 72W(Max)	28W (Typical), 72W(Max)	28W (Typical), 72W(Max)
Power Consumption	Stand, Wall, VESA (Optional)	Stand, Wall, VESA (Optional)	Stand, Wall, VESA (Optional)
Mounting	Stand, Wall, VESA (Optional)	Stand, Wall, VESA (Optional)	Stand, Wall, VESA (Optional)
Certifications	CE, FCC, UL, CCC, BSMI	CE, FCC, UL, CCC, BSMI	CE, FCC, UL, CCC, BSMI
Dimensions (W x H x D)	252 x 149 x 62 mm (9.9″ x 5.9″ x 2.4″)	252 x 149 x 62 mm (9.9″ x 5.9″ x 2.4″)	252 x 149 x 62 mm (9.9″ x 5.9″ x 2.4″)
Enclosure	Aluminum Housing	Aluminum Housing	Aluminum Housing
OS Support	Microsoft® Windows 7/8	Microsoft® Windows 7/8	Microsoft® Windows 7/8
Weight (Net)	1.6kg (3.5lbs)	1.6kg (3.5lbs)	1.6kg (3.5lbs)
Power Requirement	24VDC ± 20%	24VDC ± 20%	24VDC ± 20%
Form factor	Regular Size	Regular Size	Regular Size
System Hardware
Memory	On-board 8GB DDR3L 1333/1600 MHz	On-board 8GB DDR3L 1333/1600 MHz	On-board 4GB DDR3L 1333/1600 MHz
Storage	One mSATA, Two drive bay for SATA 2.5″ HDD (Compatible with 9.5mm height HDD), CFast drive by iDoor Technology (Optional)	One mSATA, Two drive bay for SATA 2.5″ HDD (Compatible with 9.5mm height HDD), CFast drive by iDoor Technology (Optional)	One mSATA, Two drive bay for SATA 2.5″ HDD (Compatible with 9.5mm height HDD), CFast drive by iDoor Technology (Optional)
Watchdog Timer	Programmable 256 levels timer interval, from 1 to 255 sec	Programmable 256 levels timer interval, from 1 to 255 sec	Programmable 256 levels timer interval, from 1 to 255 sec
Expansion	4 x Full-size mPCIe slot, mPCIe 2.0 (3 x Full-size and 1 x half-size)	4 x Full-size mPCIe slot, mPCIe 2.0 (3 x Full-size and 1 x half-size)	4 x Full-size mPCIe slot, mPCIe 2.0 (3 x Full-size and 1 x half-size)
BIOS	AMI UEFI 128Mbit Flash BIOS	AMI UEFI 128Mbit Flash BIOS	AMI UEFI 128Mbit Flash BIOS
Processor	Intel® 4th Gen Core™ i3-4010U ULT 1.7 GHz Dual Core, 3MB L2	Intel® Core™ i7-4650U ULT 1.7GHz Haswell Dual Core, 4MB L2	Intel® 4th Gen Celeron® 2980U ULT 1.6 GHz Dual Core, 2MB L2
System Chip	Integrated Intel 8 Series Chipset	Integrated Intel 8 Series Chipset	Integrated Intel 8 Series Chipset
Graphics Engine	Intel® HD Graphics 5000/4400	Intel® HD Graphics 5000/4400	Intel® HD Graphics 5000/4400
LED Indicators	LEDs for Power, battery, LAN (Active, Status), Tx/Rx and HDD	LEDs for Power, battery, LAN (Active, Status), Tx/Rx and HDD	LEDs for Power, battery, LAN (Active, Status), Tx/Rx and HDD
I/O Interface
Serial Ports	2x RS-232, DB9, 50~115.2kbps, 2x RS-422/485, DB9, auto flow control, 50~115.2kbps	2x RS-232, DB9, 50~115.2kbps, 2x RS-422/485, DB9, auto flow control, 50~115.2kbps	2x RS-232, DB9, 50~115.2kbps, 2x RS-422/485, DB9, auto flow control, 50~115.2kbps
LAN	4 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet	4 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet	4 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet
Audio	Line-In, Line-Out	Line-In, Line-Out	Line-In, Line-Out
USB Port	4 x USB Ports (2 x USB2.0, 2 x USB3.0 compliant)	4 x USB Ports (2 x USB2.0, 2 x USB3.0 compliant)	4 x USB Ports (2 x USB2.0, 2 x USB3.0 compliant)
Displays	1 x VGA, supports 1920×1200@60Hz 24bpp, 1 x HDMI 1.4a, supports 3200×2000@60Hz 24bpp	1 x VGA, supports 1920×1200@60Hz 24bpp, 1 x HDMI 1.4a, supports 3200×2000@60Hz 24bpp	1 x VGA, supports 1920×1200@60Hz 24bpp, 1 x HDMI 1.4a, supports 3200×2000@60Hz 24bpp
Power Connector	1 x 3 Pins, Terminal Block	1 x 3 Pins, Terminal Block	1 x 3 Pins, Terminal Block
Grounding Protection	Chassis Grounding	Chassis Grounding	Chassis Grounding
Environment
Relative Humidity	10 ~ 95% @ 40° C (non-condensing)	10 ~ 95% @ 40° C (non-condensing)	10 ~ 95% @ 40° C (non-condensing)
Ingress Protection	IP40	IP40	IP40
Vibration Protection	Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA). Operating, IEC 60068-2-64, 0.7Grms, random, 5 ~ 500Hz, 1hr/axis (HDD)	Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA). Operating, IEC 60068-2-64, 0.7Grms, random, 5 ~ 500Hz, 1hr/axis (HDD)	Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA). Operating, IEC 60068-2-64, 0.7Grms, random, 5 ~ 500Hz, 1hr/axis (HDD)
Shock Protection	Operating, IEC 60068-2-27, 50G, half sine, 11ms	Operating, IEC 60068-2-27, 50G, half sine, 11ms	Operating, IEC 60068-2-27, 50G, half sine, 11ms
Operating Temperature	-20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow	-20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow	-20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow
Storage Temperature	-40 ~ 85°C (-40~185°F)	-40 ~ 85°C (-40~185°F)	-40 ~ 85°C (-40~185°F)
