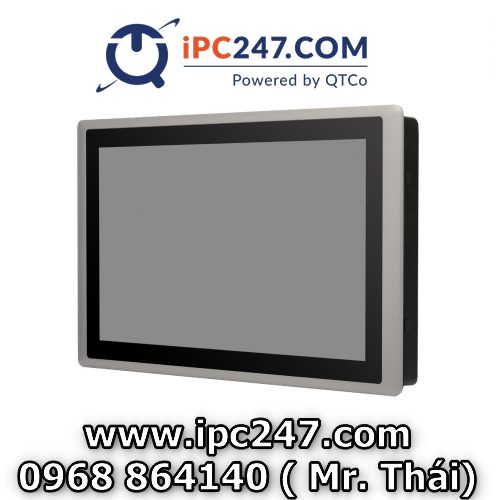

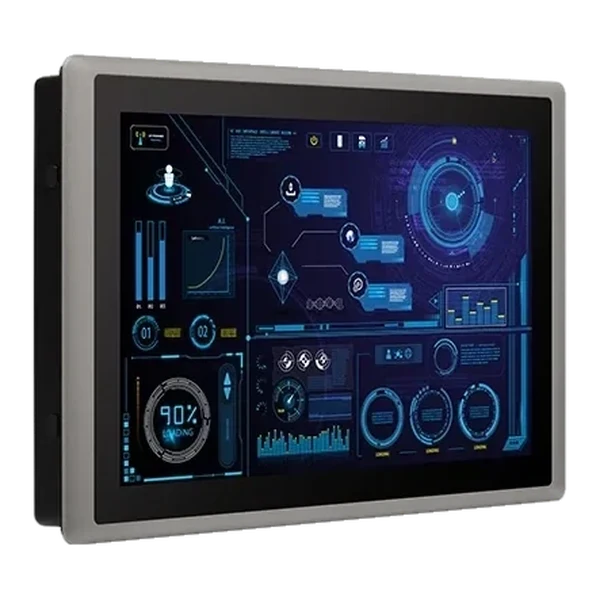

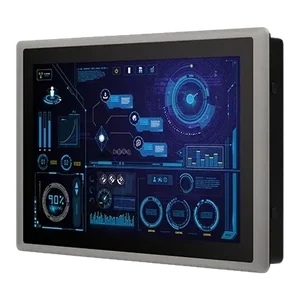

Máy tính công nghiệp màn hình cảm ứng
CV-W115/P2002
Overview

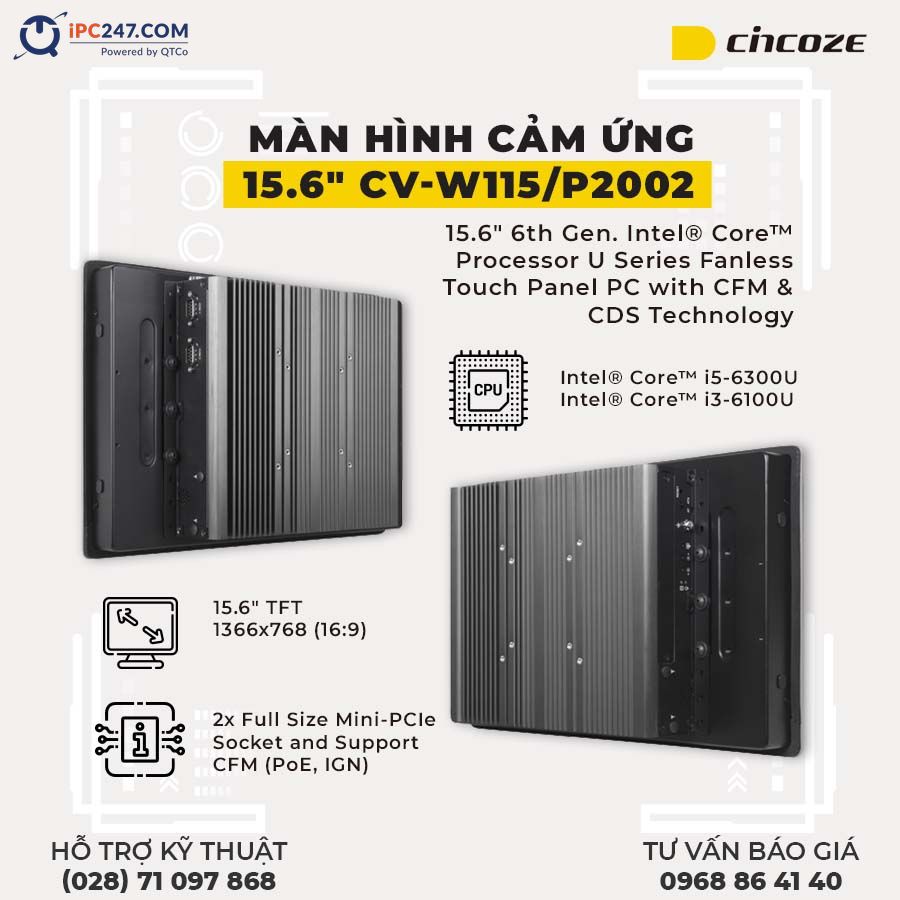

15.6″ 6th Gen. Intel® Core™ Processor U Series Fanless Touch Panel PC with CFM & CDS Technology
Features
- 15.6″ WXGA TFT-LCD with Resistive 5-wire / Projected CapacitiveTouch
- Onboard Intel® 6th Generation Core™ Processor U Series (15W)
- 2x DDR4 SO-DIMM Socket, Support Up to 32 GB
- Integrated Intel® HD Graphics 520 Support Triple Display
- 2x 2.5” SATA HDD Bay, 1x mSATA and 1x CFast Socket
- IP65 Compliant Aluminum Die-Cast Front Frame
- 2x Full-size Mini-PCIe Socket for Wireless and I/O Expansion
- Support CFM Technology for PoE and Ignition Sensing Functions
- Rich I/O (2x GbE LAN, 6x COM, 5x USB, 16x Isolated DIO)
- Support Instant Reboot Technology
- Wide Operating Temperature (0°C to 60°C)
- SuperCap integrated for CMOS Battery Maintenance-Free
Specifications
| Model Name | CV-W115/P2002 | |||
| Model No. | CV-W115R/P2002 | CV-W115C/P2002 | ||

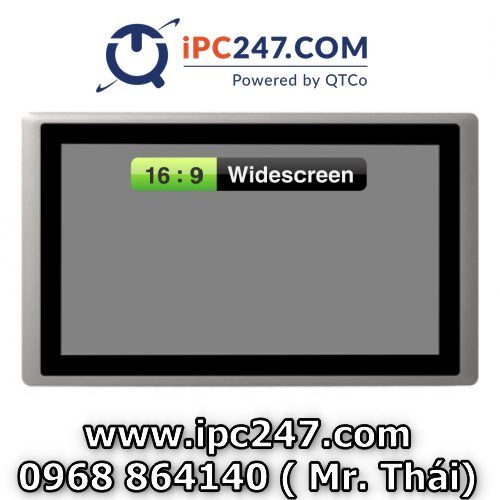

| Display | LCD Size | 15.6″ (16:9) | ||
| Max. Resolution | 1366 x 768 | |||
| Brightness (cd/m2) | 400 | |||
| Contrast Ratio | 500 : 1 | |||
| LCD Color | 16.2M | |||
| Pixel Pitch (mm) | 0.252 (H) x 0.252 (V) | |||
| Viewing Angle (H-V) | 170 / 160 | |||
| Backlight MTBF | 50,000 hrs (LED Backlight) | |||
| Touch | Resistive 5-wire | V | – | |
| Projected Capacitive | – | V | ||
| Processor System | Onboard 6th Intel® Core™ U processors (Skylake) – Intel® Core™ i5-6300U processor (3M Cache, up to 3.00 GHz) – Intel® Core™ i3-6100U processor (3M Cache, 2.30 GHz) – TDP: 15 W – BIOS: AMI 64Mbit SPI BIOS |
|||
| Memory | 2x DDR4 260-pin SO-DIMM socket, support up to 32 GB (2133MHz, un-buffered and non-ECC type) |
|||
| Graphics | Intel® HD Graphics 520 | |||
| Triple display with 1x VGA, 1x DVI-D and 1x CDS interface | ||||
| Audio | Realtek® ALC888-GR | |||
| High Definition Audio | ||||
| I/O Interface | 1x VGA (Up to 1920 x 1080 @ 60Hz), DB-15 | |||
| 1x DVI-D (Up to 1920 x 1080 @ 60Hz) | ||||
| 1x CDS Interface, Compact PCI Connector | ||||
| 2x GbE LAN (Support WoL, Teaming, Jumbo Frame and PXE), RJ45 – GbE1: Intel I219LM – GbE2: Intel I210AT |
||||
| 2x PoE+ (with Optional CFM PoE Module) – Comply with IEEE 802.3at, Offers Up to 25.5W Per Port |
||||
| 6x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9 | ||||
| 4x USB 3.0, Type-A | ||||
| 1x USB 2.0, Type-A | ||||
| 16x Isolated DIO (8x DI/8x DO), 20-Pin Terminal Block | ||||
| 1x Line-out & 1x Mic-in, Phone Jack 3.5mm | ||||
| 1x Power On/Off Switch | ||||
| 1x Reset Button | ||||
| 1x AT/ATX Switch | ||||
| 1x Remote Power On/Off Connector, 2-Pin Terminal Block | ||||
| 1x External FAN Connector, 4-Pin Terminal Block | ||||
| Storage | 2x 2.5” SATA HDD/SSD Bay, Support RAID 0/1 (Gen3) | |||
| 2x mSATA (One Shared by Mini-PCIe Socket) (Gen2) | ||||
| 1x CFast Socket (Gen3) | ||||
| Expansion | 1x CFM PoE interface | |||
| 1x CFM IGN interface | ||||
| 2x Full-size Mini-PCIe Socket | ||||
| 1x Universal I/O Bracket | ||||
| 1x SIM Socket | ||||
| 4x Antenna Hole | ||||
| Other Function | Support CDS Technology | |||
| Support CFM Technology | ||||
| Support Instant Reboot Technology (0.2 sec) | ||||
| Support Power Ignition Sensing (IGN) | ||||
| Support OSD Function (LCD On/Off, Brightness Up, Brightness Down for CDS Display Module) |
||||
| Internal Speaker AMP 2W + 2W | ||||
| SuperCap Integrated | ||||
| Watchdog Timer: Software Programmable Supports 1~255 sec. System Reset |
||||
| Power Requirement | Support AT/ATX Power Mode | |||
| Power Input Voltage 9~48VDC | ||||
| One 3-pin Terminal Block Connector | ||||
| Optional Power Adapter AC/DC 12V/5A 60W or 24V/5A 120W | ||||
| Physical | Dimension (WxHxD): 420 x 254 x 91.5 mm | |||
| Weight: 7.17 kg | ||||
| Die-cast Flat Surface | ||||
| Support Panel/Wall /Arm/ VESA / Mounting | ||||

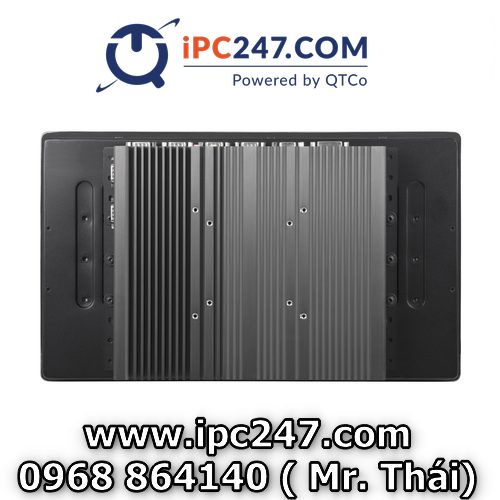

| Fanless Design | ||||
| Jumper-less Design | ||||
| Protection | Reverse Power Input Protection | |||
| Over Voltage Protection: 58V | ||||
| Over Current Protection: 15A | ||||
| ESD Protection: +/-15kV (air), +/-8kV (contact) | ||||
| Surge Protection: 3kW | ||||
| Operating Stystem | Windows® 10 Windows® 8.1 Windows® 7 |
|||
| Linux® Kernal 4.4 | ||||
| Environment | Operating Temperature: 0°C to 60°C (With extended temperature peripherals; Ambient with air flow According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) |
|||
| Storage Temperature: -20°C to 60°C | ||||
| Relative Humidity: 80% RH @ 50°C (Non-condensing) | ||||
| IP Level: IP65 Compliant Front Panel | ||||
| EMC: CE, FCC Class A | ||||
