Máy tính công nghiệp màn hình cảm ứng PPC-3100S
Overview

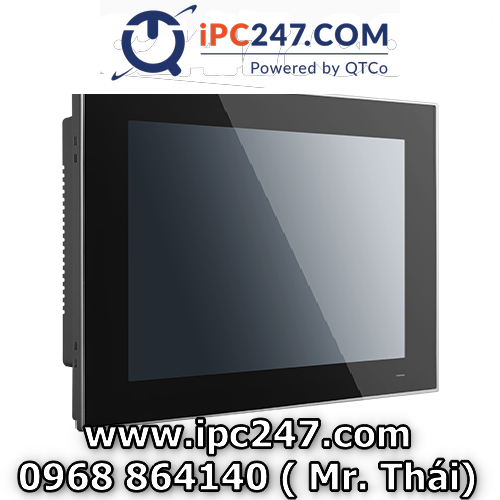

10.4″ Fanless Panel PC with Intel® Celeron® N2930 Processor
Features
- Industrial 10.4″ TFT SVGA LED panel with 30k (min.) lifetime backlight
- Durable 5-wire Resistive Touch Screen
- System memory up to 8 GB DDR3L SDRAM onboard
- Embedded Intel processor, quad core Celeron® N2930 1.83GHz onboard
- Compact Fanless Design with solid AI Alloy enclosure
- True-flat with IP65 certified front panel protection
- E-Eye Monitoring and Protection
- Supports Full-size Mini PCIe Expansion
- Supports USB 3.0
- Supports Windows Embedded and Android

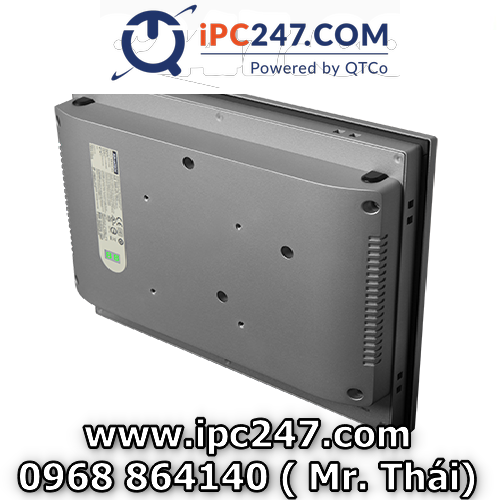

- Supports VESA 75
Specifications
| Part Number | PPC-3100S-PBE | PPC-3100S-RAE |
| Touchscreen | ||
| Touch Type | Projected capacitive 5-point multi-touch | Elo Resistive 5 wires |
| Light Transmission | 88+/-2% | 80±5% at 550 nm wavelength |
| Controller | USB interface | RS-232 interface |
| Durability (Touches) | Cover glass > 7H | Greater than 35 million touches in one location without failure |
| Power Supply | ||
| Power Consumption | 16W (Burn-in test 7.0 in Windows 7 32 bit) | 16W (Burn-in test 7.0 in Windows 7 32 bit) |
| Input Voltage | 12-24 VDC | 12-24 VDC |
| LCD Display | ||
| Colors | 16.2M/262k | 16.2M/262k |
| Viewing Angle (H/V°) | 88 (left), 88 (right), 88 (up), 88 (down) | 80 (left), 80 (right), 70 (up), 70 (down) |
| Luminance (cd/m2) | 350 | 400 |
| Contrast Ratio | 1200:01:00 | 700:01:00 |
| Max. Resolution | 1024 x 768 | 800 x 600 |
| Display Type | 10.4″ TFT LCD (LED Backlight) | 10.4″ TFT LCD (LED Backlight) |
| Backlight Lifetime | 30, 000 hrs (typical) | 30,000 hrs (Min.) |
| Environment | ||
| Relative Humidity | 10 ~ 95% RH @ 40°C, non-condensing | 10 ~ 95% RH @ 40°C, non-condensing |
| EMC | BSMI, CE, FCC Class B | BSMI, CE, FCC Class B |
| Safety | CB, CCC, BSMI, UL | CB, CCC, BSMI, UL |
| Operating Temperature | 0 ~ 50°C (32 ~ 122°F) with SSD, 0 ~ 40°C (32 ~ 104°F) with HDD | 0 ~ 50° C (32 ~ 122° F) for SSD, 0~45° C for HDD |
| Storage Temperature | -40 ~ 60°C (-40~140°F) | -40 ~ 60°C (-40~140°F) |
| Front Panel Protection | IP65 Compliant | IP65 Compliant |
| Vibration | Operating Random Vibration Test 5~500Hz, 1Grms, follow IEC 60068-2-64 | Operating Random Vibration Test 5~500Hz, 1Grms @with HDD; 2Grms @with SSD, follow IEC 60068-2-64 |
| Shock | Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27 | Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27 |
| Processor System | ||
| Memory | 1 x SO-DIMM, DDR3L 1333, Max 8 GB | 1 x SO-DIMM, DDR3L 1333, Max 8 GB |
| Frequency | 1.83 GHz | 1.83 GHz |

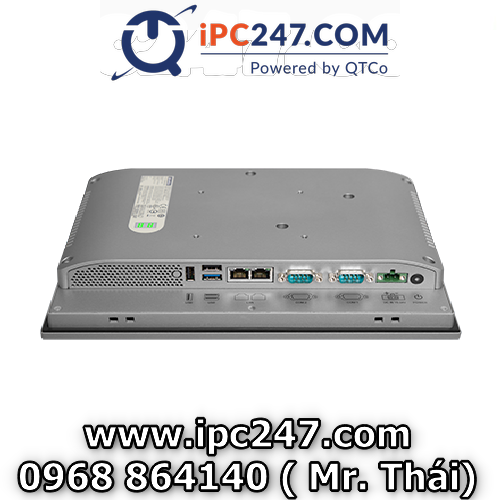

| I/O Ports | 2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS), 2 x USB 2.0; 1 x USB 3.0 | 2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS), 2 x USB 2.0; 1 x USB 3.0 |
| Network (LAN) | 2 x 10/100/1000 Mbps Ethernet (Intel I211) | 2 x 10/100/1000 Mbps Ethernet (Intel I211) |
| Storage 1 | 1 x 2.5″ SATA bay, 1 x mSATA bay | 1 x 2.5″ SATA Bay (Optional, need ordering bracket module for installation), 1 x mSATA Bay |
| Watchdog Timer | 255 timer levels; setup by software | 255 timer levels; setup by software |
| CPU | Intel Baytrail Celeron® N2930, Quad core | Intel Baytrail Celeron® N2930, Quad core |
| Expansion Slots | 1 x Full size Mini PCIe slot | 1 x Full size Mini PCIe slot |
| OS Support | ||
| OS Support | Microsoft® Windows 7 32bit&64bit/Windows 8.1 32bit&64bit/Windows 10 32bit&64bit/WES7/WEC 7/Linux/Android | Microsoft® Windows 7 32bit&64bit/Windows 8.1 32bit&64bit/Windows 10 32bit&64bit/WES7/WEC 7/Linux/Android 4.4 |
| Physical Characteristics | ||
| Dimensions | 272 x 217 x 46 mm (10.7″ x 8.5″ x 1.8″) | 272 x 217 x 46 mm (10.7″ x 8.5″ x 1.8″) |
| Weight | 1.9 Kg (4.18 lb) | 1.9 Kg (4.18 lb) |
