Overview

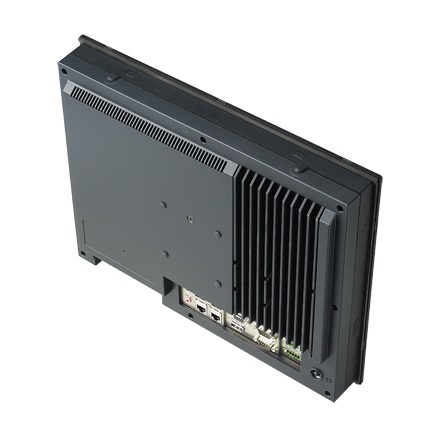

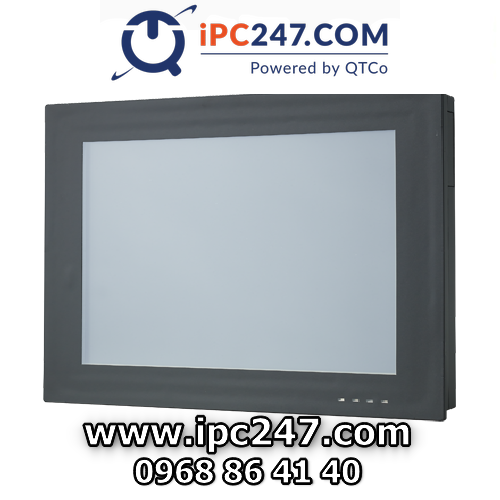

15” Fanless Panel PC with Intel Atom E3845 Processor
Features
- 15” TFT XGA LCD with resistive touchscreen
- Embedded Intel Atom Quad-Core E3845 1.91G
- Wide operating temp. range from -20~60°C

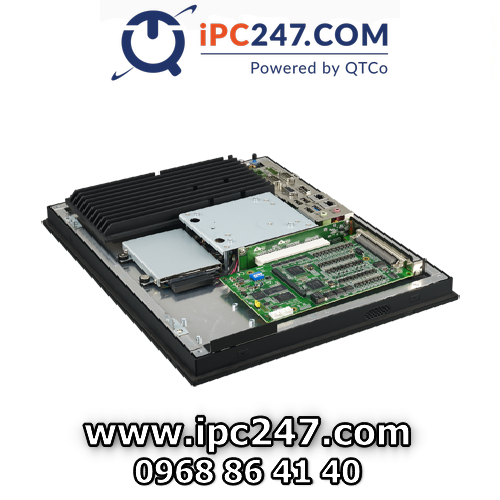

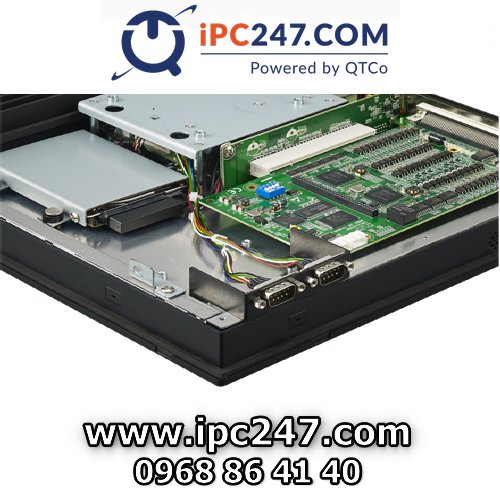

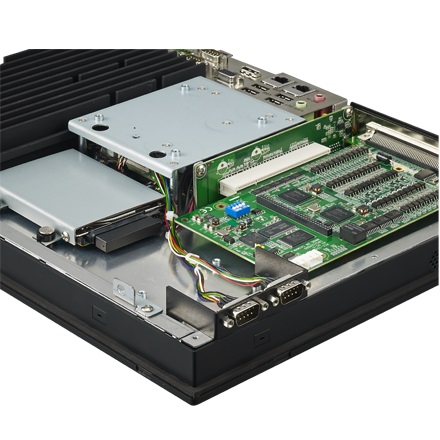

- Built-in one PCI or one PCIe x1 expansion slot
- Wide range power input for 9~32VDC
- Supports one internal 2.5” SATA HDD, one mSATA socket
- One isolated RS-422/485 with Autoflow, Dual Intel GbE
- One optional GPIO (8 channels, TTL level)
- Fanless and Slim design

Specifications
Part Number |
PPC-3150-RE4AE
|
Processor System
|
|
CPU
|
Intel® Atom™ E3845, Quad core
|
Frequency |
1.91GHz
|
L3 Cache |
2M
|
Memory |
1 x SO-DIMM, DDR3L 1333MHz,Max 8 GB
|
Storage |
1 x 2.5″ SATA Bay, 1 x mSATA Bay
|
Network (LAN) |
2 x 10/100/1000 Mbps Ethernet (Intel I210)
|

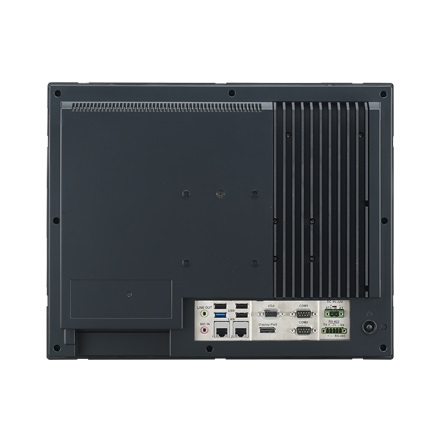

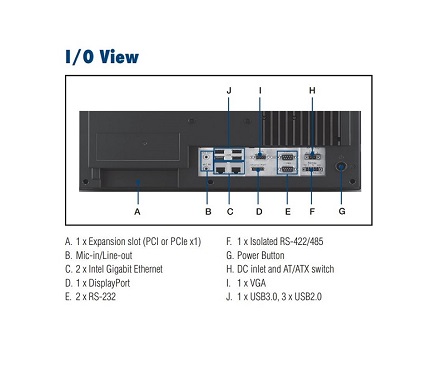

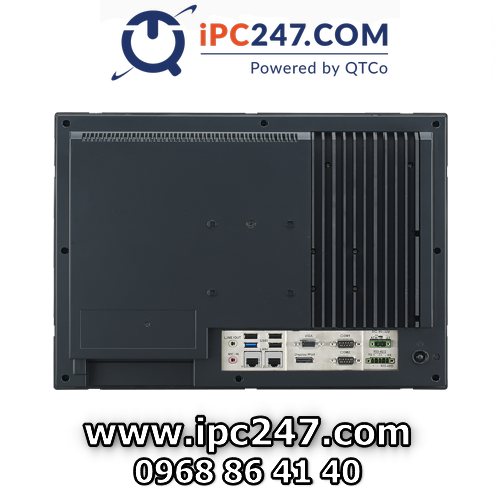

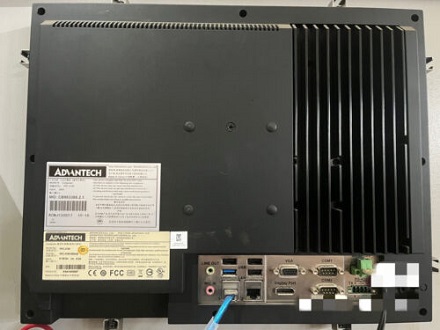

I/O Ports |
1 x isolated RS-422/485 (terminal block) 4 x RS-232, two external and two by internal pin header (need optional module), 1 x GPIO (8 channels, TTL level) by internal pin header (need optional module), 1 x USB3.0 + 3 x USB2.0, 1 x D-SUB VGA port, 1 x DP1.1a, 1 x Line-out, 1 x Mic-in
|
Expansion Slots |
1 x Mini PCIe;1 x PCIe x4 or PCI;Optional: 1 x Cfast, 1 x CF card, 1 x internal USB dongle, 2 x RS-232 or 1 x RS-232 + 1 x GPIO
|
Speaker |
2 x 1W
|
Watchdog Timer
|
|
Watchdog Timer
|
255 timer levels, set up by software
|
Physical Characteristics
|
|
Dimensions
|
396.5 x 317.6 x 65.3 (15.6″ x 12.5″ x 2.57″)
|
Weight |
5.3 Kg (11.68 lb)
|
OS Support
|
|
OS Support
|
Microsoft® WEC7/ WES7 32bit&64bit/ Windows 7 32bit&64bit/Windows 8.1 32bit&64bit/Windows 10 32bit&64bit/ Linux
|
Power Supply
|
|
Input Voltage
|
9 – 32 Vdc
|
Power Consumption |
30W (Burn-in test 7.0 in Windows 7 32 bit)
|
Display
|
|
Display Type
|
15″ TFT LED Panel
|
Max. Resolution |
1024 x 768
|
Viewing Angle |
80 (left), 80 (right), 70 (up), 70 (down)
|
Luminance (cd/m2) |
400
|
Backlight Life (hrs) |
50, 000 hrs (Min.)
|
Touchscreen
|
|
Touch Type
|
Analog Resistive 5-wire
|
Light Transmission |
80±3%
|
Controller |
USB interface
|
Durability (Touches) |
36 million
|
Environment
|
|
Operating Temperature
|
0 ~ 50°C (32 ~ 122°F) with 2.5” SATA HDD -20 ~ 60°C (-4 ~ 140°F) with -40 ~ 85°C mSATA
|
Storage Temperature |
-40 ~ 60°C (-40~140°F)
|
Relative Humidity |
10 ~ 95% @ 40° C (non-condensing)
|
Shock Protection |
Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27
|
Vibration Protection |
Operating Random Vibration Test 5~500Hz, 1Grms @with HDD, follow IEC 60068-2-64
|
EMC |
CE, BSMI, FCC Class A
|
Safety |
CB, CCC, BSMI, UL
|
Front Panel Protection |
IP65 Compliant
|
