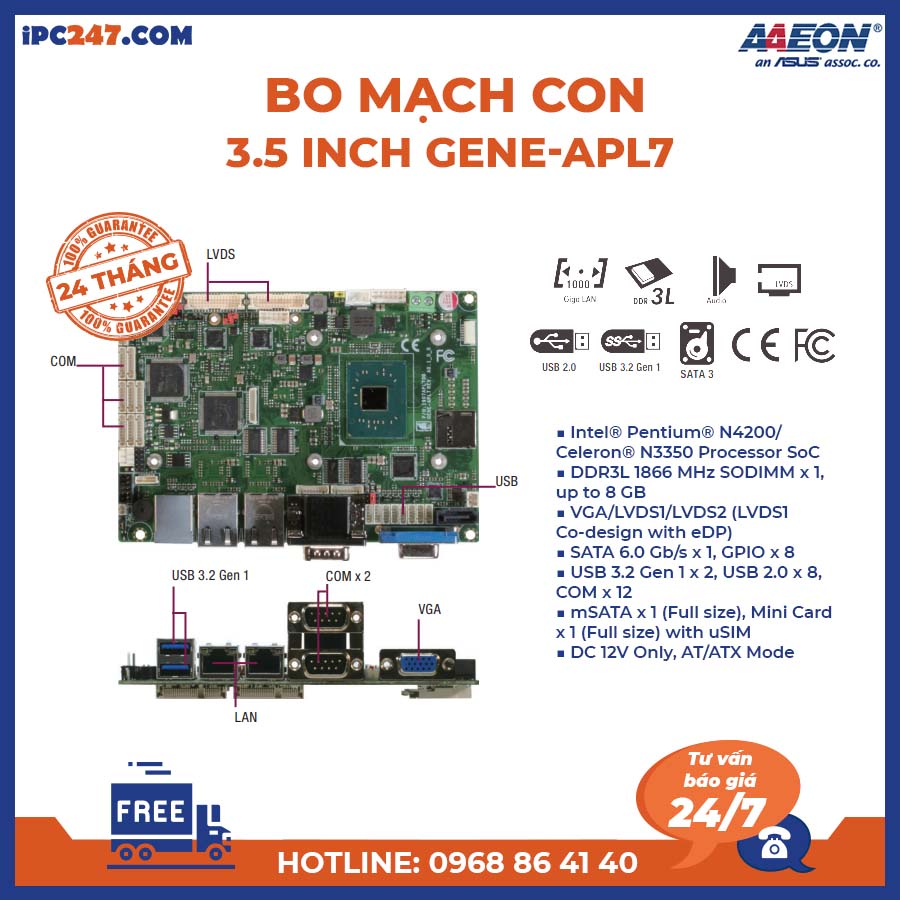

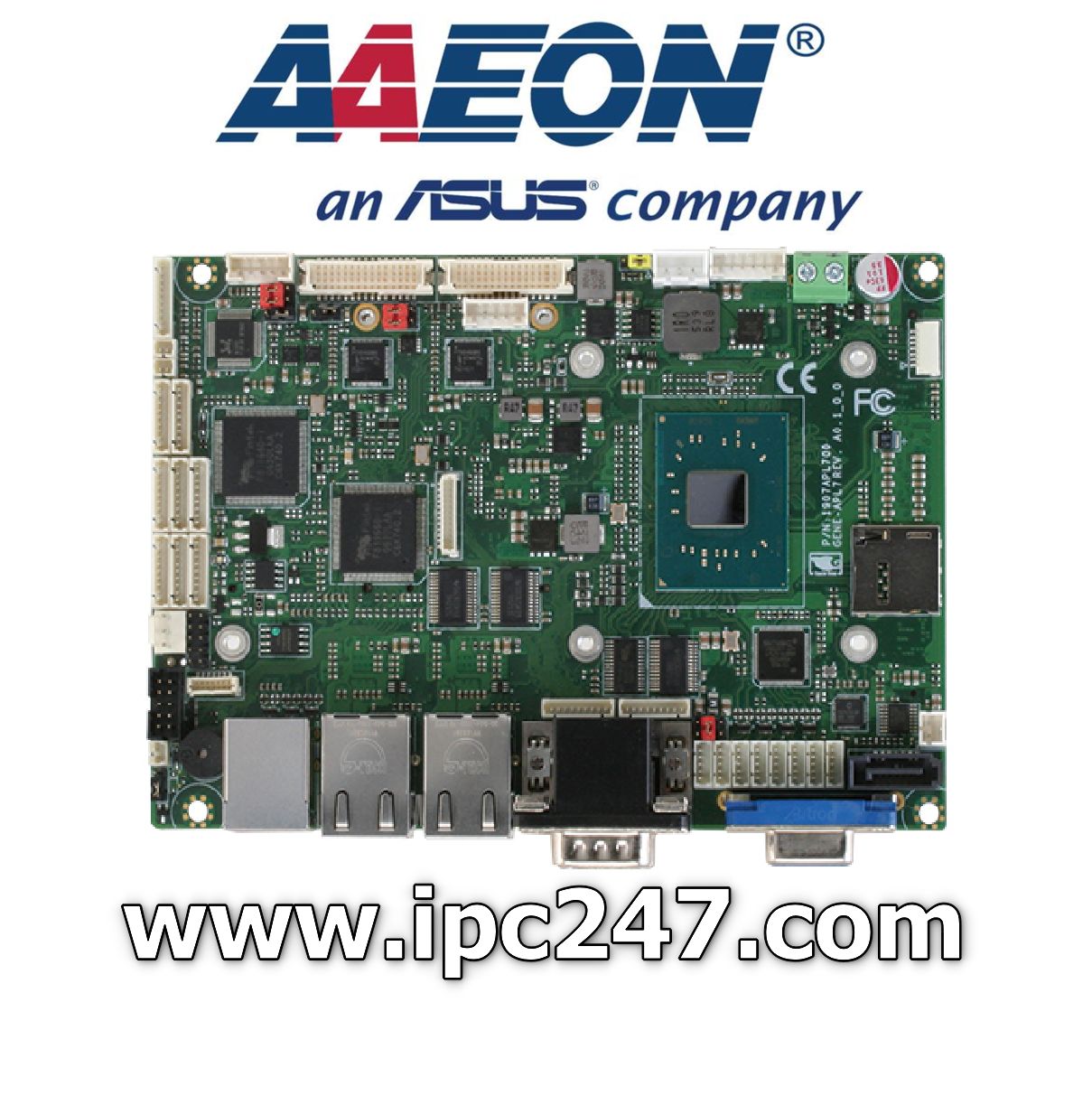

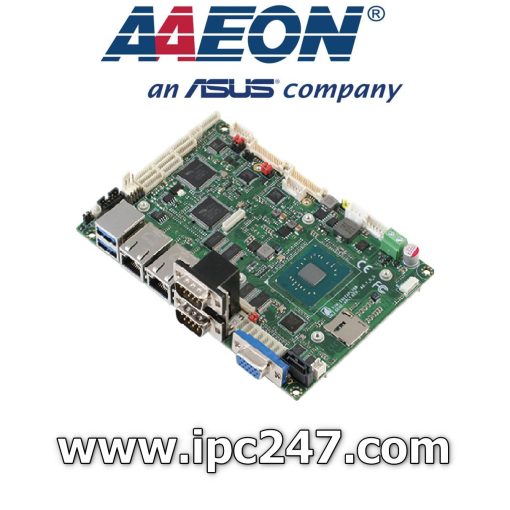

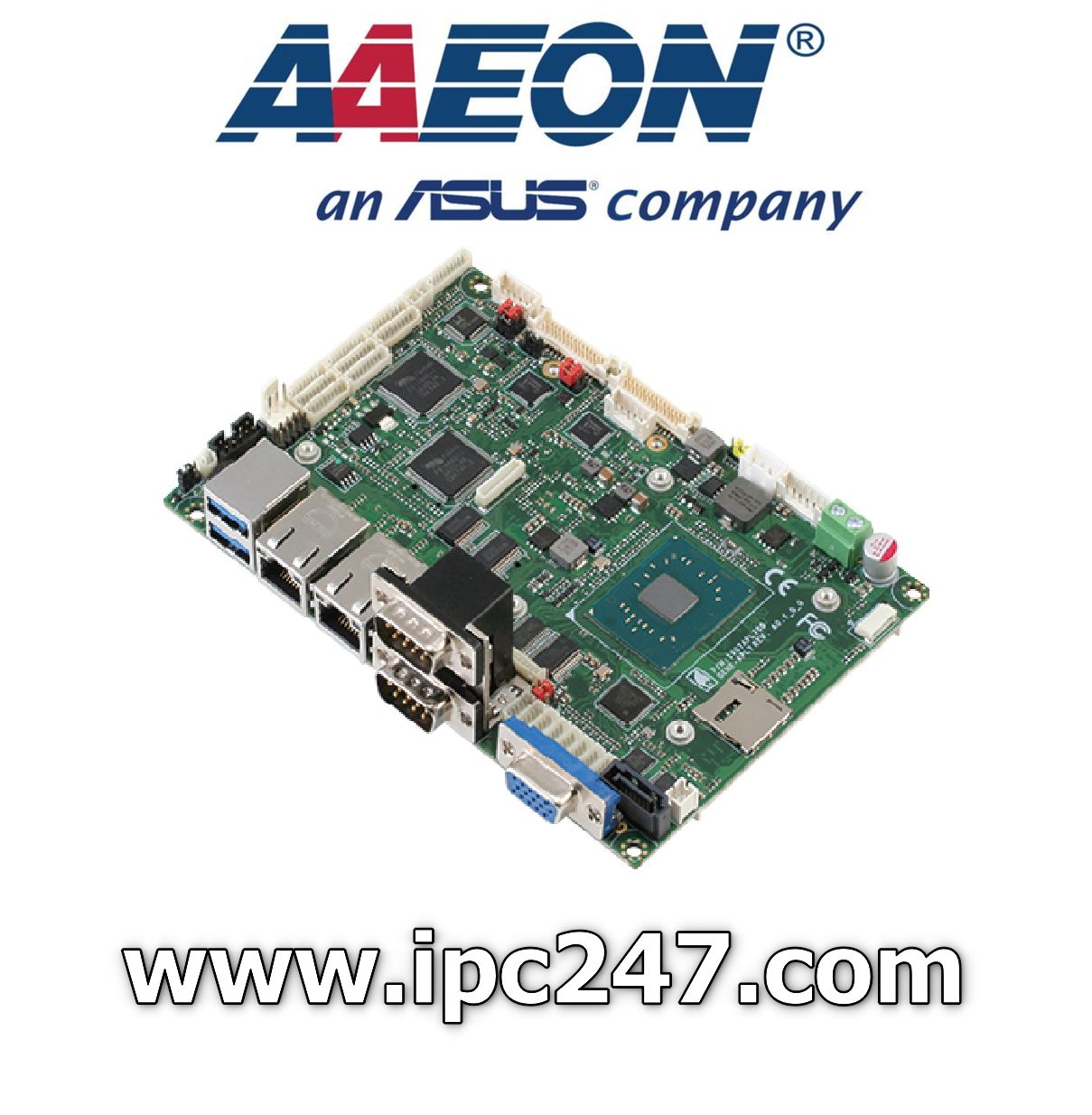

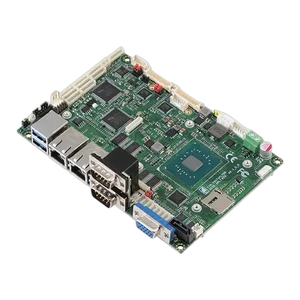

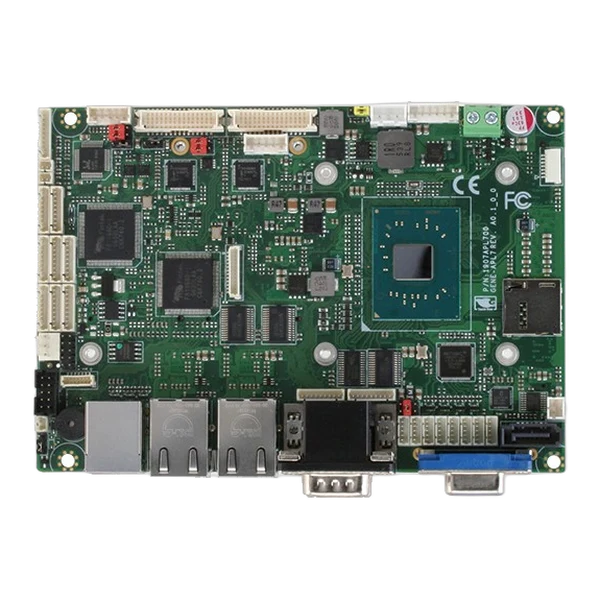

Bo mạch con 3.5 inch GENE-APL7
3.5” SubCompact Board with Intel® Pentium® N4200/ Celeron® N3350 Processor SoC
Overview
3.5” SubCompact Board with Intel® Pentium® N4200/ Celeron® N3350 Processor SoC
Features
- Intel® Pentium® N4200/ Celeron® N3350 Processor SoC
- DDR3L 1866 MHz SODIMM x 1, up to 8 GB
- VGA/LVDS1/LVDS2 (LVDS1 Co-design with eDP
- SATA 6.0 Gb/s x 1, GPIO x 8
- USB 3.2 Gen 1 x 2, USB 2.0 x 8, COM x 12
- mSATA x 1 (Full size), Mini Card x 1 (Full size) with uSIM
- DC 12V Only, AT/ATX Mode
Specifications [GENE-APL7]
| SYSTEM | |
| FORM FACTOR | 3.5″ SubCompact Board |
| CPU | Intel® Pentium® N4200/ Celeron® N3350 Processor SoC |
| CPU FREQUENCY | Up to 2.5 GHz |
| CHIPSET | Intel® Pentium® N4200/ Celeron® N3350 Processor SoC |
| MEMORY TYPE | DDR3L 1866MHz, SODIMM x 1 |
| MAX. MEMORY CAPACITY | Up to 8GB |
| BIOS | AMI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | 12V Only |
| POWER SUPPLY TYPE | AT/ ATX |
| POWER CONSUMPTION (TYPICAL) | Intel® N4200,DDR3L 1600MHz 8GB,1.61A@+12V |
| DIMENSION (L X W) | 5.75″ x 4″ (146 mm x 101.7 mm) |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 85°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 126000 |
| CERTIFICATION | CE/FCC |
| DISPLAY | |
| VGA/LCD CONTROLLER | Intel® Pentium® N4200/ Celeron® N3350 Processor SoC |
| VIDEO OUTPUT | VGA/LVDS1 (Option: LVDS2/eDP) |
| BACKLIGHT INVERTER SUPPLY | Max 12V, 2A |
| I/O | |
| ETHERNET | Realtek RTL-8111E, RJ-45 x 2 |
| AUDIO | High Definition Audio Interface (Option 2W Amp) |
| USB PORT | Rear I/O: USB 3.2 Gen 1 x 2 Internal: USB2.0 x 8 |
| SERIAL PORT | Rear I/O: COM x 2 (COM2 is RS-232/422/485) Internal: COM x 4 (Option to COM x 10) COM2-5 support 5V/12V/RI |
| PARALLEL PORT | — |
| HDD INTERFACE | SATA 3.0 x 1 |
| FDD INTERFACE | — |
| SSD | mSATA x 1 (Full, optioal for mini-card) |
| EXPANSION SLOT | Mini-card x 1 (Full size) |
| DIO | 8-bit |
| SIM | Micro SIM x 1 (Optional) |
| TPM | — |
| TOUCH | — |
Ordering Information [GENE-APL7]
| PART NUMBER | GENE-APL7-A10-0001 | GENE-APL7-A10-0002 |
|---|---|---|
| CPU | N3350 | N3350 |
| FAN/FANLESS | w/o HS | w/o HS |
| DISPLAY | VGA/LVDS | VGA/LVDS/ LVDS2 |
| LVDS | 24bit,2CH | 24bit,2CH |
| STORAGE | SATA x 1 mSATA x 1 (full size) |
SATA x 1 mSATA x 1 (full size) |
| LAN | GbE x 2 | GbE x 2 |
| USB | USB 3.2 Gen 1 x 2 USB2.0 x 8 |
USB 3.2 Gen 1 x 2 USB2.0 x 8 |
| RS-232 | 5 | 11 |
| RS-232/422/485 | 1 | 1 |
| EXPANSION SLOT | MiniCard x 1 (Full) | MiniCard x 1 (Full) |
| POWER | 12V | 12V |
| POWER TEMP | 0°C ~ 60°C | 0°C ~ 60°C |
| OTHERS | Audio, DIO x 8 | Micro SIM, DIO x 8, Audio, 2W AMP |
Downloads [GENE-APL7]
1. Datasheet
2. BIOS:
– GENE-APL7 1.3
– GENE-APL7 1.6
3. Driver
– Audio Driver: Windows10, 2019-12-30
– Chipset Driver: Win 7, Win 8, Win8.1, Win10, Win server 2008 R2(x64), Win server 2012(x64), Win server 2012 R2 (x64), Win server 2016 (x64)
– Graphics Driver:
– COM Port Driver:
– LAN Driver:
– ME & TXE Driver:
– Peripheral Driver:
4. Manual: GENE-APL6,manual 3.0
Packing List
- GENE-APL7
Optional Accessories
| Part Number | Description | QTY |
| 1700050207 | (TF)USB CABLE.1*5P Pitch=1.25mm Housinh. 20cm. for PFM-945C | 8 |
| 1701090150 | (TF)Flat Cable.D-Sub 9(M).9P Housing.9P 1.25mm pitch Housing. 15cm | 10 |
| 1709100254 | (TF)PHONE JACK Cable. 3P AUDIO JACK. 1*10P 1.25mm HOUSING(F). 25cm | 1 |
| 1702150155 | (TF)Power Cable. 15P SATA(F). 2P 2.0mm Housing(PH). 15cm | 1 |
| 170204010R | (TF)Power Cable. Double 4P 5.08mm Housing(M). 10cm | 1 |
| 1709150151 | (TF)CRT CABLE. 1*13P Pitch=1.25mm Housing. 15cm (VGA D-SUB connector co-layout with internal pin header by option) | 1 |
| GENE-APL7-HSK01 | Heatsink | 1 |
