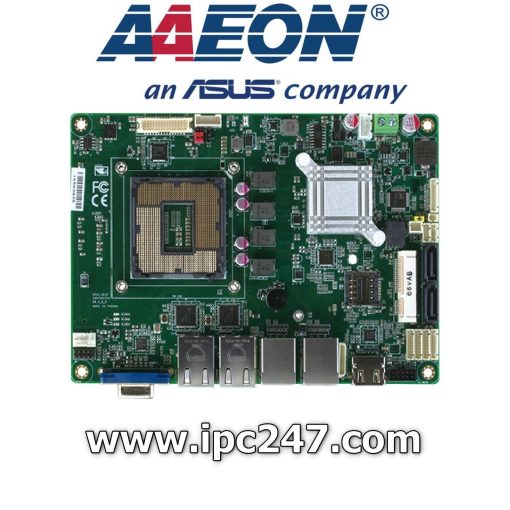

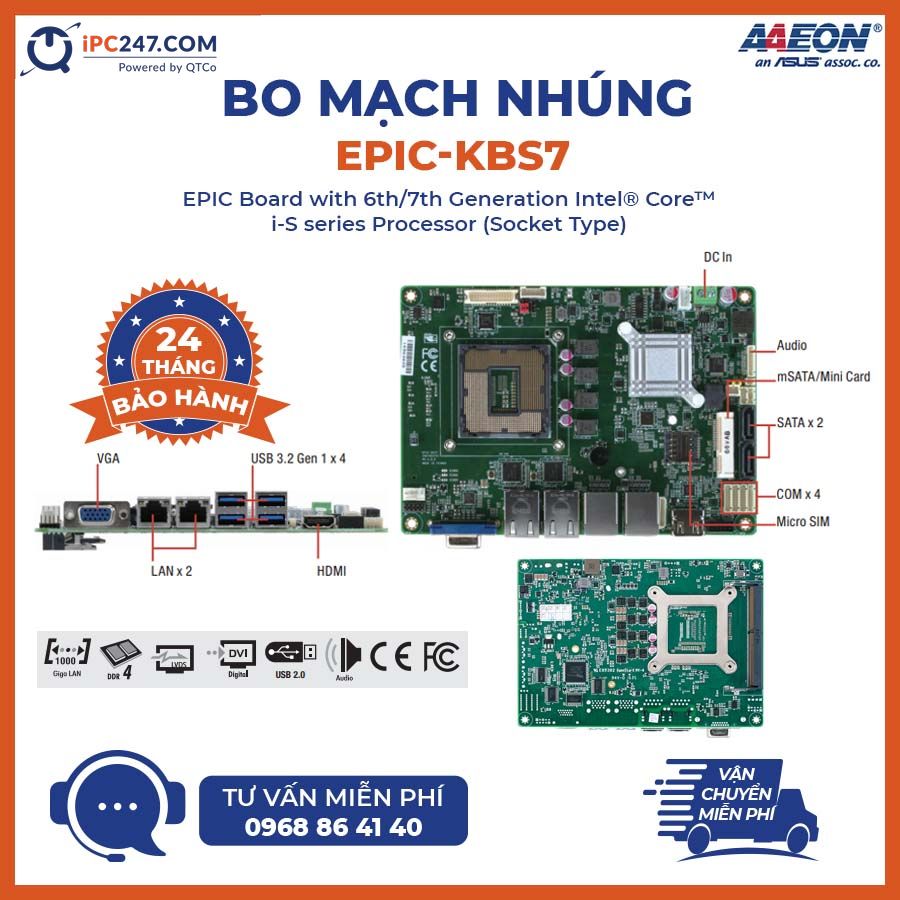

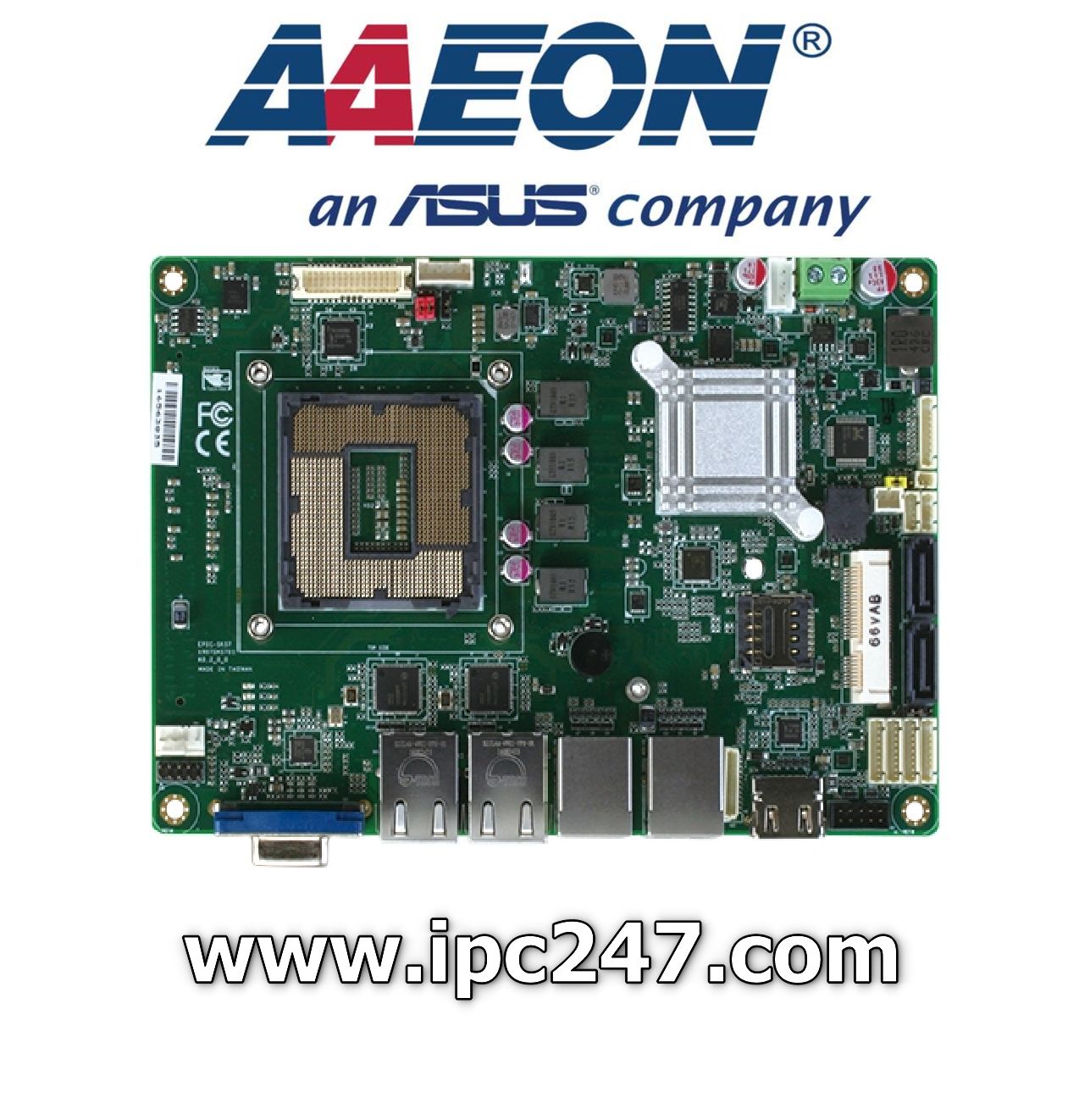

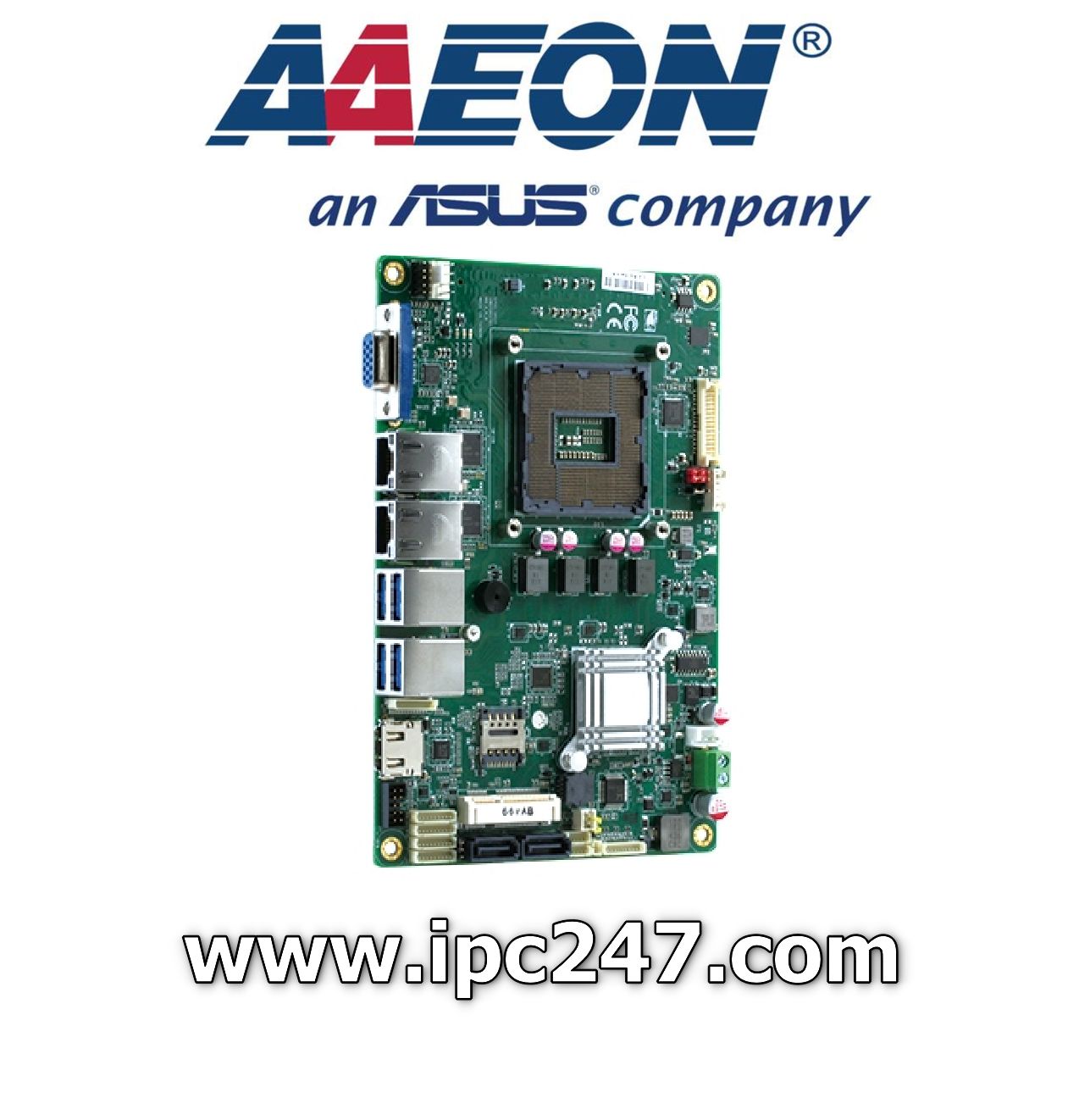

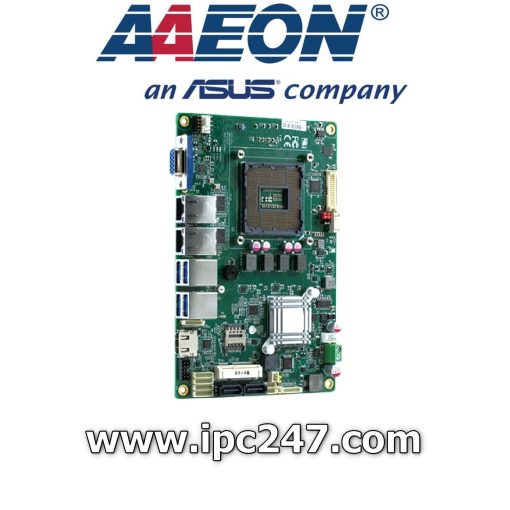

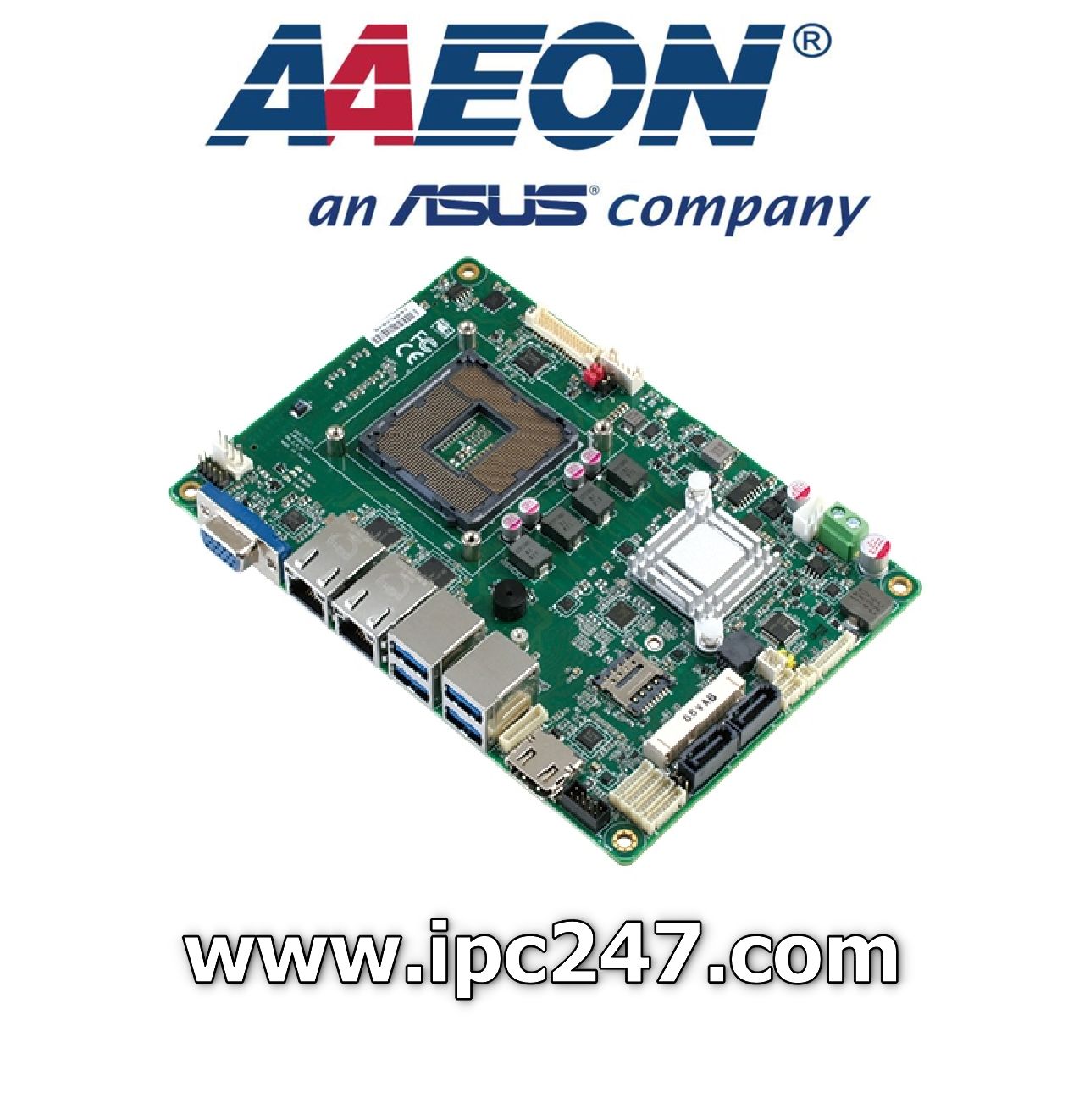

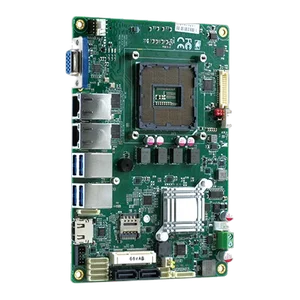

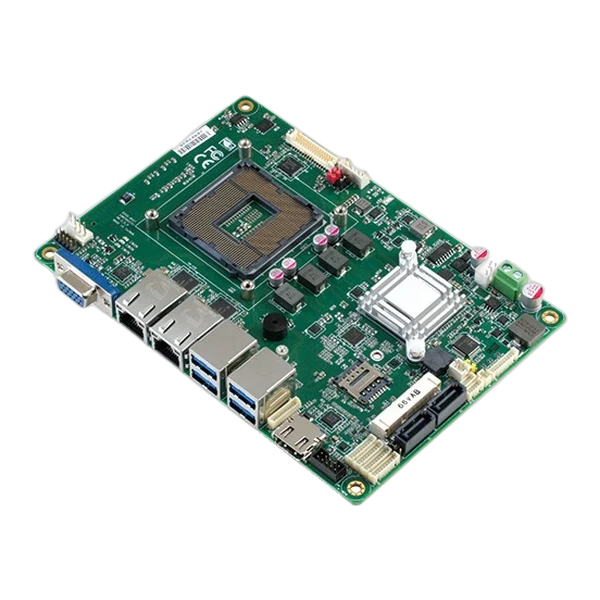

Bo mạch nhúng EPIC-KBS7
EPIC Board with 6th/7th Generation Intel® Core™ i-S series Processor (Socket Type)
Overview
EPIC-KBS7, a versatile and easily customized product that offers interchangeable CPU and I/Os, which effectively lowers the total cost of ownership (TCO) by up to 20% in system assembly. The EPIC-KBS7 provides interchangeable CPUs and a highly dynamic design, allowing the customer to easily tailor and customize according to their needs.
Fitting everything onto a nifty 4 inch board, the EPIC-KBS7 uses a highly dynamic and durable system assembly model to achieve I/O flexibility beyond typical industrial requirements. Designed to shorten lead-time and decrease prototyping manufacturing time costs, the EPIC-KBS7 is a small but powerful form factor in a compact and highly efficient design that will meet the demands of the ever-changing landscape in smart industrial management and automation.
Connectivity includes 4 USB 3.0 ports, 2 USB 2.0 ports and 2 Giga LAN Ports, along with VGA, HDMI, LVDS, SATA and COM support. The pin compatible socket type Kabylake design enables a wide choice of interchangeable CPUs to select from, fulfilling and surpassing customer needs. Additionally, the EPIC-KBS7 supports a wide voltage power input ranging from 9-24V as well as an operational temperature range of 0-60°C, making it the ideal choice for industrial factory environments. Turnaround time is effectively decreased as the only time required for board design is i/o board manufacturing, therefore enabling quick customization.
The EPIC-KBS7 is geared toward the machine vision niche of industrial automation. Its uses can be applied to surveillance systems, data collection and assimilation, and cyber control systems, and this comprehensive pack all comes together in a mere 4 inch board, which will really decrease manufacturing costs and accelerate the time it takes for designs to launch.
Features
- 6th/7th Generation Intel® Core™ i-S series Processor (Socket Type)
- 12V, 9-24V Wide Voltage, Non-ECC DDR4 SODIMM x 1 (Up to 16 GB)
- Basic VGA/HDMI/LVDS Display
- USB 3.2 Gen 1 x 4, USB 2.0 x 2, Good for Machine Vision
- mSATA/Mini-PCIe Full Size x 1 (Default: mSATA, BOM change for H110)
- mSATA/Mini-PCIe Full Size x 1 (Default: mSATA, BIOS Selection for Q170)
- HDA, SATA x 2, GPIO x 8, COM x 4
Specifications [EPIC-KBS7]
| SYSTEM | |
| FORM FACTOR | EPIC |
| CPU | 6th/7th Generation CPU (Socket Type, TDP 35W, 54W Only) |
| CPU FREQUENCY | 6th/7th Generation Intel® Core™ i3/i5/i7/Celeron® |
| CHIPSET | H110, Q170 (6W) |
| MEMORY TYPE | DDR4 (Non-ECC), 2133MHz |
| MAX. MEMORY CAPACITY | Up to 16GB |
| BIOS | AMI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | 12V or 9-24V (Default) |
| POWER SUPPLY TYPE | AT/ ATX |
| POWER CONSUMPTION (TYPICAL) | 50W@Full loading |
| DIMENSION (L X W) | 4.53″ x 6.50″ (115mm x 165mm) |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 110,000 |
| CERTIFICATION | CE/FCC |
| DISPLAY | |
| VGA/LCD CONTROLLER | 6th/7th Generation Intel® Core™ i3/i5/i7/Celeron® |
| VIDEO OUTPUT | CRT/LVDS/HDMI |
| BACKLIGHT INVERTER SUPPLY | Max. 12V |
| I/O | |
| ETHERNET | LAN x 2 (Real IO) (i211 x 2) |
| AUDIO | ALC892, no Amp |
| USB PORT | USB 3.2 Gen 1 x 4 (Real IO) USB 2.0 x 2 (Internal) |
| SERIAL PORT | COM x 4 (COM2: RS-232/422/485) |
| PARALLEL PORT | — |
| HDD INTERFACE | SATA 3.0 x 2, SATA Power (5V) |
| FDD INTERFACE | — |
| SSD | mSATA x 1 (optional for mini-Card) |
| EXPANSION SLOT | Mini-card x 1, Micro SIM x 1 (Optional ) |
| PWM LCD SUPPORT | — |
| DIO | 8-bit |
| TPM | — |
| TOUCH | — |
Ordering Information [EPIC-KBS7]
| PART NUMBER | EPIC-KBS7-A10-0001(STANDARD, H110) | EPIC-KBS7-A10-0002(ADVANCED, Q170) |
|---|---|---|
| CPU | LGA1151 (Socket Type) | LGA1151 (Socket Type) |
| MEMORY | DDR4 (Max 16G) | DDR4 (Max 16G) |
| THERMAL | FAN | FAN |
| DISPLAY | VGA + HDMI | VGA + LVDS + HDMI |
| LVDS | — | 24bit, 2CH |
| STORAGE | SATA x 2 | SATA x 2 |
| LAN | GbE x 2 | GbE x 2 |
| USB | USB 3.2 Gen 1 x 4 USB2.0 x 2 |
USB 3.2 Gen 1 x 4 USB2.0 x 2 |
| RS-232 | 3 | 3 |
| RS-232/422/485 | 1 | 1 |
| EXPANSION SLOT | mSATA x 1 (Mini-PCIe by BOM Change) | mSATA/miniCard x 1 |
| POWER | 9-24V | 9~24V |
| OPERATING TEMP | 0°C ~ 60°C | 0°C ~ 60°C |
| OTHERS | DIO x 8 | Micro-SIM, DIO x 8 |
Downloads [EPIC-KBS7]
1. Datasheet
2. BIOS:
– EPIC-KBS7
-EPIC-KBS7 2.1
3. Driver
-Chipset Driver: Windows 7 64, Windows 7 32, Windows 8 64, Windows 10 32, Windows 10 64
-Graphic Driver: Windows 7 64, Windows 7 32, Windows 8 64, Windows 10 64
-Lan Driver: Linux, Windows 7 64, Windows 7 32, Windows 8 32, Windows 8 64, Windows 10 32, Windows 10 64
-Audio Driver: Windows 7 64, Windows 7 32, Windows 8 32, Windows 8 64, Windows 10 32, Windows 10 64
-USB3.0 Driver: Windows 7 64, Windows 7 32, Windows 8 64
-Serial Port Driver (Optional) Driver: Windows 7 64, Windows 7 32, Windows 8 64
-ME Driver: Windows 7 64, Windows 7 32, Windows 8 64
4. Manual: EPIC-KBS7, manual 3.0
Packing List
- SATA Cable, Length 50cm (1709070500)
- SATA Power Cable, Length 15cm (1702150155)
- Jumper Cap (9657666600)
- EPIC-KBS7
Optional Accessories
| Part Number | Description | QTY |
| 1702002010 | Power Cable (2pin), Length 10cm | 1 |
| 1709100254 | Audio Cable (3pin), Length 25cm | 1 |
| 1700050207 | USB Cable (5pin), Length 20cm | 4 |
| 1701090150 | COM Cable (9pin), Length 15cm | 4 |
| EPIC-KBS7-FAN01 | 79*79*61mm. Silver. Recommended for operating temperature 0°C ~ 60°C (54W/35W) | 1 |
| EPIC-KBS7-FAN02 | 60*60*30mm.Silver.Recommended for operating temperature 0°C ~ 55°C (35W) | 1 |
