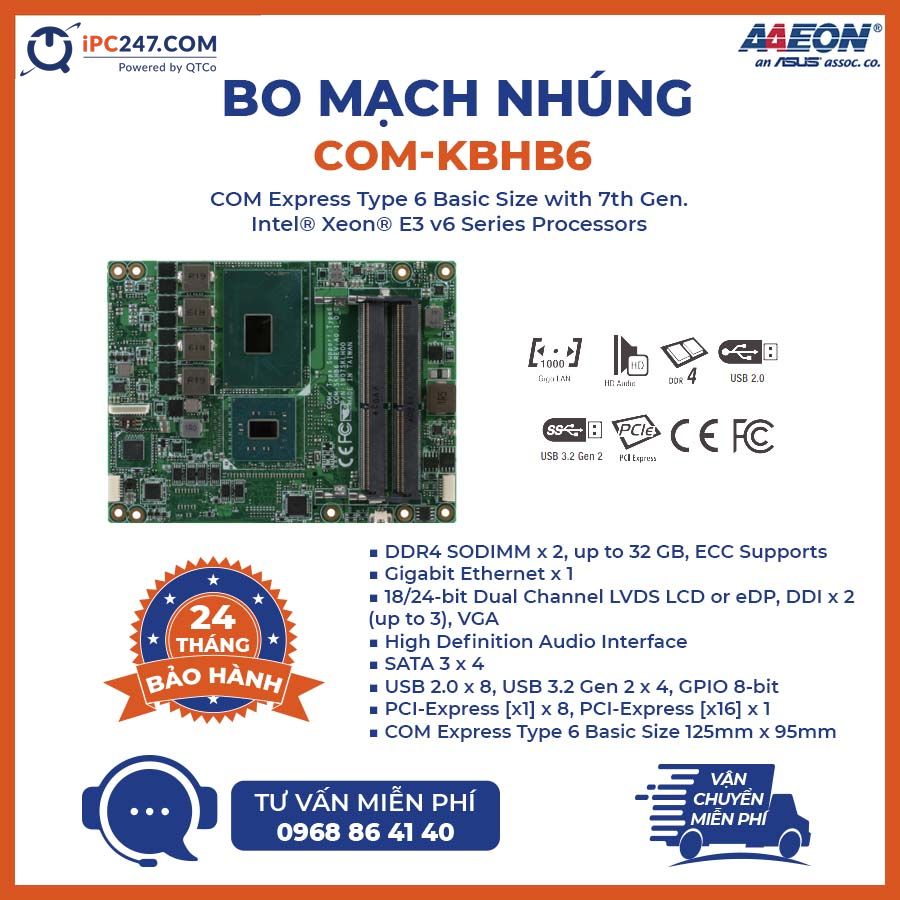

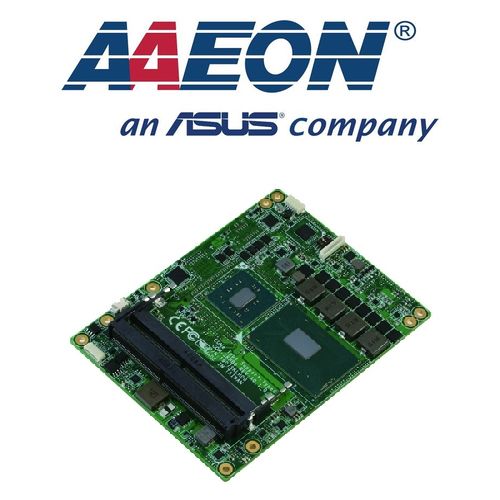

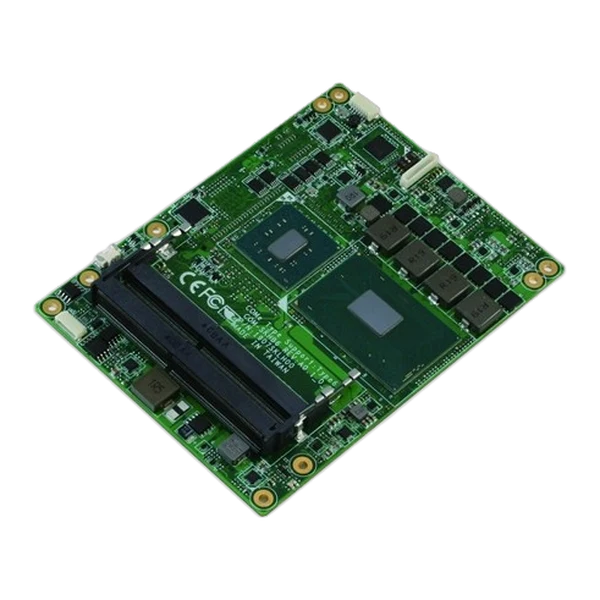

COM Express Modules COM-KBHB6
Overview
- COM Express Type 6 Basic Size with 7th Gen. Intel® Xeon® E3 v6 Series Processors
Features
- Intel® XEON E3-1505M v6 Processor with PCH CM238
- DDR4 SODIMM x 2, up to 32 GB, ECC Supports
- Gigabit Ethernet x 1
- 18/24-bit Dual Channel LVDS LCD or eDP, DDI x 2 (up to 3), VGA, High Definition Audio Interface
- SATA 3 x 4
- USB 2.0 x 8, USB 3.2 Gen 2 x 4, GPIO 8-bit, PCI-Express [x1] x 8, PCI-Express [x16] x 1
- COM Express Type 6 Basic Size 125mm x 95mm
Specifications [COM-KBHB6]
| SYSTEM | |
| FORM FACTOR | COM Express Basic Size |
| CPU | Onboard 7th Gen. Intel® XEON E3 v6 Series Processors, E3-1505M v6 4c/3.0 GHz |
| CPU FREQUENCY | Up to E3-1505M v6, 4.0 GHz |
| CHIPSET | Onboard 7th Generation Intel® CM238 PCH |
| MEMORY TYPE | DDR4, SO-DIMMx2, ECC support, up to 2400 |
| MAX. MEMORY CAPACITY | 32GB |
| BIOS | AMI BIOS |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | Nominal: +12V |
| POWER SUPPLY TYPE | AT/ ATX |
| POWER CONSUMPTION (TYPICAL) | E3-1505M v6 3.0 GHz, DDR4 16GB, 3.7A@12V (during full loading mode) |
| DIMENSION (L X W) | 4.92” x 3.75” (125mm x 95mm) |
| OPERATING TEMPERATURE | 32 °F ~ 140 °F (0 °C ~ 60 °C) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 80000 |
| CERTIFICATION | CE/FCC Class A |
| DISPLAY | |
| VGA/LCD CONTROLLER | Intel® HD Graphics P630 |
| VIDEO OUTPUT | VGA, LVDS or eDP, DDI x2 |
| I/O | |
| ETHERNET | Intel® 219LM, Gigabit Ethernet |
| AUDIO | High Definition Audio |
| USB PORT | USB 2.0 x 8, USB 3.2 Gen 2 x 4 |
| SERIAL PORT | 2-Wire UART (Tx/Rx) x 2 |
| HDD INTERFACE | SATA 3 x 4 |
| EXPANSION SLOT | PCIe[x16] x 1, PCIe[x1] x 8, I2C, LPC, SMBus |
| GPIO | 8-bit |
| ONBOARD STORAGE | — |
| TPM | Optional |
Ordering Information [COM-KBHB6]
| PART NUMBER | COM-KBHB6-A10-0004 |
|---|---|
| COM EXPRESS TYPE | Type 6 |
| CPU | E3-1505M v6 |
| MEMORY | DDR4 SO-DIMM x2 (ECC Suport) |
| DISPLAY | VGA, LVDS or eDP, DDI x2 (Up to 3) |
| LVDS | 18/24b 2CH (LVDS shared with eDP) |
| STORAGE | SATA 3 x4 |
| LAN | GbE x1 |
| USB | USB 3.2 Gen 2 x4 USB 2.0 x8 |
| UART | 2-Wire (Tx/Rx) x2 |
| EXPANSION | PCIe[x16] x1, PCIe[x1] x8, I2C, LPC, SMBus |
| POWER | 12V |
| TEMPERATURE | 0°C ~ 60°C |
| OTHER | — |
Packing List
- COM-KBHB6
Optional Accessories
| Part Number | Description |
| ECB-920A-A10-0001 | COM Express Type 1/6/10 Carrier Board, Gigabit Ethernet, USB, 2 COM, 4 SATA, PCIe, AT/ATX, Legacy Free, Rev. A1.0 |
| COM-KBHB6-HSP01 | Heat Spreader, For COM-KBHB6, Onboard CPU |
| COM-FAN01 | CPU Cooler, 45W, for COM Express Basic size, to be used with Heat Spreader |
CPU Support Chart
| CPU | Core / Thread | Base Frequency | Max Turbo Frequency | Graphic |
| E3-1505M v6 | 4c/8t | 3.0 | 4.0 | Intel® HD Graphics P630 |
| E3-1505L v6 | 4c/8t | 2.2 | 3.0 | Intel® HD Graphics P630 |
| i7-7820EQ | 4c/8t | 3.0 | 3.7 | Intel® HD Graphics 630 |
| i5-7440EQ | 4c/4t | 2.9 | 3.6 | Intel® HD Graphics 630 |
| i5-7442EQ | 4c/4t | 2.1 | 2.9 | Intel® HD Graphics 630 |
| i3-7100E | 2c/4t | 2.9 | — | Intel® HD Graphics 630 |
| i3-7102E | 2c/4t | 2.1 | — | Intel® HD Graphics 630 |
