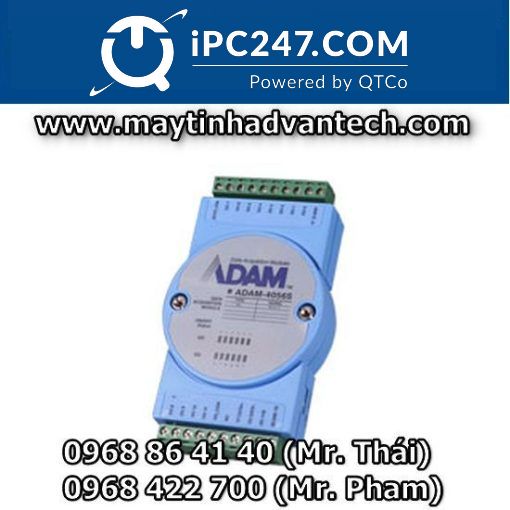

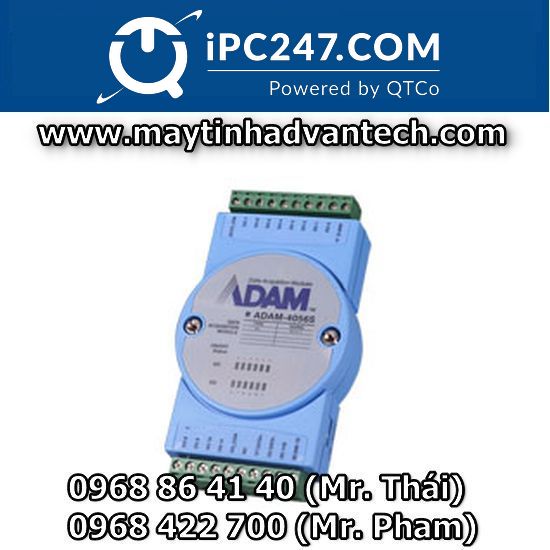

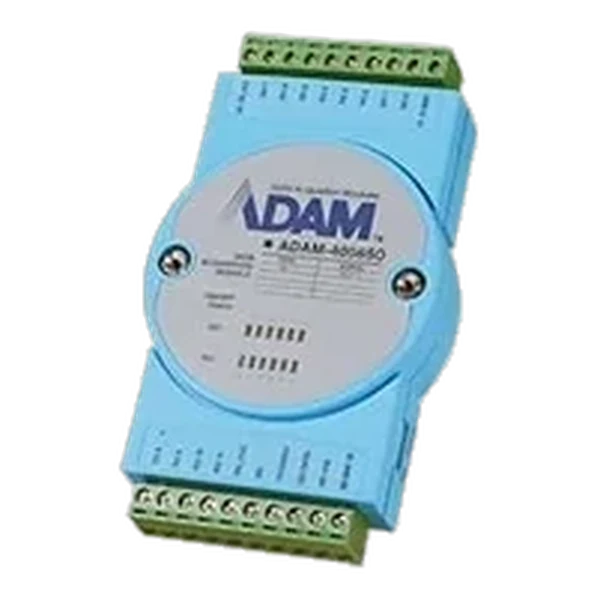

Bộ thu thập tín hiệu Digital ADAM-4056S

Name: Bộ thu thập tín hiệu Digital ADAM-4056S
SKU: ADAM-4056S

12-ch Sink Type Isolated Digital Output Module with Modbus

Mã: ADAM-4056S Danh mục: Thiết bị kết nối mạng Advantech

Bộ thu thập tín hiệu Digital ADAM-4056S

Display	LED Indicators	Power, DO
Power Supply	Power Requirement	10~30 VDC
General	Watchdog Timer	System (1.6 second) & Communication
	Connector	2 x plug-in terminal block (#14~22 AWG)
	Temperature (Operating)	-10~70 °C (14~158 °F)
	Humidity	5~95 %RH
	Temperature (Storage)	-25~85 °C (-13~185 °F)
	Interface	RS-485
	Isolation Protection	5,000 VDC
	Communication Protocol	ASCII command & Modbus/RTU
	Communication Speed	Serial: From 1,200 to 115.2 k
	Comm. Distance	Serial: 1.2 km
	Data Flow Control	Yes
Digital Output	Channels	12 (Sink type) Open collector to 40V, 200 mA max. load
Digital Output	Power Dissipation	Chanel: 1 W max Total: 2.2 W (8 Channels)
