10.1″ Semi-rugged Tablet Features With Intel® N3350 / N4200 Processor With Windows®
Overview

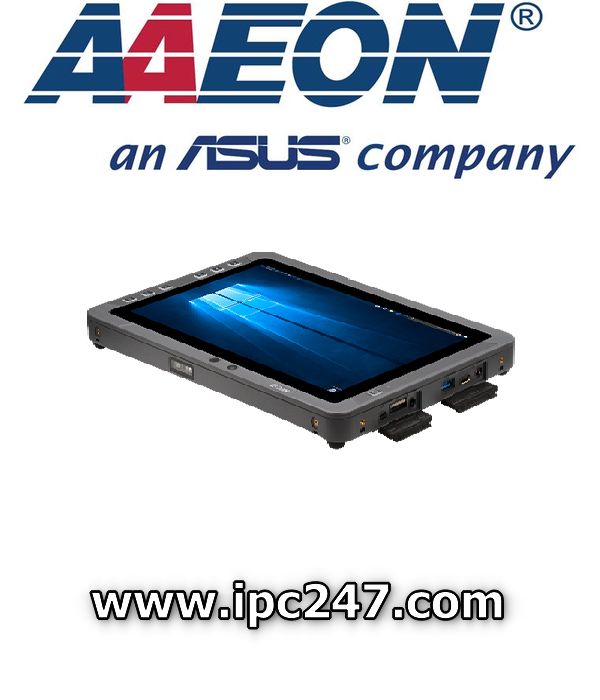

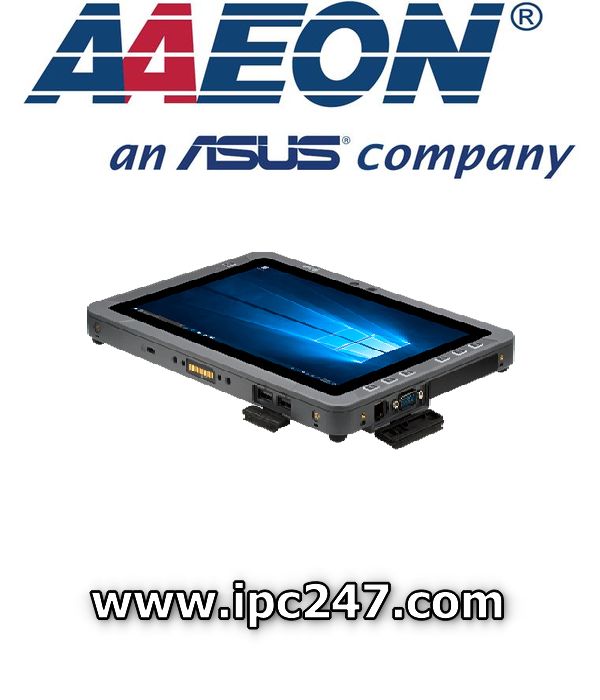

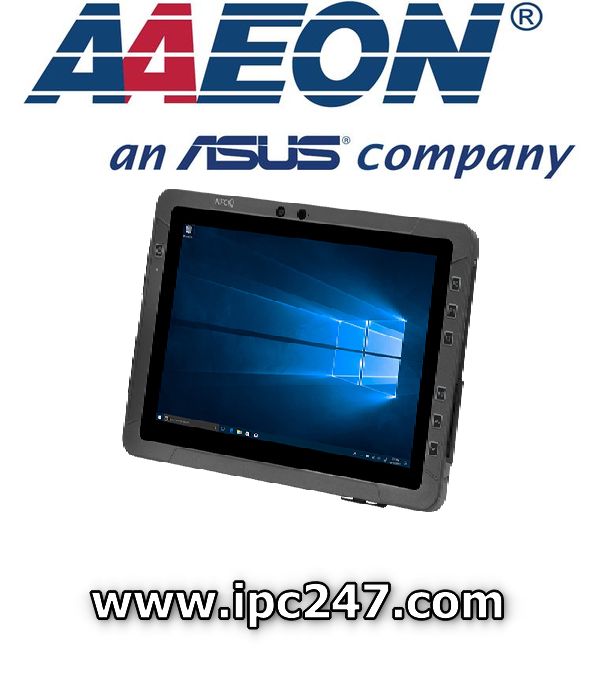

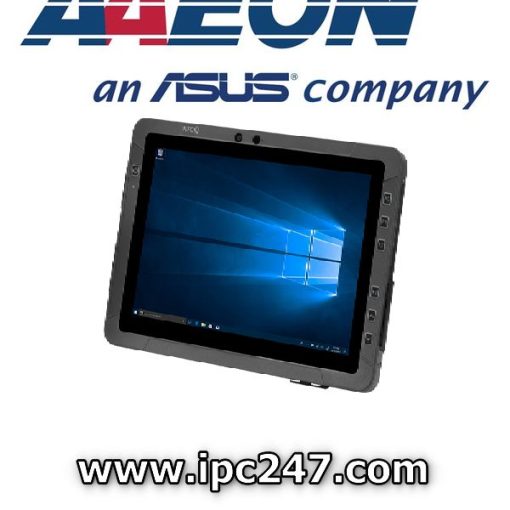

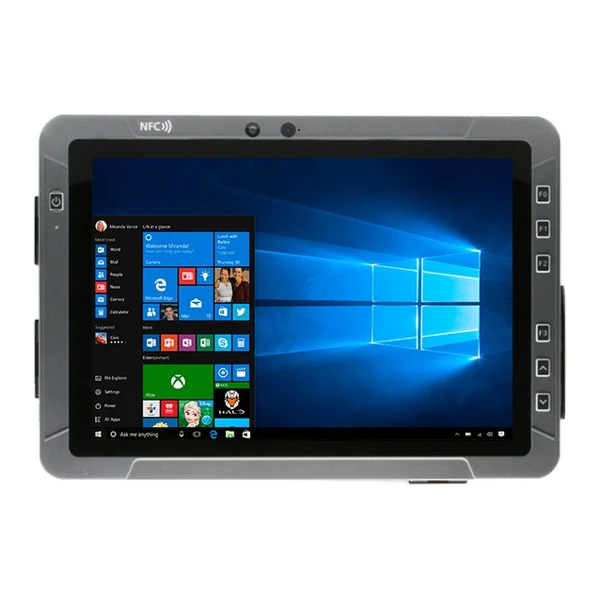

The RTC-1010M 10.1” Sunlight Readable Semi-Rugged Tablet from AAEON is powered by Intel Celeron N3350 or Pentium N4200 (formerly Apollo Lake). It features a wide range of options and rich features. It is powerful, flexible, and IP54 certified, making it built for business.
The RTC-1010M handheld computer comes standard with a choice of Windows 10 IoT , making it easy integrate into existing workspaces. The RTC-1010M is powered by Intel Celeron N3350 or Pentium N4200, formerly Apollo Lake. It also features a range of I/O interfaces, including Micro HDMI, USB 2.0, USB 3.2 Gen 1, and USB Type-C. It also comes with slots for Micro SD and SIM cards and includes a hot-swappable battery pack, meaning the RTC-1010M doesn’t need to shut down or recharge to keep up with work.
The RTC-1010M also has many options customers can choose from. These include a 2D barcode scanner, smart card reader, magnetic stripe card reader (MSR), and a range of accessories to support working with the RTC-1010M. AAEON manufacturer support also means the RTC-1010M can be custom built for the specific and unique needs of your application.
Semi-Rugged design means the RTC-1010M handheld computer is built for the demands of a workplace. The RTC-1010M is IP54 certified waterproof and dustproof, as well as drop tested to a height of 76cm (~30 inches). Its screen is also sunlight readable (optional), allowing easy operation both indoors and outdoors. Customized firmware is available for the RTC-1010M that enables users to operate the touchscreen while wearing gloves.
What sets the RTC-1010M Semi-Rugged Tablet handheld computer apart is its combination of support and features. It comes with durability and flexibility not found in consumer tablets, and is an affordable solution to fully rugged tablets. Additionally, AAEON offers support that is unparalleled to ensure our products continue to function as long as your business is open.
Features
- 10.1″ WXGA (1280 x 800) 300-nit TFT LCD (Default)
- Intel® Celeron™ N3350 1.1GHz Dual Core Up to 2.4GHz (N4200 Optional)
- Onboard DDR3L Memory, 4GB (Default)
- eMMC 64GB (mSATA III Up to 512GB Optional)
- Projected Capacitive Multi-Touch Screen
- WiFi 802.11b/g/n, Bluetooth 4.2, LTE (Optional)
- 2MP Front and 8MP Rear Camera
- RS-232/422/485 COM Port + 10/100/1000 Base-T RJ45 (Optional)
- USB 3.2 Gen 1 x 2 (USB Type-C x 1), USB 2.0 x 2
- 2D Barcode Scanner & Smart Card Reader (Optional)
- HF RFID Reader (Optional)
- MSR Reader (Optional)
- Up to 3 GNSS, GPS+Galileo(Default), GLONASS, BeiDou (Optional)
- One Hot-swappable Battery + Internal Battery, Up to 44W Battery Capacity
- IP54 Compliant, Drop 76cm
- Programmable Function Key: F0, F1, F2, F3, Volume Up/Down, With LED Illumination
- Windows® 10 IOT
Specifications [RTC-1010M]
| SYSTEM | |
| PROCESSOR | Intel® Celeron™ N3350 1.1GHz Dual core up to 2.4GHz Intel® Pentium™ N4200 1.1GHz Quad core up to 2.5GHz |
| OPERATING SYSTEM | Windows® 10 IOT Enterprise SAC |
| MEMORY | Onboard DDR3L 4GB (Default) |
| STORAGE | eMMC 64GB (mSATA III up to 512GB via inside mini-card slot, Optional) |
| DISPLAY | 10.1″ WXGA (1280×800) 300-nit TFT LCD With Projected Capacitive Multi-Touch Screen |

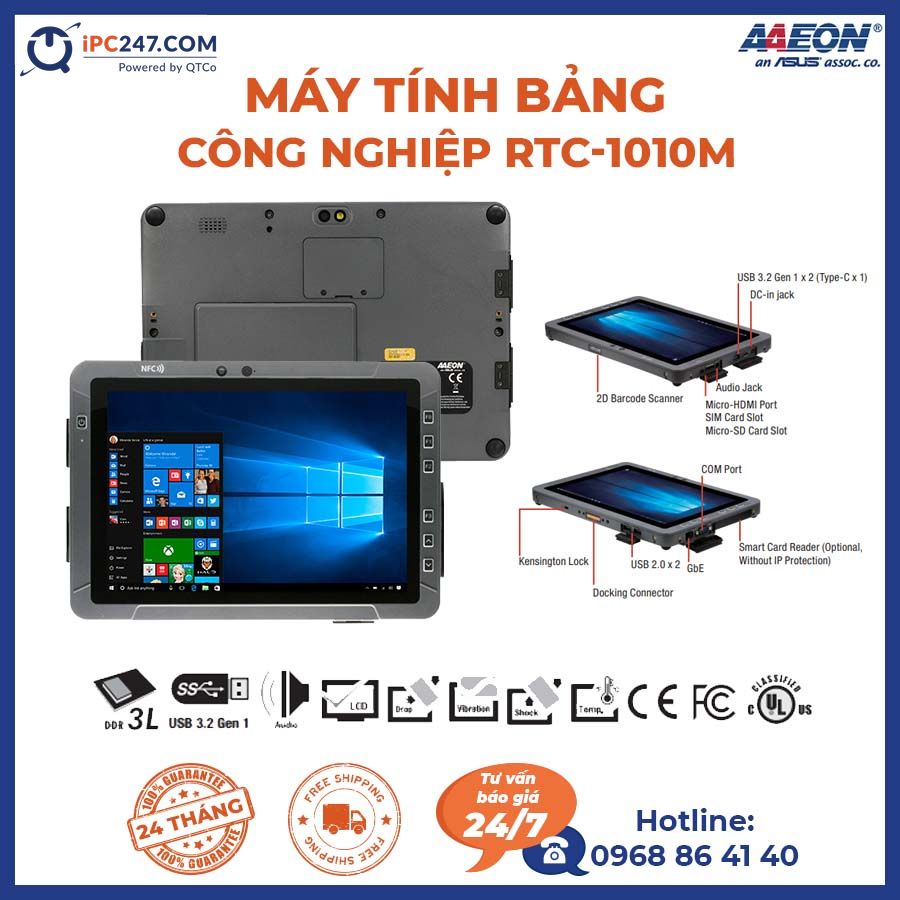

| I/O PORT | Micro-HDMI port x 1 SIM card slot x 1 Micro-SD card slot x 1 Audio jack x 1 USB 3.2 Gen 1 x 2 (USB Type-C x 1) USB 2.0 x 2, DC-in jack x 1, RS-232/422/485 COM Port x 1 (Optional), 10/100/1000 Base-T RJ45 x 1 (Optional), Smart card reader x 1 (Optional, Without IP protection), MSR reader x 1 (Optional, Without IP protection) |
| COMMUNICATION | Wi-Fi 802.11 b/g/n Bluetooth v4.2 (EDR + BLE) |
| NAVIGATION | Up to 3 GNSS, GPS + Galileo(Default), GLONASS, BeiDou (Optional) |
| WWAN (OPTIONAL) | LTE via mini-card slot (Optional) |
| CAMERA | 2MP front camera 8MP rear camera with flash |
| SENSOR | G-sensor, E-compass, Gyro-sensor, Light-sensor |
| EXPANSION SLOT | Inside mini-card slot x 1, Mini-card slot x 1, Docking connector: USB 2.0 x 1 |
| BARCODE SCANNER (OPTIONAL) | 2D Barcode scanner, OPTICON MDI-4100-USB (Optional) |
| HF RFID (OPTIONAL) | ISO 15693 (R/W) ISO 18092 (R/W) ISO 14443-A (R/W) ISO 14443-B (Only Read UID) Depend on card type |
| PHYSICAL KEY | F0 or Windows (Windows Start Key), F1(BCR Trigger Button (When BCR is enabled)), F2(Screenprint), F3(Ctrl+Alt+Del as Soft Reboot), Volume Up, Volume Down |
| MECHANICAL | |
| COLOR | Black & Dark Gray |
| DIMENSIONS (W X H X D) | 10.71″ x 7.48″ x 0.80″ (272.0 mm x 190.0 mm x 20.4 mm) |
| GROSS WEIGHT | 2.1 lb (0.95 Kg) based on configurations |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -4°F ~ 122°F (-20°C ~ 50°C) |
| STORAGE TEMPERATURE | -67°F ~ 158°F (-55°C ~ 70°C) |
| HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| ENVIRONMENTAL SEALING | IP54 |
| VIBRATION | — |
| DROP | Drop height: 76 cm Condition: Based on 2″ plywood over concrete |
| ESD | Air charge: +/- 8KV, Contact charge: +/- 4KV |
| CERTIFICATIONS AND STANDARDS | UL60950-1, CE, FCC |
| POWER SUPPLY | |
| AC/DC ADAPTER | AC 100 ~ 240 V, 50 ~ 60 Hz, Output: 12V/ 3A/ 36W |
| BATTERY LIFE | Li-ion Battery 8-hour battery life based on test configurations |
| MASTER BATTERY | Hot-swappable battery: 14.4V, 2270mAh, 32.7W |
| SLAVE BATTERY | 7.4V, 1530mAh, 11.3W |
| DISPLAY | |
| LCD | 10.1″ TFT-LCD/ 16:10 with LED backlight |
| RESOLUTION | 1280 x 800 |
| MAX. COLORS | N/A |
| DOT SIZE | 0.1692 (H) x 0.1692 (V) mm |
| BRIGHTNESS | 300 nits (800 nits optional) |
| VIEWING ANGLE | Horizontal: 170° (Typ.), Vertical: 170° (Typ.) |
| TOUCH SCREEN | |
| TOUCHSCREEN TYPE | Projected capacitive multi-touch screen (PCT) |
| LIGHT TRANSMISSION | Min 85% |
Ordering Information [RTC-1010M]
| PART NUMBER | RTC-1010-M0001 | RTC-1010-M0002 | RTC-1010-M0003 |
|---|---|---|---|
| CPU | N3350 | N3350 | N4200 |
| OS | Windows 10 IOT | Windows 10 IOT | Windows 10 IOT |
| LCD DISPLAY | 10.1” 300 nits |
10.1” 300 nits |
10.1” 300 nits |
| TOUCH SCREEN | PCT 10 points |
PCT 10 points |
PCT 10 points |
| SYSTEM MEMORY | DDR3L 4GB |
DDR3L 4GB |
DDR3L 4GB |
| STORAGE | EMMC 64GB |
EMMC 64GB |
EMMC 64GB |
| EXPANSION I/O | Micro-HDMI port x 1 SIM card slot x 1 Micro-SD card slot x 1 Audio jack x 1 USB 3.2 Gen 1 x 2 (USB Type-C x 1), USB 2.0 x 2 , DC-in jack x 1 |
Micro-HDMI port x 1 SIM card slot x 1 Micro-SD card slot x 1 Audio jack x 1 USB 3.2 Gen 1 x 2 (USB Type-C x 1), USB 2.0 x 2 , DC-in jack x 1 |
Micro-HDMI port x 1 SIM card slot x 1 Micro-SD card slot x 1 Audio jack x 1 USB 3.2 Gen 1 x 2 (USB Type-C x 1), USB 2.0 x 2 , DC-in jack x 1 |
| SENSOR | G-sensor E-compass Gyro-sensor Light-sensor |
G-sensor E-compass Gyro-sensor Light-sensor |
G-sensor E-compass Gyro-sensor Light-sensor |
| WIFI/ BLUETOOTH | 802.11 b/g/n + BT4.2 | 802.11 b/g/n + BT4.2 | 802.11 b/g/n + BT4.2 |
| NAVIGATION | GPS/ Galileo/ GLONASS | N/A | GPS/ Galileo/ GLONASS |
| LTE BANDS (MHZ) | — | — | — |
| CAMERA | Front: 2MP Rear: 8MP w/ Flash | Front: 2MP | Front: 2MP Rear: 8MP w/ Flash |
| 2D BARCODE SCANNER | Yes | — | Yes |
| SCR | Yes | — | — |
| HF RFID | Yes | — | Yes |
| MSR | Yes | — | — |
| BATTERY | 32.7W + 11.3W | 32.7W | 32.7W + 11.3W |
| POWER | DC12V | DC12V | DC12V |
Chính sách bán hàng
-
Bảo hành 24 tháng
- Miễn phí vận chuyển toàn quốc
- Miễn phí dịch vụ lắp đặt, tư vấn sử dụng tại Tp. Hồ Chí Minh
- Miễn phí dịch vụ bảo trì on-site trong vòng 1 năm tại Tp. Hồ Chí Minh (không bao gồm các huyện ngoại thành). Phản hồi trong vòng 24 tiếng kể từ khi nhận được thông báo.
- Dịch vụ lắp đặt, bảo trì on-site tại các tỉnh thành khác vui lòng liên hệ để được báo giá.
Máy tính bảng công nghiệp RTC-1010M
Downloads [RTC-1010M]
Packing List
- RTC-1010M
- 12V Power Adaptor
-
- *Power cord must be purchased separately.
Optional Accessories
| RDS-411-000 | Docking Station |
| RDS-411-001 | Docking Station, W/ Stand |
| RBC-1200-000 | Charging Dock |
| RTC-1010-HS-000 | Hand Strap |
| RTC-1010-SB-000 | Shoulder Belt, 2 Points |
| RTC-1200BAT01-000 | Battery Pack, 14.4V, 2270mAh, 2 pcs/Box |
