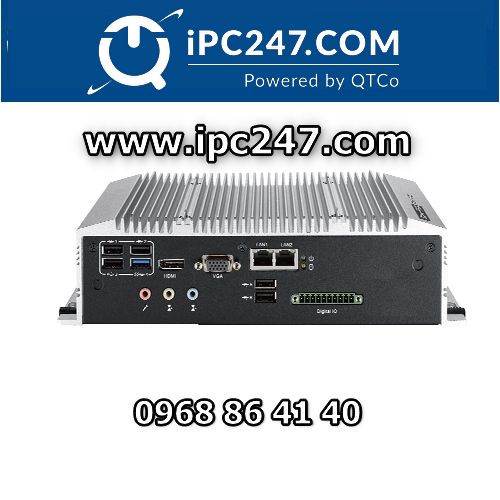

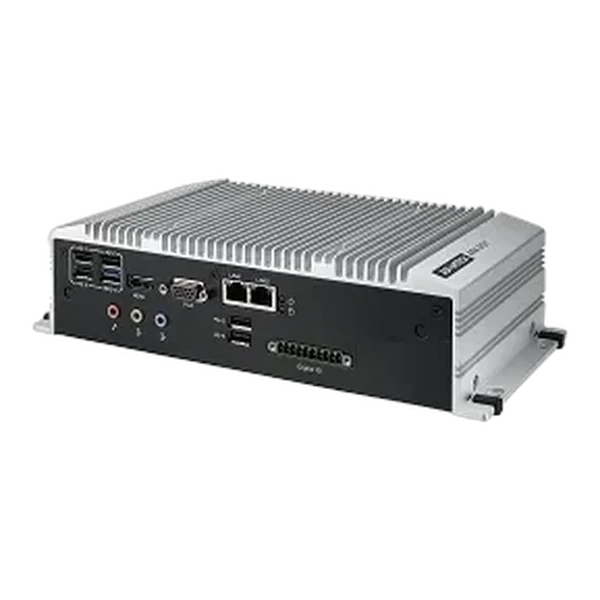

Máy tính công nghiệp không quạt
ARK-2121F
Overview
Intel® Celeron® Quad Core J1900 SoC with Multiple I/Os Fanless Box PC
Features
- Intel® Celeron® J1900 Quad Core 2.0 GHz SoC with Turbo boost support
- VGA and HDMI dual independent display
- 6 x COM, 6 x USB, isolated DIO
- 9 ~ 36 VDC wide range power input
- -20 ~ 70° C extend temperature operating
- Mini PCIe expansion with SIM holder for communication module
- mSATA and 1 x 2.5″ SATA storage device
- Optional DVI/2nd HDMI/4x GbE by project support
- Internal USB for security dongle
Specifications [ARK-2121F]
| Part Number | ARK-2121F-U0A1E |
|
Processor
|
|
|
CPU
|
Intel Celeron Processor J1900 Quad Core SoC
|
| Core Number |
4
|
| Frequency |
2.0 GHz, turbo boost up to 2.42 GHz
|
| L2 Cache |
2 MB
|
| BIOS |
AMI EFI
|
|
Memory
|
|
|
Technology
|
DDR3L 1333 MHz
|
| Max. Capacity |
8 GB
|
| Socket |
1 x 204-pin SO-DIMM
|
|
Graphics
|
|
|
Chipset
|
Intel Celeron J1900 SoC integrated, 7th Gen. Intel Graphic core
|
| Graphic Engine |
DirectX 11.1, OCL 1.2, OGL 3.2; Encode: H.264, MPEG2/4, VC1, WMV9; Decode: H.264, MPEG2
|
| VGA |
Up to 2048 x 1152 @ 60Hz
|
| HDMI |
1 HDMI port (default), HDMI 1.4a for HD video playback, 1080P at 60Hz (2nd HDMI support by project only)
|
| Display port |
Up to 2560 x 1600 at 60Hz (by projuct only)
|
| DVI-D |
Up to 1920 x 1200 at 60Hz (by Project only)
|
| Dual Display |
Yes, VGA + HDMI
|
|
Ethernet
|
|
|
LAN1/LAN2
|
10/100/1000Mbps Intel i210 GbE, support Wake On LAN, optional LAN3/LAN4 support by project
|
|
Audio
|
|
|
Interface
|
Realtek ALC888S, High Definition Audio. Line-out,Mic-in,Line-in
|
|
I/O Interface
|
|
|
Serial Port
|
6 x RS-232/422/485 with auto flow control
|
| USB Interface |
1 x USB 3.0, 5 x USB 2.0, 1 x internal USB 2.0 for security dongle
|
| PS/2 |
Yes ( by project only)
|
|
Other
|
|
|
Watchdog Timer
|
255 levels timer interval, setup by software
|
| Digital IO |
4ch digital input and 4ch digital output with 3kV isolation
|
|
Expansion
|
|
|
Mini PCIe
|
2 x full size Mini PCIe (1 with SIM holder)
|
|
Storage
|
|
|
HDD
|
Supports one SATA 2.5″ HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 600 MB/s)
|
| mSATA |
1 x full size mSATA socket, with USB signal co-lay
|
|
Software Support
|
|
|
Microsoft Windows
|
WES8, Windows 8, WES7, Windows 7
|
| Linux |
Support by project
|
|
Power
|
|
|
Power Type
|
ATX
|
| Input Voltage |
9 ~ 36 VDC
|
| Power Adaptor |
AC to DC, DC19 V/3.42 A, 65 W (Optional)
|
| Consumption |
Typical 8.4 W, Max. 16.2 W
|
|
Mechanical
|
|
|
Construction
|
Aluminum housing
|
| Mounting |
Din-Rail mounting, Desk/wall-mounting, VESA mounting
|
| Dimensions |
264.5 x 68.4 x 133.0 mm (10.41″ x 2.69″ x 5.24″)
|
| Weight |
2.3 kg (5.07 lb)
|
|
Environment
|
|
|
Operating Temperature
|
With extended temperature peripherals: -20 ~ 70° C (-4 ~ 158° F) with 0.7m/s air flow;With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow
|
| Storage Temperature |
-40 ~ 85° C (-40 ~ 185° F)
|
| Relative Humidity |
95% @ 40° C (non-condensing)
|
| Vibration during Operation |
With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.
|
| Shock During Operation |
With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration
|
| EMC |
CE/FCC Class A, CCC, BSMI
|
| Safety Certifications |
CB, UL, CCC, BSMI
|
Chính sách bán hàng
- Bảo hành 24 tháng
- Miễn phí vận chuyển toàn quốc
- Miễn phí dịch vụ lắp đặt, tư vấn sử dụng tại Tp. Hồ Chí Minh
- Miễn phí dịch vụ bảo trì on-site trong vòng 1 năm tại Tp. Hồ Chí Minh (không bao gồm các huyện ngoại thành). Phản hồi trong vòng 24 tiếng kể từ khi nhận được thông báo.
- Dịch vụ lắp đặt, bảo trì on-site tại các tỉnh thành khác vui lòng liên hệ để được báo giá.
