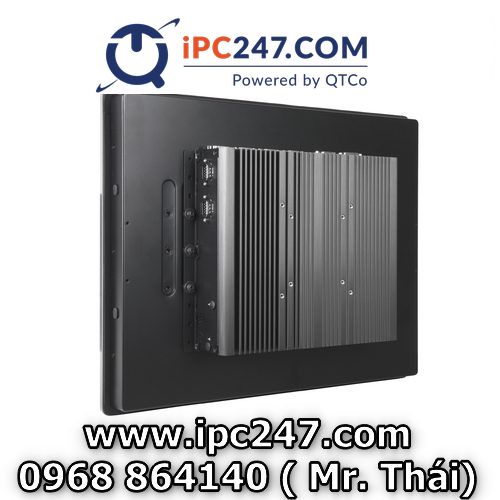

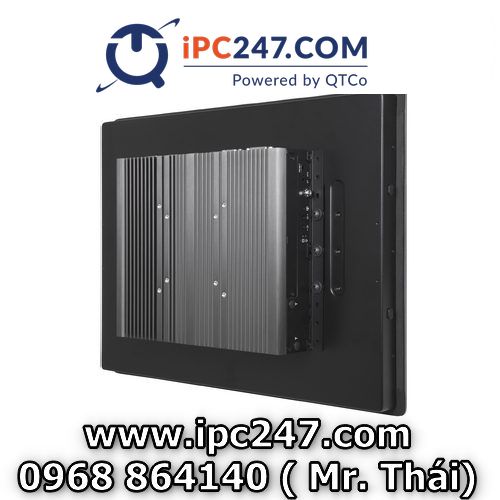

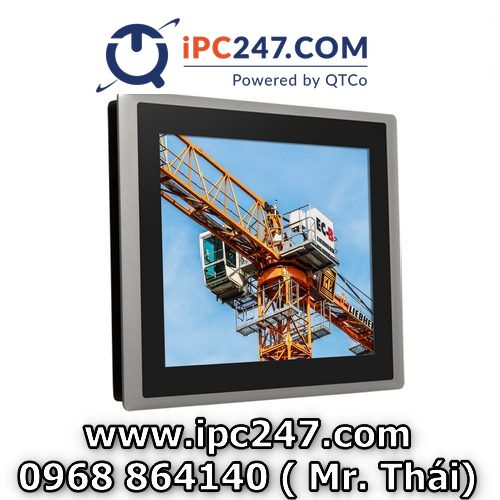

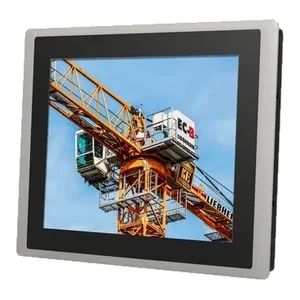

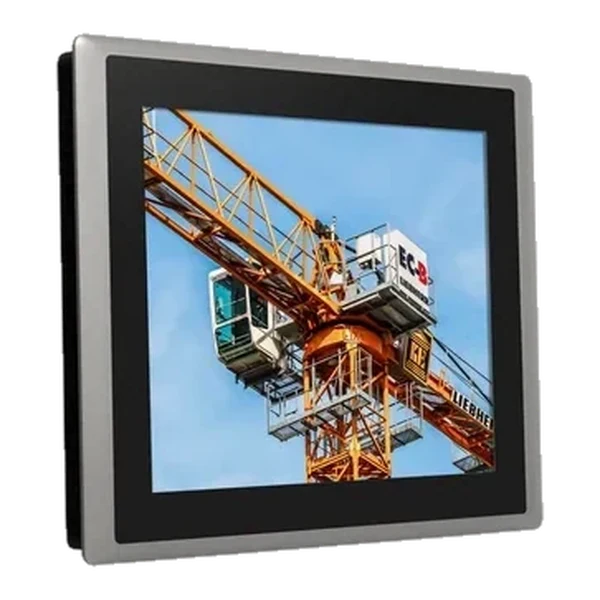

Máy tính công nghiệp màn hình cảm ứng CS-115/P2002
Overview
15″ TFT-LCD Sunlight Readable Touch Panel PC with 6th Gen. Intel® Core™ Processor
Features
- 15” TFT-LCD with Ultra High Brightness up to 1,600 nits and 1024 x 768 (XGA) Resolution
- Onboard Intel® 6th Generation Core™ Processor U Series (15W)
- Supports 2x DDR4 SO-DIMM Socket, up to 32 GB
- Integrated Intel® HD Graphics 520, Triple Display Support
- 2x 2.5” SATA Drive Bay, 1x mSATA, and 1x CFast Socket
- Rich I/O (2x GbE LAN, 6x COM, 5x USB, 16x Isolated DIO)
- 2x Full-size Mini-PCIe Socket for Wireless and I/O Expansion
- Wide Range Operating Temperature -20°C to 70°C
- Designed with Aluminum Die-casting Front Frame
- True Flat IP65 Front Panel Protection
- Supports Panel / Wall / VESA Mounting
- Convertible Display System (CDS) Technology Supported
- Supports Optical Bonding
Specifications
| Model Name | CS-115/P2002 | |
| Model No. | CS-115C/P2002 | |
| Display | LCD Size | 15″ (4:3) |
| Max. Resolution | 1024 x 768 | |
| Brightness (cd/m2) | 1600 | |
| Contrast Ratio | 800 : 1 | |
| LCD Color | 16.2M | |
| Pixel Pitch (mm) | 0.297 (H) x 0.297 (V) | |
| Viewing Angle (H-V) | 160 / 160 | |
| Backlight MTBF | 50,000 hrs (LED Backlight) | |
| Touch | Resistive 5-wire | – |
| Projected Capacitive | V | |
| Processor System | Onboard 6th Intel® Core™ U processors (Skylake) – Intel® Core™ i5-6300U processor (3M Cache, up to 3.00 GHz) – Intel® Core™ i3-6100U processor (3M Cache, 2.30 GHz) – TDP: 15 W – BIOS: AMI 64Mbit SPI BIOS |
|
| Memory | 2x DDR4 260-pin SO-DIMM socket, support up to 32 GB (2133MHz, un-buffered and non-ECC type) |
|
| Graphics | Intel® HD Graphics 520 | |
| Triple display with 1x VGA, 1x DVI-D and 1x CDS interface | ||
| Audio | Realtek® ALC888-GR | |
| High Definition Audio | ||
| I/O Interface | 1x VGA (Up to 1920 x 1080 @ 60Hz), DB-15 | |
| 1x DVI-D (Up to 1920 x 1080 @ 60Hz) | ||
| 1x CDS Interface, Compact PCI Connector | ||
| 2x GbE LAN (Support WoL, Teaming, Jumbo Frame and PXE), RJ45 – GbE1: Intel I219LM – GbE2: Intel I210AT |
||
| 2x PoE+ (with Optional CFM PoE Module) – Comply with IEEE 802.3at, Offers Up to 25.5W Per Port |
||
| 6x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9 | ||
| 4x USB 3.0, Type-A | ||
| 1x USB 2.0, Type-A | ||
| 16x Isolated DIO (8x DI/8x DO), 20-Pin Terminal Block | ||
| 1x Line-out & 1x Mic-in, Phone Jack 3.5mm | ||
| 1x Power On/Off Switch | ||
| 1x Reset Button | ||
| 1x AT/ATX Switch | ||
| 1x Remote Power On/Off Connector, 2-Pin Terminal Block | ||
| 1x External FAN Connector, 4-Pin Terminal Block | ||
| Storage | 2x 2.5” SATA HDD/SSD Bay, Support RAID 0/1 (Gen3) | |
| 2x mSATA (One Shared by Mini-PCIe Socket) (Gen2) | ||
| 1x CFast Socket (Gen3) | ||
| Expansion | 1x CFM PoE interface | |
| 1x CFM IGN interface | ||
| 2x Full-size Mini-PCIe Socket | ||
| 1x Universal I/O Bracket | ||
| 1x SIM Socket | ||
| 4x Antenna Hole | ||
| Other Function | Support CDS Technology | |
| Support CFM Technology | ||
| Support Instant Reboot Technology (0.2 sec) | ||
| Support Power Ignition Sensing (IGN) | ||
| Support OSD Function (LCD On/Off, Brightness Up, Brightness Down for CDS Display Module) |
||
| Internal Speaker AMP 2W + 2W | ||
| SuperCap Integrated | ||
| Watchdog Timer: Software Programmable Supports 1~255 sec. System Reset |
||
| Power Requirement | Support AT/ATX Power Mode | |
| Power Input Voltage 9~48VDC | ||
| One 3-pin Terminal Block Connector | ||
| Optional Power Adapter 24V/5A 120W | ||
| Physical | Dimension (WxHxD): 408 x 312.4 x 84.5 mm | |
| Weight: 7.28 kg | ||
| Front Panel Construction: Flat Rugged Aluminum Die-Casting Bezel | ||
| Support Panel/Wall /Arm/ VESA / Mounting | ||
| Fanless Design | ||
| Jumper-less Design | ||
| Protection | Reverse Power Input Protection | |
| Over Voltage Protection: 58V | ||
| Over Current Protection: 15A | ||
| ESD Protection: +/-15kV (air), +/-8kV (contact) | ||
| Surge Protection: 3kW | ||
| Operating System | Windows® 10 Windows® 8.1 Windows® 7 |
|
| Environment | Operating Temperature: -20°C to 70°C (With extended temperature peripherals; Ambient with air flow According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) |
|
| Storage Temperature: -20°C to 70°C | ||
| Relative Humidity: 90% RH @ 40°C (Non-condensing) | ||
| Shock: Operating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-64) | ||
| Vibration: Operating, 1.5 Grms, 5-500 Hz, 3 Axes | ||
| IP Level: IP65 Compliant Front Panel | ||
| EMC: CE, FCC Class A | ||
