CS-110H/P1001 – Máy tính công nghiệp màn hình cảm ứng
Overview

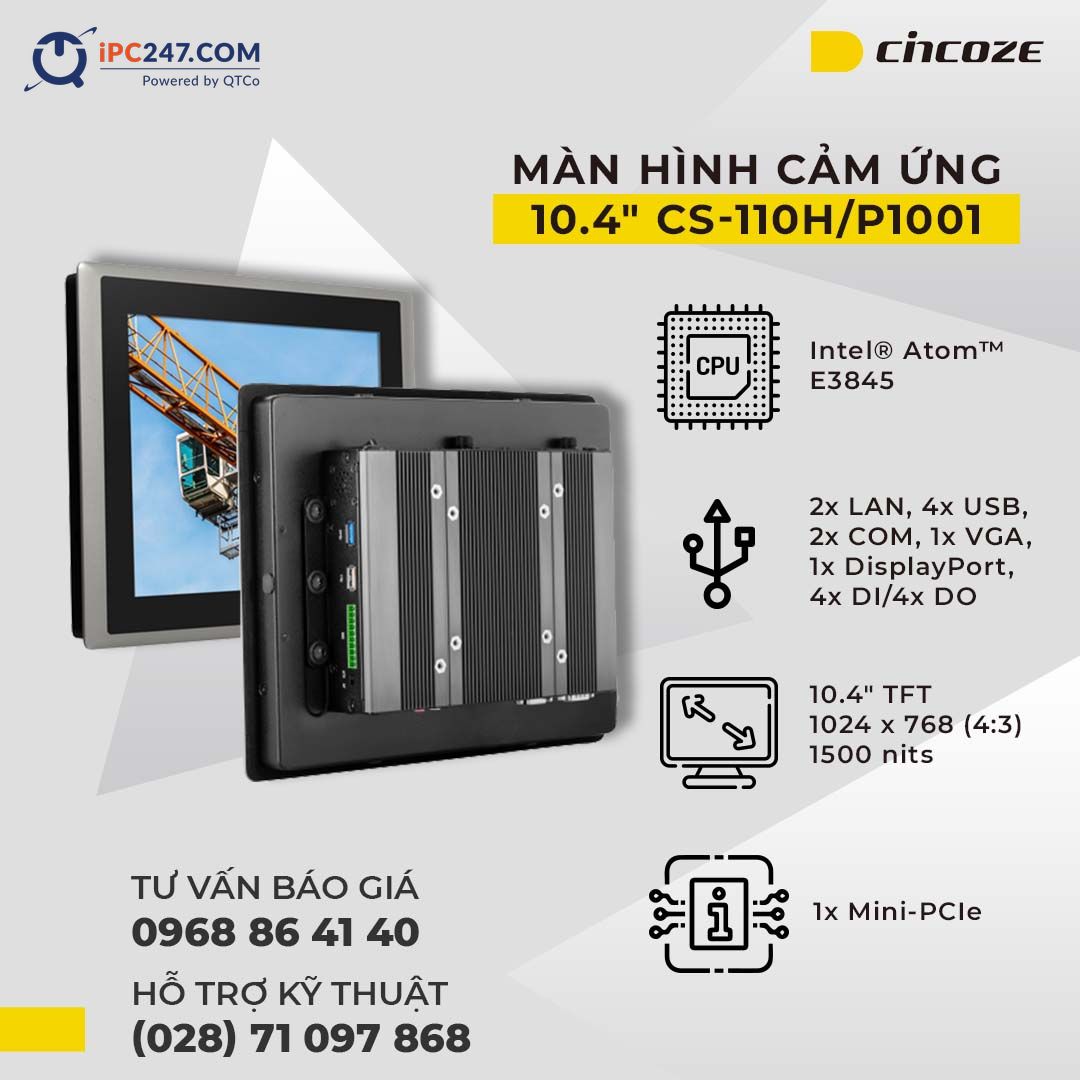

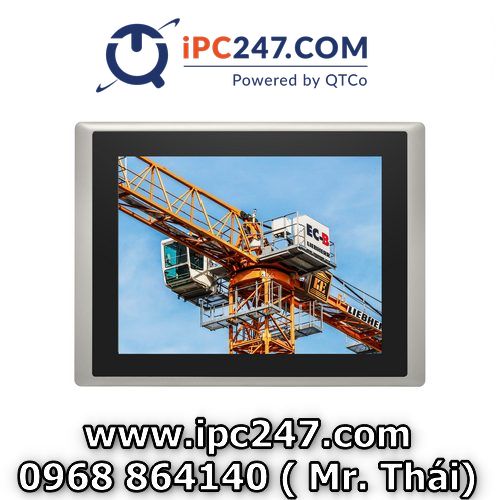

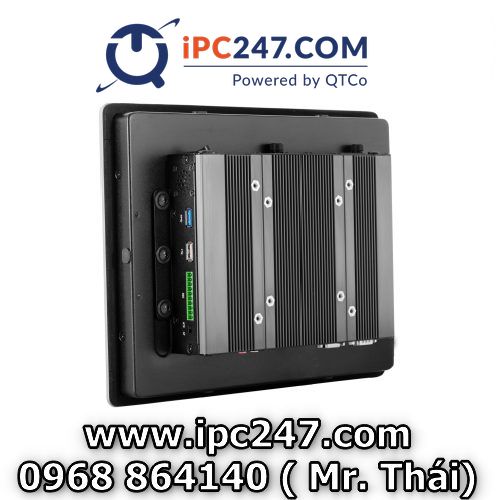

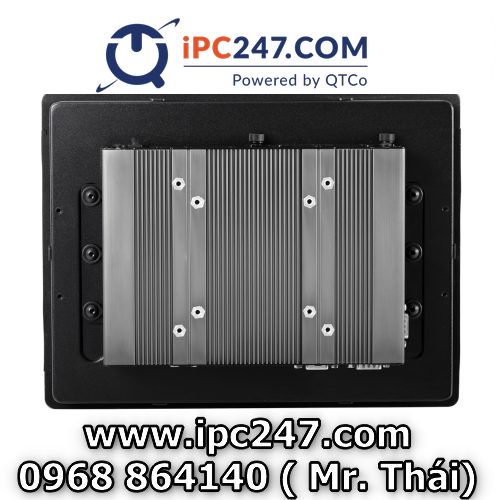

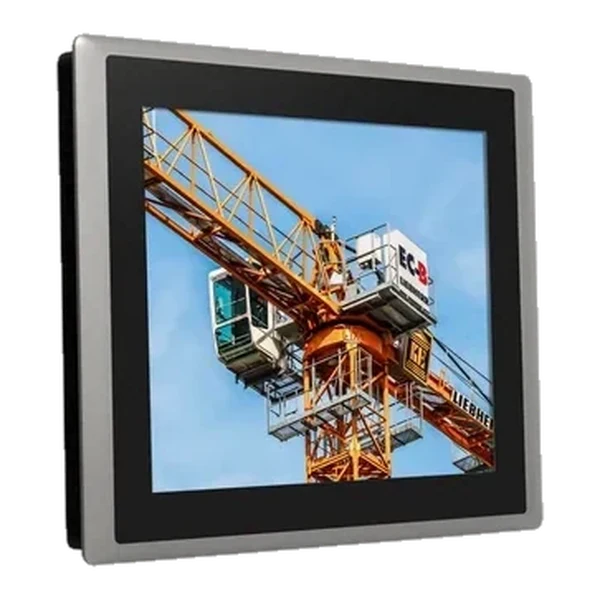

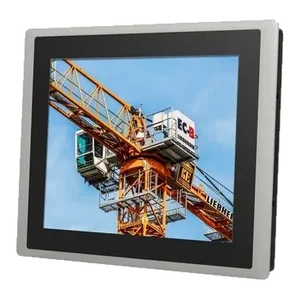

10.4″ TFT-LCD Sunlight Readable Touch Panel PC with Intel® Atom™ E3845 Quad Core Processor
Features
- 10.4” TFT-LCD with Ultra High Brightness up to 1,500 nits and 1024 x 768 (XGA) Resolution
- Onboard Intel® Atom™ E3845 Processor Quad Core, 1.91GHz
- Supports 1x DDR3L SO-DIMM Socket, up to 8 GB
- 1x 2.5” SATA Drive Bay, 1x CFast Card and 1x SIM Card Socket
- 2x GbE LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO
- 1x Mini-PCIe Expansion Socket for Wireless and I/O Expansion
- Wide Range Operating Temperature -20°C to 70°C
- Designed with Aluminum Die-casting Front Frame
- True Flat IP65 Front Panel Protection
- Supports Panel / Wall / VESA Mounting
- Convertible Display System (CDS) Technology Supported
- Supports Optical Bonding
Specifications
| Model Name | CS-110/P1001 | |
| Model No. | CS-110C/P1001 | |
| Display | LCD Size | 10.4″ (4:3) |
| Max. Resolution | 1024 x 768 | |
| Brightness (cd/m2) | 1500 | |
| Contrast Ratio | 1400 : 1 | |
| LCD Color | 16.2M | |
| Pixel Pitch (mm) | 0.206 (H) x 0.206 (V) | |
| Viewing Angle (H-V) | 178 / 178 | |
| Backlight MTBF | 50000 hrs (LED Backlignt) | |
| Touch | Resistive 5-wire | – |
| Projected Capacitive | V | |
| Processor System | CPU | Intel Atom E3845 |
| Core Number | 4 | |
| Frequency | 1.91 GHz | |
| Cache | 2 MB | |
| Watts | 10W | |
| Memory | Transfer Rate | DDR3L 1066/ 1333MHz (un-buffered and non-ECC) |
| Max. Capacity | 8 GB | |
| Socket | 1x 204-Pin SODIMM | |
| Graphics | Chipset | Intel® HD Graphics |
| Dual Display | VGA + DP VGA + CDS DP + CDS |
|
| Audio | Interface | Realtek ALC888-GR, High Definition Audio |
| I/O Interface | VGA | 1x DB-15 connector, CH7517, Up to 1920×1080@60Hz |
| DP | 1x DP connector, Up to 1920×1080@60Hz | |
| LAN | 2x 10/100/1000 Mbps, RJ45 GbE1: Intel I210AT GbE2: Intel I210AT Support Wake On Lan, Teaming, Jumbo frame, IEEE 1588v2, PXE |
|
| POE+ | – | |
| Serial Port | 2x RS-232/422/485, DB9 Support 5V/12V |
|
| USB 3.0 | 1x USB 3.0, Type-A | |
| USB 2.0 | 3x USB 2.0, Type-A | |
| DIO | 4 in/4 out | |
| Line-Out | 1x Phone Jack 3.5mm | |
| Mic-In | 1x Phone Jack 3.5mm | |
| Power on/off switch | V | |
| Reset Button | V | |
| AT/ATX Switch | V | |
| Remote Power On/Off Connector | – | |
| External FAN Connector | – | |
| Storage | SSD/HDD | 1x Internal SATA port for 2.5” HDD/SSD |
| mSATA | – | |
| CFast | 1 | |
| Expansion | PCI | – |
| PCIe | – | |
| CFM Interface (Control Function Module) |
– | |
| Mini PCI Express | 1x Full-size Mini PCIe | |
| Universal I/O Bracket | ||
| SIM Socket | 1(internal) | |
| Antenna Holes | 2 | |
| Other Function | CDS Function | V |
| OSD Function | LCD On/Off, Brightness Up/Down (With Display Module) |
|
| Power Ignition Sensing | – | |
| Internal Speaker | AMP 2W + 2W | |
| Super Cap | – | |
| Instant Reboot | V | |
| Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset | |
| Power Requirement | Power Type | AT/ATX |
| Power Input Voltage | 9~48VDC | |
| Connector | 3-pin Terminal Block | |
| Power Adaptor | Optional AC/DC 12V/5A, 60W | |
| Physical | Dimension (WxHxD) | 295 x 227.3 x 65 mm |
| Weight Information | 3.58 kg | |
| Construction Front Panel | Die-cast Flat Surface | |
| Mounting | Panel/ Wall/Arm/ VESA Mounting | |
| Fanless Design | V | |
| Cable-less Design | – | |
| Jumper-less Design | – | |
| Protection | Reverse Power Input Protection | V |
| Over Voltage Protection | V | |
| Over Current Protection | V | |
| ESD Protection | V | |
| Operating Stystem | Windows | Windows® 10 Windows® 8.1 Windows® 7 |
| Linux | Linux® Kernel 3.X | |
| Environment | Operating Temperature | Ambient with air flow: -20°C to 70°C (with Industrial Grade Peripherals) |
| StorageTemperature | -30°C to 80°C | |
| Relative Humidity | 90% RH @ 40°C (Non-Condensing) | |
| IP Level | IP 65 Compliant Front Panel | |
| EMC | CE/ FCC Class A | |
