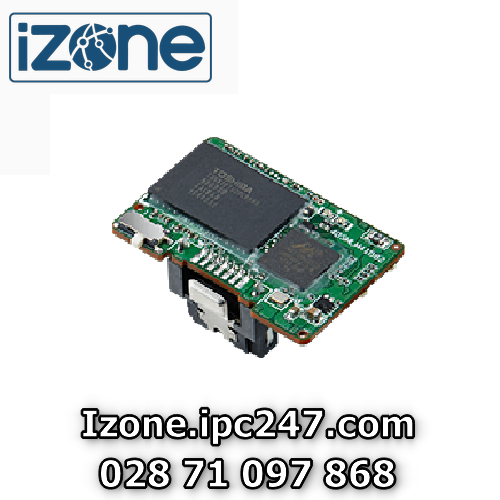

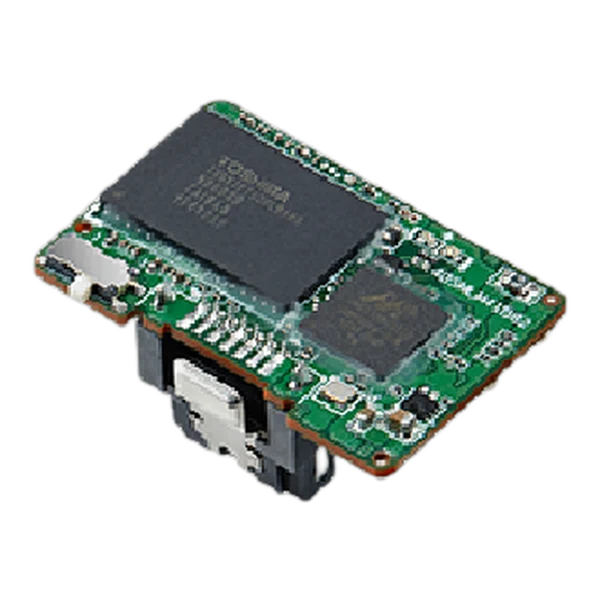

Ổ cứng công nghiệp INNODISK SATADOM-MH 3IE4
Overview
Innodisk SATADOM-MH 3IE4 is characterized by L³ architecture with the latest SATA III (6.0GHz) Marvell NAND controller. Innodisk’s exclusive L³ architecture is L² architecture multiplied LDPC (Low Density Parity Check). L² (Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a real-time wear leveling algorithm to provide high performance and prolong lifespan with exceptional reliability.
Innodisk SATADOM-MH 3IE4 is designed for industrial field, and supports several standard features, including TRIM, NCQ, and S.M.A.R.T. In addition, Innodisk’s exclusive industrial-oriented firmware provides a flexible customization service, making it perfect for a variety of industrial applications.
The innovative Pin 8 uses the SATA connector itself as a power supply to drive the device without external cables. It could be connected directly to the SATA on-board socket on customer’s system without additional power cable. Besides, the booting time for operation and the power consumption is less than hard disk drive (HDD), and can work under harsh environment compile with ATA protocol, no additional drives are required, and the SSD can be configured as a boot device or data storage device.
Product Features
- SATA III soultion for industrial field
- Exclusive L³ architecture
- DRAM-less, 100% data integrity
- Excellent random performance
- Designed with hardware LDPC ECC engine
- Built-in Pin 8 power supply
- Hardware write protection supported
Specifications:
| Model Name | SATADOM-MH 3IE4 |
| Interface | SATA III 6.0 Gb/s |
| Flash Type | iSLC |
| Type | Horizontal |
| Capacity | 16GB~128GB |
| Max. Channels | 2 |
| Sequential R/W (MB/sec, max.) | 540/400 |
| Max. Power Consumption | 0.855W (5V x 171mA ) |
| Thermal Sensor | Y |
| H/W Write Protect | Y |
| Pin 7 Power | Y |
| Pin 8 Power | Y |
| S.M.A.R.T. | Y |
| ATA Security | Y |
| Dimension (WxLxH/mm) | 33.6 x 23.5 x 14.8 |
| Vibration | 20G@7~2000Hz |
| Shock | [email protected] |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
Order Information:
| Operation Temp. | 16GB | 32GB | 64GB | 128GB |
| Standard Grade (0°C ~ +70°C) | DHSMH-16GM41BCADC* | DHSMH-32GM41BCADC* | DHSMH-64GM41BCADC* | DHSMH-A28M41BCADC* |
| Industrial Grade (-40°C ~ +85°C) | DHSMH-16GM41BWADC* | DHSMH-32GM41BWADC* | DHSMH-64GM41BWADC* | DHSMH-A28M41BWADC* |
