Thiết bị mạng cho máy tính để bàn
(FWS-2271)
- Desktop 6 LAN Ports Network Appliance with Intel® N3350 Processor SoC
Overview
The AAEON FWS-2271 is an affordable, high-performance Network Appliance designed to address the needs of home offices, small and medium businesses, and branch offices. The compact design with tough steel casing is ideal for wiring closets, conference rooms, or small offices requiring reliable performance and quiet operation.
The 6 Port Gigabit Ethernet Network Appliance provides a cost-effective way for SOHO and SMB to deploy network applications including Firewall, VPN, Load Balancing, Software defined WAN (SD-WAN), Unified Threat Management (UTM), Wireless Network Access Controller (NAC) and Virtual Customer Premise Equipment (vCPE) quickly and easily without complicated configuration.
Designed around the 6W TDP Intel® Atom™ N3350 Processor SoC, the FWS-2271 is a very capable, extremely energy-efficient network appliance with excellent performance. Expansion opportunities are available with 2 Mini-card slots enabling the addition of Wi-Fi, 3G, 4G LTE for greater connectivity, in addition to an internal SATA III connector for a 2.5″ HDD. The advanced security and management features are easily accessible via a dedicated console port and an integrated HDMI port enabling both local and remote administration.
Features
- Intel® N3350 Processor SoC
- 204-pin Dual-channel DDR3L 1867MHz SODIMM Up to 1, 8 GB
- 10/100/1000Base-TX Ethernet Port x 6
- CFast™ Socket x 1
- Mini-Card Slot x 2 (USB Signal only with SIM Socket x 1)
- Accessible SIM Cover
- Supports TPM
- RJ-45 Console x 1, USB 3.2 Gen 1 x 2, HDMI x 1
- Supports Antenna up to 4
Specifications [FWS-2271]
| SYSTEM | |
| FORM FACTOR | Desktop 6-port Network Appliance |
| PROCESSOR | Onboard Intel® Celeron® processor N3350 |
| CHIPSET | Integrated |
| SYSTEM MEMORY | 204-pin DDR3L 1867MHz SODIMM Up to 1, 8 GB |
| NETWORK | |
| ETHERNET | Intel® i211 (Co-lay with Intel® i210), Gigabit Ethernet x 6 (BOM Optional 4 Ports) |
| BYPASS | Supports up to 2 pairs bypass function |
| DISPLAY | |
| GRAPHICS CONTROLLER | Intel® HD Graphics 505 Intergrated |
| CONNECTOR | HDMI x 1 |
| STORAGE | |
| HDD | 2.5” HDD Bay x 1 |
| CF/CFAST/MSATA | CFast™ socket x 1 (Co-lay for BOM Optional CompactFlash™ socket x 1) |
| INTERNAL/ EXPANSION INTERFACE | |
| PCIE SLOT | — |
| MINI-PCIE SLOT | Mini-Card socket (full-size) with SIM socket x 2 |
| KB MOUSE | Reserved pin-header |
| USB | USB 3.2 Gen 1 Type A on I/O side x 2 |
| MISCELLANEOUS | |
| RTC | Internal RTC |
| WATCHDOG TIMER | 1~255 steps by software programmable |
| SOFTWARE BUTTON | GPIO Programmable push button x 1 |
| TPM | Optional TPM v1.2 9660/TPM2.0 9665 |
| GPIO | Reserved internal pin header 8-bit Digital I/O interface (4-in /4-out) |
| FAN | System Fan x 1 |
| MTBF (HOURS) | 118725 |
| COLOR | White |
| PHYSICAL & ENVIRONMENTAL SPEC | |
| POWER REQUIREMENT | 12V DC In/ 40W power adapter x 1 |
| OPERATING TEMPERATURE | 32°F ~ 104°F (0°C ~ 40°C) |
| STORAGE TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C) |
| OPERATING HUMIDITY | 10%~80% relative humidity, non-condensing |
| STORAGE HUMIDITY | 10%~80% @40°C, non-condensing |
| VIBRATION | 0.5 Grms/ 5 ~ 500Hz/ operation (2.5” Hard Disk Drive) 1.5 Grms/ 5 ~ 500Hz/ non-operation |
| SHOCK | 10 G peak acceleration (11 m sec. duration), operation 20 G peak acceleration (11 m sec. duration), non-operation |
| DIMENSION (W X D X H) | 7.87″ x 4.13″ x 1.73″(200mm x 105mm x 44 mm) |
| I/O | |

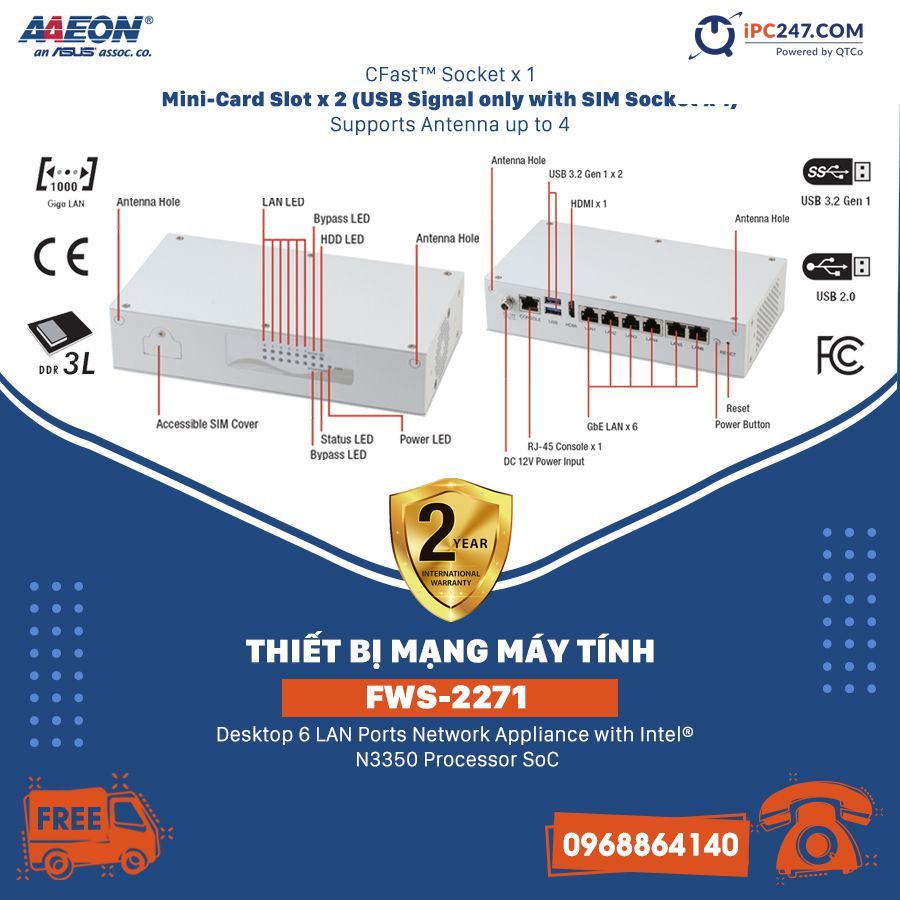

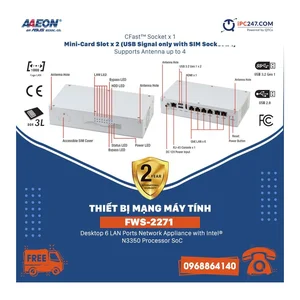

| FRONT PANEL | Bypass LED x 2 Power LED x 1 Status LED x 1 HDD Active LE 1 LAN LED x 12 |

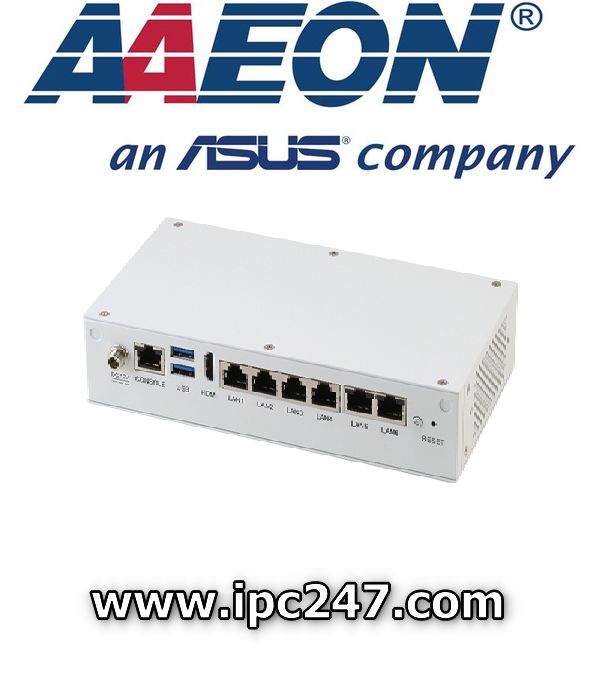

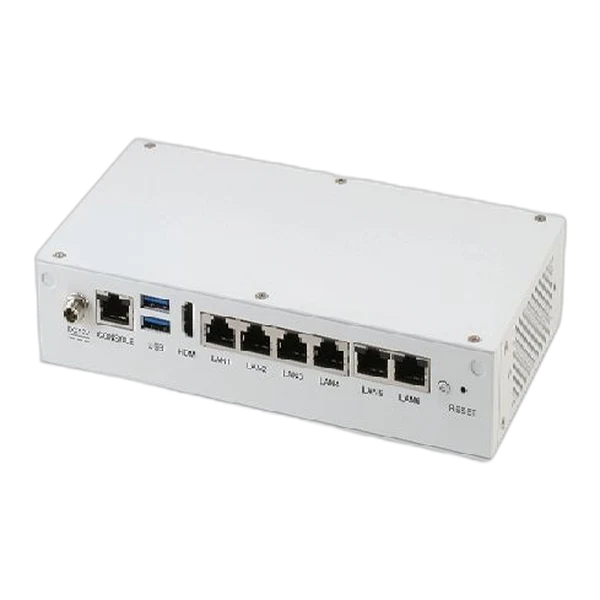

| REAR PANEL | USB 3.2 Gen 1 Port x 2 RJ-45 Port x 6 (BOM Optional RJ-45 Port x 4) RJ-45 Console x 1 12V DC Power Input x 1 Software Programmable button x1 HDMI x 1 Power Button x 1 |
Ordering Information [FWS-2271]
| PART NUMBER | FWS-2271E6-A10-A10-00 |
|---|---|
| CPU | Intel® Celeron® N3350 |
| MEMORY | DDR3L, SODIMM Single Channel |
| BYPASS | 2 pairs |
| MINI-CARD SLOT | Full Size (PCIe+USB) x 1 Full Size (USB Only) + SIM socket x 1 |
| STORAGE | SATA II Port x 1, CFast™ socket x 1 |
| LAN | 6 |
| USB | USB 3.2 Gen 1 x 2 |
| CONSOLE | RJ-45 x 1 |
| SYSTEM FAN | Fan x 1 |
| TPM | — |
| DISPLAY | HDMI x 1 |
| MOUNTING | Desktop |
| POWER | DC |
Downloads [FWS-2271]
Packing List
- SATA Cable x 1
- SATA Power Cable x 1
- Power Adapter
- FWS-2271
Optional Accessories
| 1700091805 | Console Cable |
| 1702031802 | Power Cord, 3P-250V/10A, 180D, 1.8M, USA, YP22/YP12 |
| 1702031803 | Power Cord, 3P-250V/10A, 180D, 1.8M, VDE, YP22/YP12 |
| 170203180B | Power Cord, 3P-250V/10A, 180D, 1.8M, China, YP-03/YC-12 |
| 170203180E | Power Cord, 3P-125V/7A, 1.8M, PSE, YP12/YC-12 |
